Toyota RAV4 Headlamp — Figure 8101

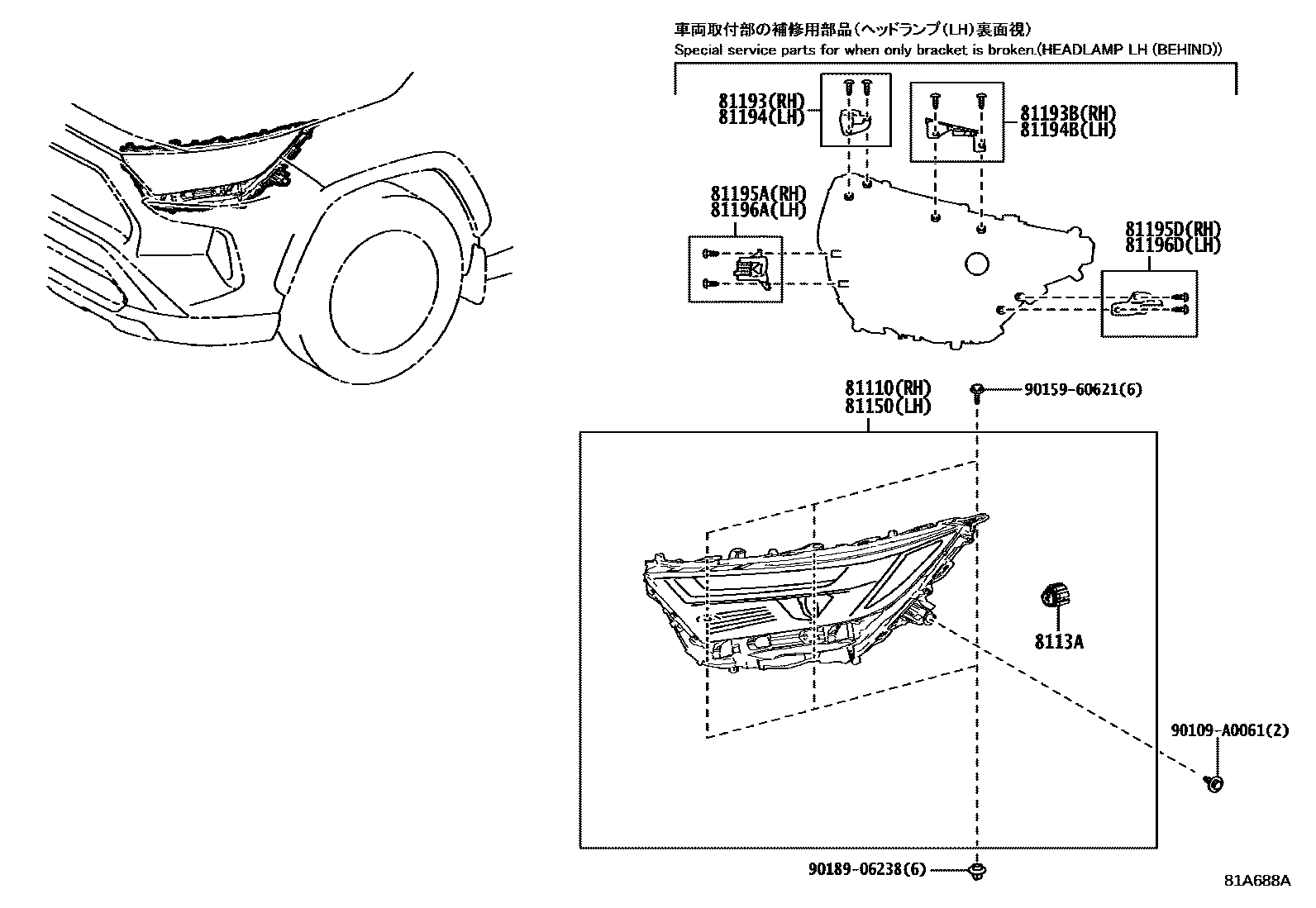

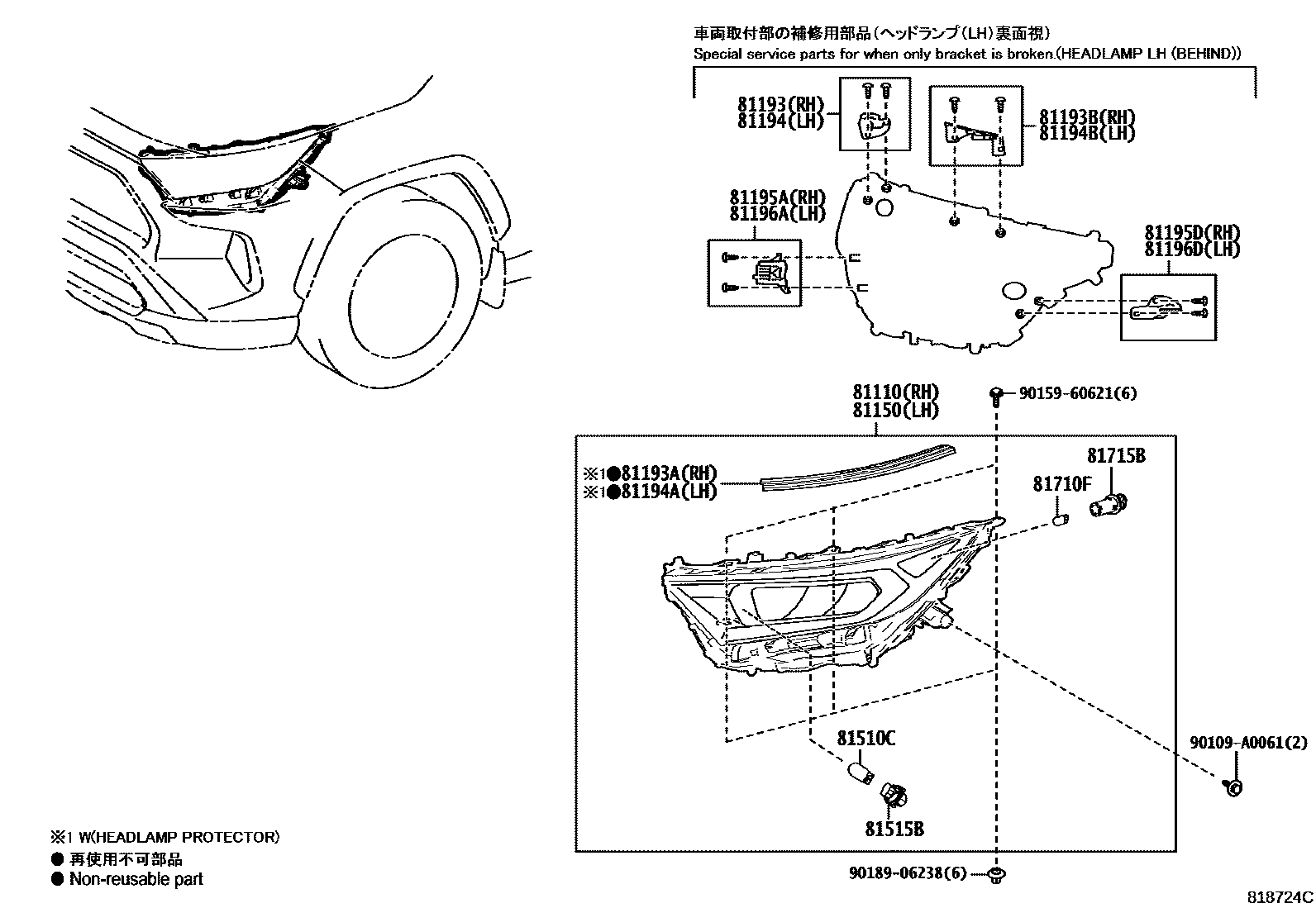

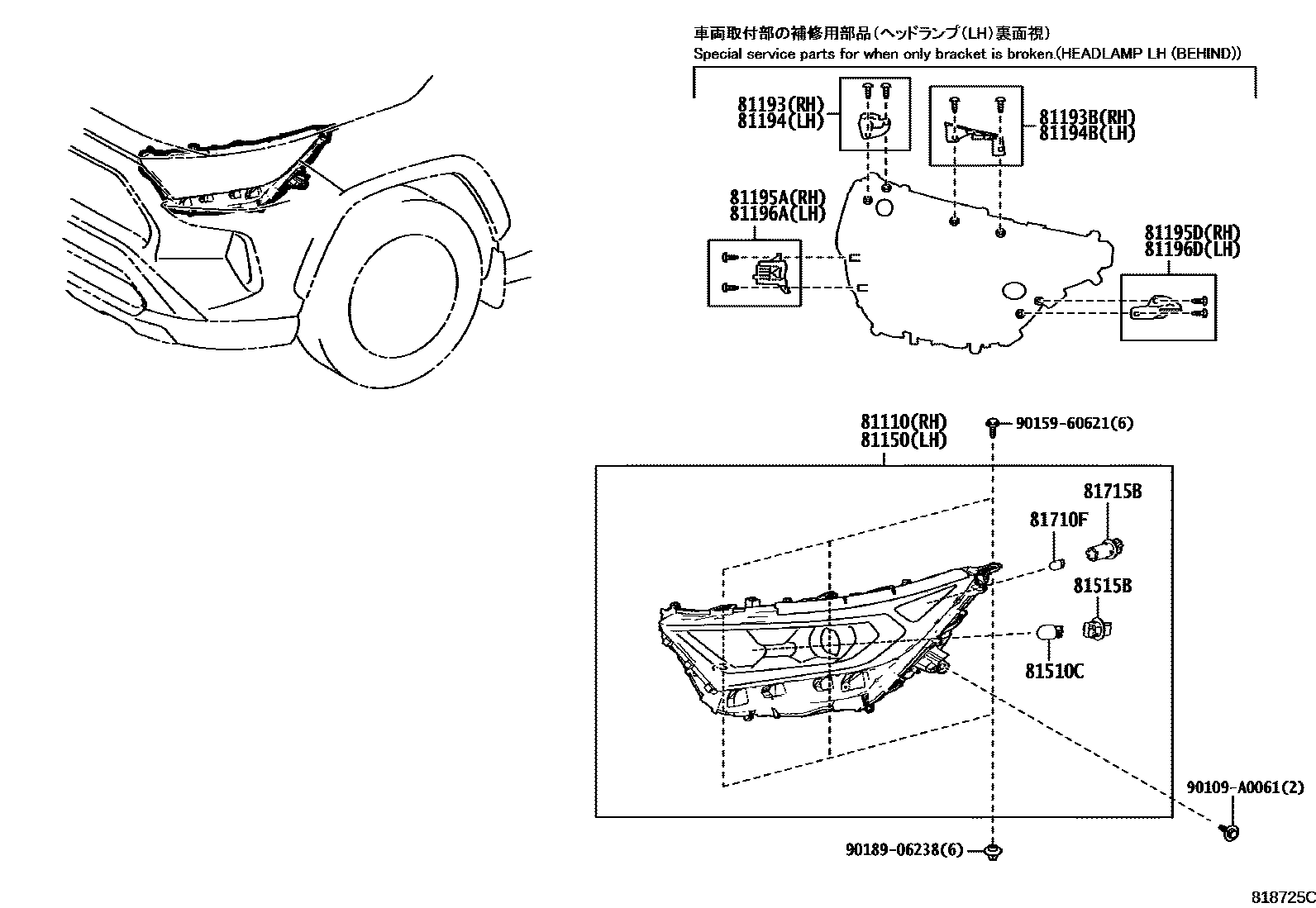

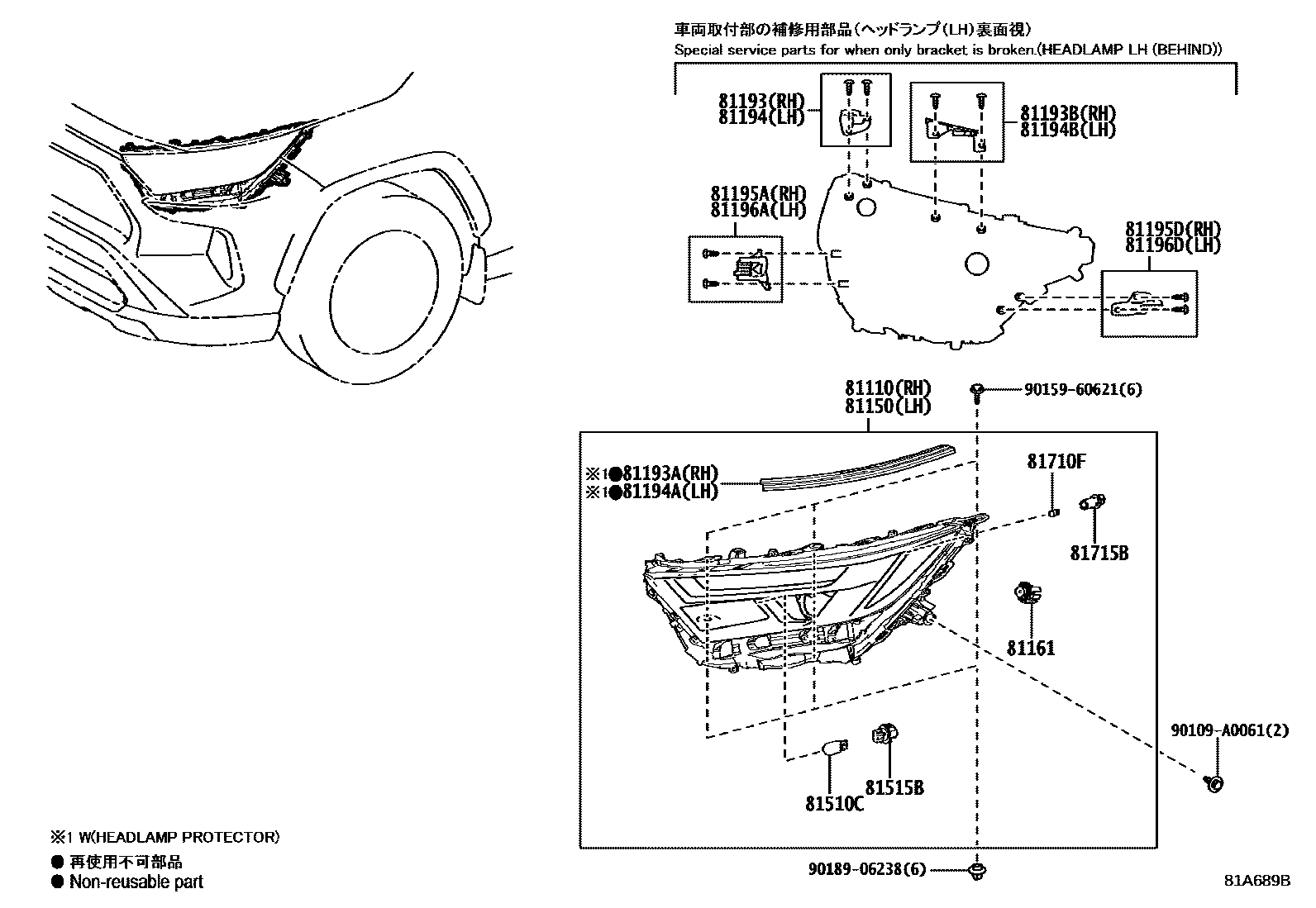

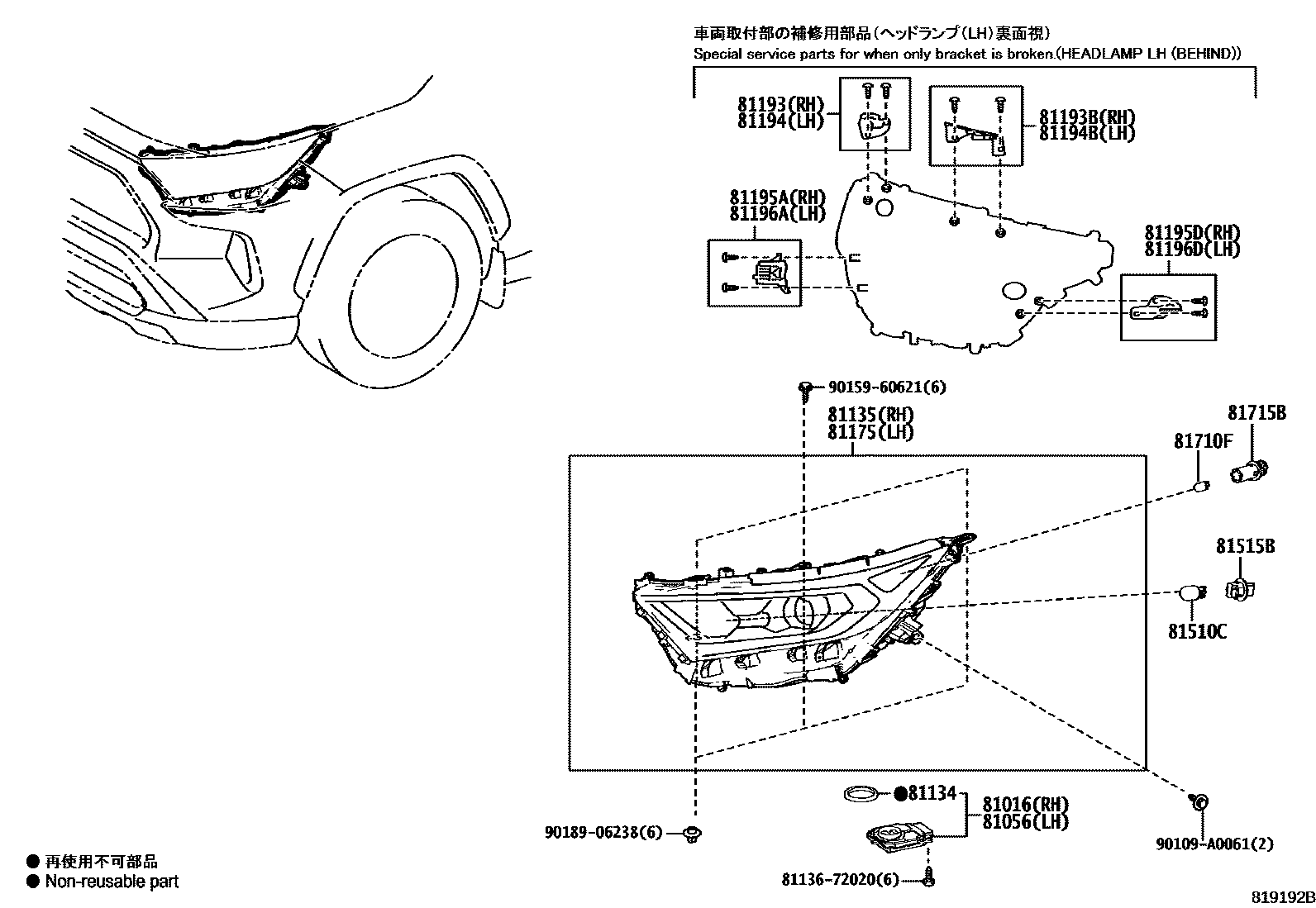

Toyota RAV4 EPC diagram 8101, Headlamp, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016 | Right No. 1 headlight ECU sub-assembly | 81016-42A10 |
| 81056 | Left No. 1 headlight ECU sub-assembly | 81056-42A10 |
| 81110 | Right headlight assembly | 81110-0R140 · 81110-0R141 · 81110-0R142 · 81110-0R150 · 81110-0R151 · 81110-0R152 · 81110-0R160 · 81110-0R161 · 81110-0R162 · 81110-0R350 · 81110-0R360 · 81110-0R430 · 81110-0R440 |
| 81134 | headlight gasket | 81134-42830 |
| 81135 | Right headlight assembly | 81130-42A10 · 81130-42A11 · 81130-42A12 |
| 8113A | LED, CLIGNOTANT AV PHARE | 81532-48010 · 81965-42010 |
| 81150 | Left headlight assembly | 81150-0R140 · 81150-0R141 · 81150-0R142 · 81150-0R150 · 81150-0R151 · 81150-0R152 · 81150-0R160 · 81150-0R161 · 81150-0R162 · 81150-0R350 · 81150-0R360 · 81150-0R430 · 81150-0R440 |
| 81161 | LED, FEU DE GABARIT | 81542-48010 |
| 81175 | Left headlight assembly | 81170-42A10 · 81170-42A11 · 81170-42A12 |
| 81193 | Right headlight upper protective ring | 81193-42050 |
| 81193A | Right headlight protective cover | 81117-42831 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-42060 |
| 81194 | Left headlight upper protective ring | 81194-42050 |
| 81194A | Left headlight protective cover | 81157-42831 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-42060 |
| 81195A | Right headlight lower protection ring | 81195-42050 |
| 81195D | Right No. 2 headlight lower protection ring | 81195-42060 |
| 81196A | Left headlight lower protection ring | 81196-42050 |
| 81196D | No. 2 left headlight lower protection ring | 81196-42060 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15025 |
| 81515B | Front turn signal lamp holder | 90075-60083 |
| 81710F | Front width light bulb | 90981-11064 · 90981-11065 |
| 81715B | Front width light lamp holder and wiring harness | 81138-22680 |
