Toyota RAV4 燃油箱和燃油管 — Figure 7751

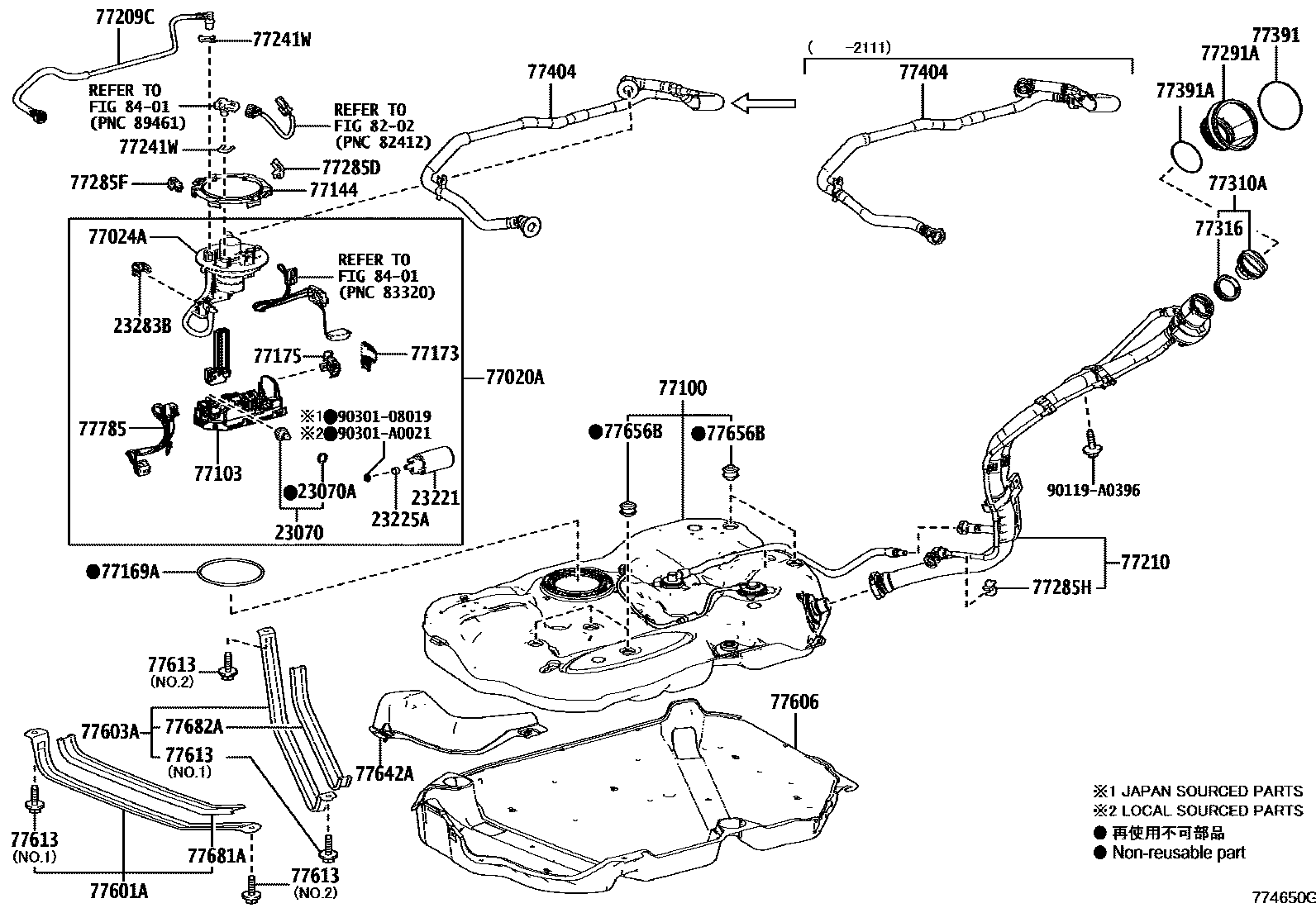

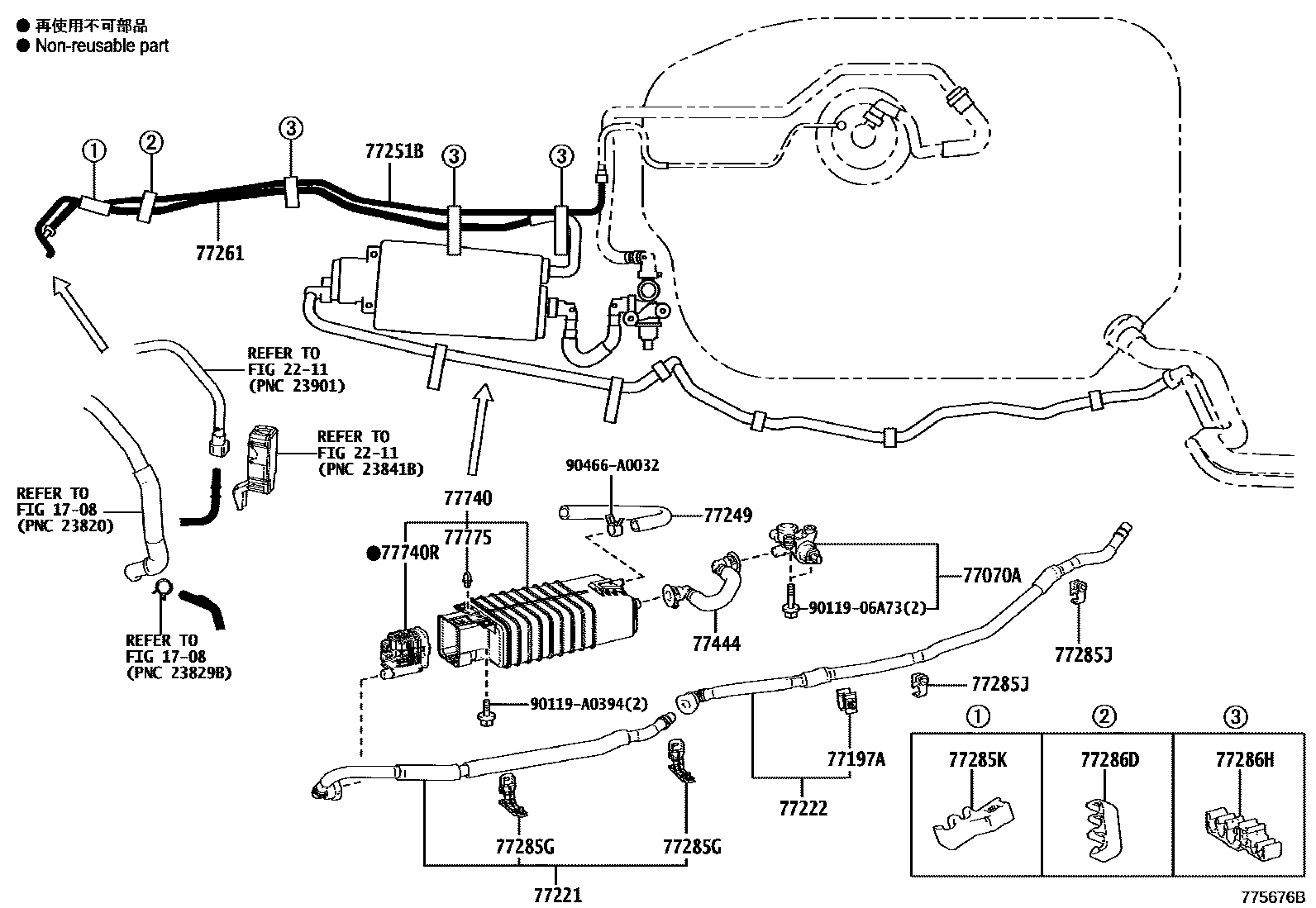

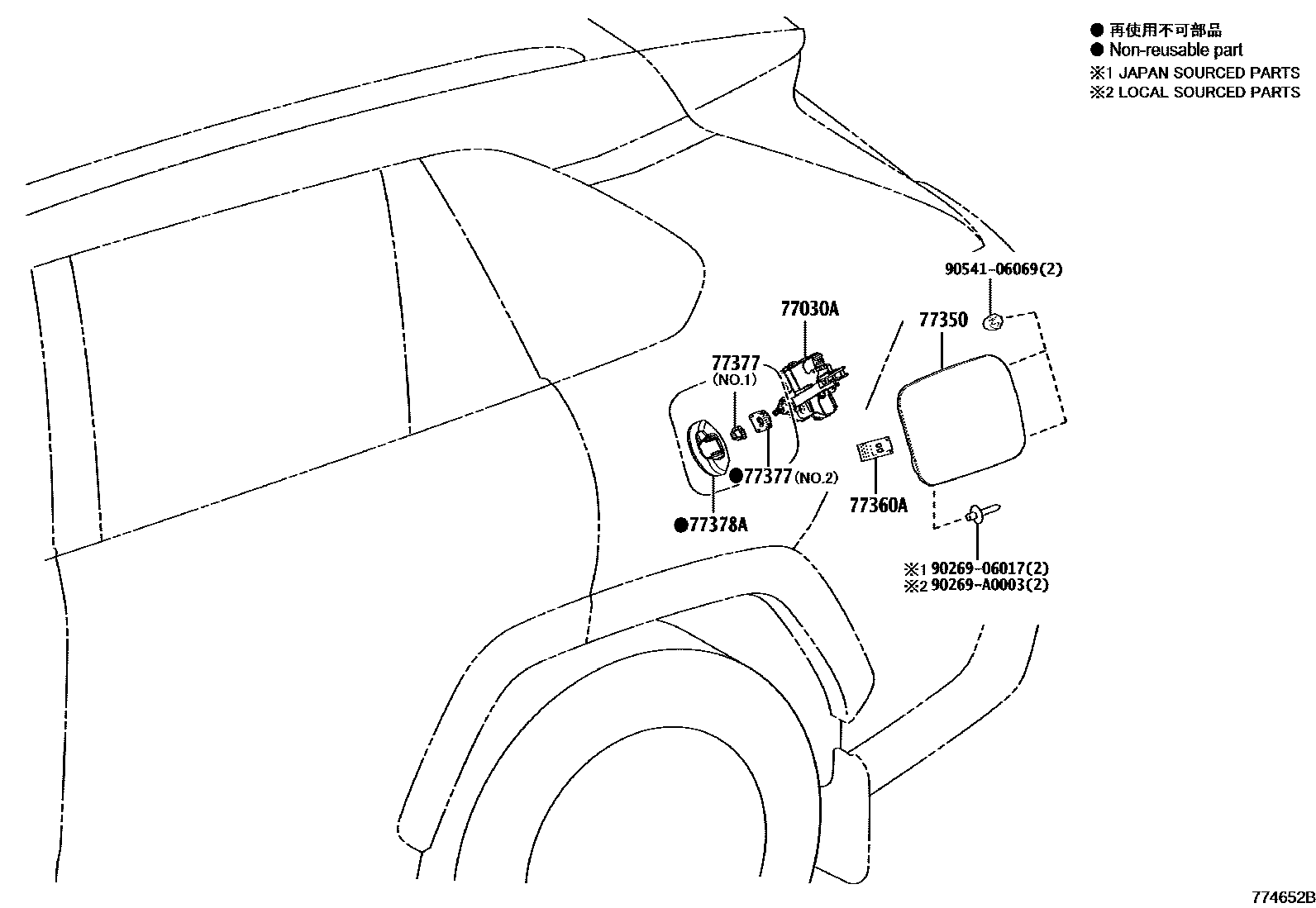

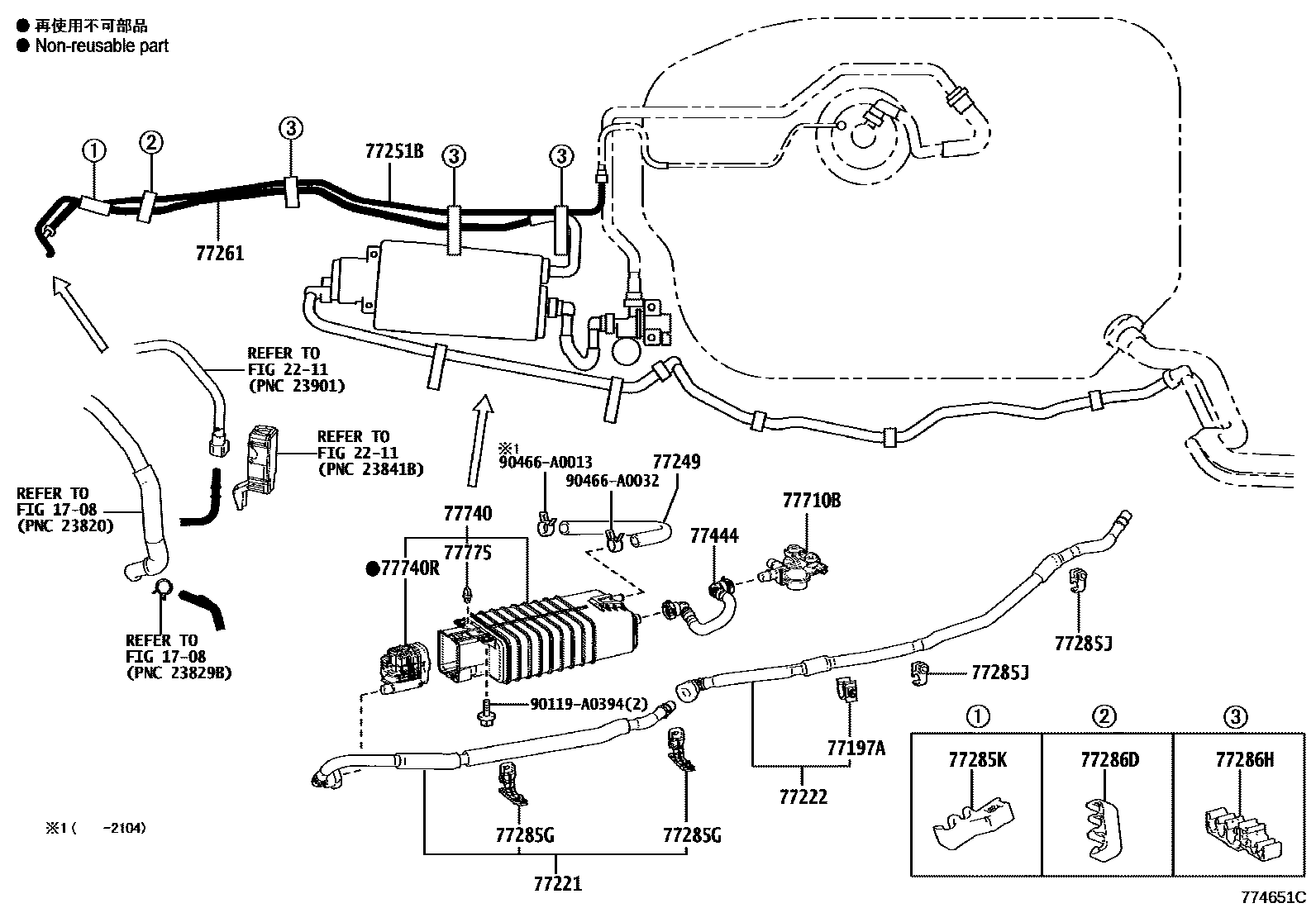

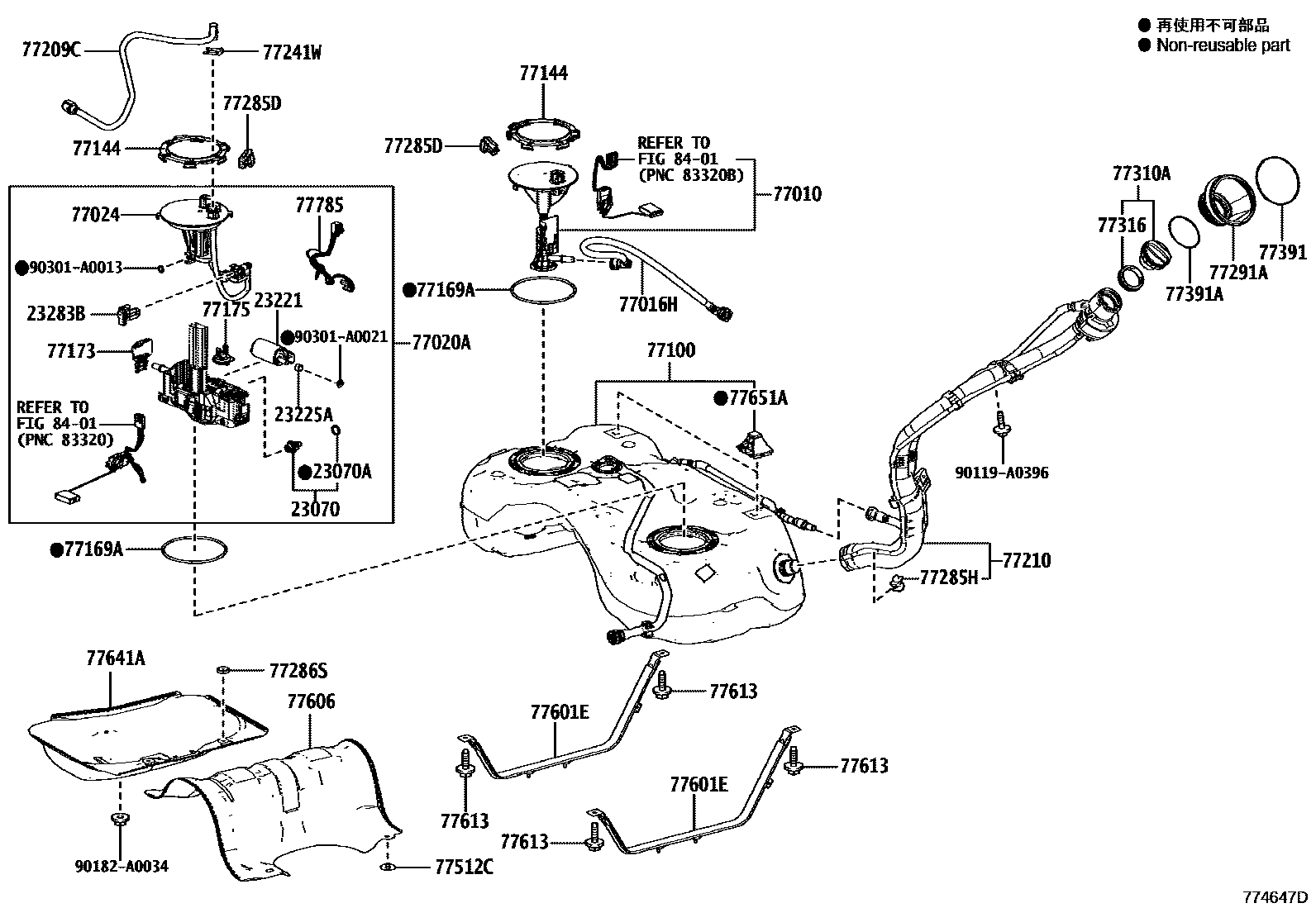

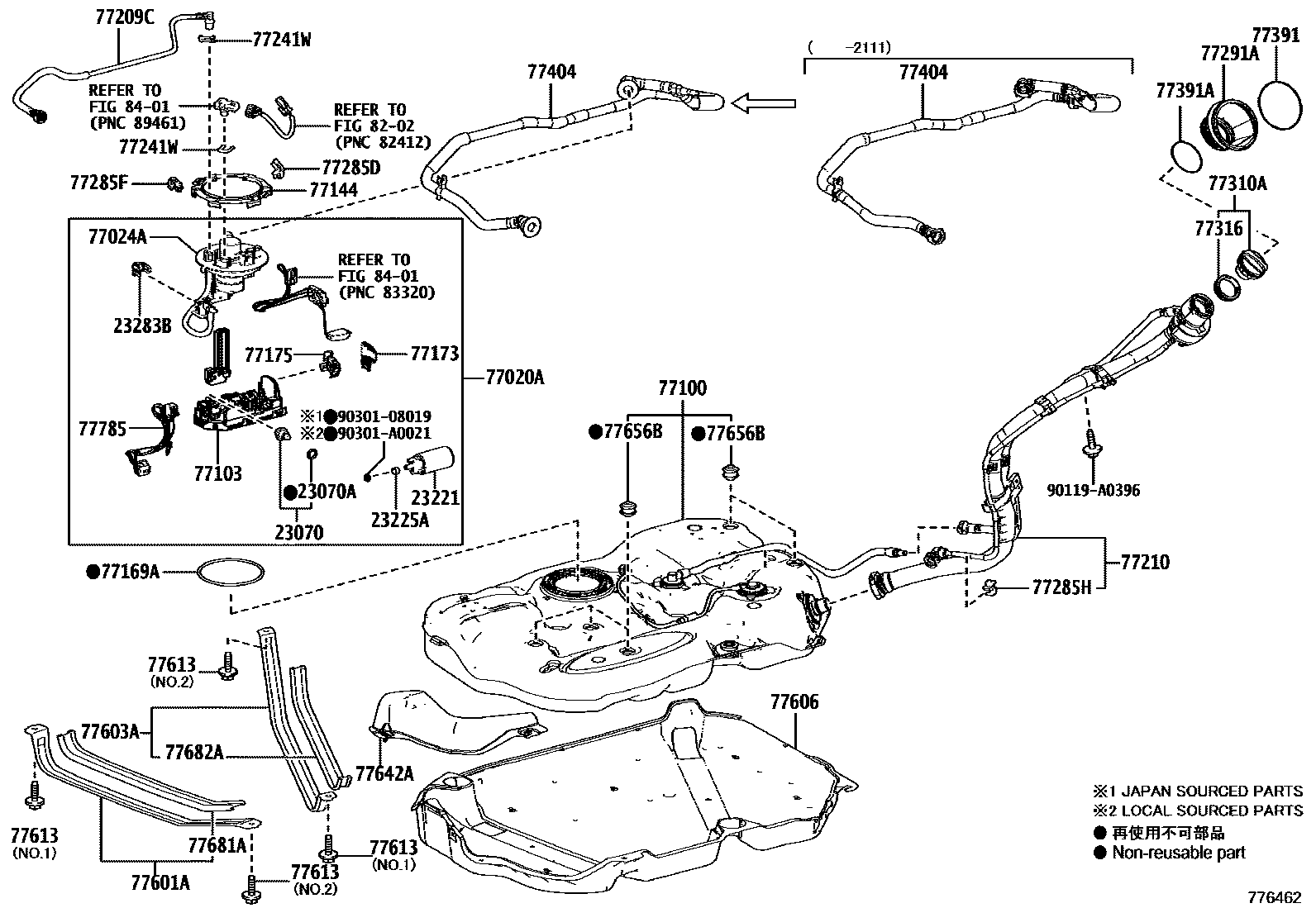

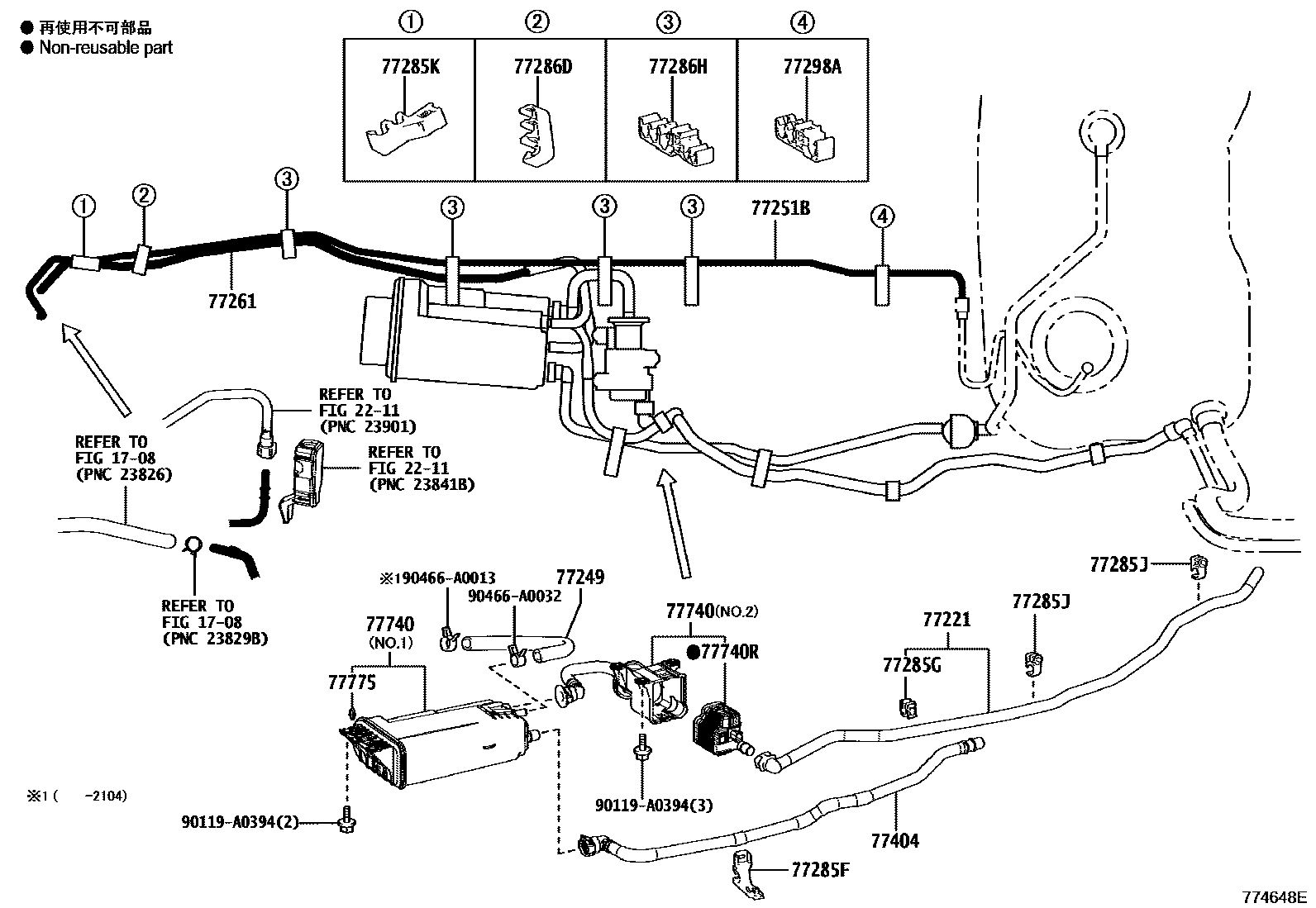

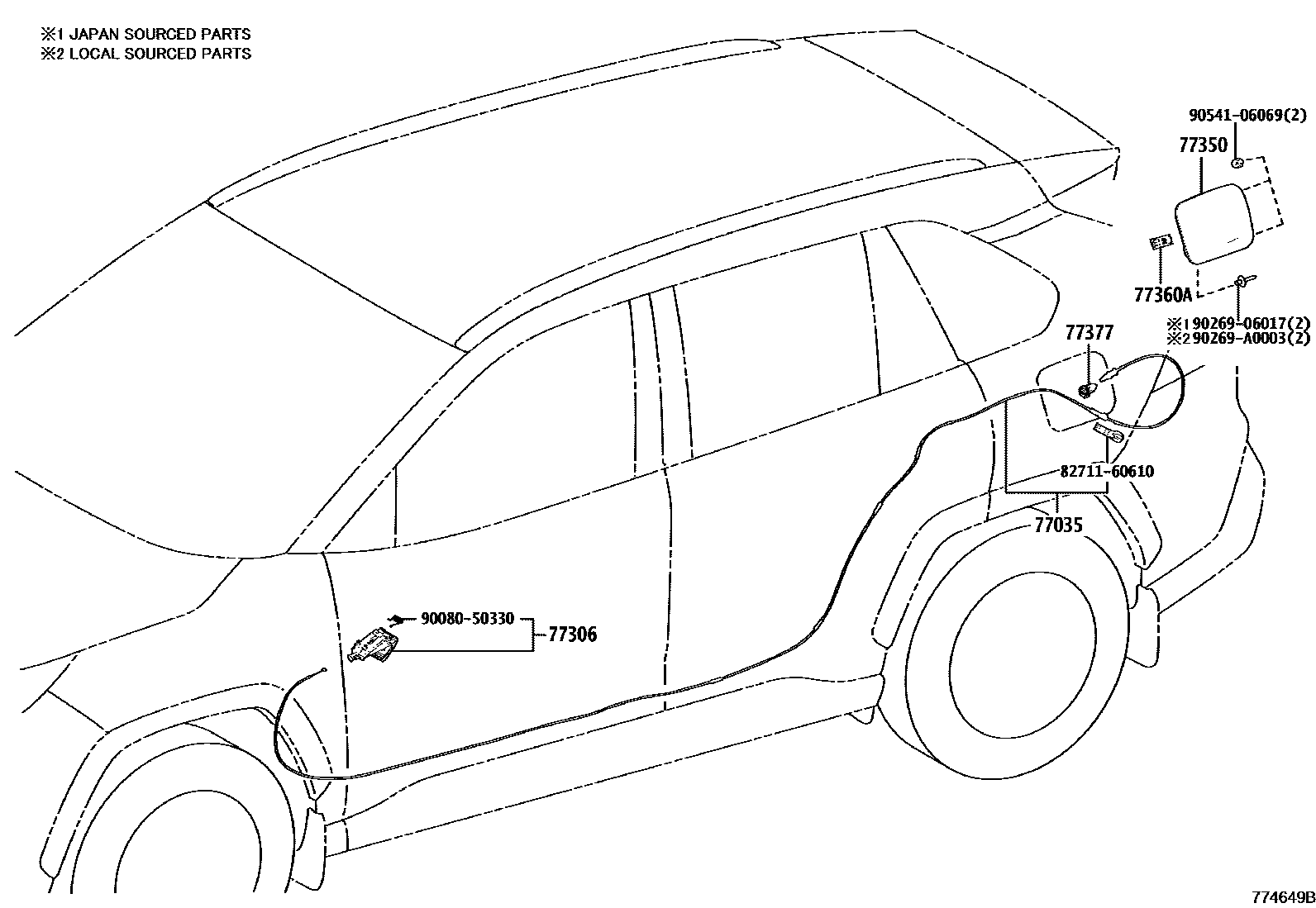

Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 8 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23221 | fuel pump | 23221-25030 |
| 23225A | fuel pump septum | 23225-31020 · 23225-F0010 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-F0010 |
| 77010 | Fuel tank vent pipe assembly | 77010-0R010 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-0R020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0R050 · 77020-0R051 · 77020-0R060 · 77020-0R061 |
| 77024 | Front main fuel pipe and fuel return pipe sub-assembly | 77024-0R040 |
| 77024A | Fuel absorber sub-assembly | 77024-0R050 · 77024-42150 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-0E220 · 77030-0R010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0R060 |
| 77070A | ENS. SOUPAPE, FERM RESERVOIR | 77070-48010 · 77070-48011 |
| 77100 | fuel tank assembly | 77001-0R090 · 77001-0R100 · 77001-0R101 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-12150 |
| 77144 | Fuel pump instrument fixture | 77144-06040 · 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0R030 · 77169-F4050 |
| 77173 | SUPPORT, JAUGE CARB | 77173-0E010 · 77173-0E020 · 77173-0E021 · 77173-12020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0R010 · 77175-12030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-42010 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-0R060 · 77209-0R070 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-0R060 · 77210-0R070 |
| 77221 | No. 1 fuel evaporation vent pipe | 77227-0R030 · 77227-0R040 |
| 77222 | No. 2 fuel evaporation vent pipe | 77227-0R100 |
| 77241W | Pipe joint clip | 77241-02010 |
| 77249 | fuel drain hose | 77249-0R050 · 77249-0R060 |
| 77251B | main fuel pipe | 77251-0R100 · 77251-0R110 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-0R090 |
| 77285D | No. 1 fuel pipe clamp | 77285-06240 |
| 77285F | No. 1 fuel pipe clamp | 77285-06590 · 77285-0R080 |
| 77285G | No. 1 fuel pipe clamp | 77285-0R070 · 77285-42200 |
| 77285H | No. 1 fuel pipe clamp | 77285-0R100 |
| 77285J | No. 1 fuel pipe clamp | 77285-0R090 |
| 77285K | No. 1 fuel pipe clamp | 77285-0R050 |
| 77286D | No. 2 fuel pipe clamp | 77285-0R060 |
| 77286H | No. 3 fuel pipe clamp | 77285-0R040 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-0R050 |
| 77298A | No. 4 fuel pipe clamp | 77298-06290 |
| 77310A | Fuel tank cap assembly | 77300-06090 · 77300-07040 · 77300-53040 |
| 77316 | fuel tank cap gasket | 77316-06090 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-0R050 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-0R030 · 77377-0R040 · 77377-12110 |
| 77378A | Fuel filler cap lock cover | 77378-42010 |
| 77391 | fuel inlet ring | 77391-42010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0R060 · 77404-0R200 · 77404-48140 · 77404-F6020 |
| 77444 | fuel tank vent hose | 77404-0E100 · 77404-42130 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-06060 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-0R050 · 77601-0R051 |
| 77601E | Fuel tank strap sub-assembly | 77601-0R040 |
| 77603A | No. 2 fuel tank strap sub-assembly | 77602-0R040 · 77602-0R041 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0R010 · 77606-0R020 |
| 77613 | Fuel tank strap fixing bolts | 90119-10967 · 90119-10992 · 90119-10A05 · 90119-A0509 |
| 77641A | No. 1 fuel tank protective shell | 77641-0R070 |
| 77642A | No. 2 fuel tank protective shell | 77642-0R030 · 77642-42070 |
| 77651A | No. 1 fuel tank liner | 77651-06060 |
| 77656B | No. 6 fuel tank liner | 77656-06030 |
| 77681A | Fuel tank strap seat | 77681-0R100 |
| 77682A | No. 2 fuel tank strap seat | 77682-0R020 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-42010 |
| 77740 | Carbon canister assembly | 77730-0R010 · 77740-06230 · 77740-06240 |
| 77740R | Leak detection pump sub-assembly | 90910-AF006 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-0R040 · 77785-42070 |
