Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

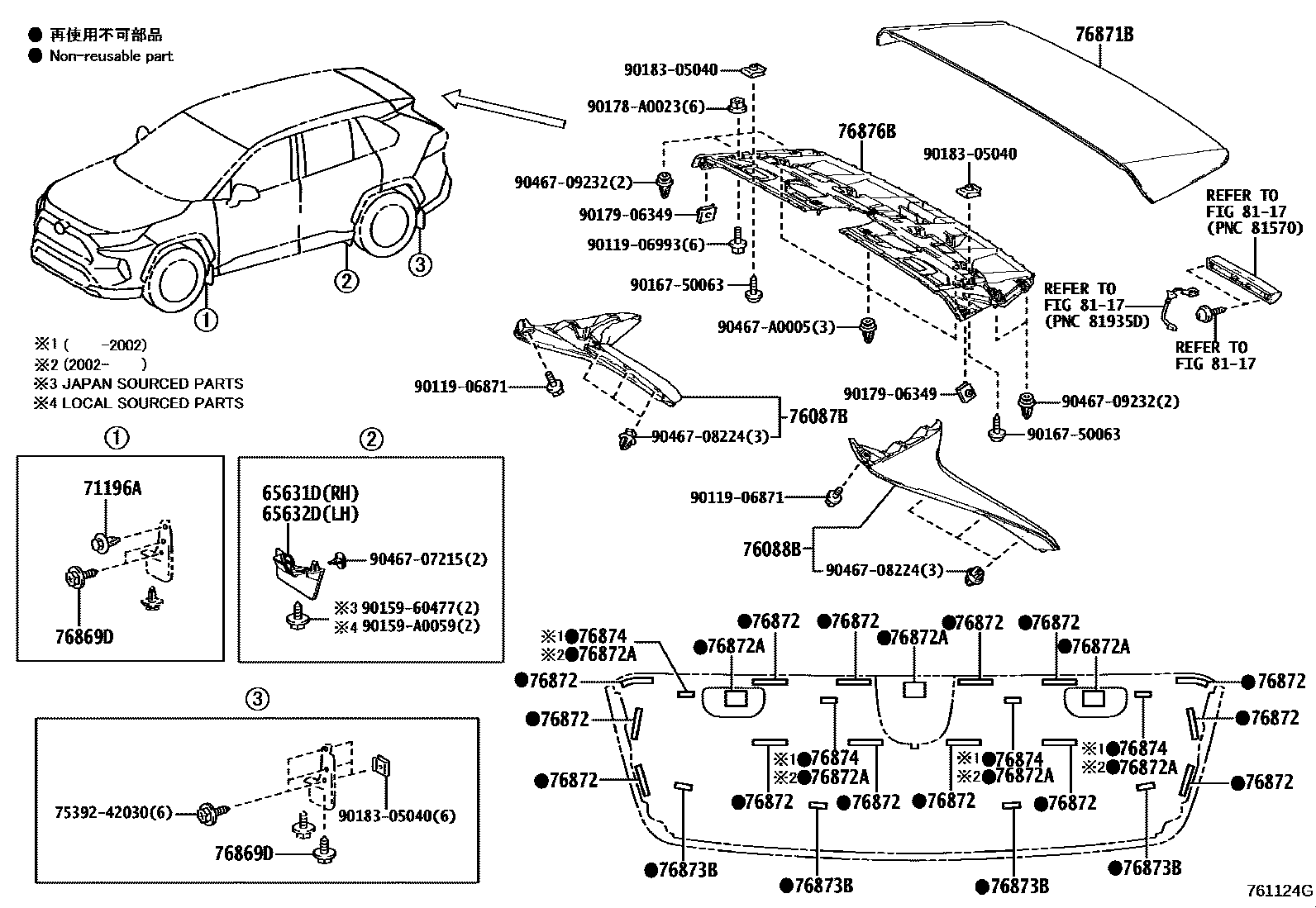

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0R080 |
| 65632D | Left rear wheel house front panel | 65632-0R080 |
| 71196A | clip | 90467-07215 |
| 76087B | Right rear spoiler sub-assembly | 76087-0R010 · 76087-0R050 |
| 76088B | Left rear spoiler sub-assembly | 76088-0R010 · 76088-0R050 |
| 76869D | VIS, NO.2 | 90159-60477 · 90159-A0059 |
| 76871B | rear spoiler cover | 76871-0R906 |
| 76872 | No. 1 rear spoiler protective strip | 87268-0R040 |
| 76872A | No. 1 rear spoiler protective strip | 76872-0R050 |
| 76873B | No. 2 rear spoiler protective strip | 76873-0R050 |
| 76874 | No. 3 rear spoiler protective strip | 76874-0R050 |
| 76876B | Rear spoiler insert | 76876-0R040 |
