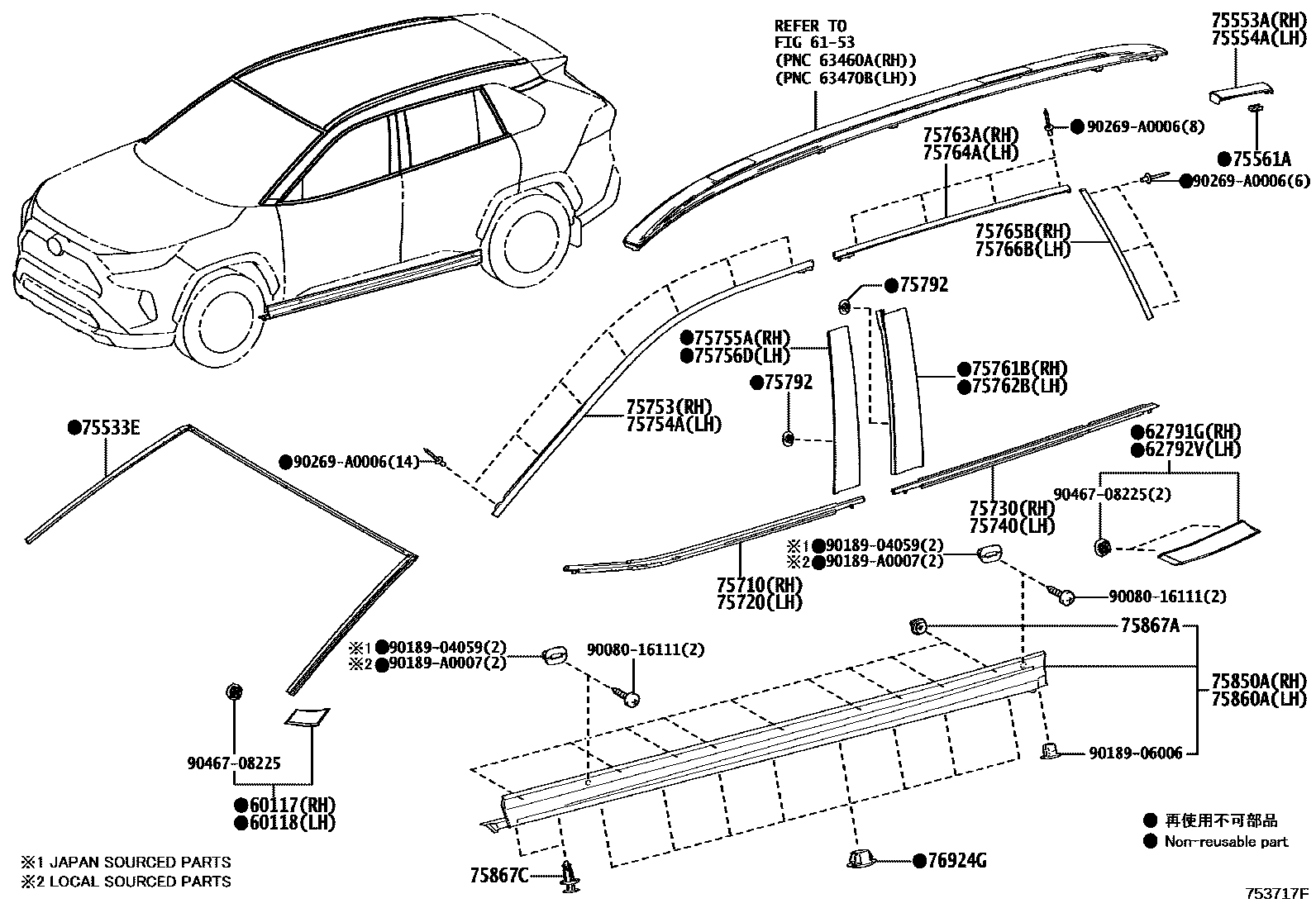

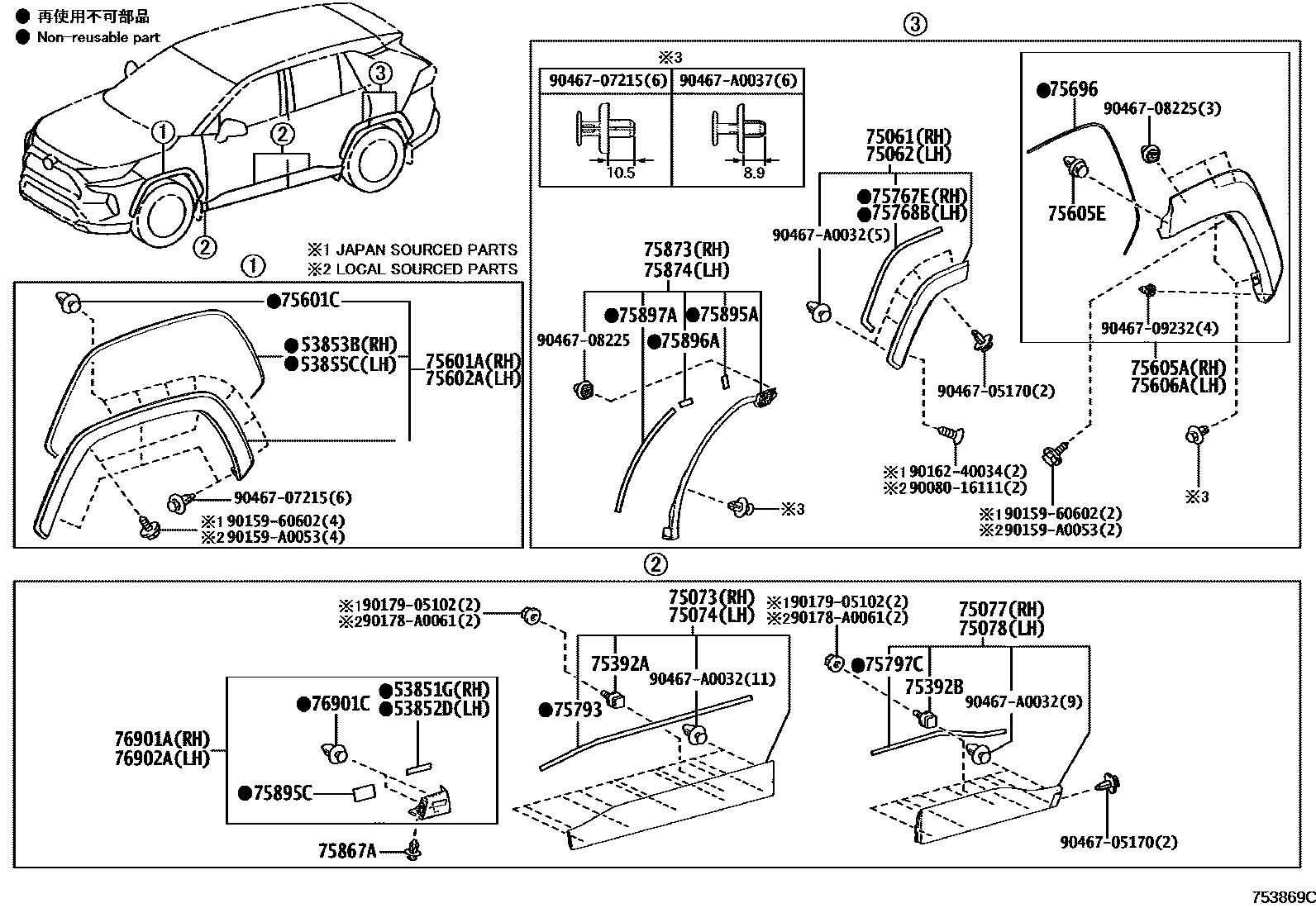

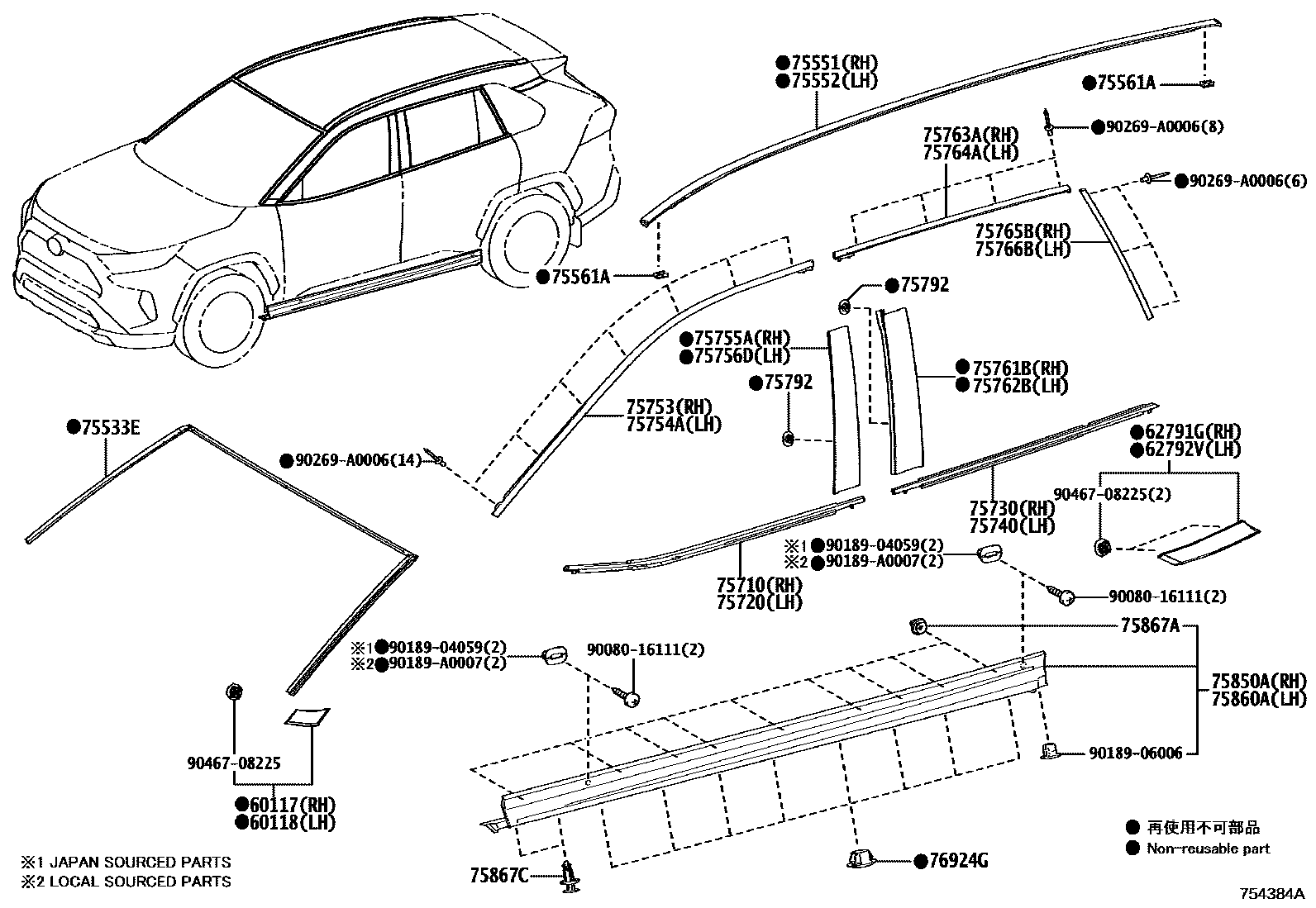

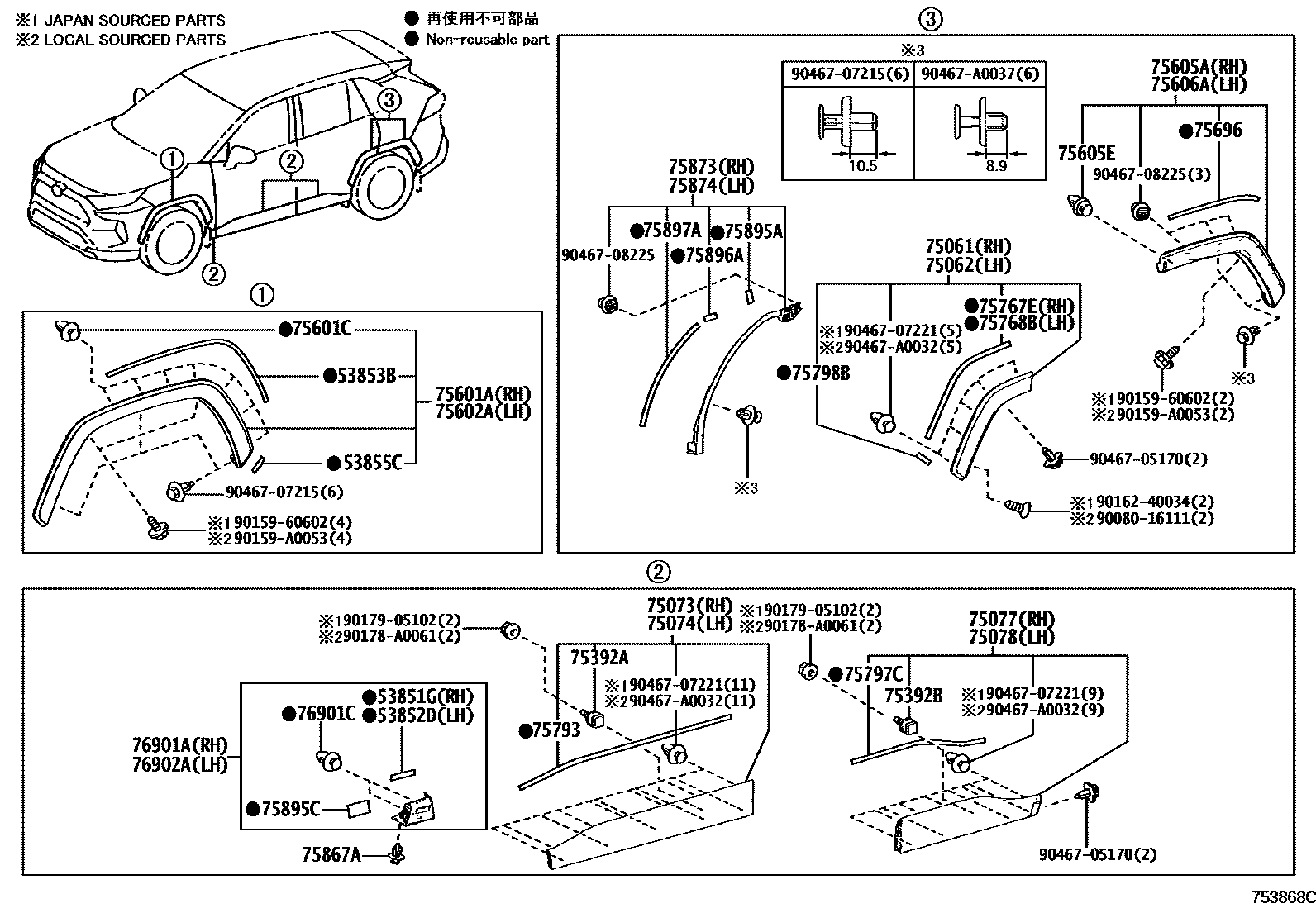

Toyota RAV4 防护条 — Figure 7552
Toyota RAV4 EPC diagram 7552, 防护条, with 4 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851G | Right front fender outer panel pad | 53851-0R110 · 53851-42280 |
| 53852D | Left front fender exterior panel pad | 53851-0R110 · 53851-42280 |
| 53853B | No. 1 front fender outer panel pad | 53853-0R030 · 53853-0R060 · 53853-42040 |
| 53855C | REMB., EXTENSION OUVERTURE ROUE AV, NO.5 | 53855-0R030 · 53855-0R050 · 75798-42030 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-0R050 · 60117-0R051 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-0R050 · 60118-0R051 |
| 62791G | Protective strip on right corner window | 62791-0R010 · 62791-0R050 |
| 62792V | Protective strip on left corner window | 62792-0R010 · 62792-0R050 |
| 75061 | Outer protective strip components | 75061-0R010 · 75061-0R030 |
| 75062 | JEU MOULURE, EXT, MG | 75062-0R010 · 75062-0R030 |
| 75073 | SOUS-ENSEMBLE MOULURE, PORTE AVANT, INFERIEUR EXTERIEUR MD | 75073-0R070 |
| 75074 | SOUS-ENSEMBLE MOULURE, PORTE AVANT, INFERIEUR EXTERIEUR MG | 75074-0R070 |
| 75077 | Right rear door outer lower protective strip sub-assembly | 75077-0R070 |
| 75078 | Left rear door outer lower protective strip sub-assembly | 75078-0R070 |
| 75392A | No. 1 outer protective strip fixings | 75392-33020 |
| 75392B | No. 1 outer protective strip fixings | 75392-33020 |
| 75533E | Windshield outer protective strip | 75533-0R030 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0R100 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0R100 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-0R050 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-0R050 |
| 75561A | Roof drain channel side decorative strip clip | 75561-02020 |
| 75601A | Right front fender protection strip sub-assembly | 75601-0R090 · 75601-0R110 |
| 75601C | ATTACHE, MOULURE AILE AVANT | 75867-68010 |
| 75602A | Left front fender protection strip sub-assembly | 75602-0R090 · 75602-0R110 |
| 75605A | Right side enclosure outer protective strip sub-assembly | 75605-0R090 · 75605-0R110 |
| 75605E | CLIP, MOULURE EXT CUSTODE | 62217-13010 |
| 75606A | Left side enclosure outer protective strip sub-assembly | 75606-0R090 · 75606-0R110 |
| 75696 | No. 1 body outer protective strip lining | 75696-0R030 · 75696-0R070 · 75696-42080 · 75697-0R030 |
| 75710 | Right front door waistline protection strip assembly | 75710-0R050 |
| 75720 | Left front door waistline protection strip assembly | 75720-0R050 |
| 75730 | Right rear door waistline protection strip assembly | 75730-0R050 |
| 75740 | Left rear door waistline protection strip assembly | 75740-0R050 |
| 75753 | Protective strip on right front door window frame | 75071-0R010 |
| 75754A | Protective strip on left front door window frame | 75072-0R010 |
| 75755A | MOULURE, CADRE VITRE PORTE AV, MD(COTE MONTANT CTRL) | 75755-0R030 |
| 75756D | MOULURE, CADRE VITRE PORTE AV, MG(COTE MONTANT CTRL) | 75756-0R030 |
| 75761B | MOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT CTRL) | 75075-0R030 |
| 75762B | MOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT CTRL) | 75076-0R030 |
| 75763A | Protective strip on right rear door window frame | 75763-0R010 |
| 75764A | Protective strip on left rear door window frame | 75764-0R010 |
| 75765B | MOULURE, CADRE VITRE PORTE ARR, MD(COTE MONTANT ARR) | 75765-0R010 |
| 75766B | MOULURE, CADRE VITRE PORTE ARR, MG(COTE MONTANT ARR) | 75766-0R010 |
| 75767E | Right rear door protective strip lining | 75767-0R030 · 75767-0R040 · 75767-42030 |
| 75768B | Left rear door protective strip lining | 75767-0R030 · 75767-0R080 · 75767-42030 |
| 75792 | Car door window frame protective strip clip | 75792-0R010 |
| 75793 | Front door outer upper protective strip lining | 75793-0R070 · 75793-42070 |
| 75797C | Rear door outer upper protective strip lining | 75797-0R100 · 75797-42040 |
| 75798B | Rear door outer rear protective strip lining | 75798-0R050 · 75798-42030 |
| 75850A | Right body door sill panel protective strip assembly | 75850-0R010 · 75850-0R011 |
| 75860A | Left body door sill panel protective strip assembly | 75860-0R010 · 75860-0R011 |
| 75867A | Door sill panel protective strip clip | 75867-30130 · 75867-AA010 |
| 75867C | Door sill panel protective strip clip | 75867-30120 |
| 75873 | Right side panel wheel mouth protection strip | 75873-0R010 |
| 75874 | Left side panel wheel mouth protection strip | 75874-0R010 |
| 75895A | No. 1 protective strip tape | 75895-0R010 |
| 75895C | No. 3 protective tape | 75895-0R020 |
| 75896A | No. 2 protective strip tape | 75896-0R010 |
| 75897A | No. 2 protective strip tape | 75897-0R010 |
| 76901A | Right fender sub-assembly | 76901-0R010 |
| 76901C | CLIP, GARDE-BOUE PANNEAU AILE | 75867-68010 |
| 76902A | Left fender sub-assembly | 76902-0R010 |
| 76924G | Door sill panel protective strip fixings | 76924-12040 · 90467-22017 |
