Toyota RAV4 徽标和铭牌 — Figure 7551

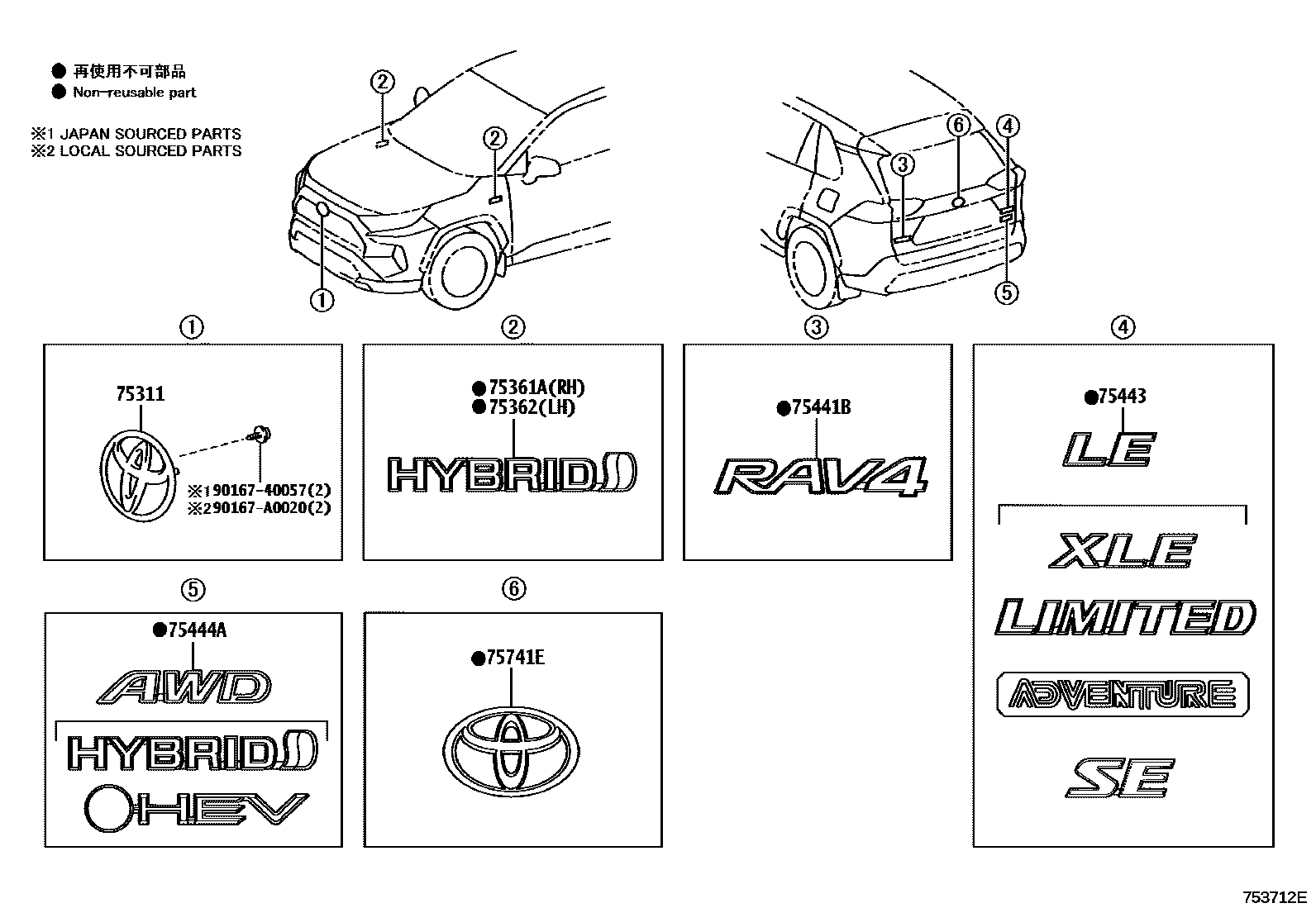

Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-0R110 · 53141-0R120 · 53141-0R150 · 53141-33130 · 53141-33140 · 53141-42030 |
| 75361A | Front fender No. 1 nameplate | 75361-0R010 |
| 75362 | Front fender No. 2 nameplate | 75362-0R010 |
| 75441B | Back door nameplate | 75431-0R070 · 75431-0R120 |
| 75443 | No. 3 nameplate on back door | 75443-0R080 · 75443-0R090 · 75443-0R100 · 75443-0R110 · 75443-0R140 |
| 75444A | No. 4 nameplate on back door | 75440-0R170 · 75444-0R100 · 75445-0R010 |
| 75741E | logo | 75403-06090 · 90975-A2003 |
