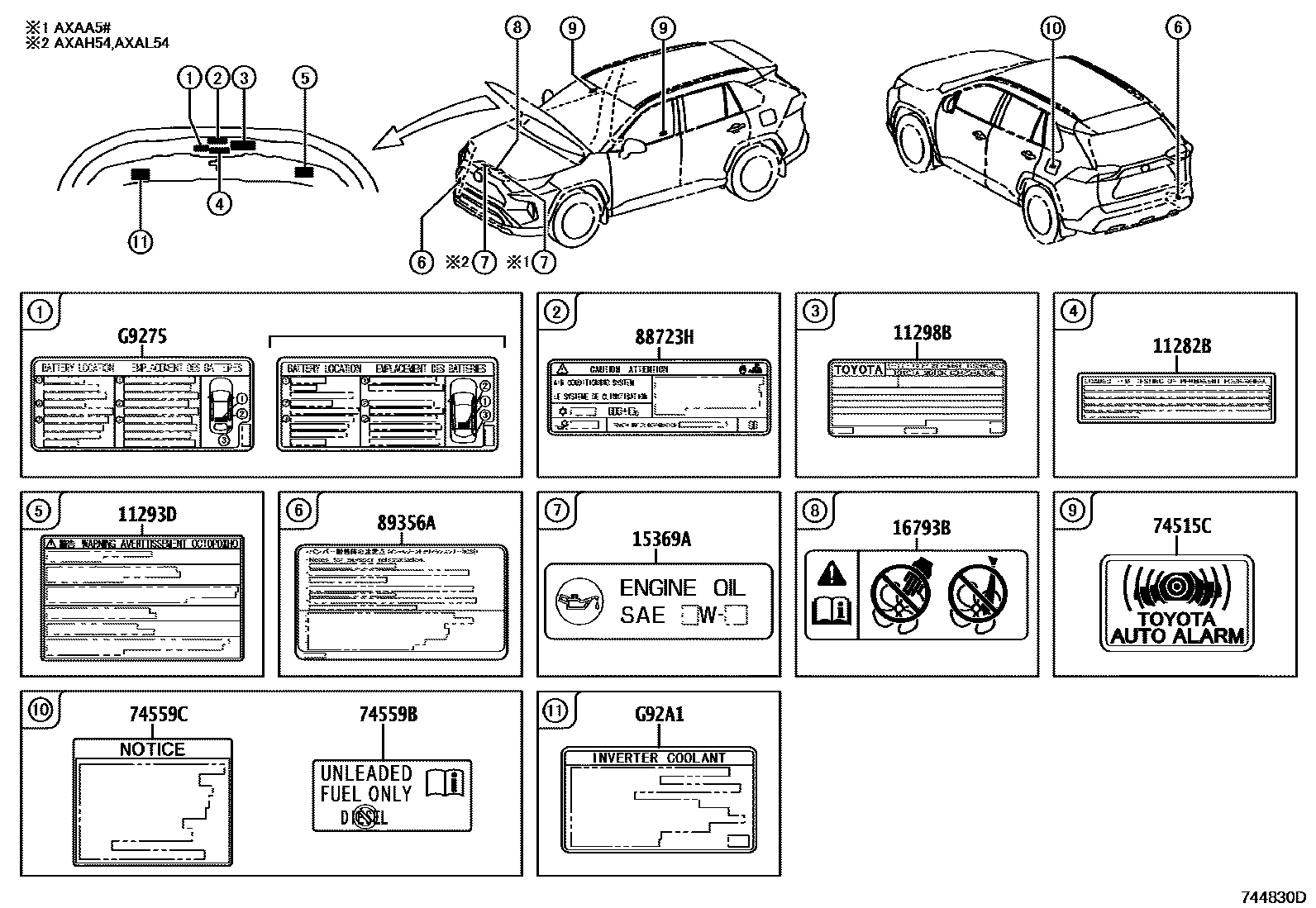

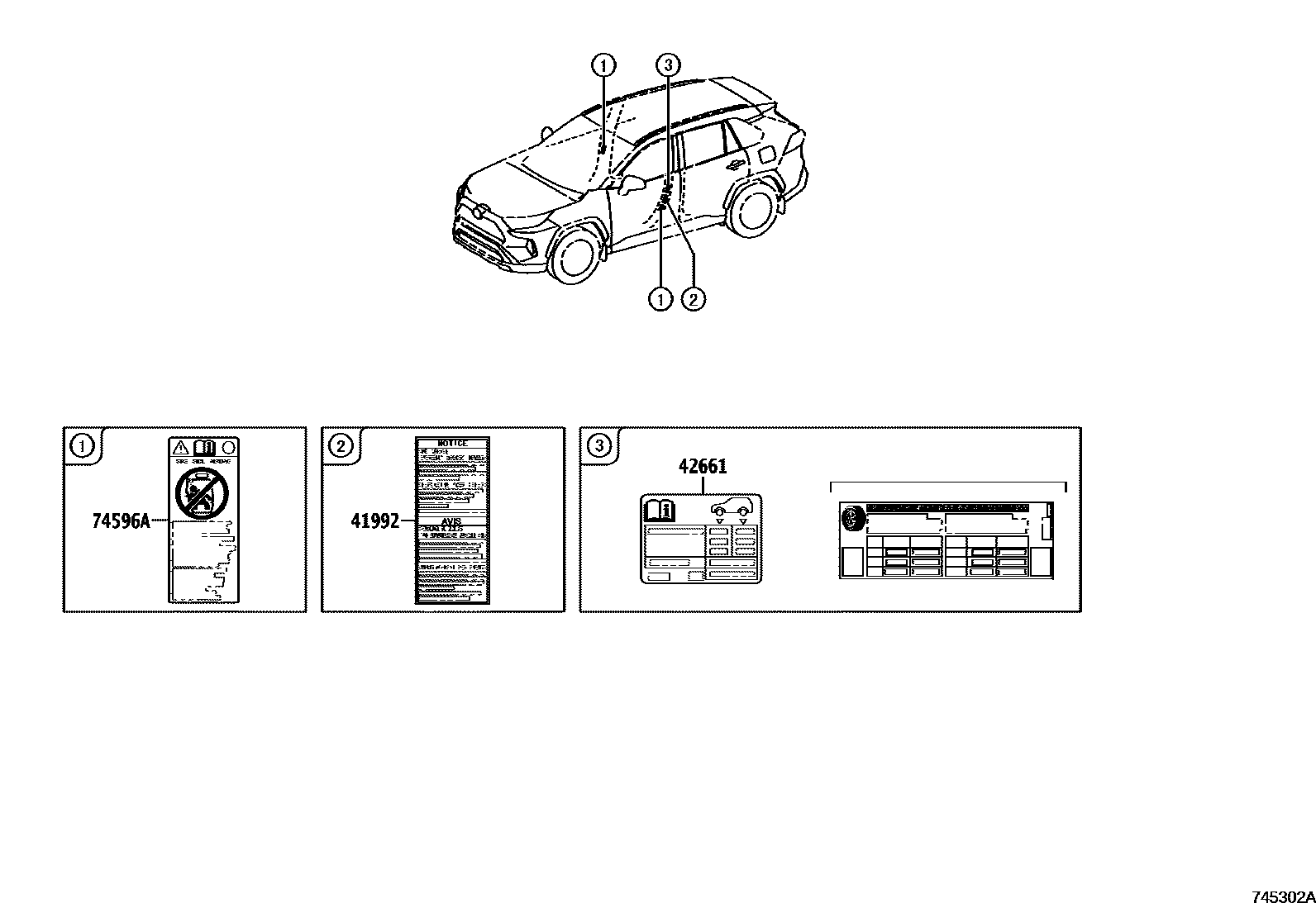

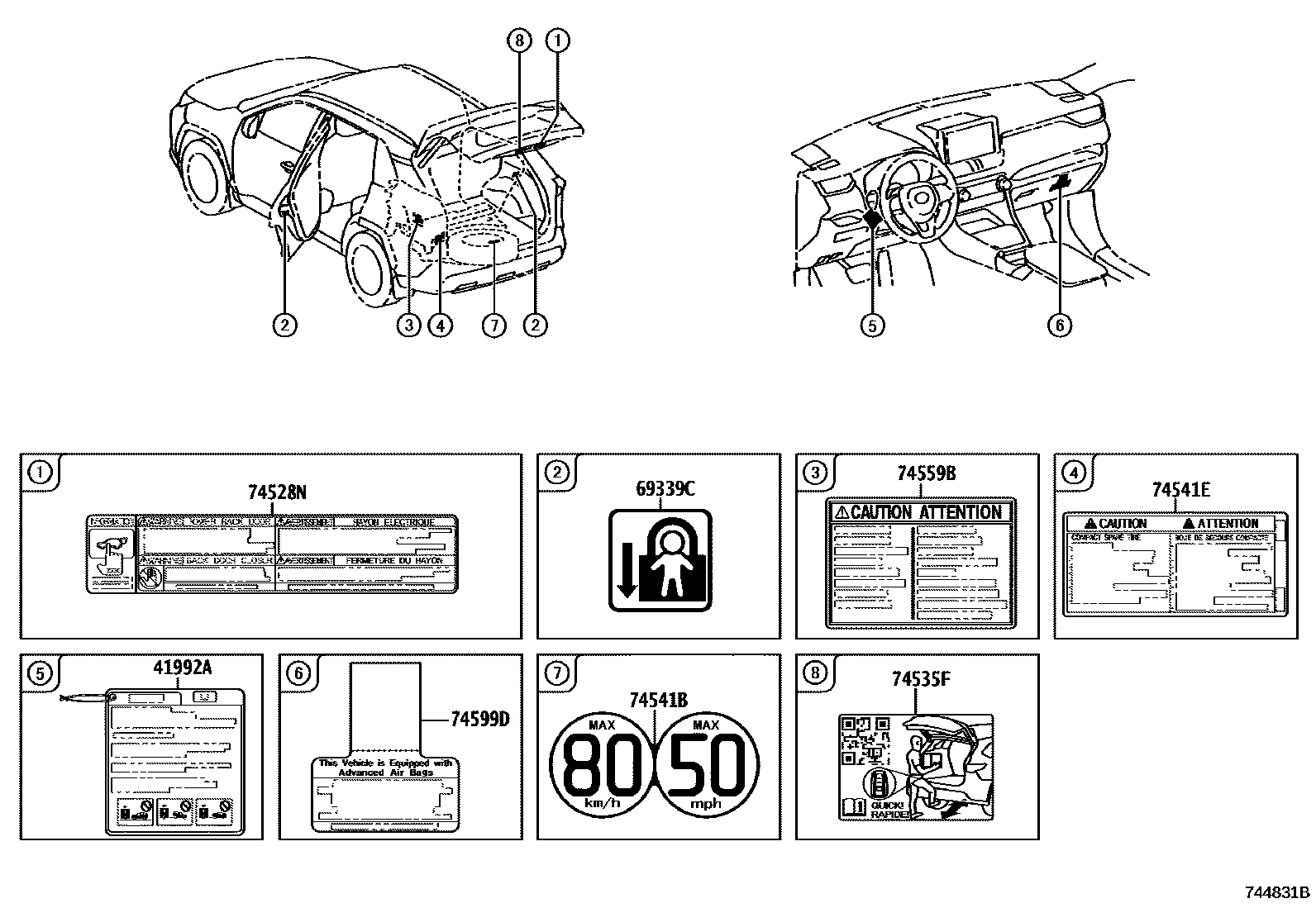

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11282B | Load testing warning labels | 11282-74010 |
| 11293D | engine warning label | 11293-36070 |
| 11298B | Emission Control Information Label | 11298-F0070 · 11298-F0071 · 11298-F0072 · 11298-F0073 · 11298-F0074 · 11298-F0075 · 11298-F0076 · 11298-F0080 · 11298-F0081 · 11298-F0082 · 11298-F0083 · 11298-F0084 · 11298-F0085 · 11298-F0086 · 11298-F0310 · 11298-F0311 · 11298-F0312 · 11298-F0313 |
| 15369A | Engine oil information label | 15369-F0010 |
| 16793B | Cooling fan information label | 16793-36030 |
| 41992 | Differential attention label | 41992-08010 |
| 41992A | ETIQUETTE, AVERTISSEMENT DIFFERENTIEL, NO.2 | 41992-0R010 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-0R160 · 42661-0R180 · 42661-0R330 · 42661-0R340 · 42661-0R350 · 42661-0R360 · 42661-42A60 · 42661-42A70 · 42661-42A80 · 42661-42A90 |
| 69339C | Child Restraint Information Label | 69339-06040 |
| 74515C | Anti-theft warning information label | 74515-06010 |
| 74528N | ETIQUETTE, PRECAUTION HAYON, NO.2 | 74528-0E020 |
| 74535F | Back door auxiliary mechanism information label | 74535-08010 |
| 74541B | Small spare tire warning plate | 42668-42010 |
| 74541E | Small spare tire warning plate | 42668-0E010 · 42668-42030 |
| 74559B | fuel information label | 74559-20140 · 74559-30070 |
| 74559C | ETIQUETTE, INFORMATIONS CARB, NO.2 | 74559-48010 |
| 74596A | Side air bag warning label | 74596-78010 |
| 74599D | Driver and passenger air bag information labels | 74599-0E020 |
| 88723H | Cooler maintenance warning label | 88723-06140 · 88723-0R050 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-06040 · G9275-0R020 |
| G92A1 | HV coolant system information label | G92A1-76010 |
