Toyota RAV4 battery holder — Figure 7454

Toyota RAV4 EPC diagram 7454, battery holder, with 2 images and 4 PNC and OE references.

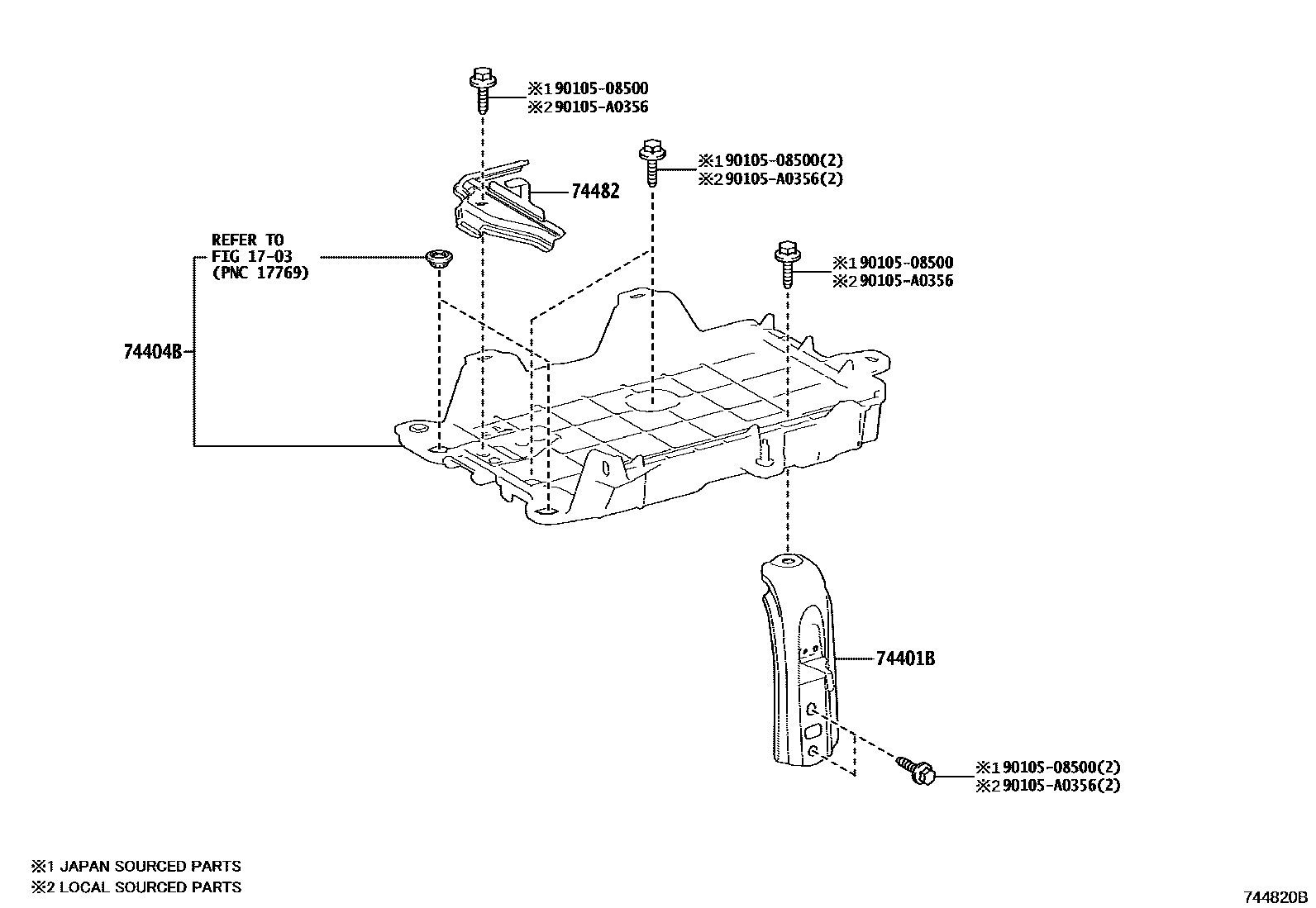

Toyota RAV4 battery holder EPC diagram — 744820B
battery holder — 744820B (201812 – 999999)

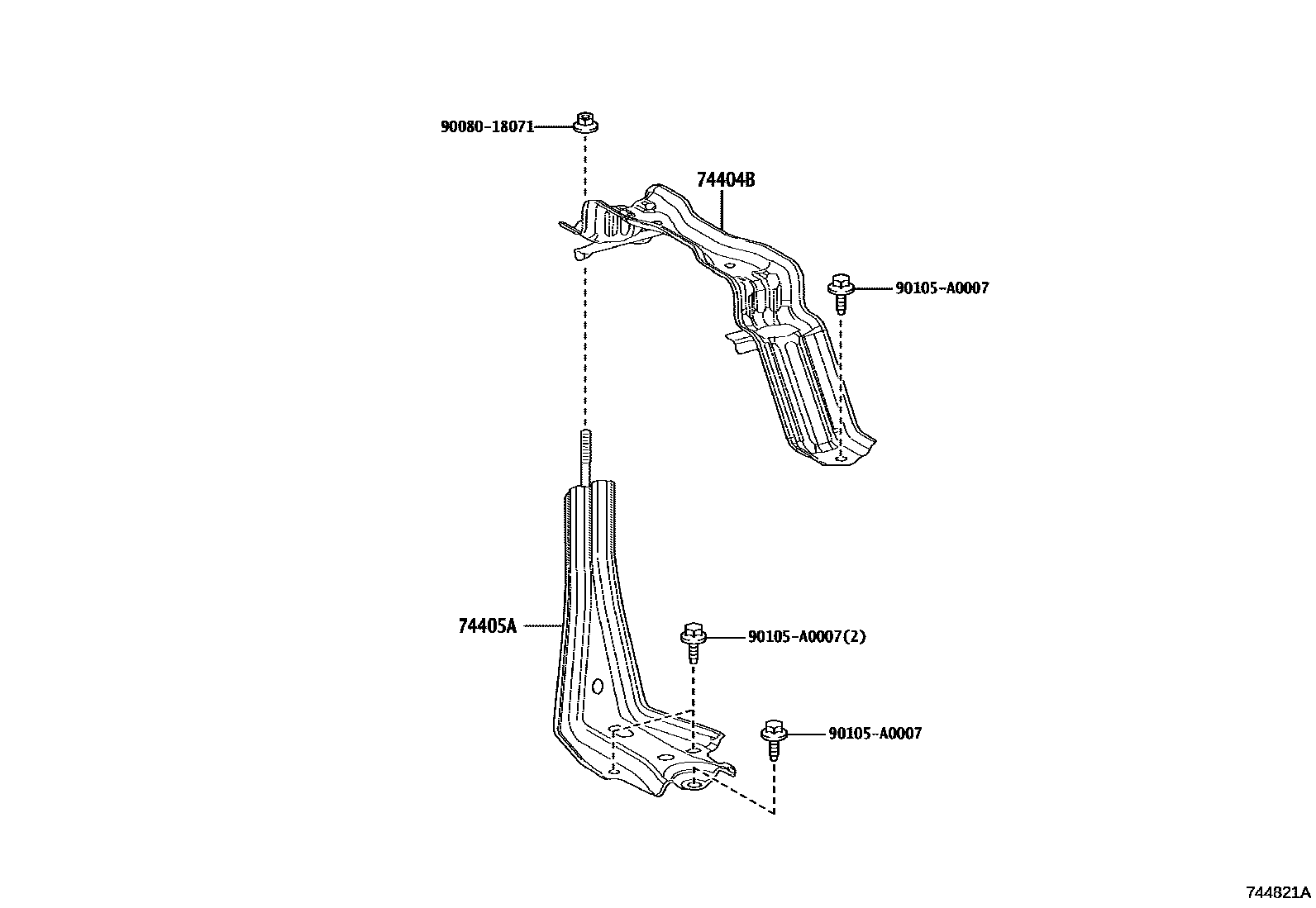

Toyota RAV4 battery holder EPC diagram — 744821A
battery holder — 744821A (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
74401BSOUS-ENS. SUPPORT, PORTE-BATTERIE74401-06010
74404BBattery clip sub-assembly74404-0R060 · 74440-0R010
74405ABattery upper right bracket sub-assembly74405-0R010
74482No. 2 battery clip74482-06050
