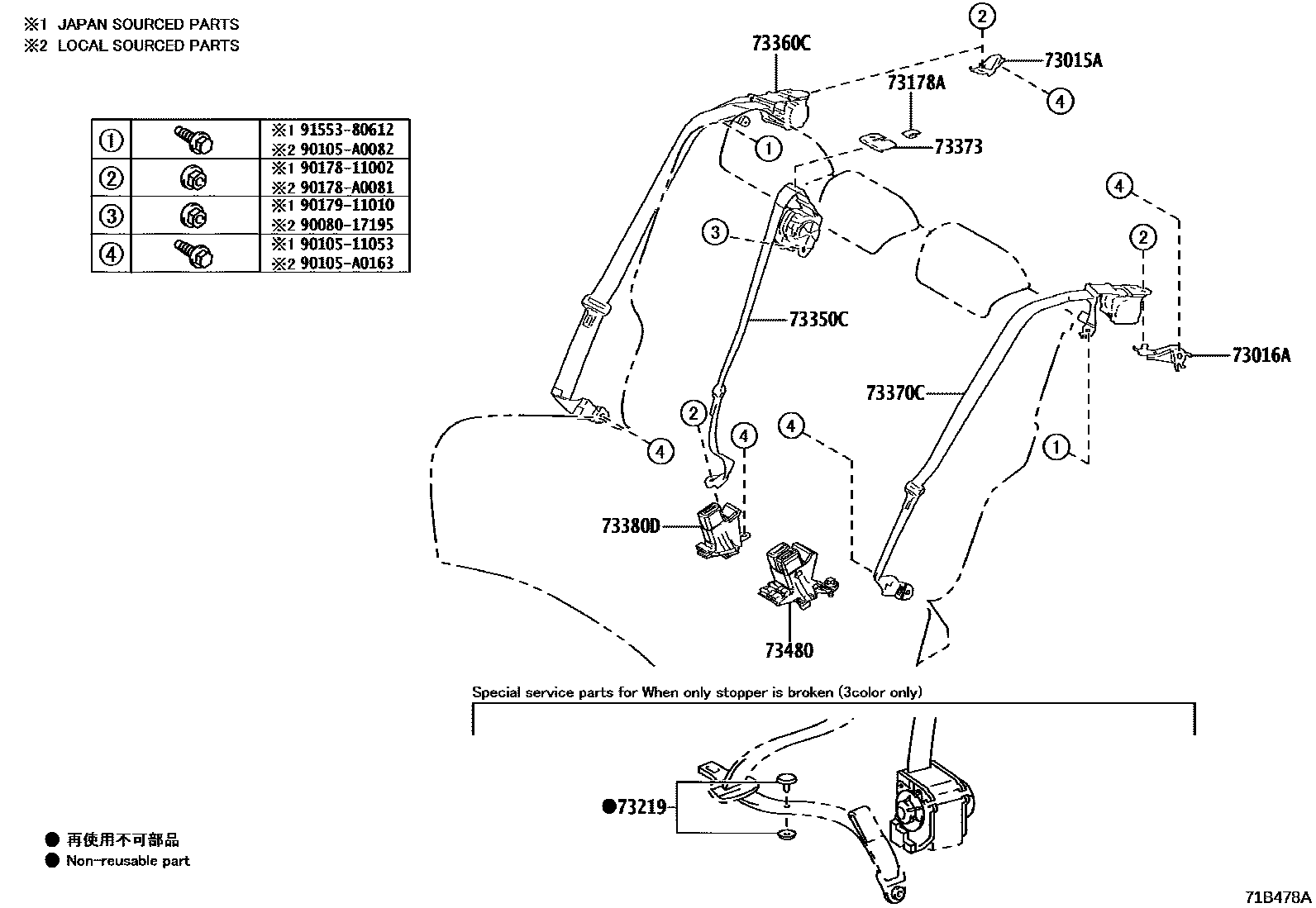

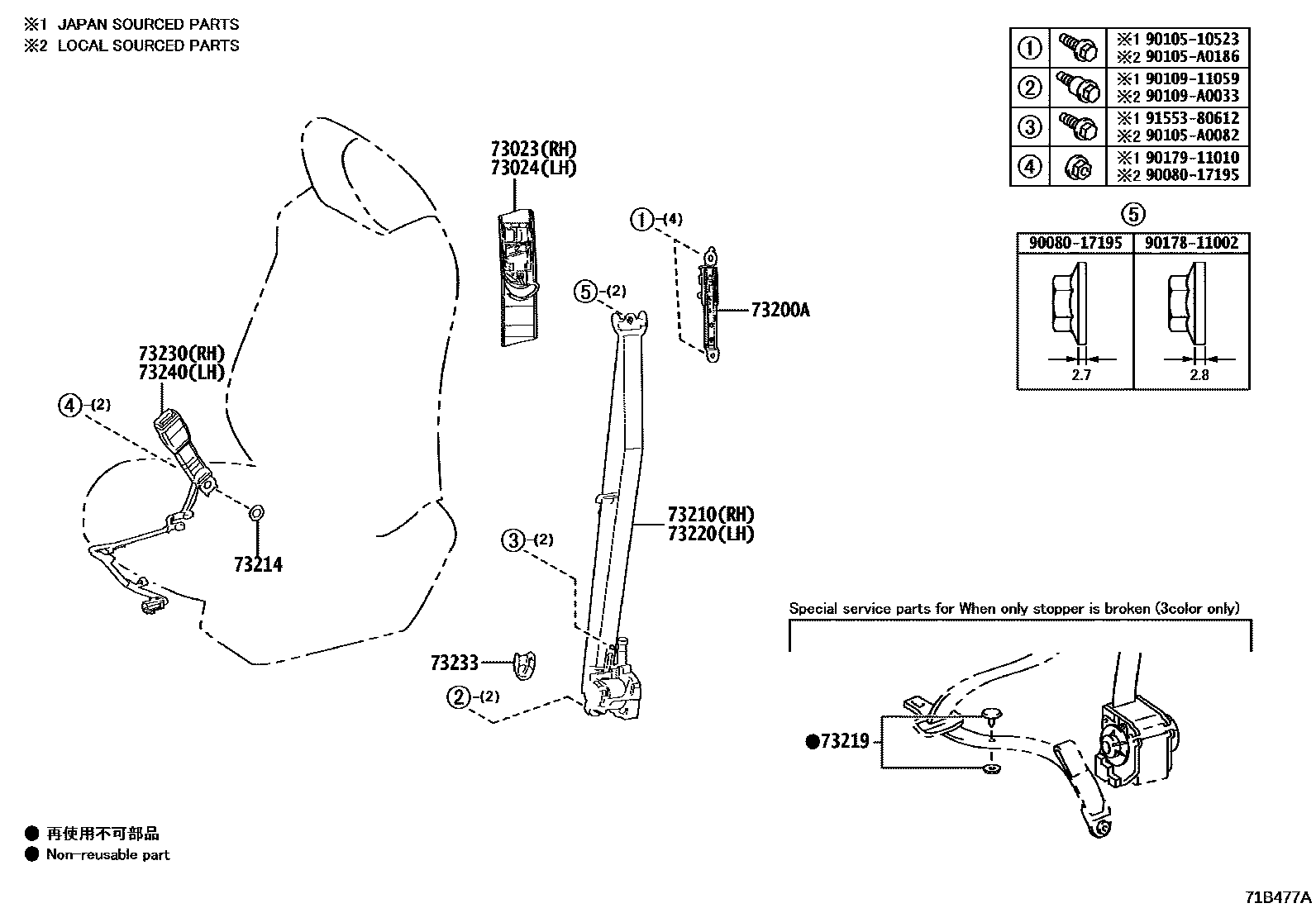

Toyota RAV4 seat belt — Figure 7152
Toyota RAV4 EPC diagram 7152, seat belt, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015A | Right seat belt outer anchor bracket sub-assembly | 73015-0R010 |
| 73016A | Left side seat belt outer anchor bracket sub-assembly | 73016-0R010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-0C020 · 73200-0R010 |
| 73214 | Front seat belt anchor plate | 73214-0E010 · 73214-75010 |
| 73219 | Tongue plate stop | 73219-02010 · 73219-02020 · 73219-02030 |
