Toyota RAV4 座椅和座椅滑轨 — Figure 7151

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 7 images and 79 PNC and OE references.

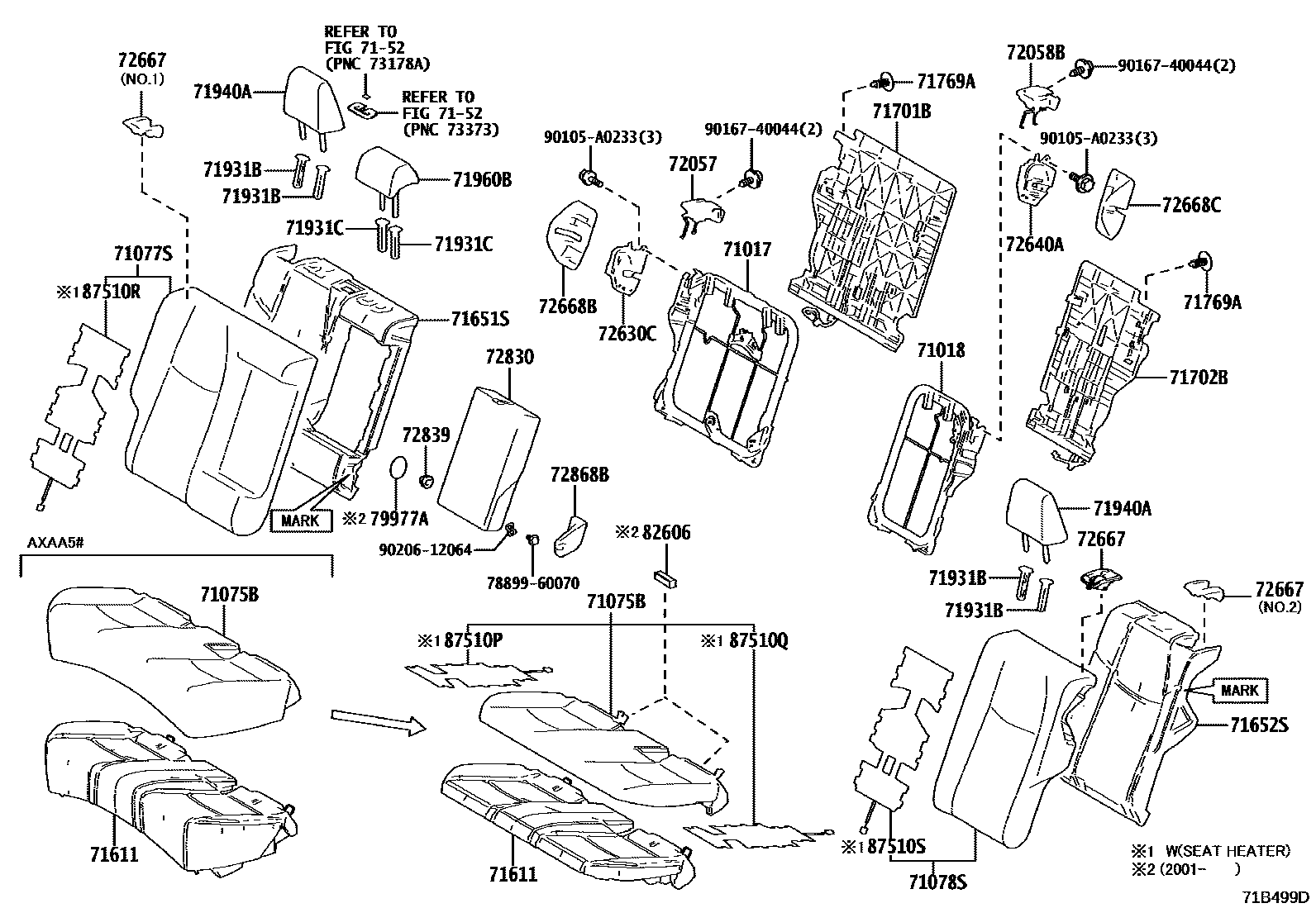

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71B499D
座椅和座椅滑轨 — 71B499D (201812 – 999999)

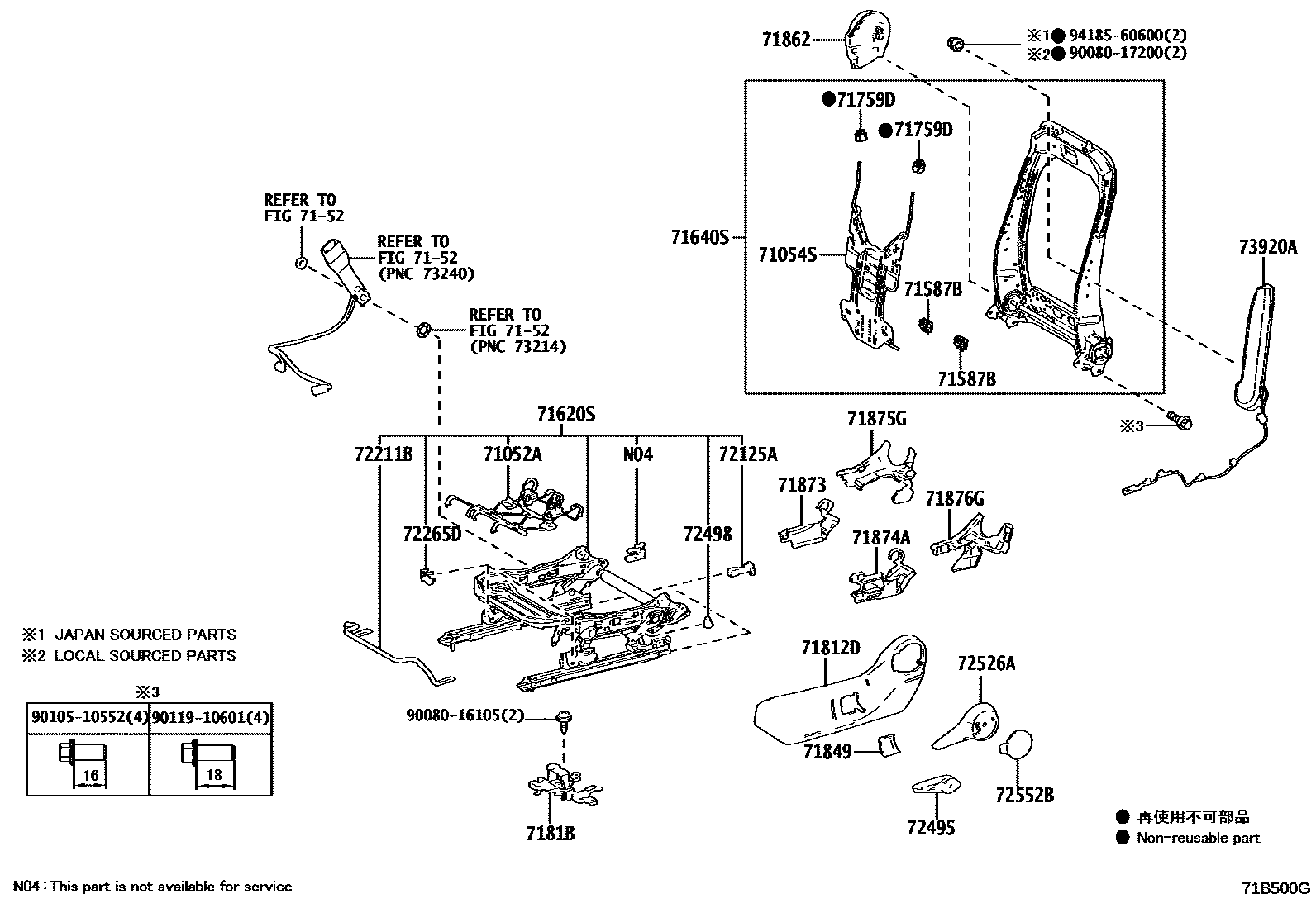

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71B500G
座椅和座椅滑轨 — 71B500G (201812 – 999999)

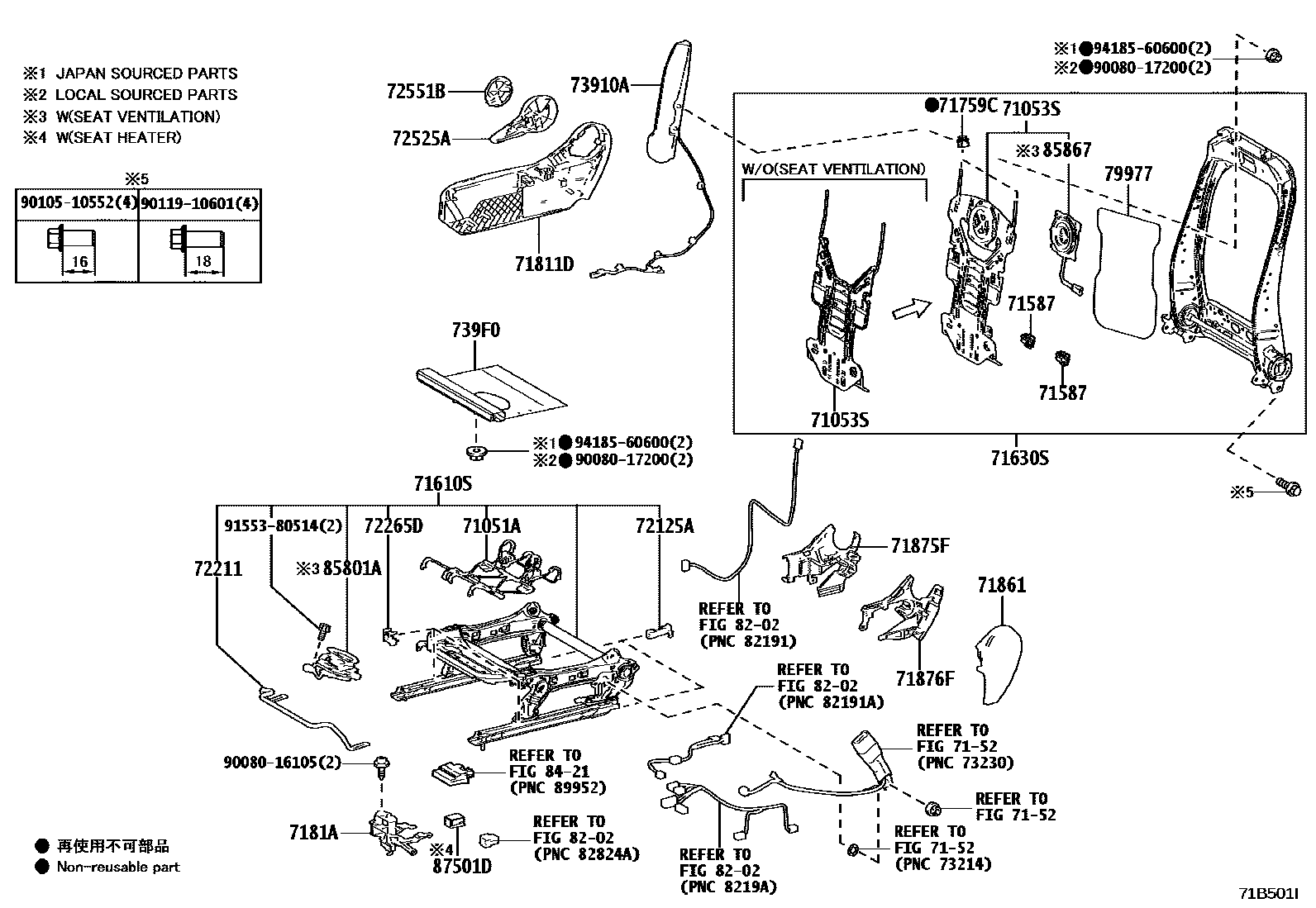

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71B501I
座椅和座椅滑轨 — 71B501I (201812 – 999999)

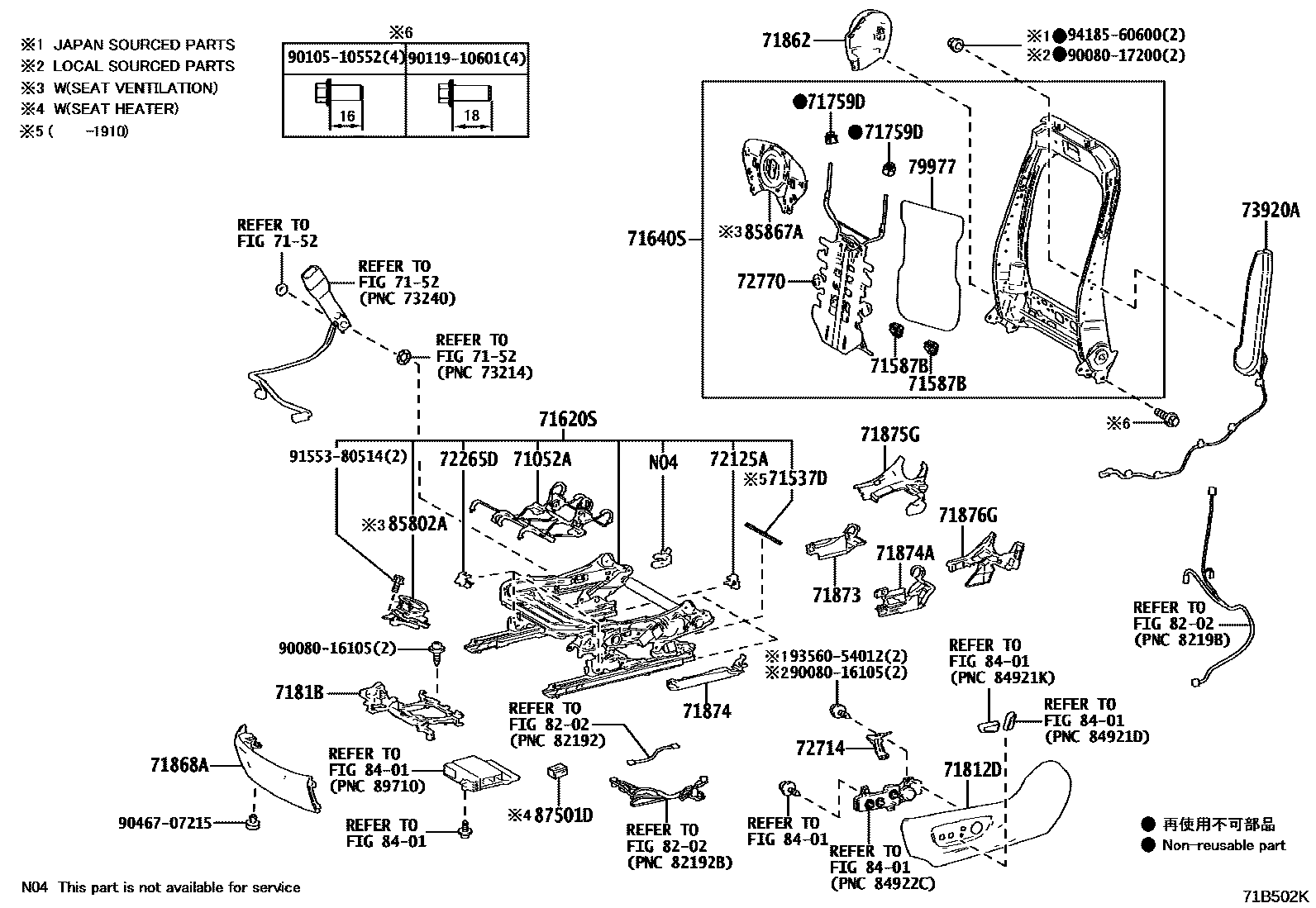

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71B502K
座椅和座椅滑轨 — 71B502K (201812 – 999999)

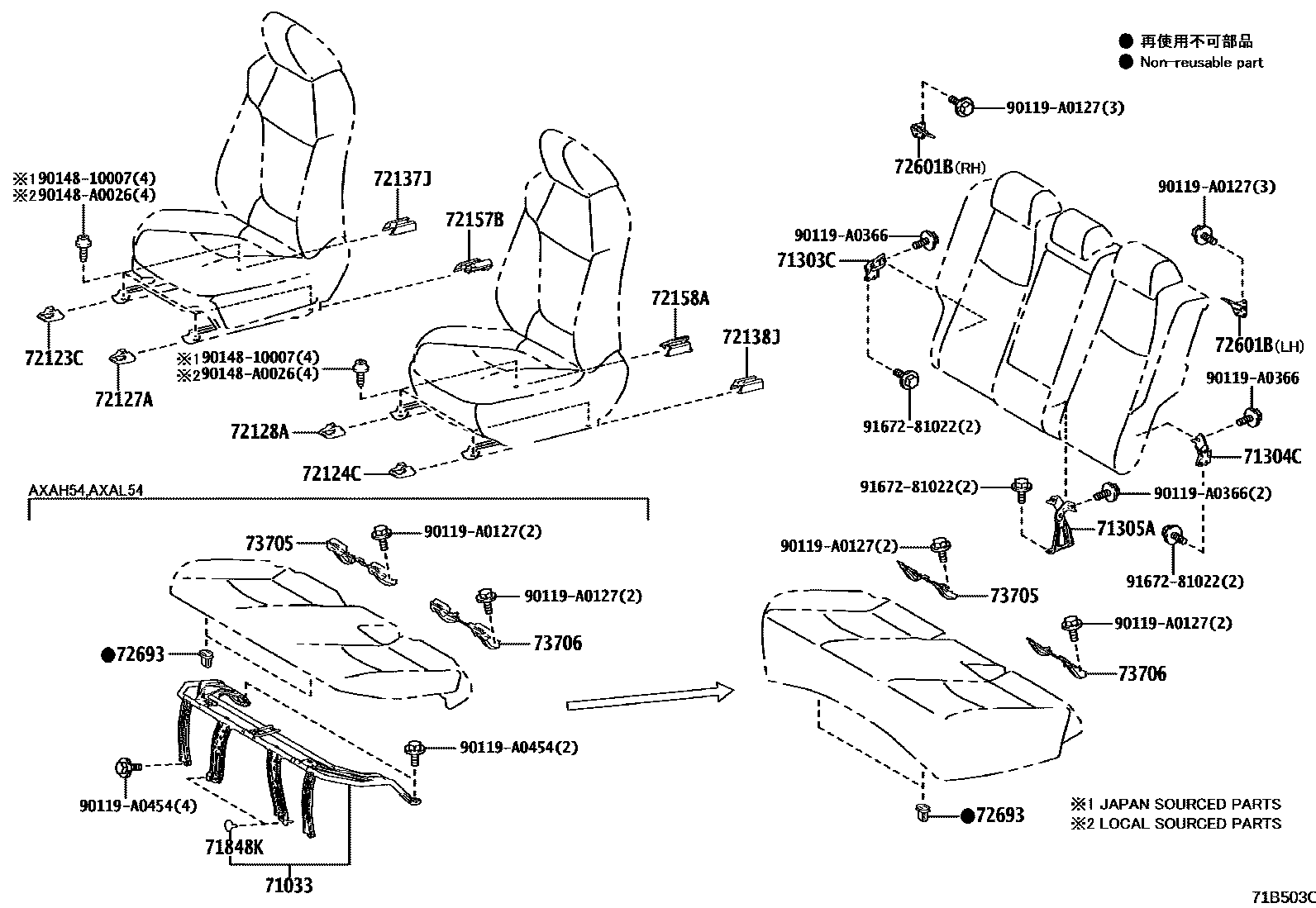

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71B503C
座椅和座椅滑轨 — 71B503C (201812 – 999999)

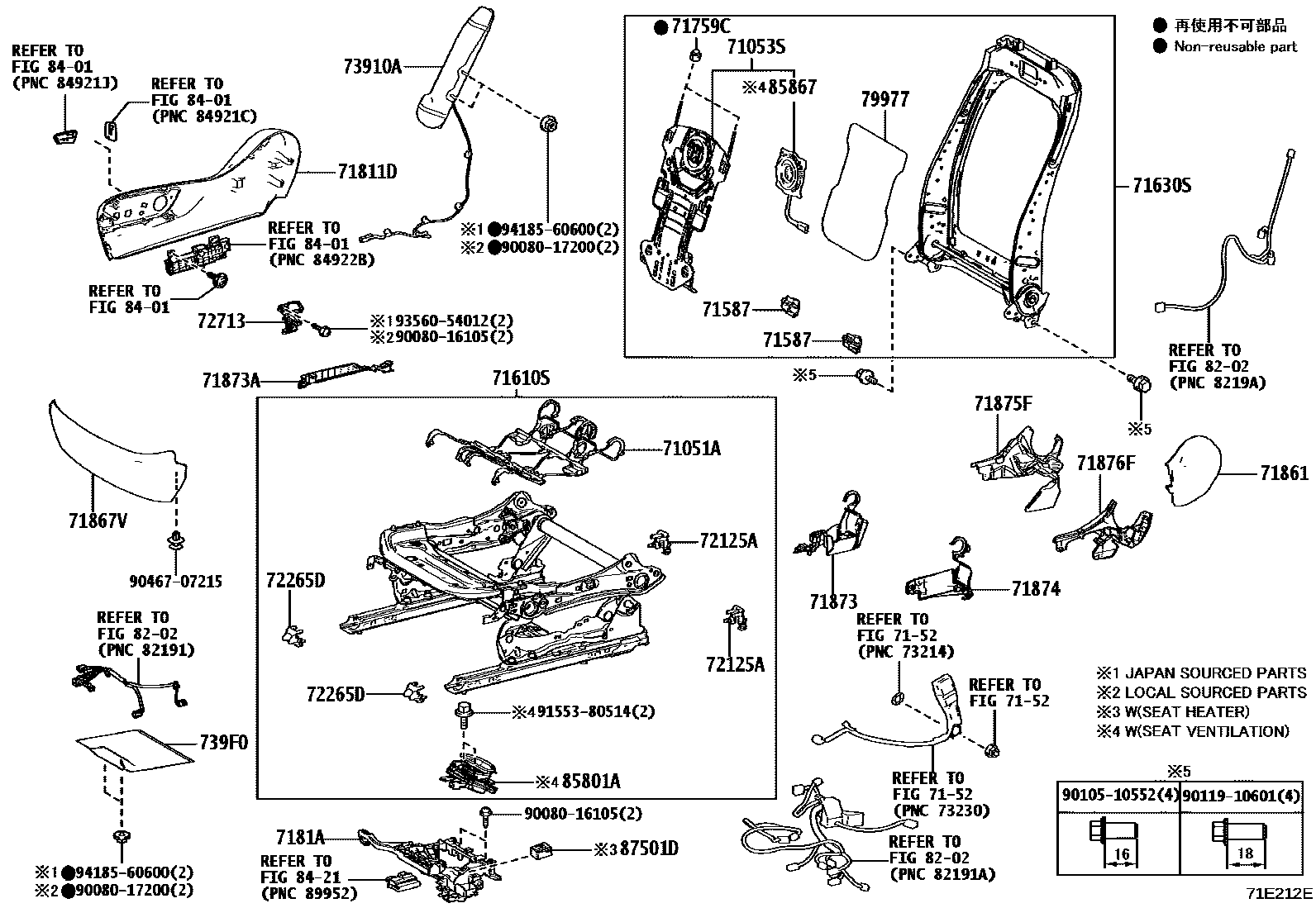

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71E212E
座椅和座椅滑轨 — 71E212E (202111 – 999999)

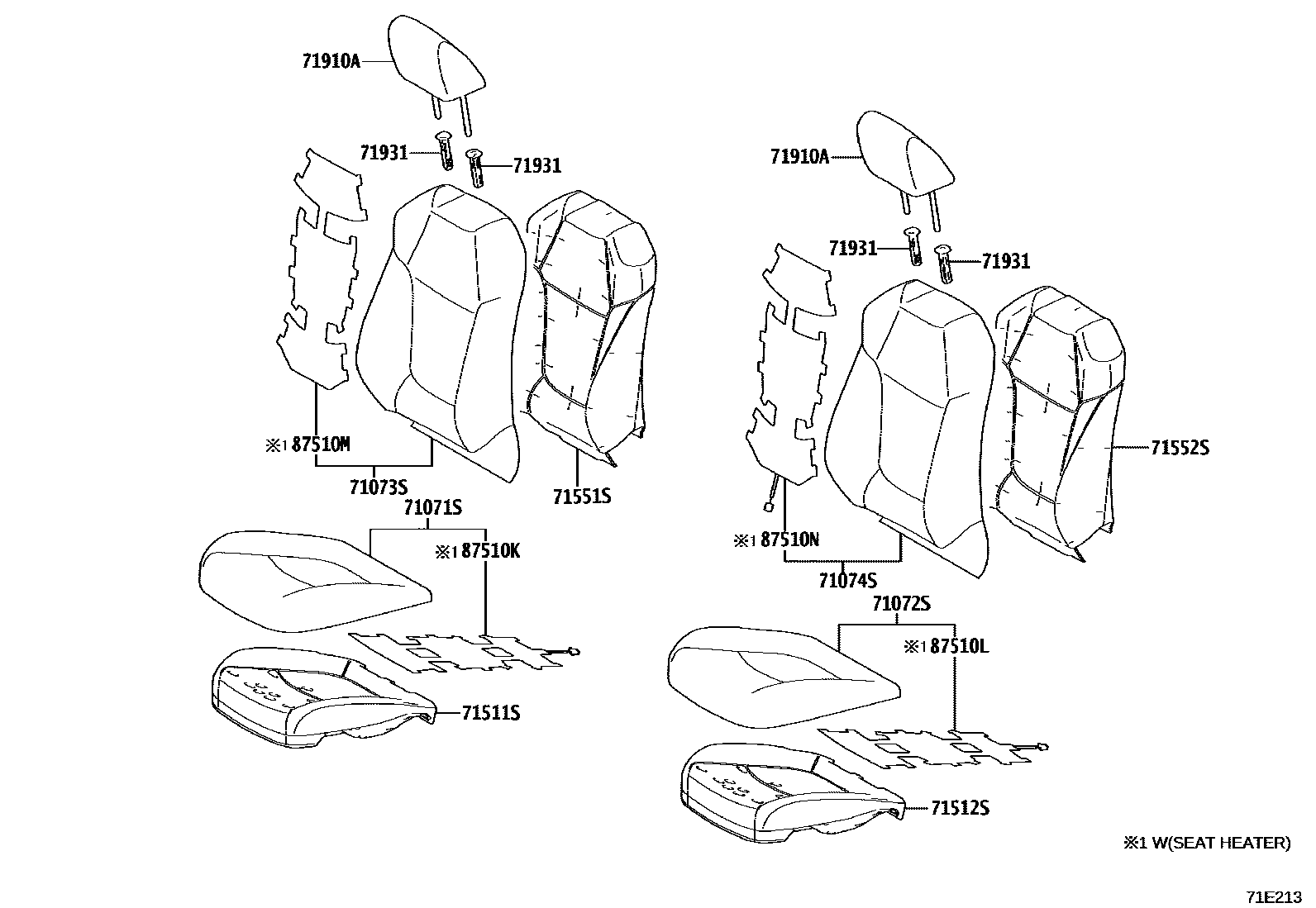

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71E213
座椅和座椅滑轨 — 71E213 (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
71017Right rear seat back frame sub-assembly71017-0R070
71018Rear left seat back frame sub-assembly71018-0R060
71033Rear seat cushion and leg sub-assembly71033-0R010
71051AFront right seat cushion spring sub-assembly71051-02360 · 71051-0R050
71052AFront left seat cushion spring sub-assembly71051-02360 · 71051-0R050
71053SFront right seat back spring sub-assembly71053-0R020 · 71053-0R030
71054SFront left seat back spring sub-assembly71053-0R020
71303CRear right seat backrest hinge sub-assembly71303-0R020
71304CRear left seat back hinge sub-assembly71304-0R020
71305ARear center seat backrest hinge sub-assembly71305-0R010
71511SFront right seat cushion cushion (for split seats)71511-0R140 · 71511-0R160 · 71511-0R180 · 71511-0R190 · 71511-0R270 · 71511-0R280 · 71511-0R290 · 71511-0R350 · 71511-0R360
71512SFront left seat cushion cushion (for split seats)71512-0R140 · 71512-0R150 · 71512-0R160 · 71512-0R170 · 71512-0R180 · 71512-0R260 · 71512-0R270 · 71512-0R280 · 71512-0R290
71537DFront left seat cushion edge protective cover71537-71010
71551SFront right seat back cushion (for split seats)71551-0R140 · 71551-0R150 · 71551-0R160 · 71551-0R170 · 71551-0R220 · 71551-0R230 · 71551-0R240
71552SFront left seat back cushion (for split seats)71552-0R190 · 71552-0R200 · 71552-0R210 · 71552-0R220 · 71552-0R270 · 71552-0R280 · 71552-0R290
71587Front seat back edge protective cover71587-0R010
71587BFront seat back edge protective cover71587-0R010
71610SFront right seat cushion spring assembly (for split seats)71610-0R090 · 71610-0R100 · 71610-0R230
71611Rear seat cushion cushion71611-0R060 · 71611-0R070 · 71611-0R170
71620SFront left seat cushion spring assembly (for split seats)71620-0R130 · 71620-0R150 · 71620-0R170 · 71620-0R180 · 71620-0R200
71630SFront right seat back spring assembly (for split seats)71630-0R070 · 71630-0R080 · 71630-0R190
71640SFront left seat back spring assembly (for split seats)71640-0R180 · 71640-0R190 · 71640-0R220 · 71640-0R290 · 71640-0R300
71651SRear right seat back cushion (for split seats)71651-0R080 · 71651-0R120
71652SRear left seat back cushion (for split seats)71652-0R070 · 71652-0R110
71701BRear right seat back panel sub-assembly71701-0R010
71702BRear left seat back panel sub-assembly71702-0R010
71759CFront seat back hook No. 171759-0R020
71759DFront seat back hook 271759-0R020
71769ARear seat back panel clip71769-28040
7181ASUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD7181A-0E010 · 7181A-0R010
7181BSUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG7181B-0R010 · 7181B-0R020
71848KBOUCHON, COUVERCLE DU REGLAGE DU SIEGE71848-0R070
71873Front right seat cushion lower guard panel71874-0R030
71873AFront seat cushion lower guard71873-F6010
71874Front left seat cushion lower guard71874-0R040 · 71874-F6010
71874AFront left seat cushion lower guard71874-0R020
72123CFront right seat outer slide rail bracket cover72123-02110
72124CFront left seat outer slide rail bracket cover72123-02110
72125ARear seat upper slide rail cover72125-0R010 · 72125-0R020
72127AFront right seat inner slide rail bracket cover72123-02110
72128AFront left seat inner slide rail bracket cover72123-02110
72137JFront right seat outer slide rail rear cover72137-02370
72138JFront left seat outer slide rail rear cover72137-02370
72157BRear right seat inner slide rail bracket cover72157-02350
72158ARear left seat inner slide rail bracket cover72158-02230
72211Seat slide adjustment handle72211-0R030
72211BSeat slide adjustment handle72211-0R030
72265DCOUVERCLE, RAIL SUPERIEUR DE PISTE DE SIEGE72265-0R010 · 72265-0R020
72498Height adjuster bracket cover72498-0R020
72601BRear seat back lock sub-assembly72601-42040 · 72602-42010
72630CRear right seat back lock assembly72630-0R030 · 72630-0R031
72640ARear left seat back lock assembly72640-0R030 · 72640-0R031
72693Rear seat cushion hook72693-06030 · 72693-12080
72713SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MD72713-0E010
72714SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG72714-0R010
72770Left lumbar support adjuster assembly72760-0R040 · 72760-0R050
72830Rear seat center armrest assembly72830-0R160 · 72830-0R170
72839Rear seat armrest hinge gasket72839-22010
73705Child restraint seat anchor right side bracket sub-assembly73705-0R010 · 73705-0R050
73706Child restraint seat anchor left bracket sub-assembly73705-0R020 · 73705-0R060
73910AFront right seat airbag assembly73910-0R080
73920AFront left seat airbag assembly73920-0R080
739F0ENS. AIRBAG, COUSSIN DE SIEGE AVANT, MD739F0-02030 · 739F0-0R020 · 739F0-F6030
79977Seat back felt pad79977-02140 · 79977-0R070
79977ASeat back felt pad79977-0R050
82606No. 1 fuse assembly82606-0R010
85801ARight seat cushion temperature control blower sub-assembly85801-0R010 · 85801-F6010
85802ALeft seat cushion temperature control blower sub-assembly85802-0R010
85867Right seat back temperature control blower85867-33040
85867ALeft-hand seat back temperature control blower85867-0R020
87501DSeat heater control sub-assembly87501-0R030
87510KFront right seat cushion heater assembly87510-0R150 · 87510-0R180 · 87510-0R250 · 87510-0R260
87510LFront left seat cushion heater assembly87510-0R150 · 87510-0R180 · 87510-0R190 · 87510-0R200 · 87510-0R240
87510MFront right seat back heater assembly87530-0R070 · 87530-0R080 · 87530-0R110 · 87530-0R120
87510NFront left seat back heater assembly87530-0R070 · 87530-0R080 · 87530-0R110 · 87530-0R120
87510PSeat heater assembly87510-0R160
87510QSeat heater assembly87510-0R170
87510RSeat heater assembly87530-0R030
87510SSeat heater assembly87530-0R050
