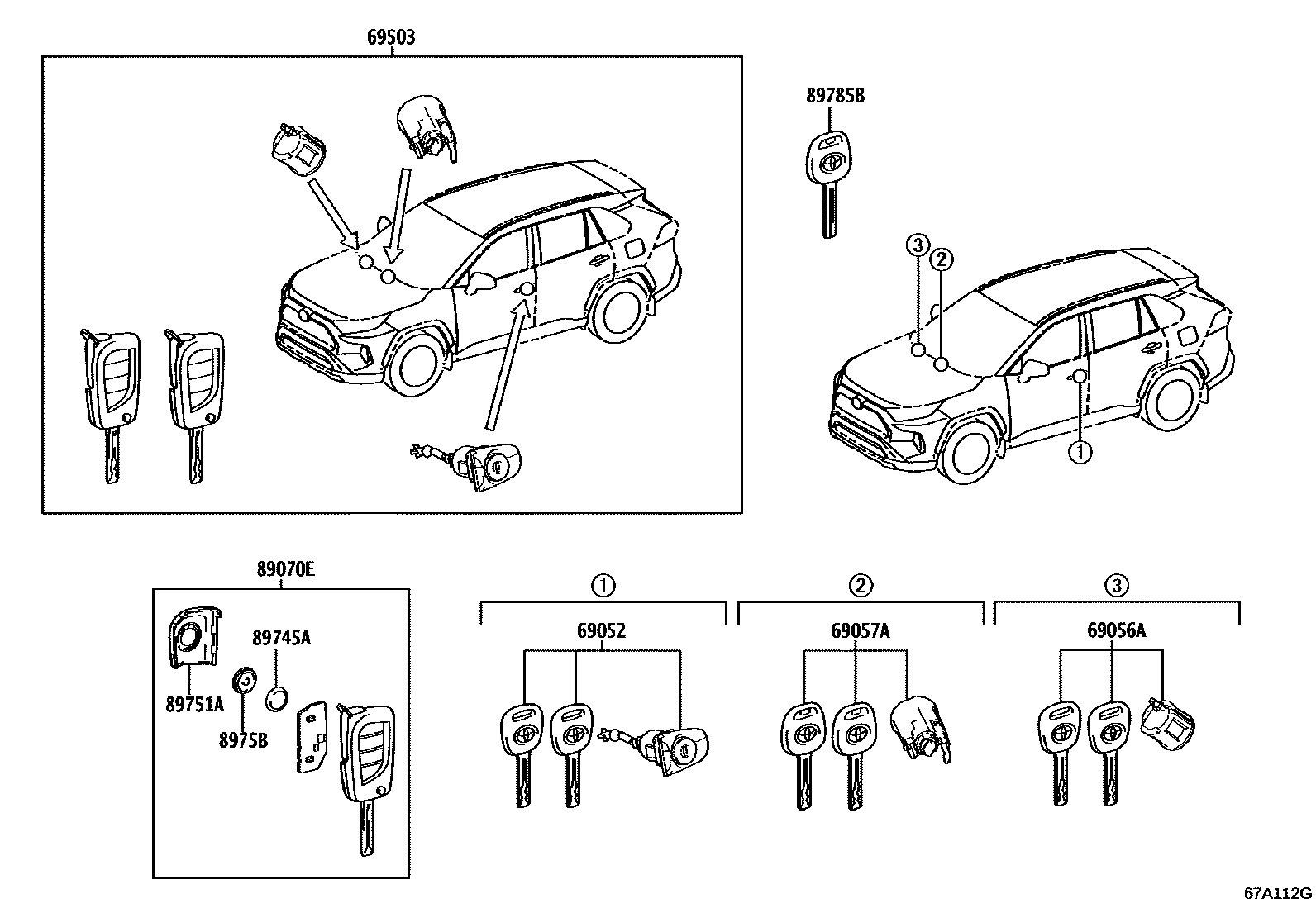

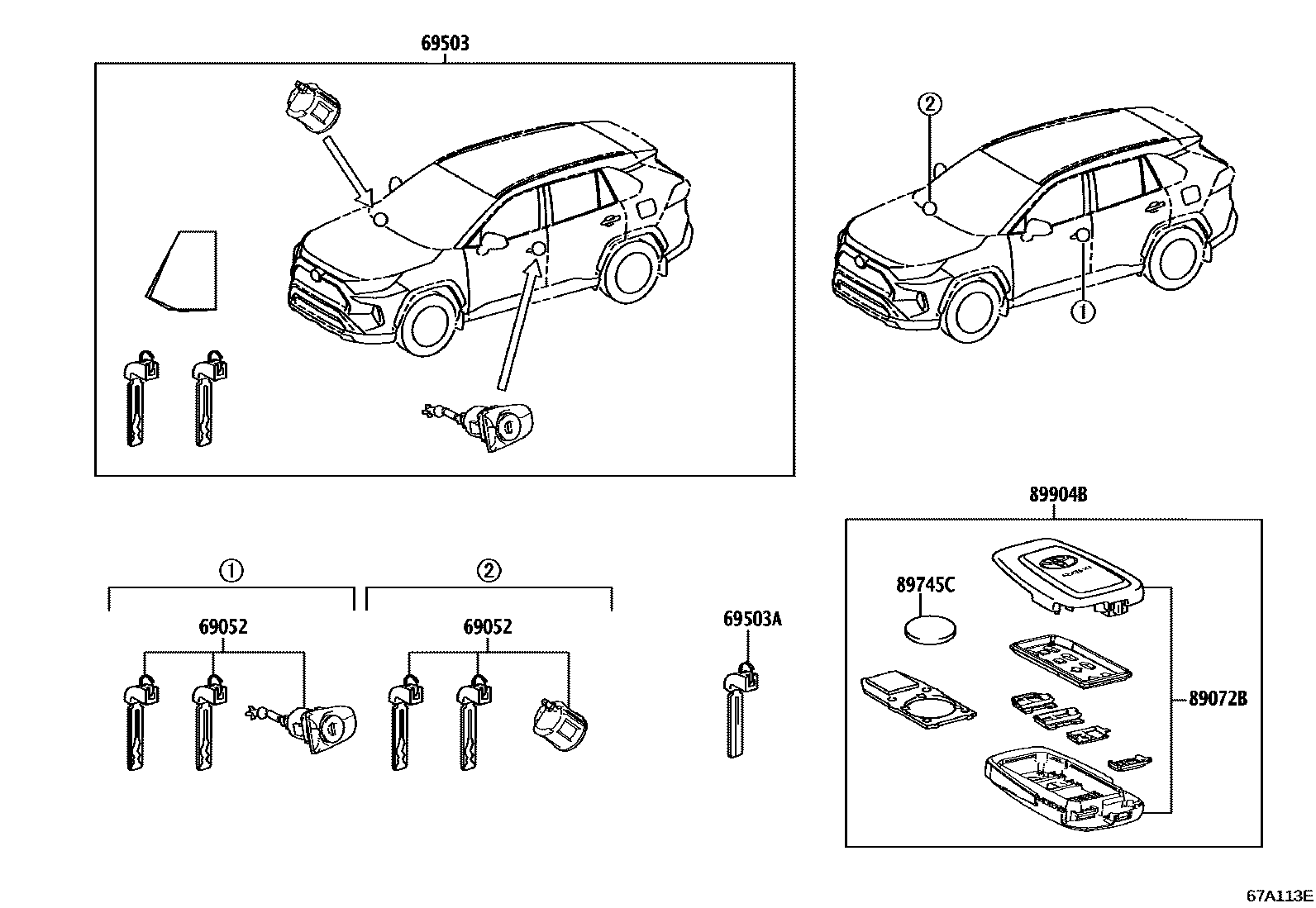

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0R090 · 69052-0R100 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06170 · 69056-06180 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06260 |
| 69503 | Door lock cylinder components | 69005-0R140 · 69005-0R290 · 89704-0R180 · 89704-0R230 · 89704-0R240 · 89704-0R250 · 89704-0R260 |
| 69503A | external tooth key | 69515-06050 · 69515-16110 |
| 89070E | Remote key assembly | 89070-0R300 · 89070-0R380 · 89070-0R440 · 89070-0R450 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0R180 · 89072-0R190 · 89072-0R200 · 89072-0R210 · 89072-0R340 · 89072-0R350 · 89072-0R400 · 89072-0R410 |
| 89745A | Transmitter battery | 89745-0D010 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-06110 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-02410 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-0R010 · 8990H-0R020 · 8990H-0R030 · 8990H-0R040 · 8990H-0R200 · 8990H-0R210 · 8990H-0R220 · 8990H-0R230 |
