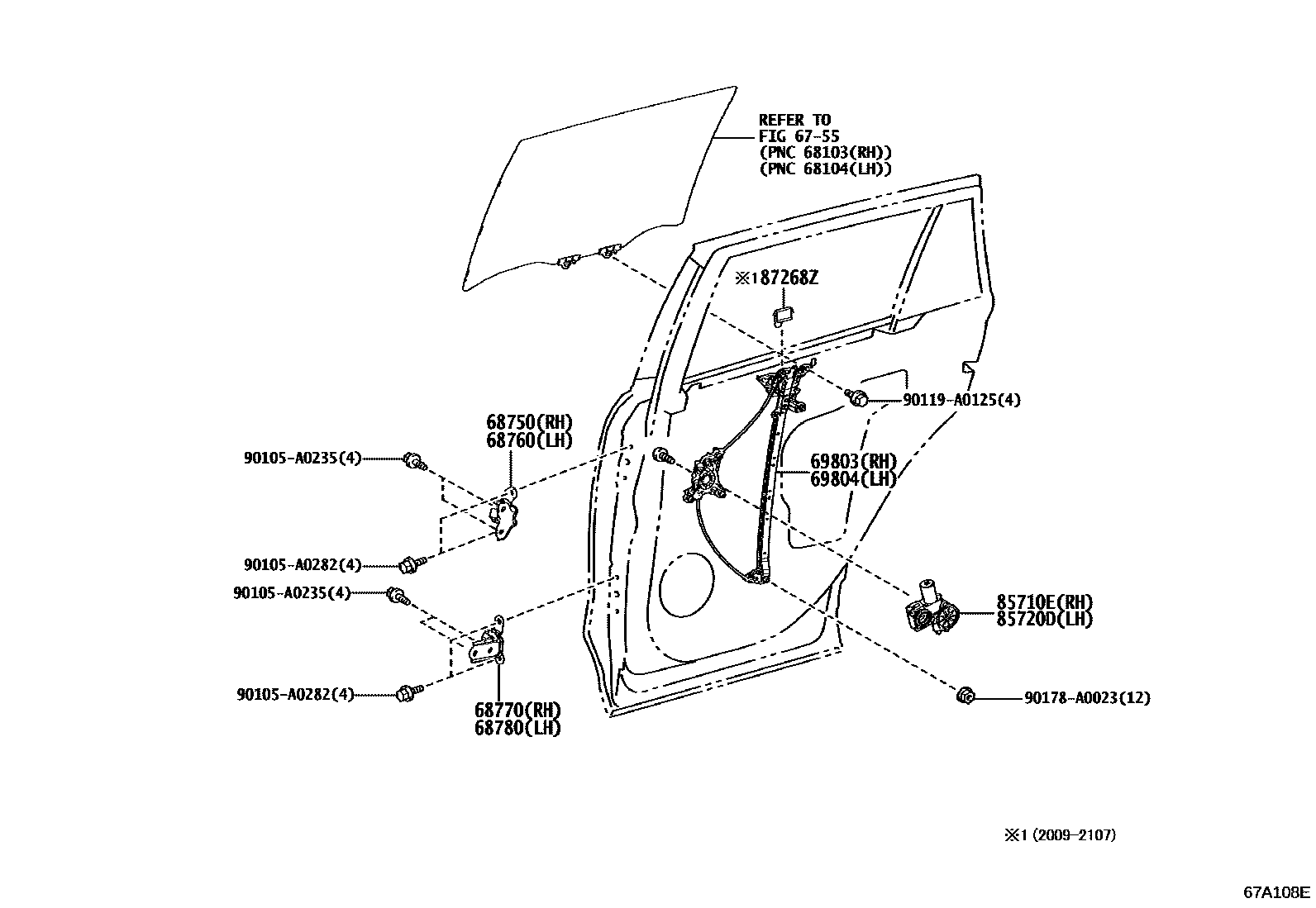

Toyota RAV4 后门车窗升降器和合页 — Figure 6757
Toyota RAV4 EPC diagram 6757, 后门车窗升降器和合页, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-06010 |
| 68760 | Left rear door upper hinge assembly | 68760-06010 |
| 68770 | Right rear door lower hinge assembly | 68770-06050 |
| 68780 | Left rear door lower hinge assembly | 68780-06050 |
| 69803 | Right rear door window lifter sub-assembly | 69803-0R050 · 69803-0R052 · 69803-0R110 |
| 69804 | Left rear door window lifter sub-assembly | 69804-0R050 · 69804-0R052 · 69804-0R110 |
| 85710E | Right power window lift motor assembly | 85710-0R020 |
| 85720D | Left electric window lift motor assembly | 85720-0R080 |
| 87268Z | PROTECTEUR | 87268-0R190 · 87268-0R200 |
