Toyota RAV4 后门锁和后门把手 — Figure 6756

Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 24 PNC and OE references.

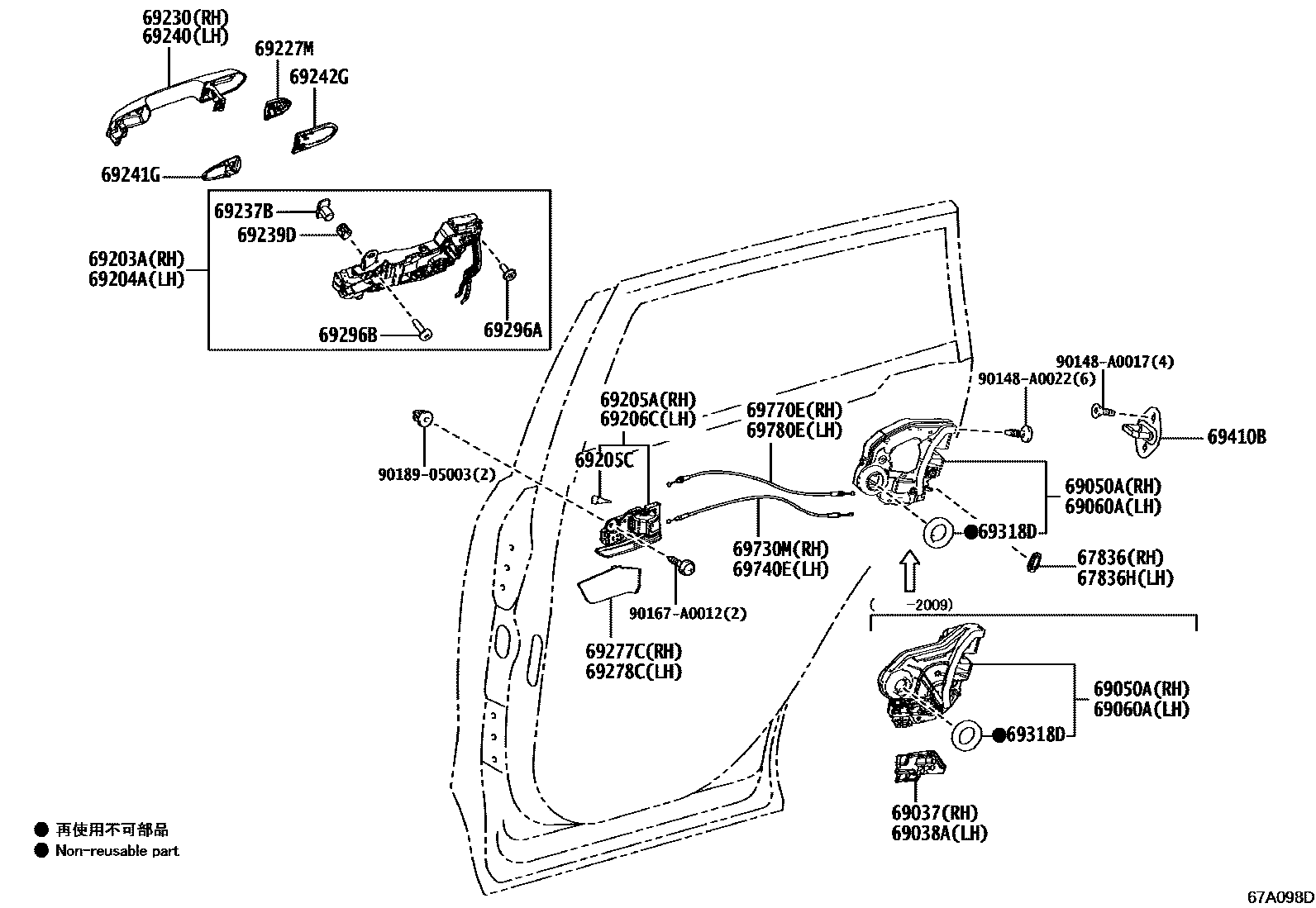

Toyota RAV4 后门锁和后门把手 EPC diagram — 67A098D
后门锁和后门把手 — 67A098D (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
67836Right rear door lock child restraint cover67836-60010
67836HLeft rear door lock child restraint cover67836-60010
69037SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MD69037-02030
69038ASOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MG69038-02030
69050ARight rear door lock assembly with motor69050-02340 · 69050-06100
69060ALeft rear door lock assembly with motor69060-02340 · 69060-06100
69203ARight rear door outer handle frame sub-assembly69203-0R060 · 69203-0R070
69204ALeft rear door outer handle frame sub-assembly69204-0R060 · 69204-0R070
69205CCushion pad (for rear door inner handle)90080-54005
69227MRear door outer handle cover69227-0R070 · 69227-0R080
69230Right rear door outer handle assembly69210-0R070 · 69210-0R090
69237BECROU, POIGNEE PORTE ARRIERE69237-06030 · 69237-62010
69239DBAGUE, POIGNEE PORTE ARRIERE69239-06030 · 69239-06040
69240Left rear door outer handle assembly69210-0R070 · 69210-0R090
69241GRear door front exterior handle pad69241-0R030
69242GRear door rear outer handle pad69242-0R030
69296ACar door inner handle screws69296-02020 · 69296-0T010 · 90084-14006 · 90148-50006
69296BCar door inner handle screws69296-06070 · 90084-14006 · 90148-50006
69318Ddoor lock harness seal69318-AA010
69410BRear door lock plate assembly69410-02030
69730MCABLE,COMM VERR A DISTANCE PORTE ARR,MD(LEVIER OUVERTURE)69730-0R060 · 69730-0R090
69740ECABLE,COMM VERR A DISTANCE PORTE ARR,MG(LEVIER OUVERTURE)69730-0R060 · 69730-0R090
69770ECABLE, VERR INTERNE PORTE ARR, MD(POUR BOUTON VERR/DEVERR)69770-0R060 · 69770-0R090
69780ECABLE, VERR INTERNE PORTE ARR, MG(POUR BOUTON VERR/DEVERR)69770-0R060 · 69770-0R090
