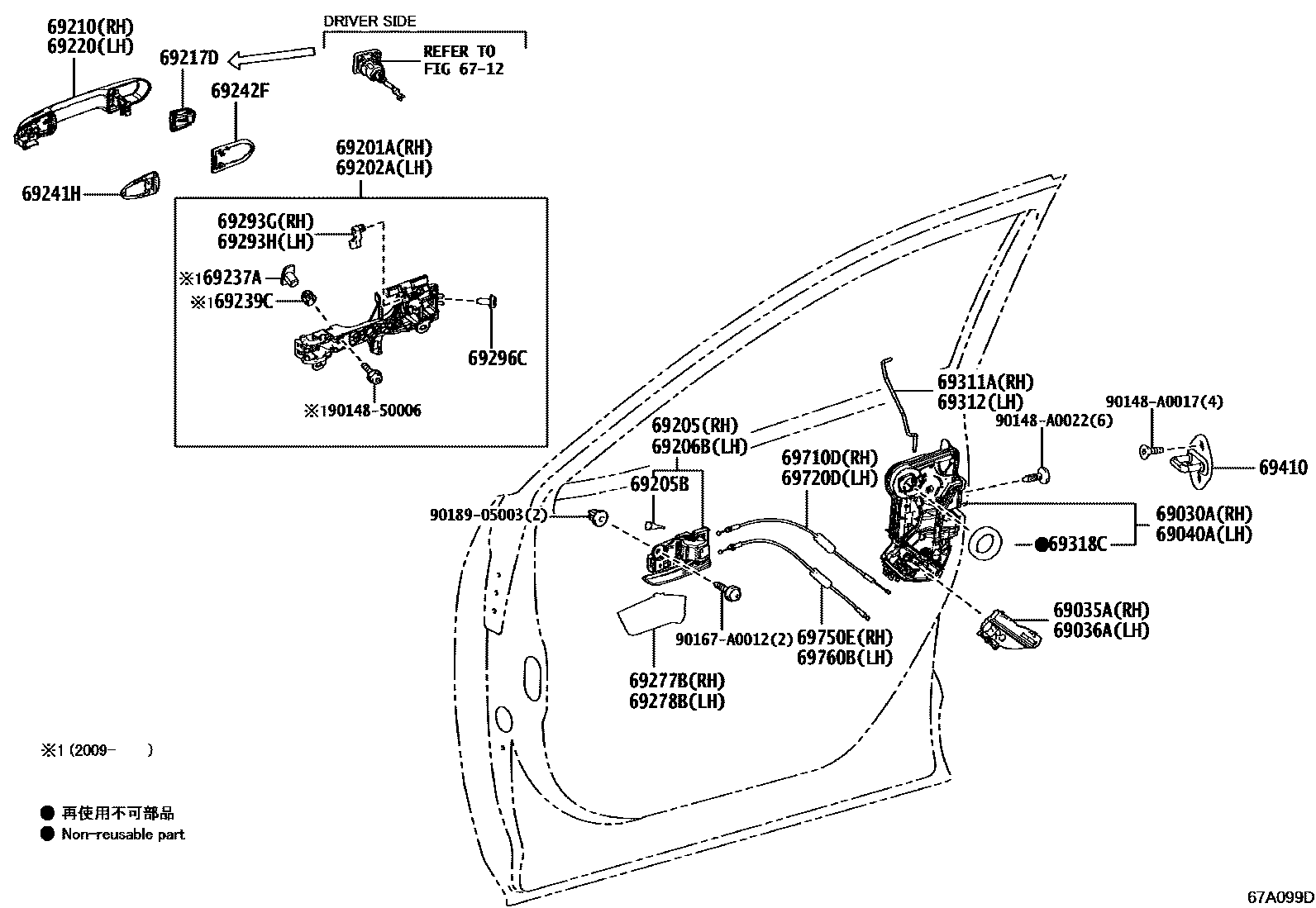

Toyota RAV4 前门锁和车门把手 — Figure 6753
Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02380 |
| 69035A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD | 69035-02030 |
| 69036A | Left front door lock cover sub-assembly | 69036-02030 |
| 69040A | Left front door door lock assembly with motor | 69040-02440 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0R040 · 69201-0R050 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0R040 · 69202-0R050 |
| 69205B | Cushion pad (for inner front door handle) | 90080-54005 |
| 69217D | Front door outer handle cover | 69217-0R160 · 69217-0R170 |
| 69237A | ECROU, POIGNEE PORTE AVANT | 69237-06030 · 69237-62010 |
| 69239C | BAGUE, POIGNEE PORTE AVANT | 69239-06030 · 69239-06040 |
| 69241H | Front door exterior handle pad | 69241-0R030 |
| 69242F | Front door rear outer handle pad | 69242-0R030 |
| 69293G | Right front door outer handle buckle | 69293-33030 · 69293-33050 |
| 69293H | Left front door outer handle buckle | 69293-33040 · 69293-33060 |
| 69296C | VIS, POIGNEE INTE PORTE | 69296-02020 · 90084-14006 |
| 69311A | Right front door lock opening lever | 69311-0R050 |
| 69312 | Left front door lock opening lever | 69312-0R050 |
| 69318C | door lock harness seal | 69318-AA010 |
| 69410 | Front door lock plate assembly | 69410-02030 |
| 69710D | CABLE,COMM VERR A DISTANCE PORTE AVANT,MD(LEVIER OUVERTURE) | 69710-0R060 |
| 69720D | CABLE,COMM VERR A DISTANCE PORTE AVANT,MG(LEVIER OUVERTURE) | 69710-0R060 |
| 69750E | CABLE, VERR INTERNE PORTE AVANT, MD(POUR BOUTON VERR/DEVERR) | 69750-0R060 |
| 69760B | CABLE, VERR INTERNE PORTE AVANT, MG(POUR BOUTON VERR/DEVERR) | 69750-0R060 |
