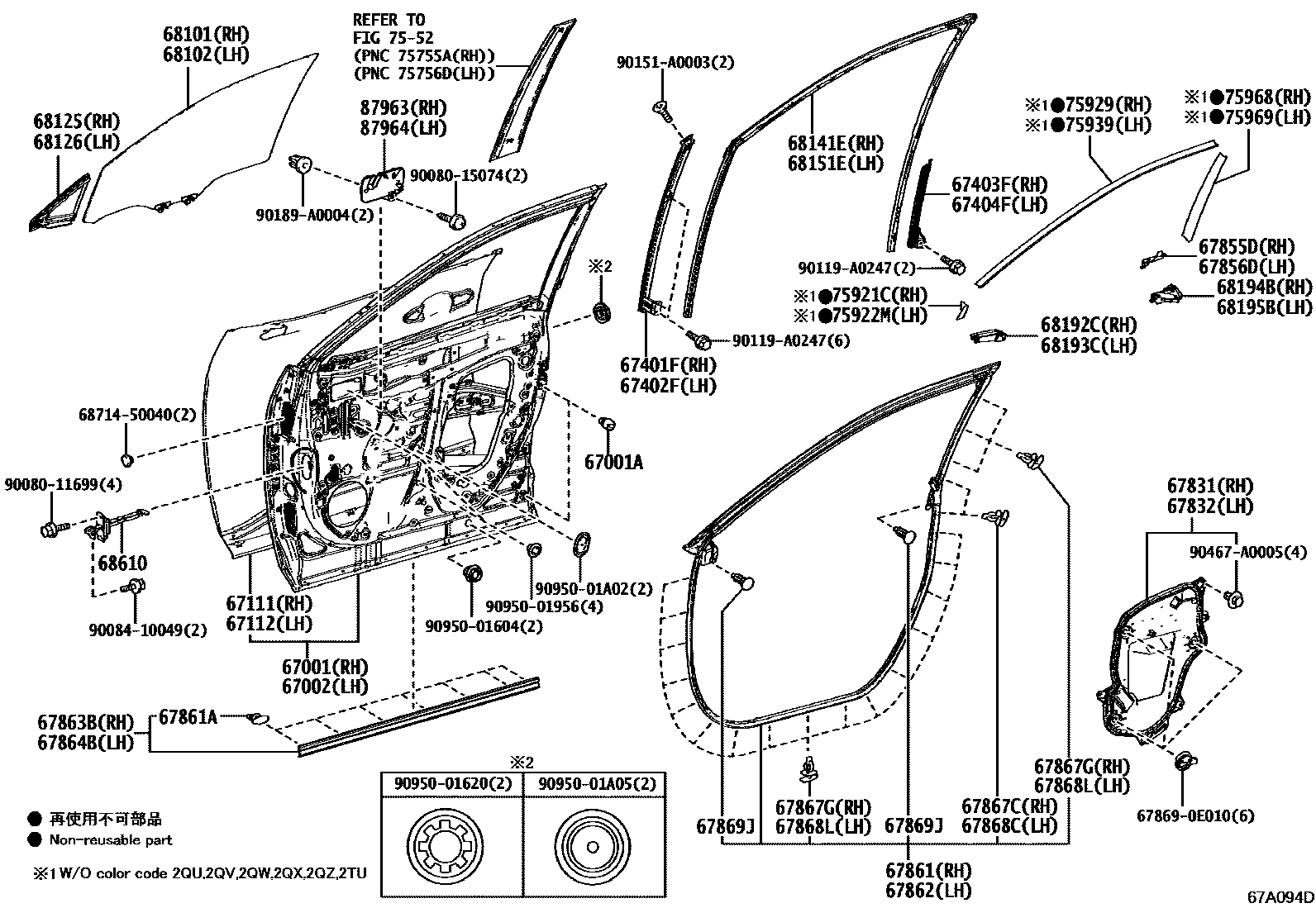

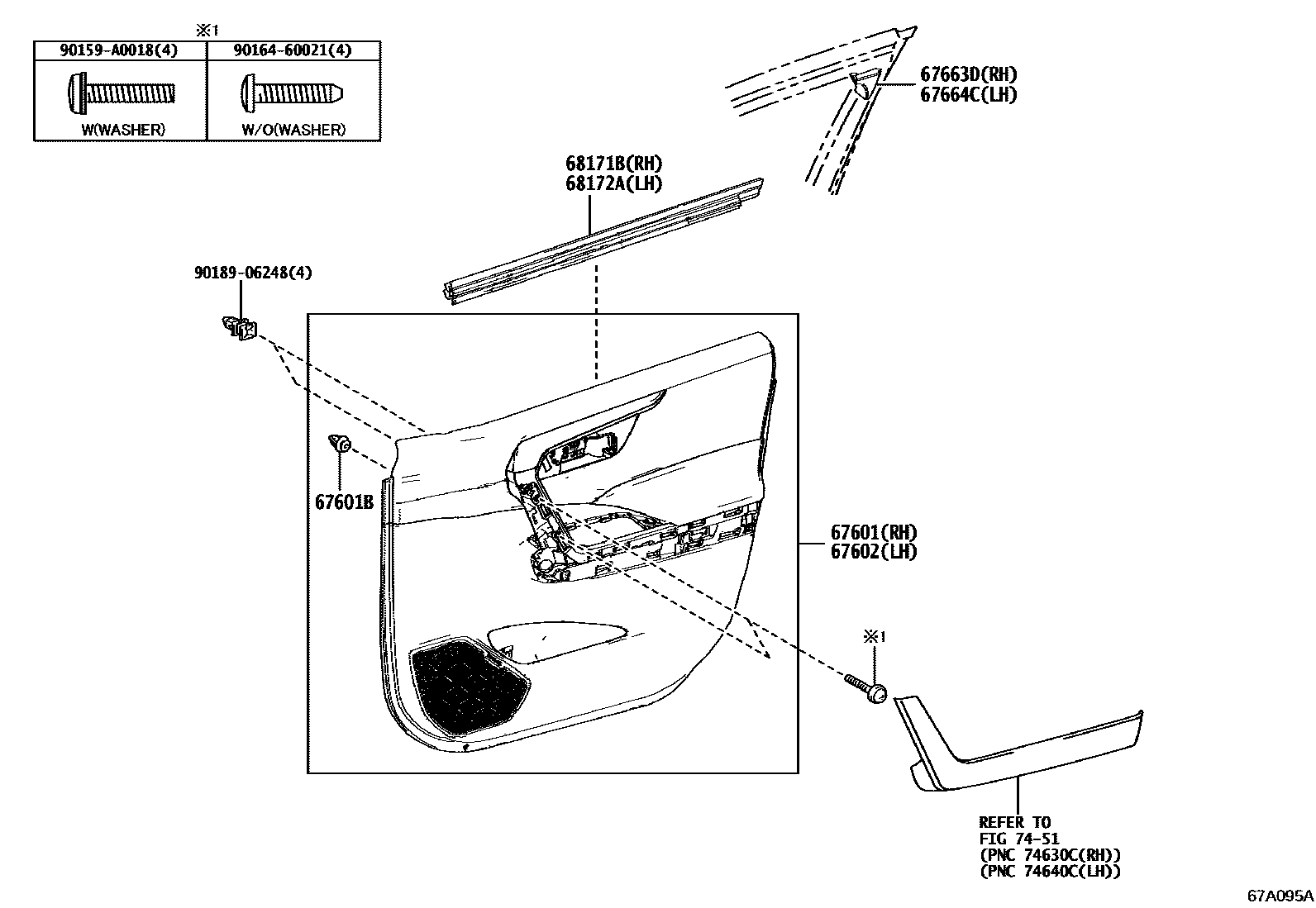

Toyota RAV4 前门板和前门玻璃 — Figure 6751
Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0R090 · 67001-0R130 · 67001-0R131 |
| 67001A | Front door panel cushion | 90541-09137 |
| 67002 | Left front door panel sub-assembly | 67002-0R110 · 67002-0R150 · 67002-0R151 |
| 67111 | Outer right front door panel | 67111-0R070 |
| 67112 | Outer left front door panel | 67112-0R070 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-0R010 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-0R010 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0R050 · 67403-0R080 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0R050 · 67404-0R080 |
| 67601B | Catch (for front door trim panel) | 90467-A0005 · 90467-A0048 |
| 67663D | Right door frame decorative strip | 67663-0R030 |
| 67664C | Left door frame decorative strip | 67664-0R030 |
| 67831 | Right front door access hole cover | 67831-0R060 |
| 67832 | Left front door access hole cover | 67832-0R060 |
| 67855D | Right front door panel protector | 67855-0R010 |
| 67856D | Left front door panel protector | 67856-0R010 |
| 67861 | Right front door seal | 67861-0R050 |
| 67861A | Fixing piece (for front door sealing strip) | 67867-12150 |
| 67862 | Left front door seal | 67862-0R050 |
| 67863B | Right front door seal No. 2 | 67863-0R040 |
| 67864B | Left front door seal No. 2 | 67864-0R030 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-26050 |
| 68101 | Right front door glass sub-assembly | 68101-0R060 |
| 68102 | Left front door glass sub-assembly | 68102-0R060 |
| 68125 | Right front door fixed window glass | 68125-0R050 · 68125-42060 |
| 68126 | Left front door fixed window glass | 68126-0R050 · 68126-42060 |
| 68141E | Right front door glass lift channel | 68141-0R060 · 68141-0R061 |
| 68151E | Left front door glass lift channel | 68151-0R060 · 68151-0R061 |
| 68171B | Right front door glass inner sealing strip | 68171-0R050 |
| 68172A | Left front door glass inner sealing strip | 68172-0R050 |
| 68192C | Right front door beltline front seal | 68192-0R010 |
| 68193C | Left front door beltline front seal | 68193-0R010 |
| 68194B | Right front door beltline rear seal | 68194-0R010 |
| 68195B | Left front door beltline rear seal | 68195-0R010 |
| 68610 | Front door opening limiter assembly | 68610-0R050 |
| 75921C | No. 1 right side light-shielding film | 75921-0R050 |
| 75922M | No. 1 left shading film | 75922-0R050 |
| 75929 | Light-blocking film on the inside of the right front door | 75985-0R010 |
| 75939 | Light-blocking film on the inside of the left front door | 75986-0R010 |
| 75968 | Right front door inner rear light-shielding film | 75965-0R010 |
| 75969 | Left front door inner rear light-shielding film | 75966-0R010 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-0R010 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-0R010 |
