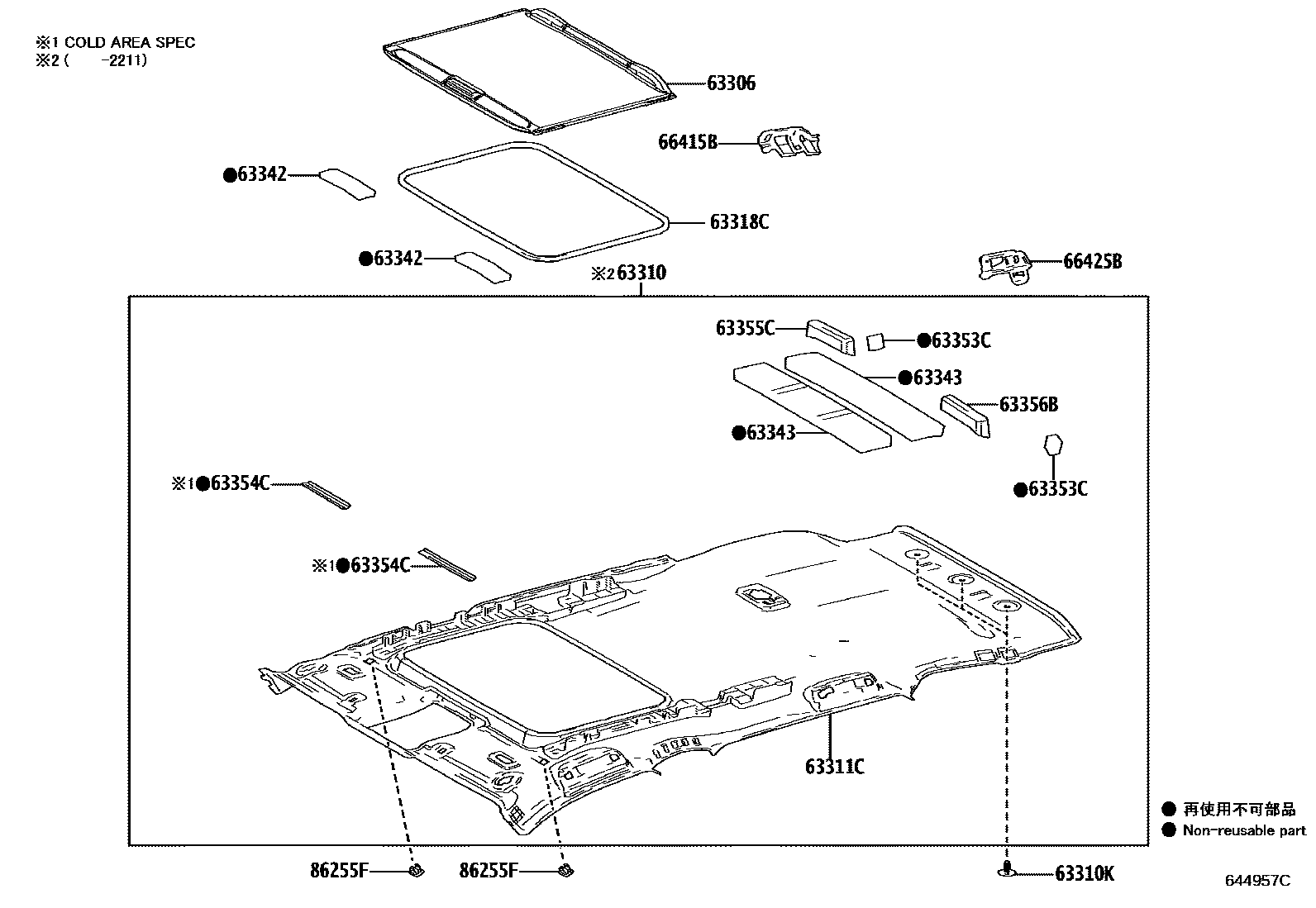

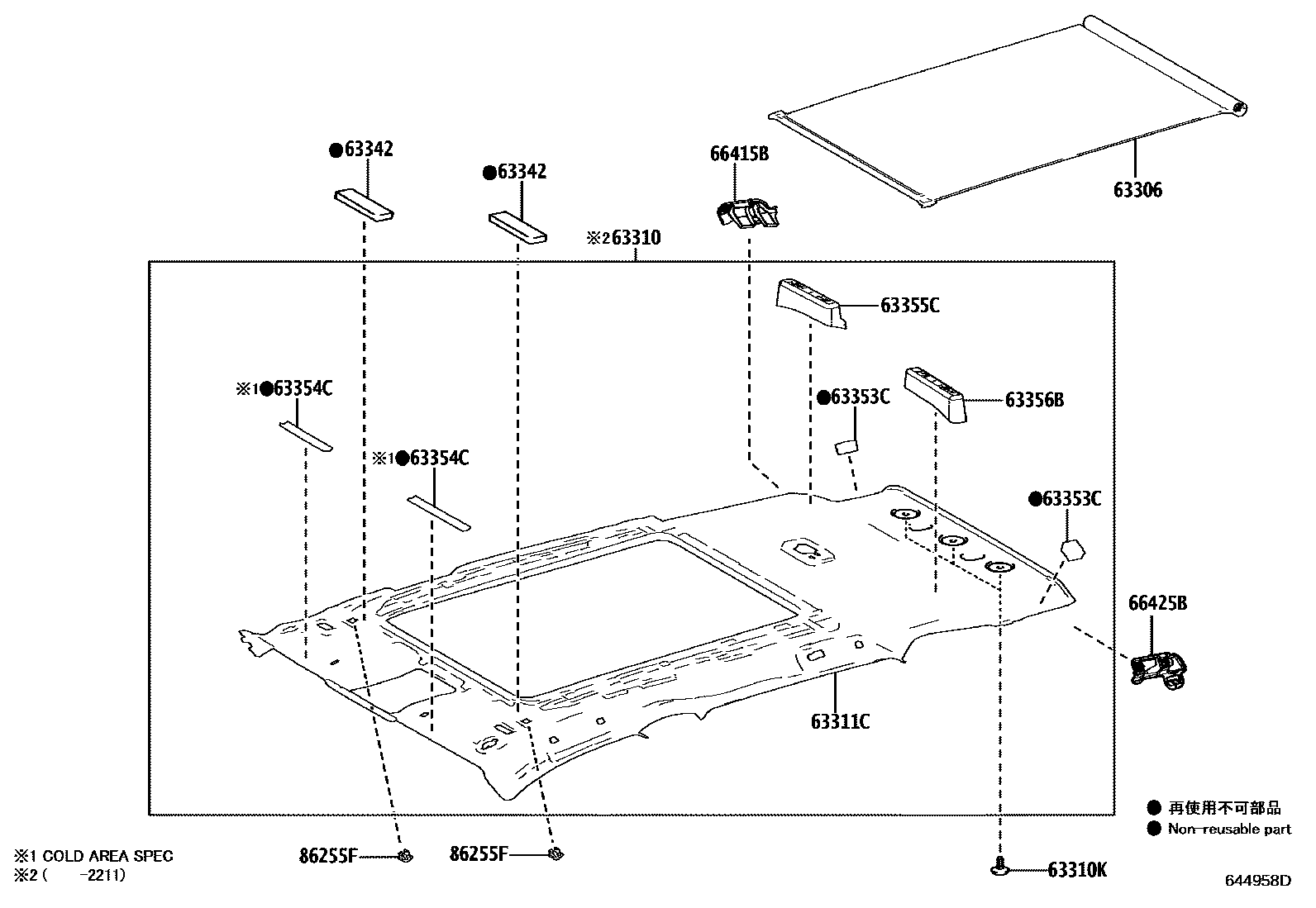

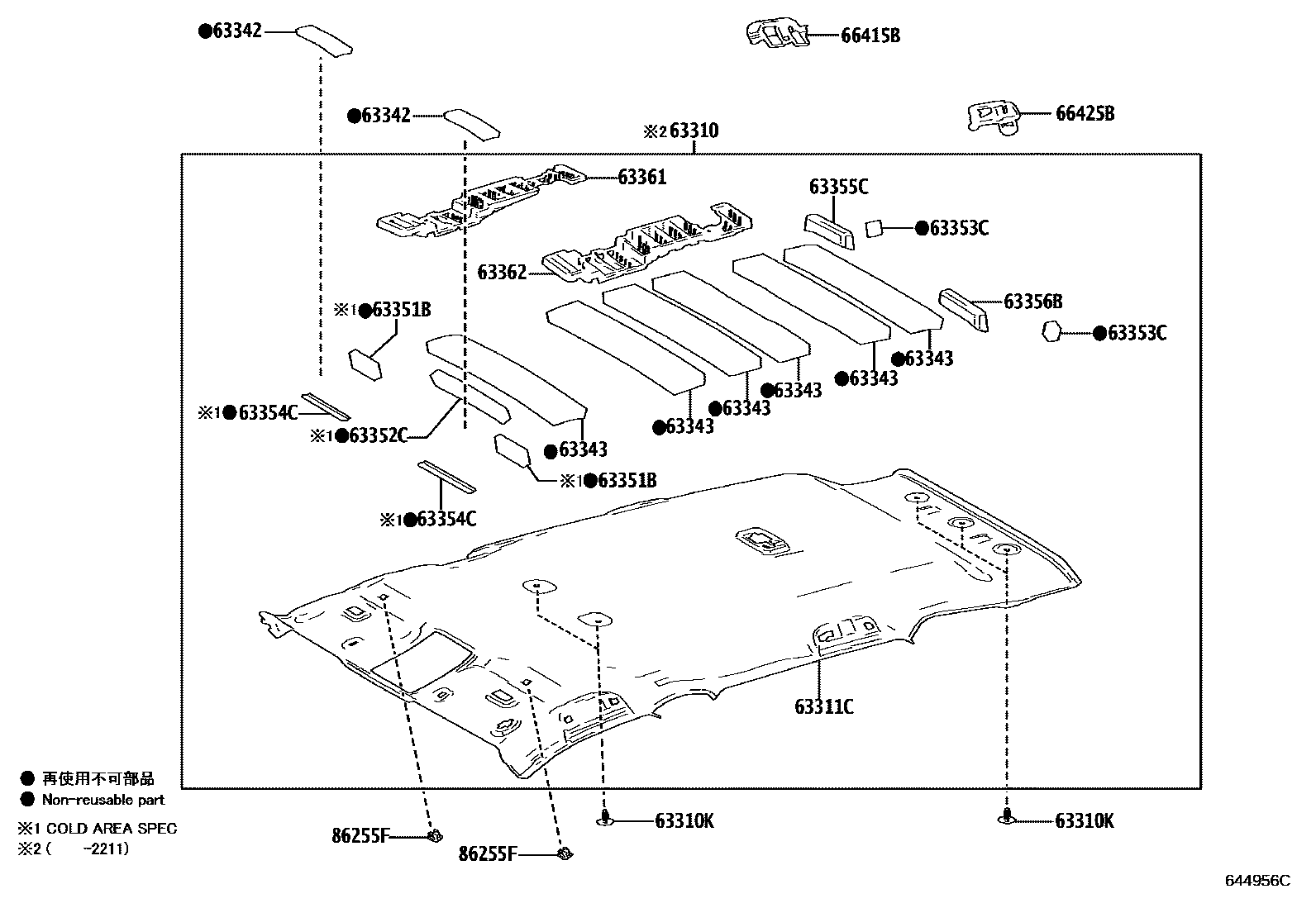

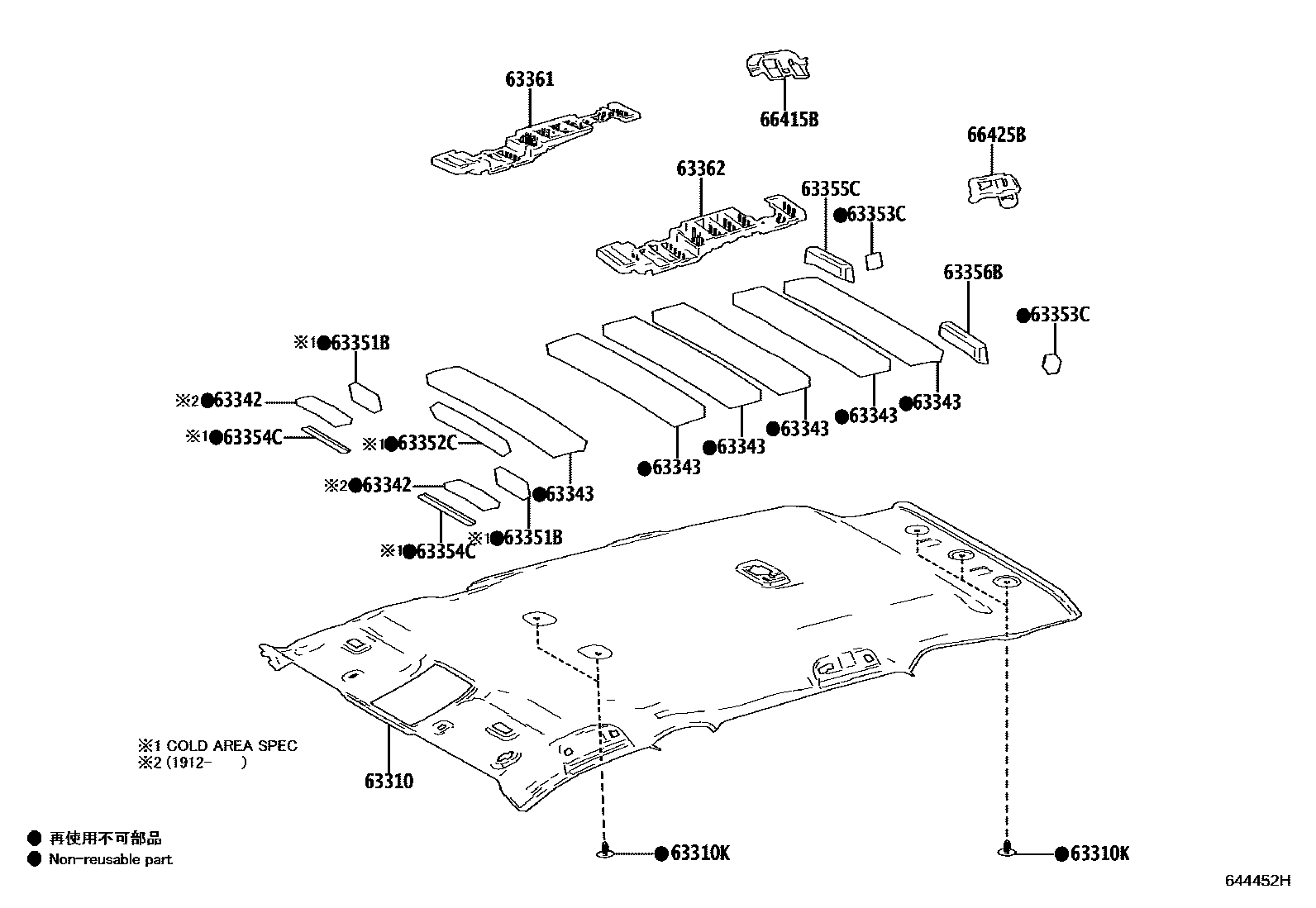

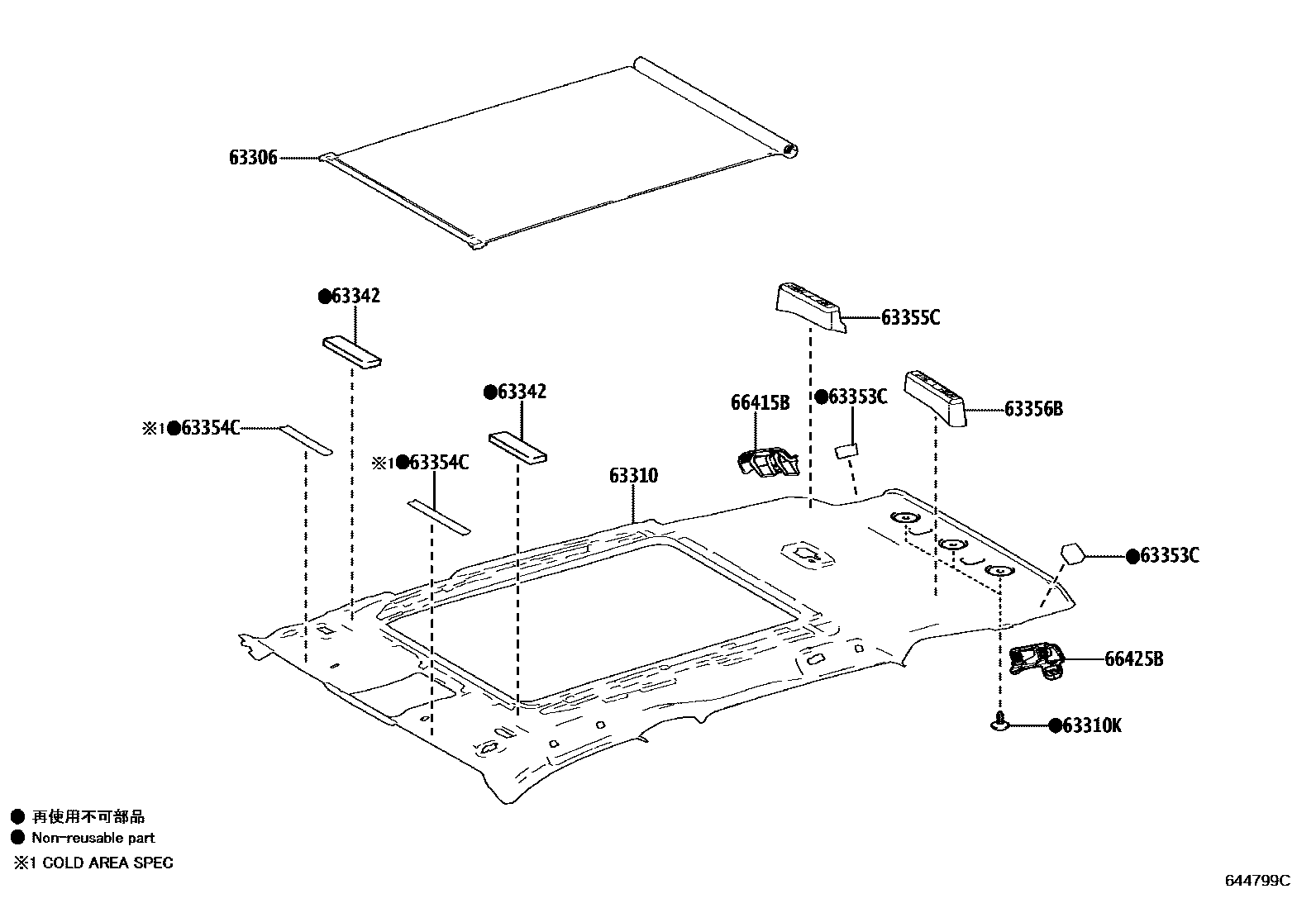

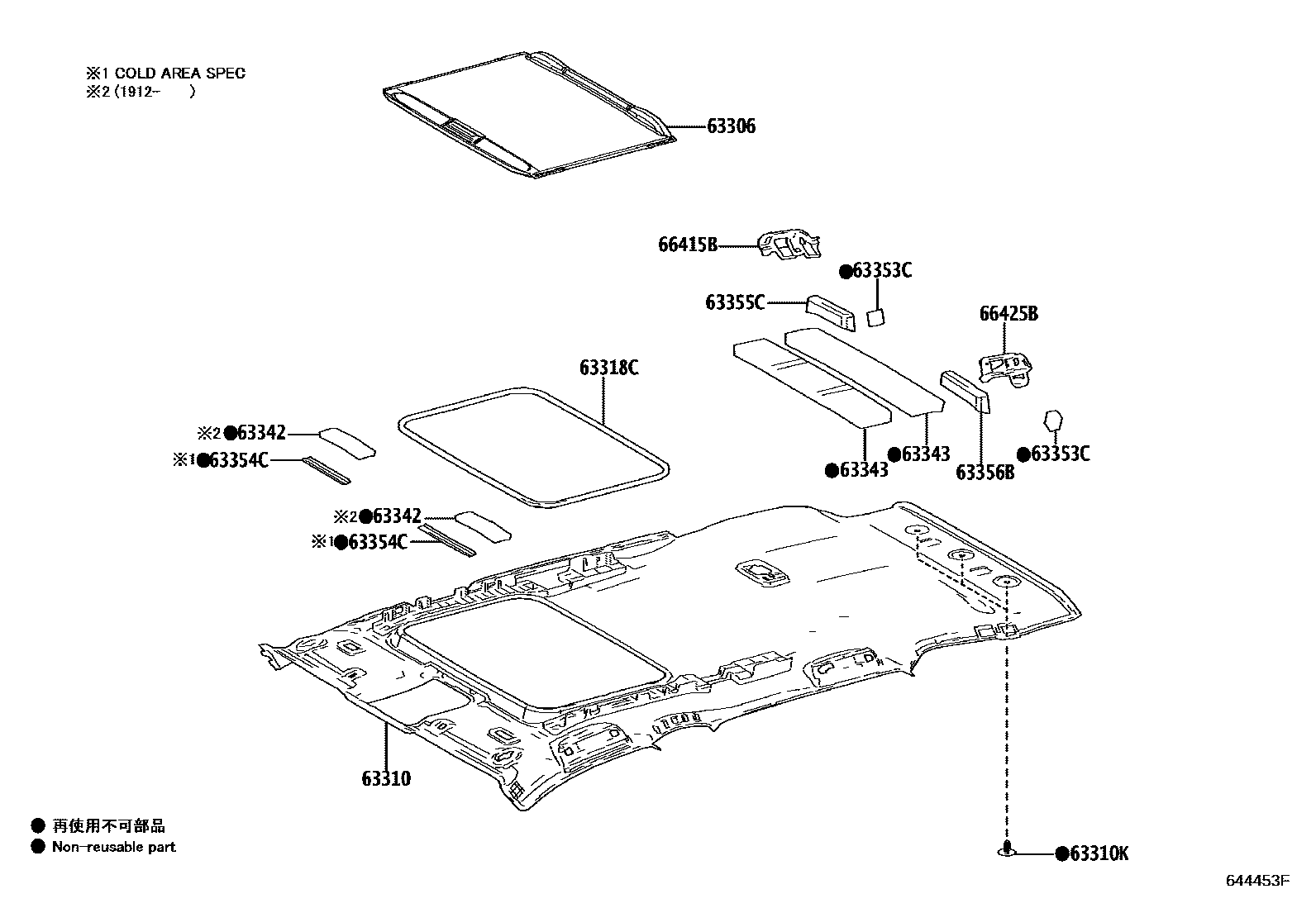

Toyota RAV4 车顶内衬和消声垫 — Figure 6452
Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310 | Headlining assembly | 63310-0R909 · 63310-0R912 |
| 63342 | No. 2 roof muffler pad | 63342-42080 |
| 63343 | No. 3 roof muffler pad | 63343-0R030 |
| 63351B | roof lining pads | 63351-0R020 · 63351-42040 |
| 63352C | Headlining end pads | 63352-0R030 · 63352-42070 |
| 63353C | Center roof lining lining | 63353-0R010 |
| 63354C | Headlining front side pads | 63354-0R020 |
| 63355C | Right side roof lining | 63355-0R030 · 63355-42030 |
| 63356B | Roof left inner lining block | 63356-0R010 · 63356-42020 |
| 63361 | Headlining bracket No. 1 | 63361-0R040 |
| 63362 | Headlining bracket No. 2 | 63362-0R040 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-0R070 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-0R070 |
