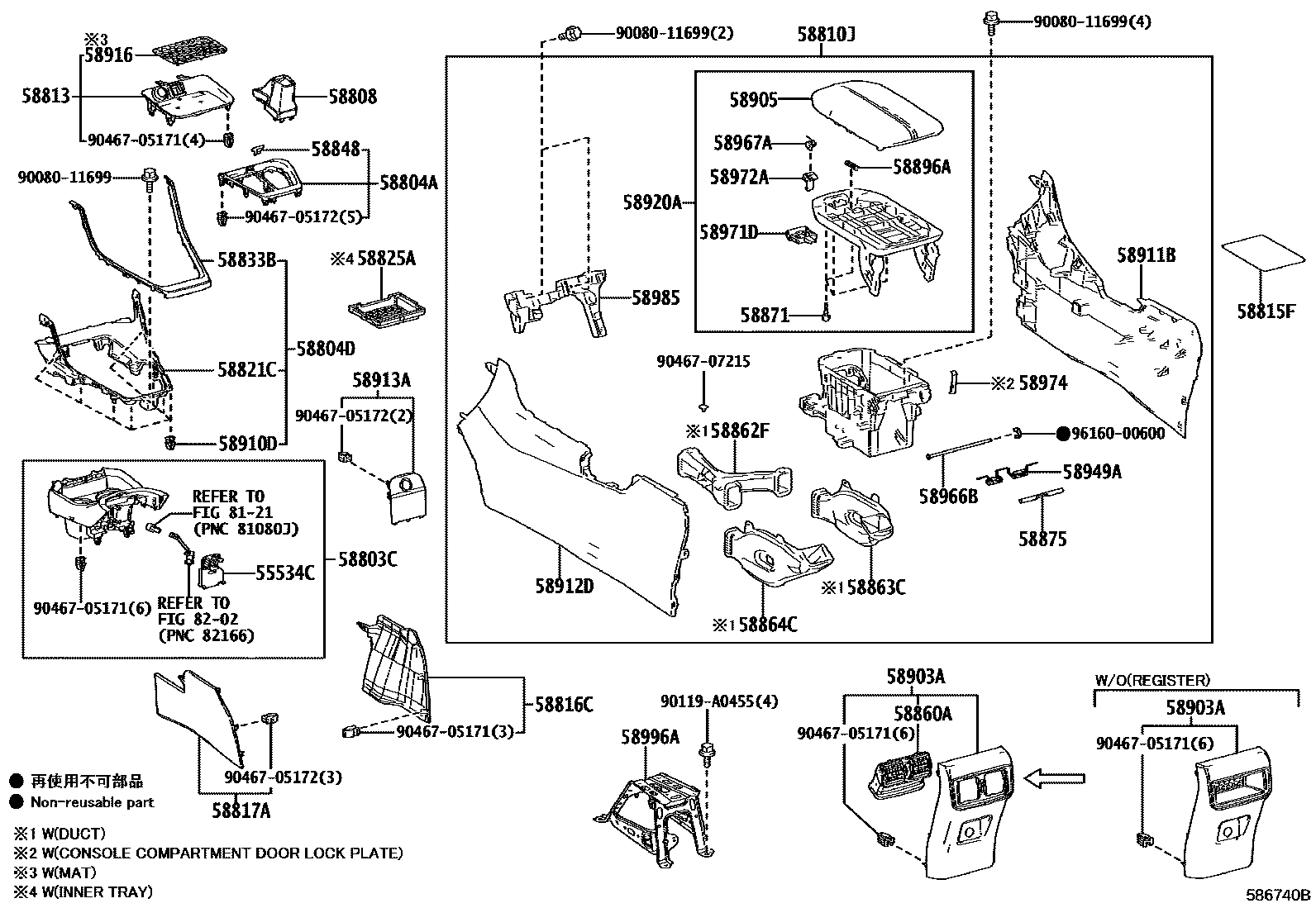

Toyota RAV4 中央扶手箱和支架 — Figure 5855
Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55534C | CACHE, ORIFICE ECLAIRAGE | 55534-0R010 · 55534-0R040 |
| 58804A | Armrest box upper panel sub-assembly | 58804-0R180 |
| 58804D | SOUS-ENS. PANNEAU, CONSOLE, SUP AVANT | 58805-0R080 |
| 58815F | Armrest box felt pad | 58815-0R060 |
| 58821C | Armrest box upper panel | 58821-0R020 |
| 58825A | Armrest box groove | 58825-0R010 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58831-0R060 |
| 58848 | Shift lever hole cover | 58848-0R010 |
| 58862F | Air duct No. 2 for armrest box | 58862-0R020 |
| 58863C | CONDUITE, BOITE DE CONSOLE, NO.3 | 58863-0R010 |
| 58864C | CONDUIT, BOITIER CONSOLE, NO.4 | 58864-0R010 |
| 58871 | Armrest box cushion | 90541-03078 |
| 58875 | Armrest box spacer | 58875-0R010 |
| 58896A | RESSORT, POUBELLE | 58896-0R010 |
| 58910D | Clip (for armrest box) | 90467-05171 |
| 58913A | Armrest box panel No. 3 | 58913-0R010 · 58913-0R040 · 58913-0R050 · 58913-0R080 |
| 58949A | RESSORT, SUPPORT FIX BOITE DE CONSOLE | 58949-0R010 · 58949-0R040 |
| 58966B | AXE, BUTOIR PORTE COMPARTIMENT DE CONSOLE | 58966-0R020 |
| 58967A | Armrest box cover limit spring | 58967-0R070 |
| 58972A | Armrest box lid lock base | 58972-0R050 |
| 58974 | Armrest box lid lock plate | 58974-0R050 |
| 58985 | Armrest box fixing bracket | 58985-0R080 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0R070 · 58996-0R071 |
