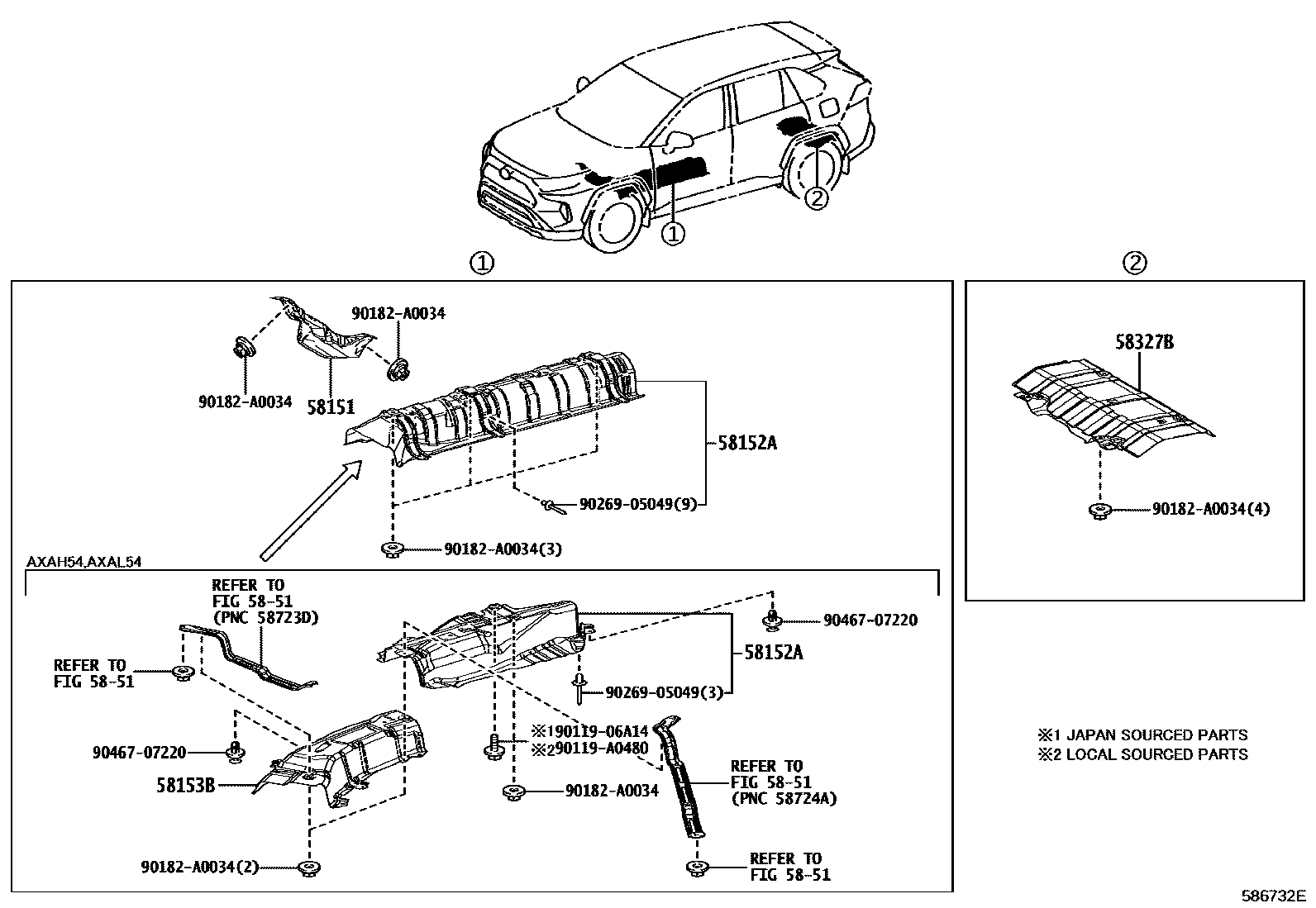

Toyota RAV4 地板隔热垫 — Figure 5853
Toyota RAV4 EPC diagram 5853, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-0R020 |
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-0R060 · 58720-0R010 |
| 58153B | Floor insulation mat No. 3 | 58153-0R020 |
| 58327B | Main muffler heat insulation pad | 58327-0R030 |
