Toyota RAV4 后地板和后地板梁 — Figure 5852

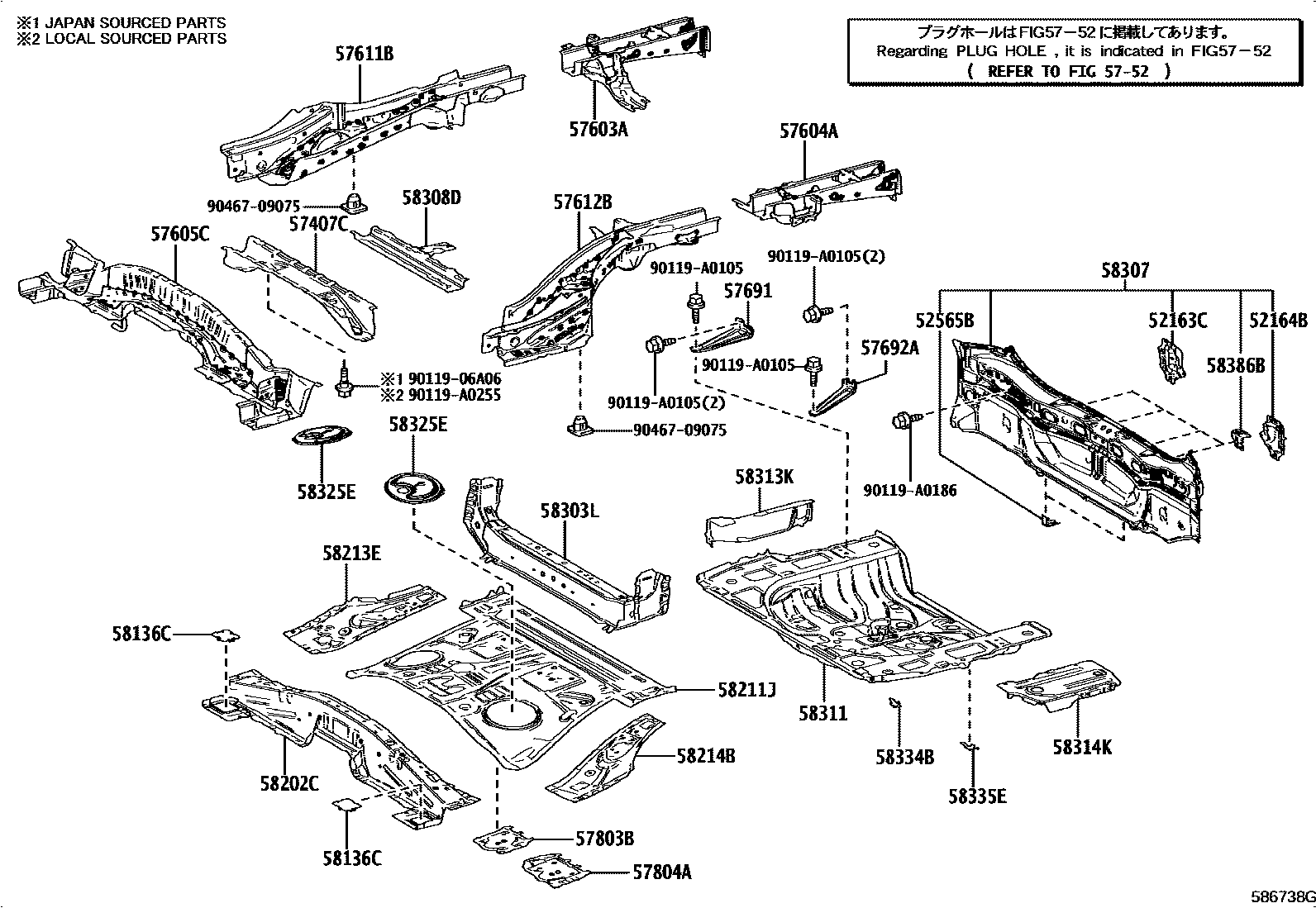

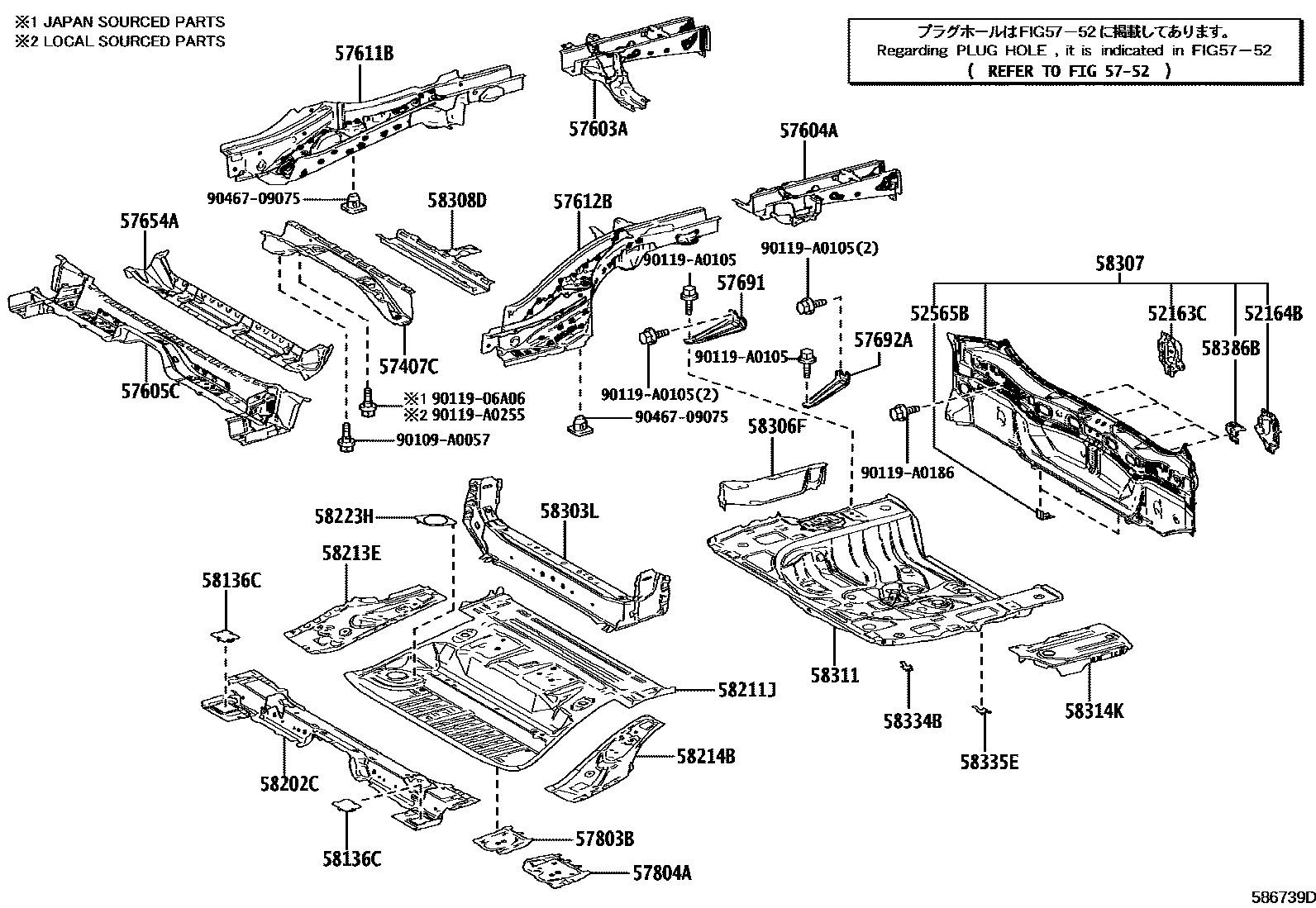

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52163C | PLAQUE, RENFORT PARE-CHOCS ARR, MD | 52163-0R030 |
| 52164B | PLAQUE, RENFORT PARE-CHOCS ARR, MG | 52164-0R030 |
| 52565B | Rear bumper lower fixing bracket | 52565-0R040 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-0R010 · 57407-0R011 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0R030 · 57603-0R031 · 57603-0R032 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-0R030 · 57604-0R031 |
| 57605C | Rear floor cross member sub-assembly | 57605-0R030 · 57605-0R040 |
| 57611B | LONGERON, PLANCHER ARR, AV MD | 57611-0R900 |
| 57612B | LONGERON, PLANCHER ARR, AV MG | 57612-0R900 |
| 57654A | Rear floor beam No. 3 | 57505-0R040 |
| 57691 | Rear floor No. 2 cross member right inner bracket | 57691-0R010 |
| 57692A | Rear floor No. 2 cross member left inner bracket | 57692-0R010 |
| 57803B | SOUS-ENS. RENFORT, ANCRAGE CEINTURE, NO.2 MD | 57803-0R030 |
| 57804A | SOUS-ENS. RENFORT, ANCRAGE CEINTURE, NO.2 MG | 57804-0R030 |
| 58136C | Rear floor hole cover | 58136-0R020 |
| 58202C | SS-ENS. PAN, PLANCHER CENTRAL, AV | 58202-0R050 · 58202-0R060 |
| 58211J | central floor base | 58211-0R040 · 58211-0R050 |
| 58213E | Right seat floor side panel | 58213-0R030 |
| 58214B | Left seat floor side panel | 58214-0R030 · 58214-0R060 |
| 58223H | Floor right reinforcement | 58223-0R010 |
| 58303L | SS-ENS. PANNEAU, SEPARATION PLANCHER ARR | 58303-0R030 |
| 58306F | Rear floor left side panel sub-assembly | 58306-0R010 |
| 58307 | Body lower back panel sub-assembly | 58307-0R070 · 58307-0R130 |
| 58308D | Rear floor cross member bracket sub-assembly | 58308-0R020 |
| 58311 | rear floor pan | 58311-0R900 · 58311-0R901 · 58311-0R902 · 58311-0R903 |
| 58313K | Rear floor right panel | 58313-0R040 |
| 58314K | Rear floor center panel | 58314-0R030 |
| 58325E | Rear floor access hole cover | 58325-0R020 |
| 58334B | Rear floor center right cross member panel | 58334-0R020 |
| 58335E | Rear floor center left cross member panel | 58334-0R020 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-0R030 |
