Toyota RAV4 前地板和前地板梁 — Figure 5851

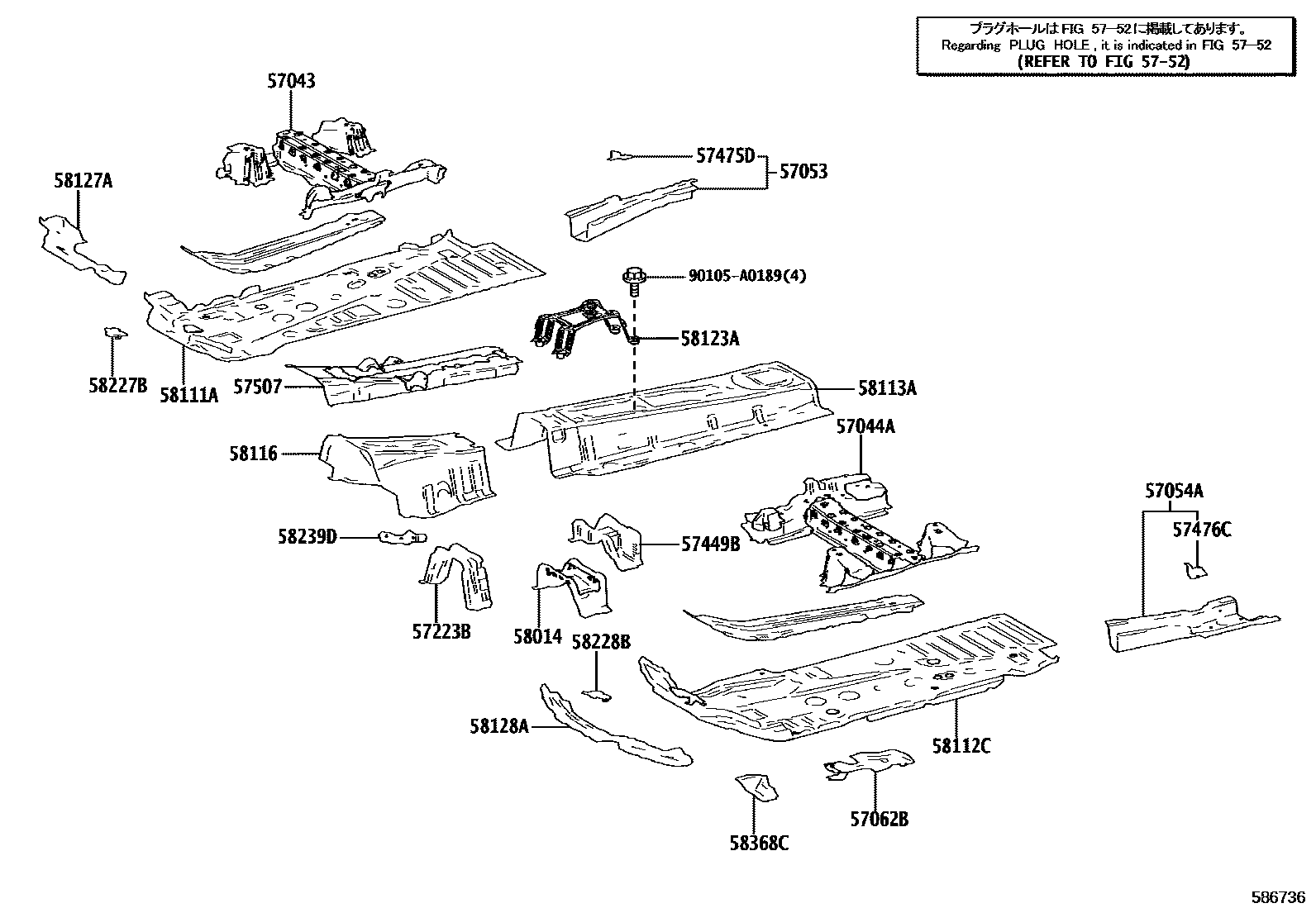

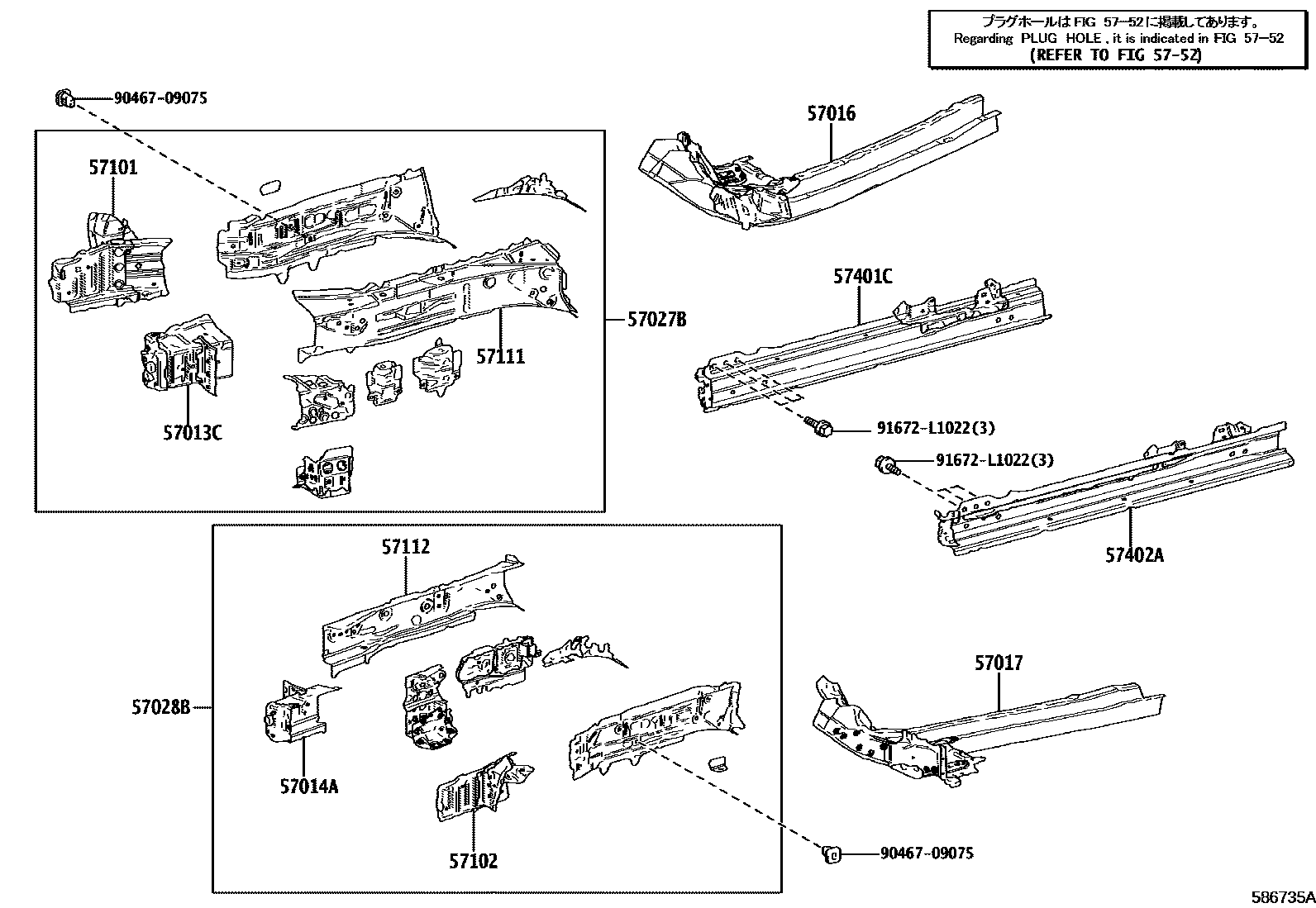

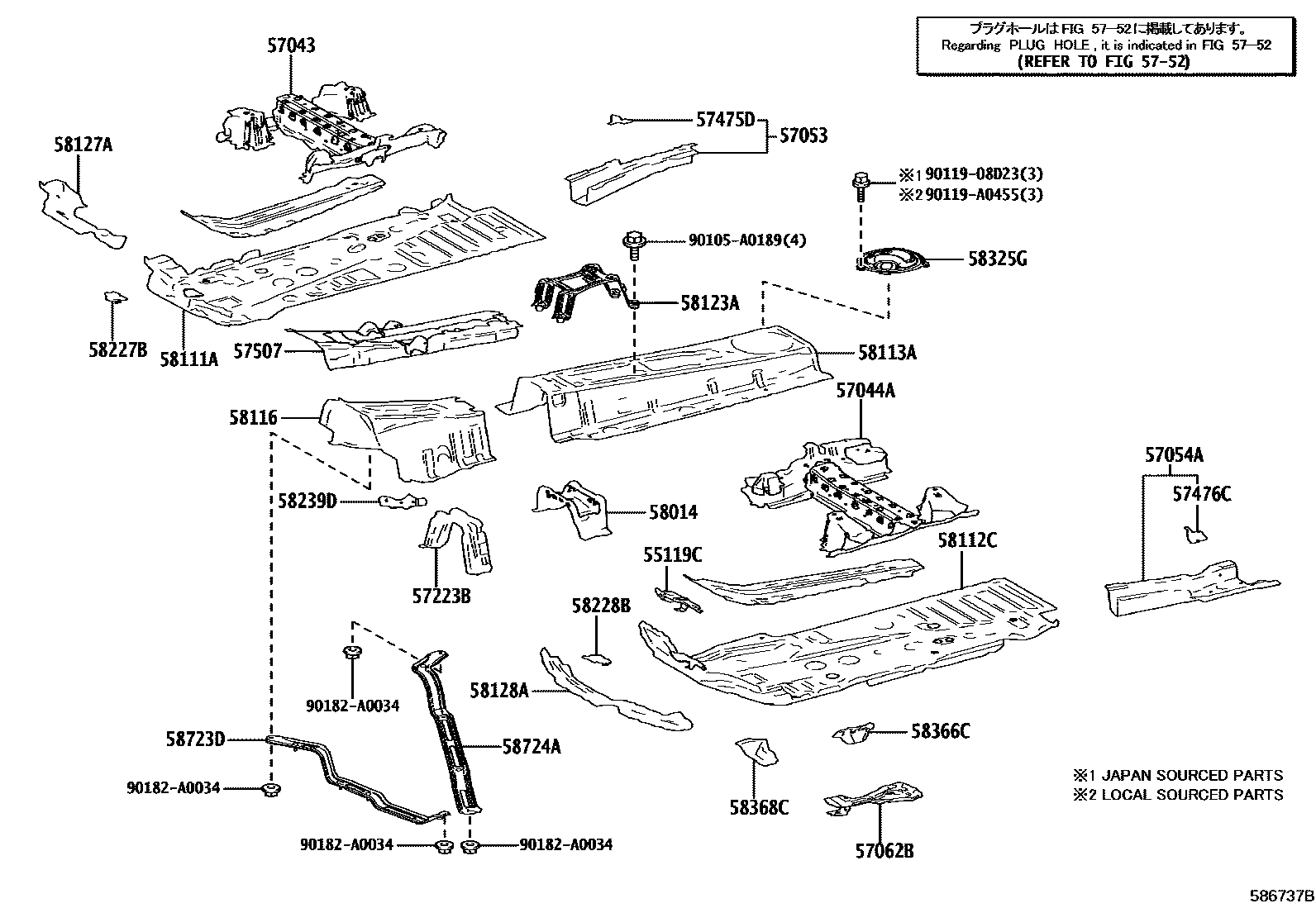

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55119C | SUPPORT, EMBRAYAGE AUX | 55119-0R010 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0R010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0R010 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-0R020 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-0R020 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-0R900 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-0R900 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-0R040 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-0R030 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-0R030 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-0R030 · 57054-0R040 |
| 57062B | SOUS-ENS. CONSOLE, SUPPORT RESERV CARB, MG | 57062-0E060 · 57062-0R010 · 57062-0R020 |
| 57101 | Right front longitudinal beam sub-assembly | 57023-0R010 |
| 57102 | Left front longitudinal beam sub-assembly | 57024-0R010 |
| 57111 | Right front longitudinal beam | 57111-06040 |
| 57112 | Left front longitudinal beam | 57112-06050 · 57112-06051 |
| 57223B | front mounting bracket | 57225-0R010 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-0R060 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-0R090 |
| 57449B | ARRETOIR, TRAVERSE PLANCHER CENTRALE, MG | 57449-0R010 |
| 57475D | Front floor right cross member panel | 57475-0R010 |
| 57476C | Front floor left cross member panel | 57476-0R010 |
| 57507 | Parking brake reinforcement sub-assembly | 58107-0R010 · 58107-0R020 |
| 58014 | Front floor and rear lower panel sub-assembly | 58014-0R010 |
| 58111A | Front floor right bottom panel | 58111-0R050 · 58111-F6010 |
| 58112C | Front floor left bottom panel | 58112-0R040 · 58112-F6010 |
| 58113A | front floor center panel | 58113-0R040 · 58113-0R050 |
| 58116 | Shift cable mounting plate | 58116-0R010 |
| 58123A | shift lever bracket | 58123-0R030 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-0R010 · 58127-0R011 |
| 58128A | Front cross member to front panel beam left reinforcement | 58128-0R030 · 58128-0R031 |
| 58227B | Front floor right panel | 55238-0R010 |
| 58228B | Front floor left panel | 55239-0R010 |
| 58239D | Cable clip bracket | 58239-0R010 |
| 58325G | Rear floor access hole cover | 58325-0R010 |
| 58366C | Fuel tank rear bracket reinforcement | 58366-0R010 |
| 58368C | No. 3 fuel pipe bracket | 58368-0R010 |
| 58723D | COUSSIN, CACHE SERVICE MOTEUR | 58723-0R070 |
| 58724A | No. 2 engine access cover cushion | 58724-0R070 |
