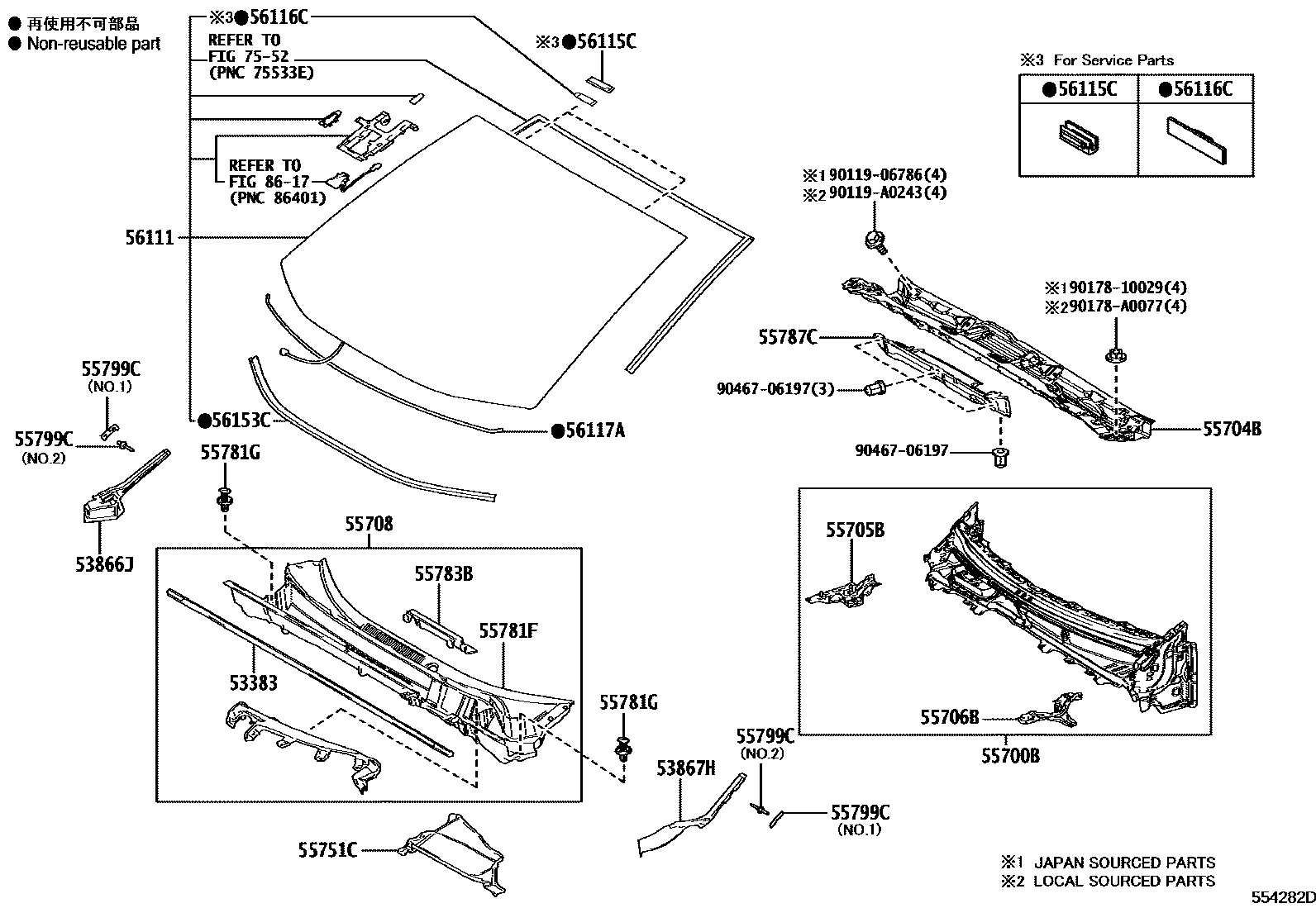

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-0R050 |
| 53866J | Right front fender to cowl side seal | 53866-0R051 · 53866-0R052 |
| 53867H | Left front fender to cowl side seal | 53867-0R051 · 53867-0R052 |
| 55700B | ENS. AUVENT | 55700-0R050 |
| 55704B | SOUS-ENS. PANNEAU, AERATEUR AUVENT | 55704-0R030 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0R050 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0R050 |
| 55708 | SOUS-ENS. AERATEUR, VENTILATEUR DESSUS DE TABLIER | 55708-0R050 |
| 55751C | Front ventilator splash guard | 55752-0R020 |
| 55781F | Ventilation grille on front panel | 55781-0R060 |
| 55781G | Ventilation grille clips on front apron | 90467-09242 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-0R050 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-0R050 |
| 55799C | Ventilation grille clips on front apron | 75545-0R040 · 75545-42010 · 75547-51021 |
| 56111 | windshield | 56101-0R250 · 56101-0R251 · 56101-0R270 · 56101-0R271 · 56101-0R310 · 56101-0R311 · 56101-0R390 · 56101-0R391 · 56101-0R400 · 56101-0R401 · 56101-0R410 · 56101-0R411 · 56101-0R840 · 56101-0R850 · 56101-0R860 · 56101-0R870 · 56101-0R871 · 56101-0R880 · 56101-0R881 |
| 56115C | windshield block | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-0R020 |
