Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

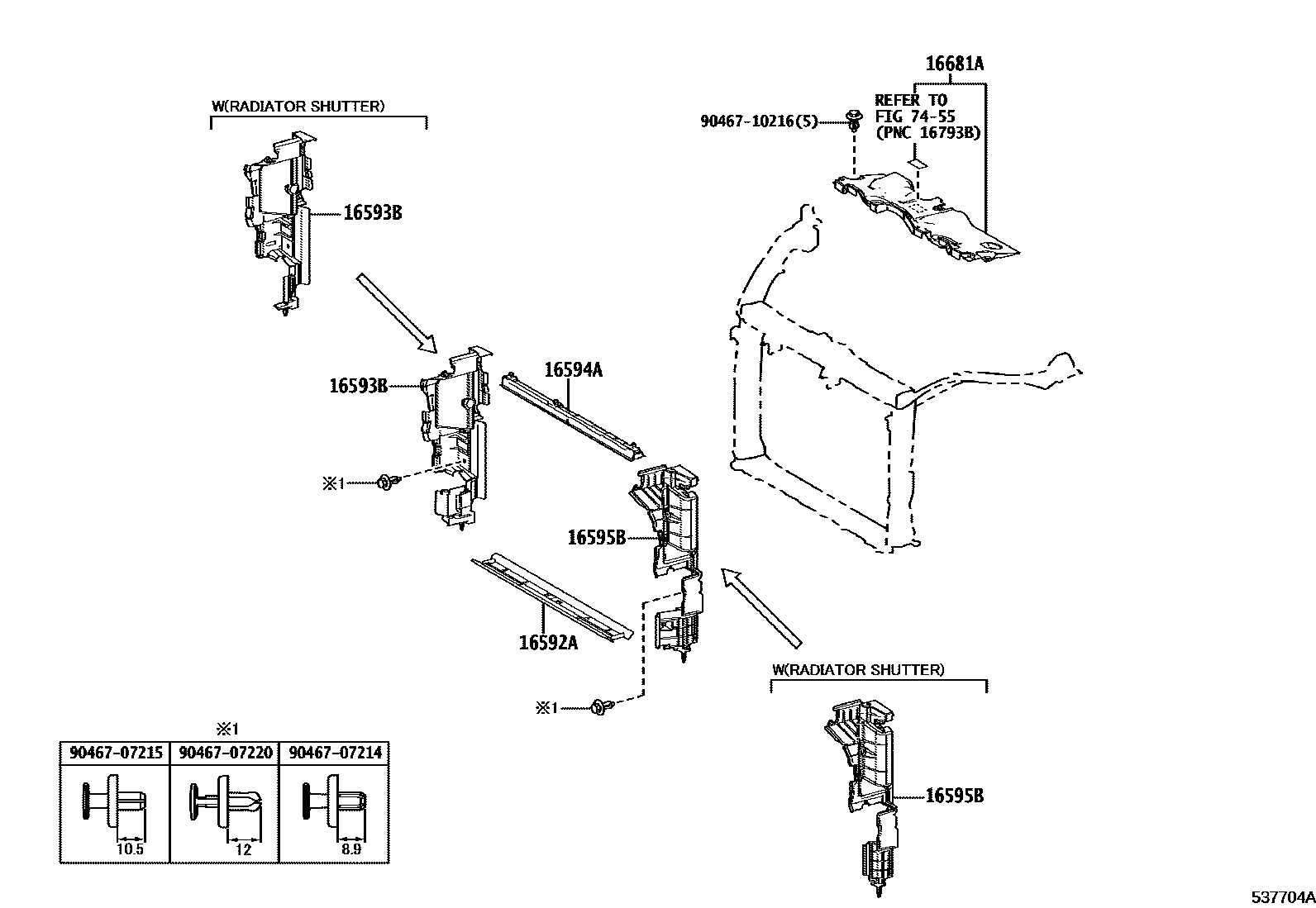

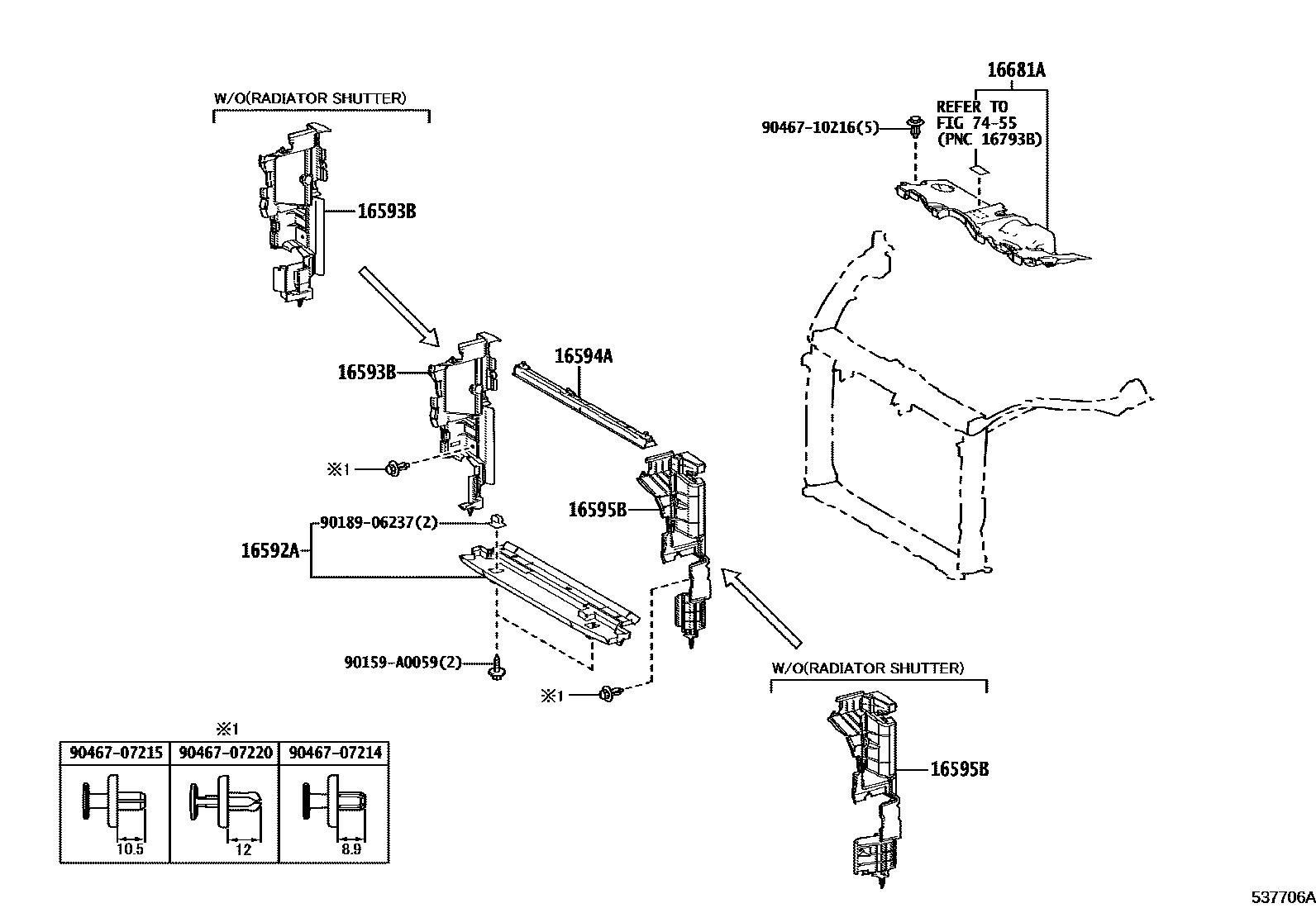

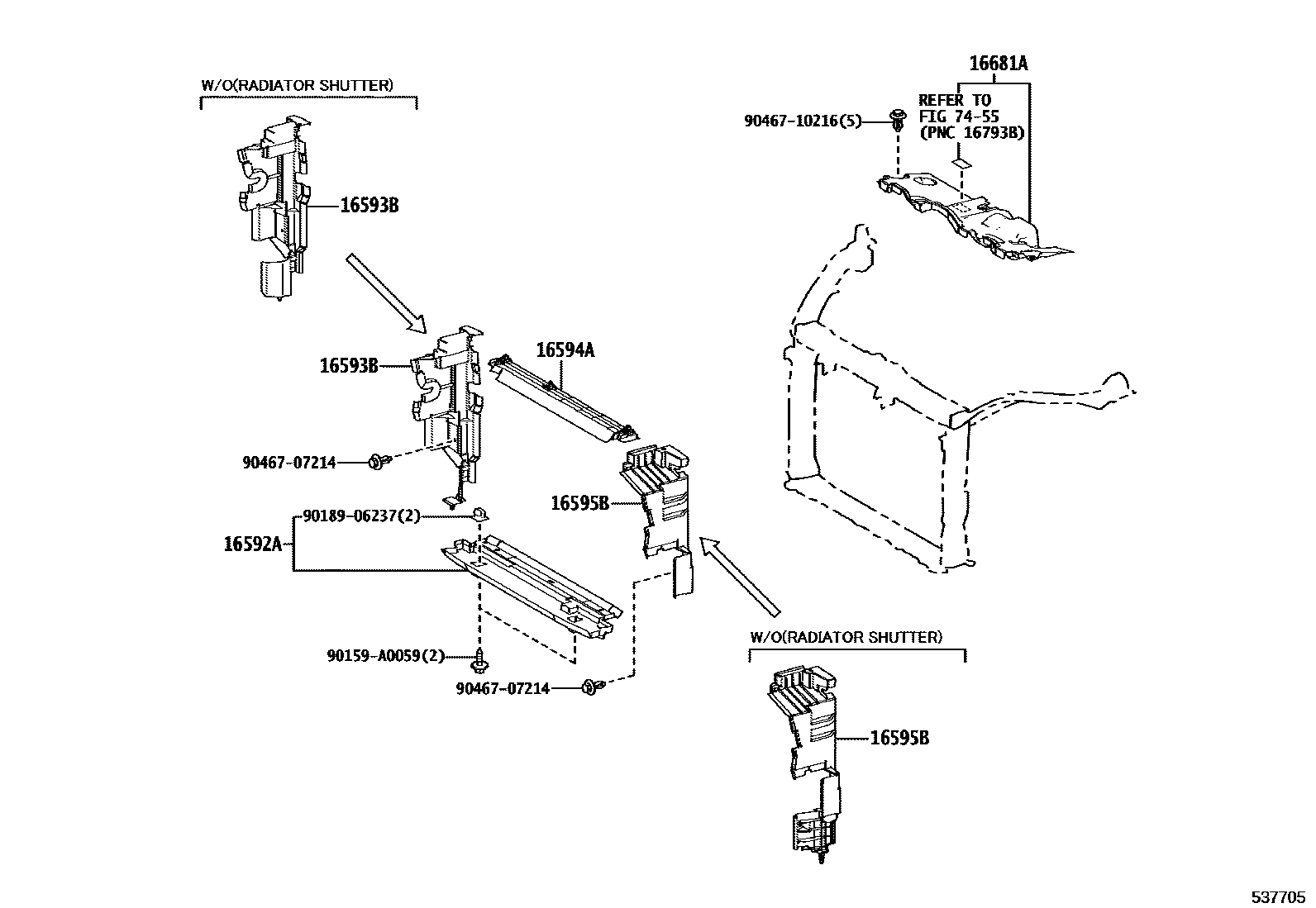

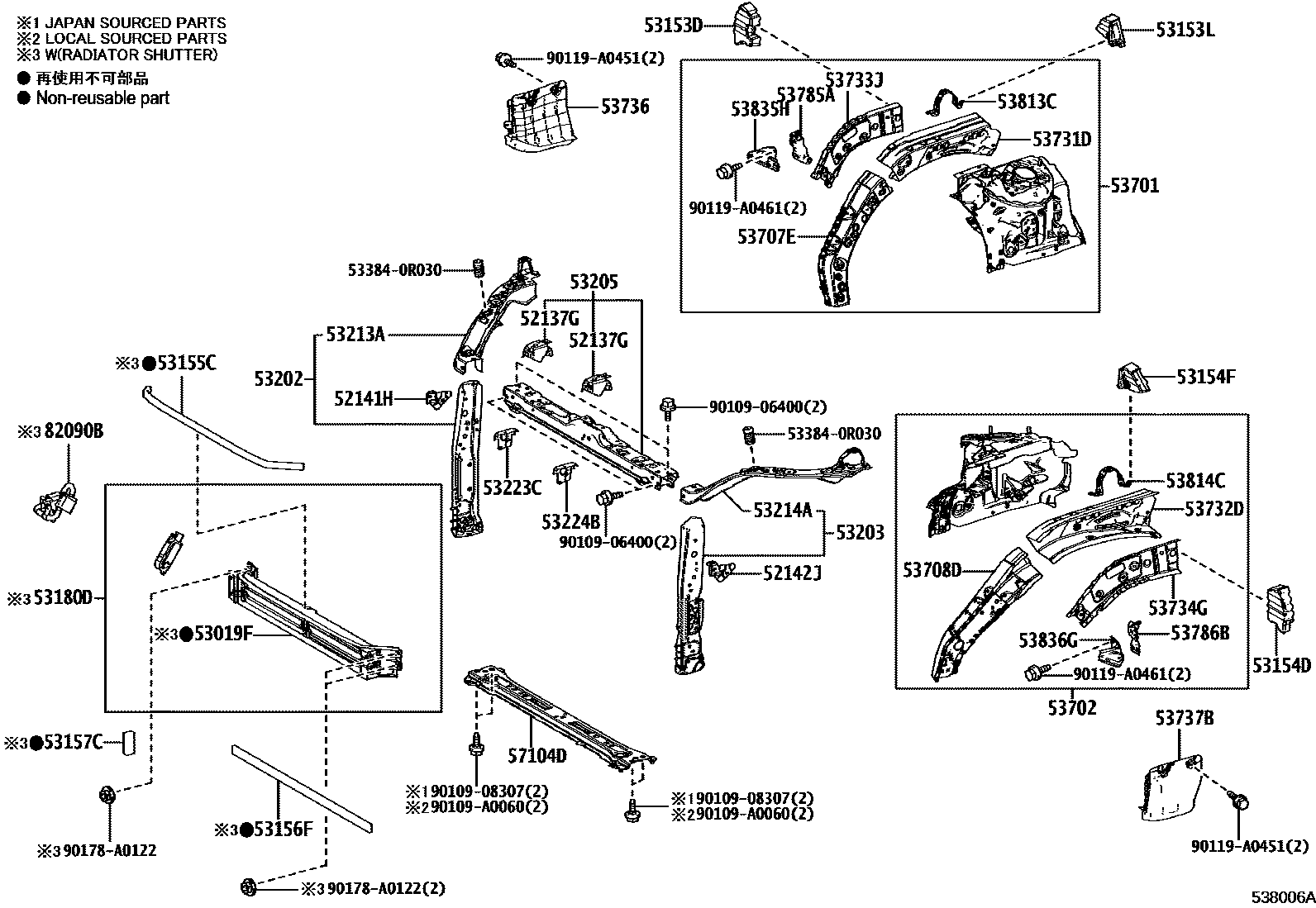

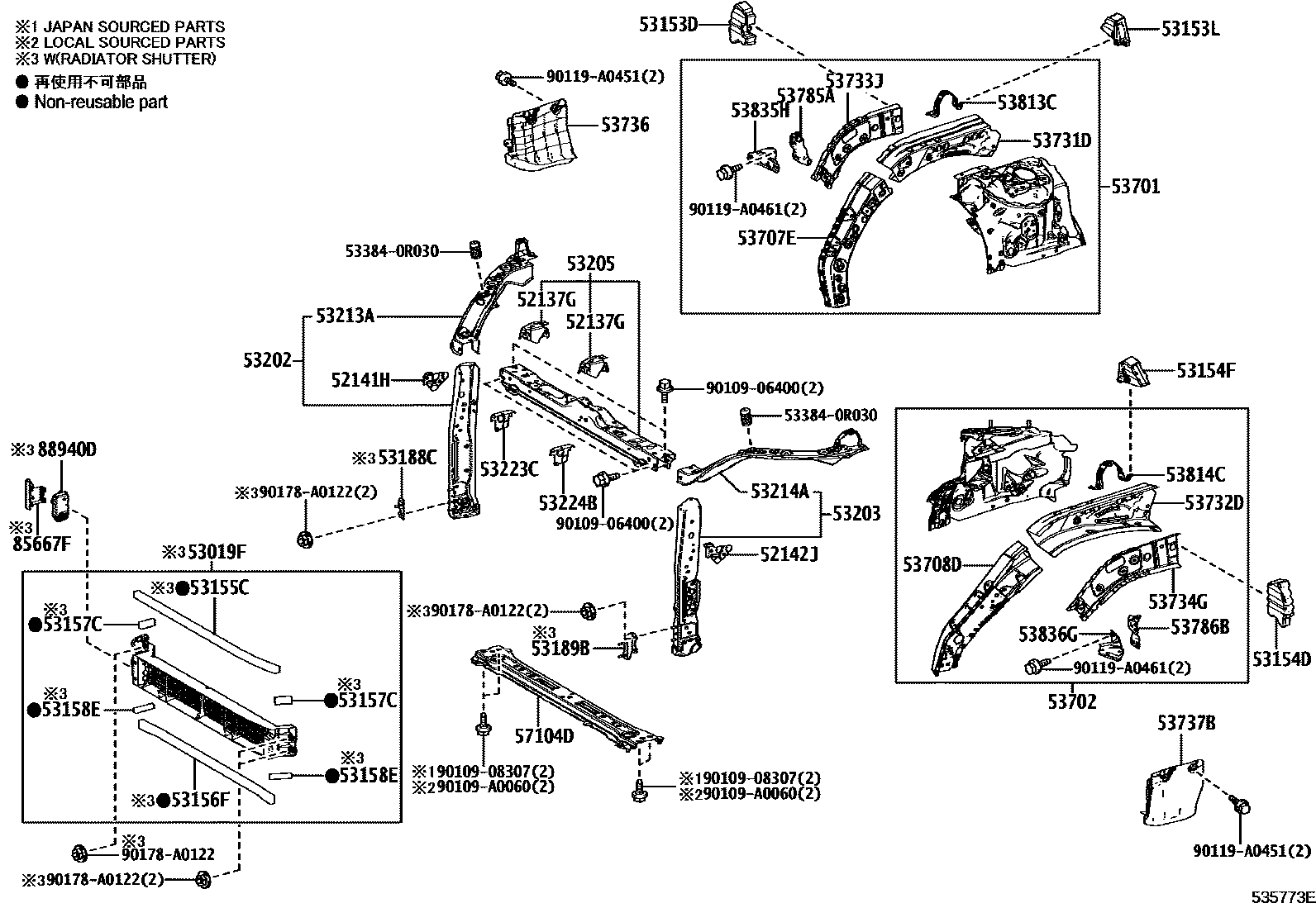

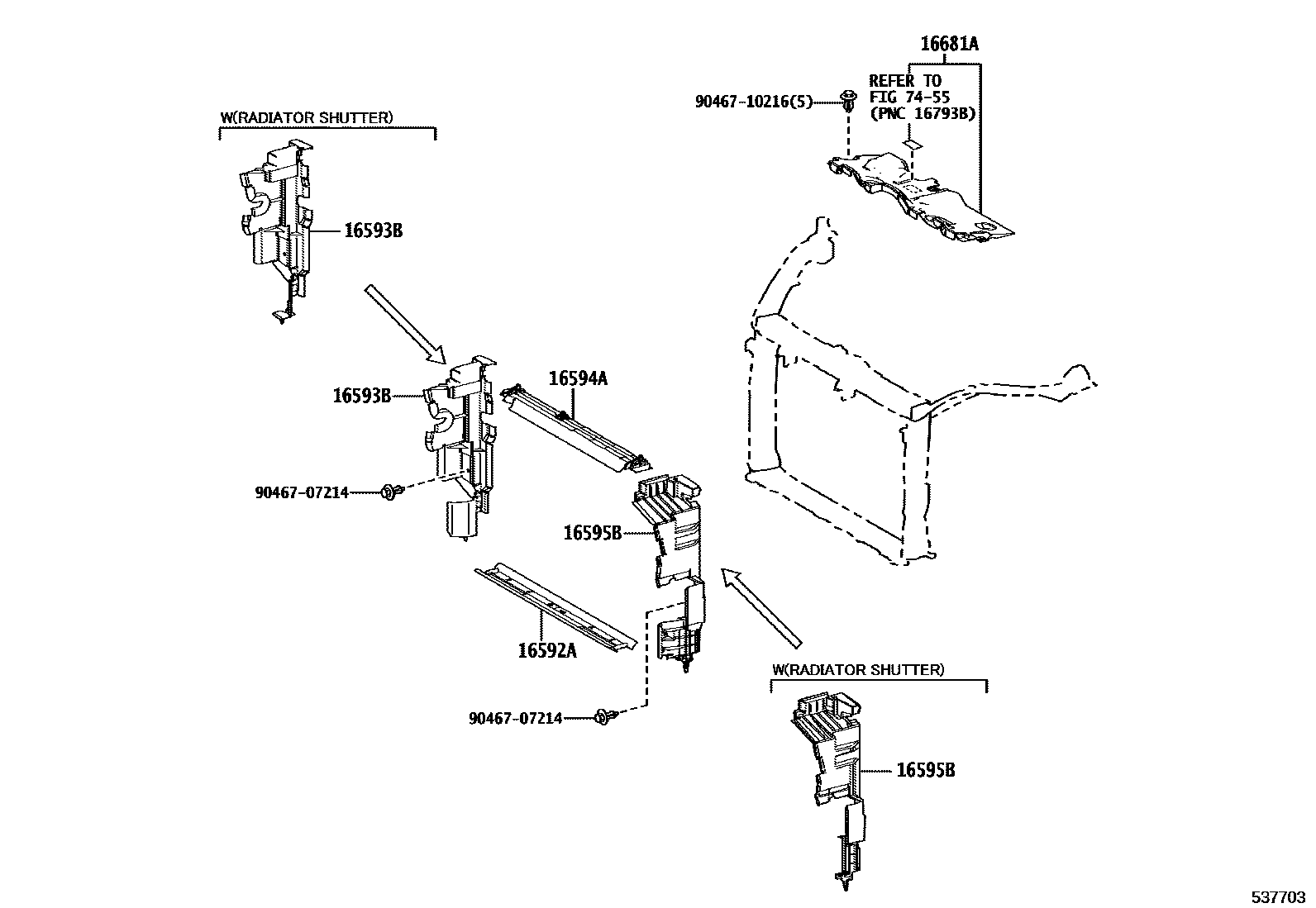

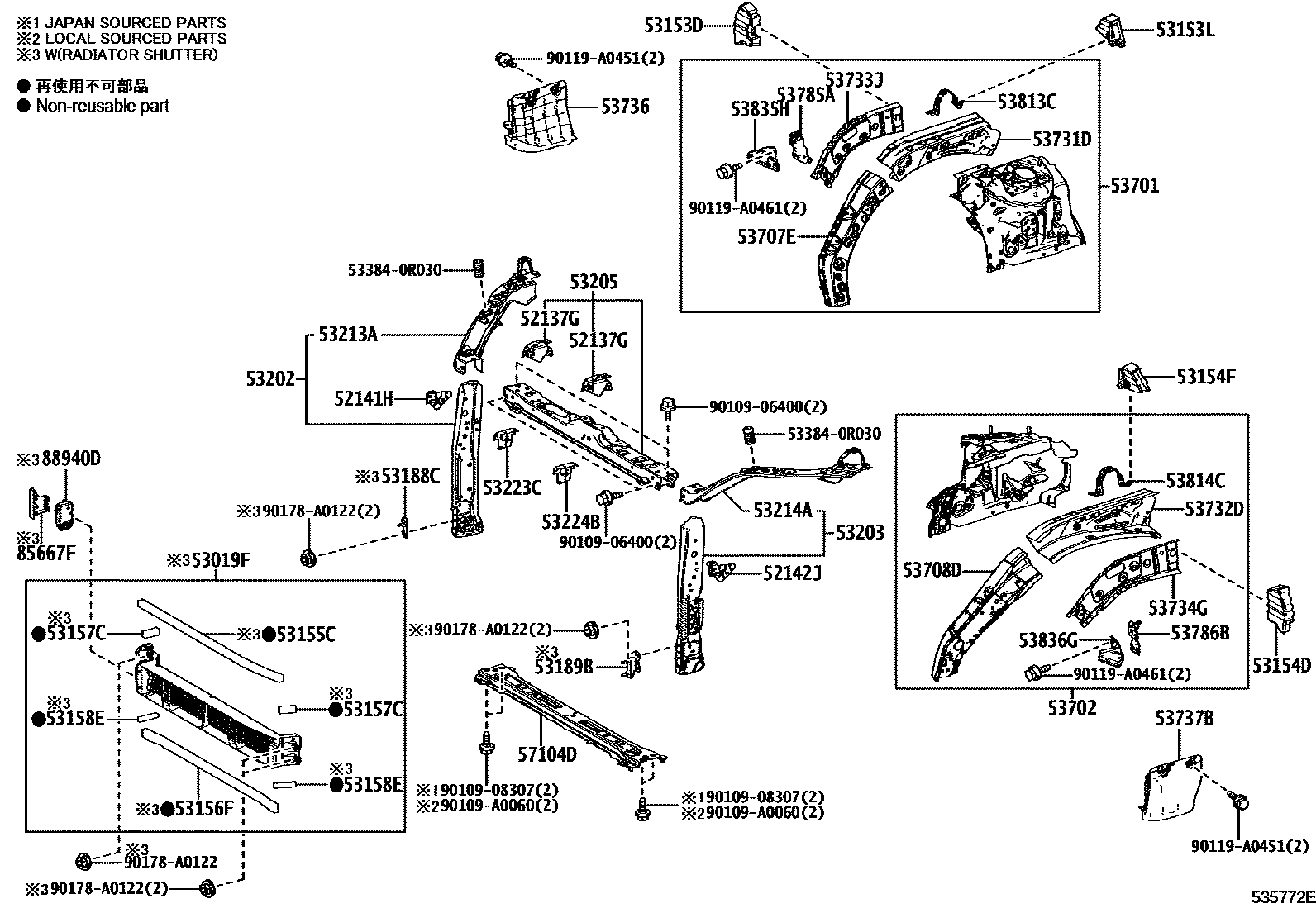

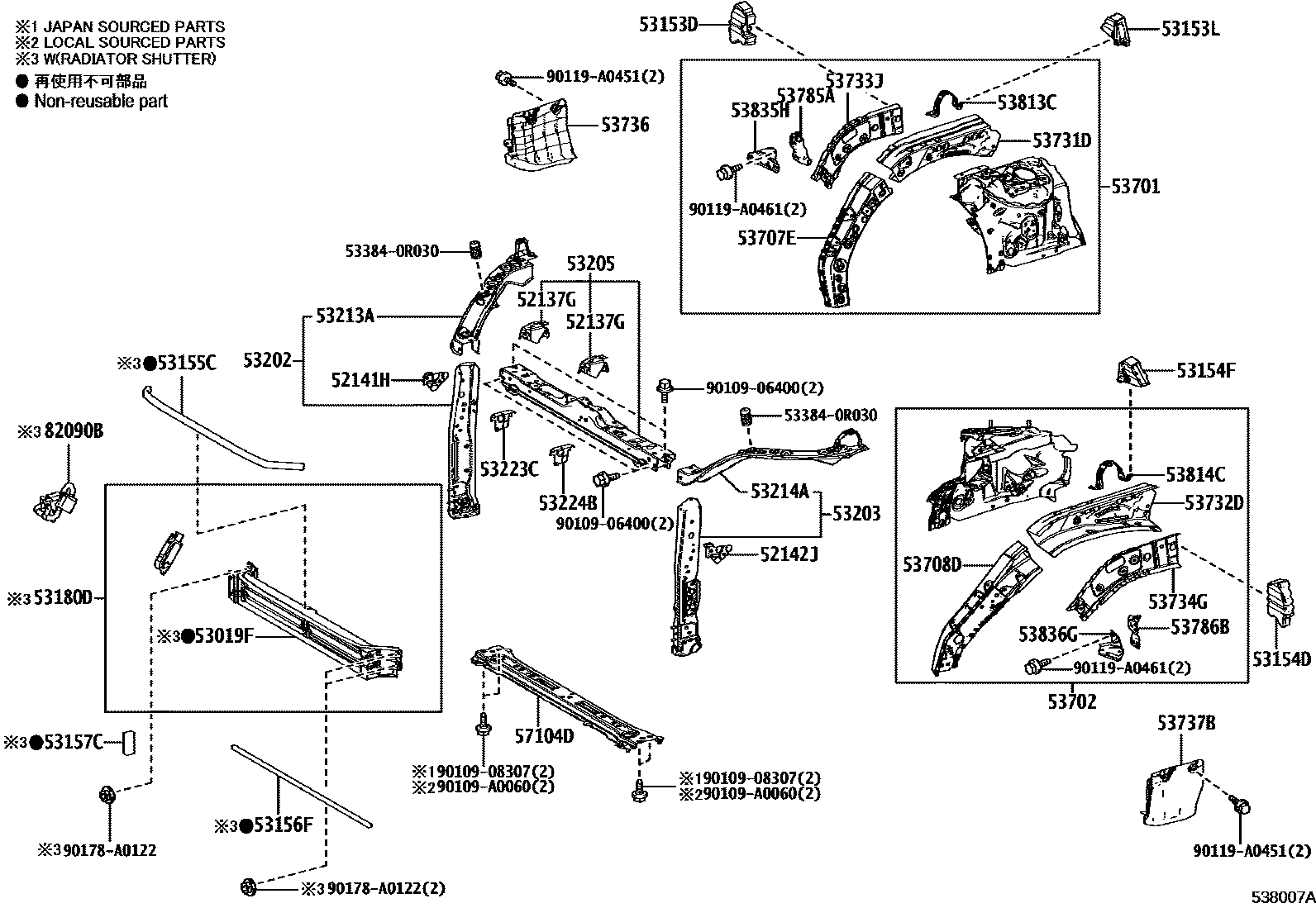

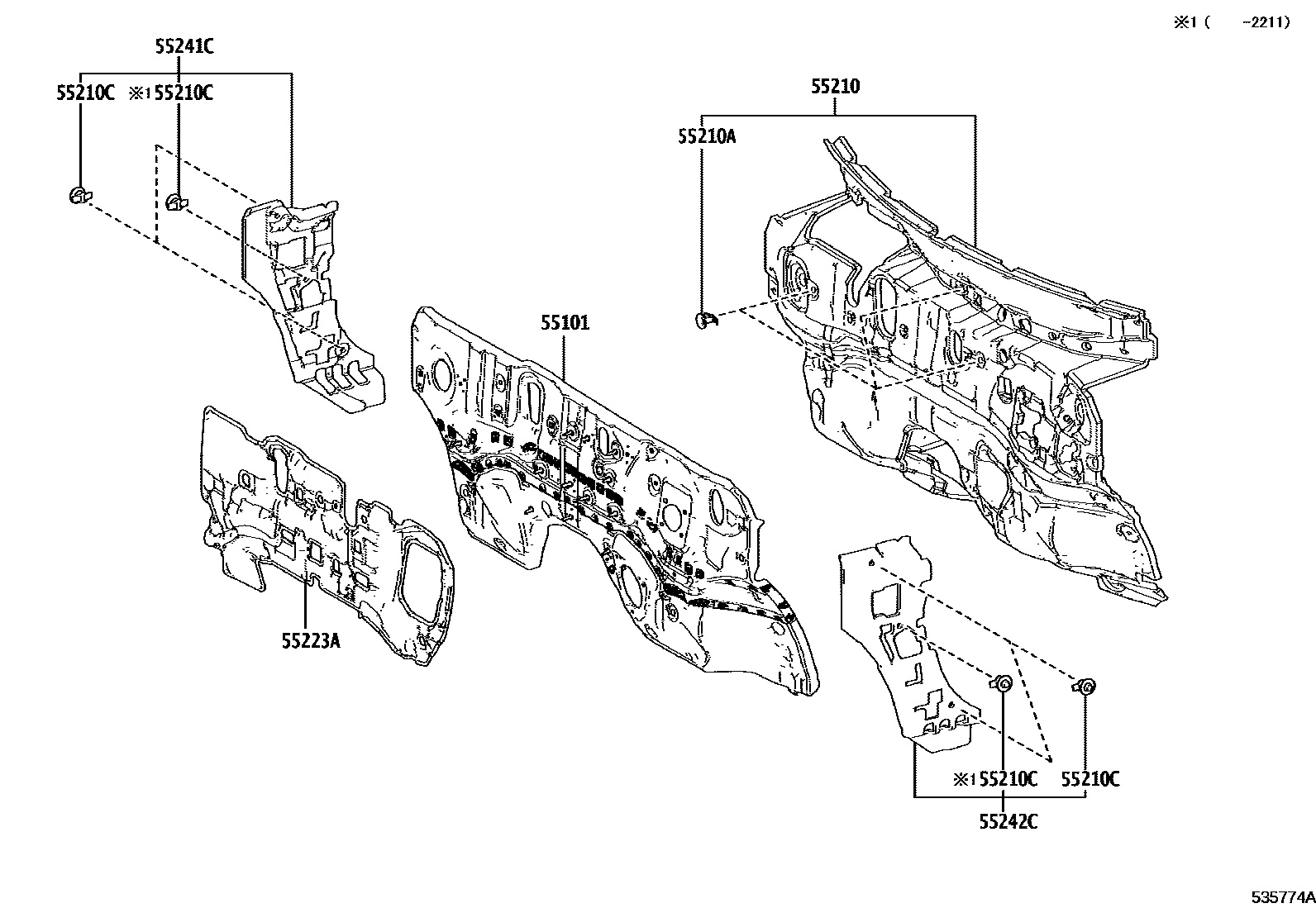

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 9 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-F0080 · 16592-F0090 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-F0130 · 16593-F0140 · 16593-F0550 · 16593-F0560 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-F0080 · 16594-F0150 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-F0130 · 16595-F0140 · 16595-F0220 · 16595-F0570 · 16595-F0580 |
| 16681A | PLATEAU, DIFFUSEUR D'AIR SUPERIEUR DU RADIATEUR | 16681-F0020 · 16681-F0030 |
| 52137G | SUPPORT, FIXATION BRAS PARE-CHOCS AV, NO.3 | 52137-0R030 |
| 52141H | Front bumper right upper arm | 52141-0R020 |
| 52142J | Front bumper left upper arm | 52142-0R010 |
| 53019F | OBTURAT SS-ASS, RADIATEUR | 53019-0R010 · 53019-0R020 · 53019-0R120 |
| 53153D | Radiator grille right deflector | 53153-0R030 |
| 53153L | GUIDE, AIR LATERAL AVANT, MD | 53155-0R030 · 53155-0R031 |
| 53154D | Radiator grille left deflector | 53154-0R030 |
| 53154F | GUIDE, AIR LATERAL AVANT, MG | 53156-0R030 · 53156-0R031 |
| 53155C | Radiator grille seal No. 1 | 53155-0R060 · 53155-0R080 |
| 53156F | JOINT, GRILLE DE RADIATEUR, NO.2 | 53156-0R060 · 53156-0R070 · 53156-0R160 · 53156-0R170 |
| 53157C | JOINT, GRILLE DE CALANDRE, NO.3 | 53157-0R010 · 53157-0R050 |
| 53158E | JOINT, GRILLE RADIATEUR, NO.4 | 53158-0R010 |
| 53180D | ENS. DE VOLET DE RADIATEUR | 53180-0R130 · 53180-0R131 · 53180-0R132 |
| 53188C | CONSOLE, SUPPORT VOLET RADIATEUR, MD | 53188-0R050 |
| 53189B | CONSOLE, SUPPORT VOLET RADIATEUR, MG | 53189-0R010 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0R050 · 53202-0R051 |
| 53203 | Radiator left bracket sub-assembly | 53203-0R050 · 53203-0R051 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0R070 |
| 53213A | Radiator upper right bracket | 53213-0R900 |
| 53214A | Radiator upper left bracket | 53214-0R900 |
| 53223C | Radiator grille right side mounting bracket | 53223-0R050 |
| 53224B | Radiator grille left mounting bracket | 53223-0R050 |
| 53701 | Right front fender fender sub-assembly | 53701-0R060 |
| 53702 | Left front fender fender sub-assembly | 53702-0R060 |
| 53707E | Fender right fender sub-assembly | 53707-0R030 |
| 53708D | Fender left fender sub-assembly | 53708-0R030 |
| 53731D | Right front fender to cowl side upper beam | 53731-0R050 |
| 53732D | Left front fender to cowl side upper beam | 53732-0R050 |
| 53733J | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD | 53733-0R020 |
| 53734G | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG | 53734-0R030 |
| 53736 | Right front fender fender seal | 53736-0R040 |
| 53737B | Left front fender fender seal | 53737-0R010 |
| 53785A | Right front fender corner plate | 53785-0R010 |
| 53786B | Left front fender corner plate | 53786-0R010 |
| 53813C | Right front fender extension | 53813-0R050 |
| 53814C | Left front fender extension | 53814-0R050 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-0R050 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-0R040 |
| 55101 | Front apron sub-assembly | 55101-0R120 · 55101-0R121 |
| 55210 | Front wall insulation pad assembly | 55210-0R060 · 55210-0R120 · 55210-0R131 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-10217 · 90467-13079 |
| 55223A | Front wall outer heat insulation pad | 55223-0R040 · 55223-0R100 |
| 55241C | ISOLANT, LAT PANNEAU AVANT, NO.1 MD | 55241-0R010 |
| 55242C | ISOLANT, LAT PANNEAU AVANT, NO.1 MG | 55242-0R010 |
| 57104D | Front cross member sub-assembly | 57104-0R050 |
| 82090B | ENS. CABLE, EXTENSION | 82090-0R040 |
| 85667F | COUV, MOTEUR | 85667-0R010 |
| 88940D | ACTUAT ASS, GRILL ECHANG | 88940-12010 · 88940-12011 · 88940-12040 · 88940-48010 |
