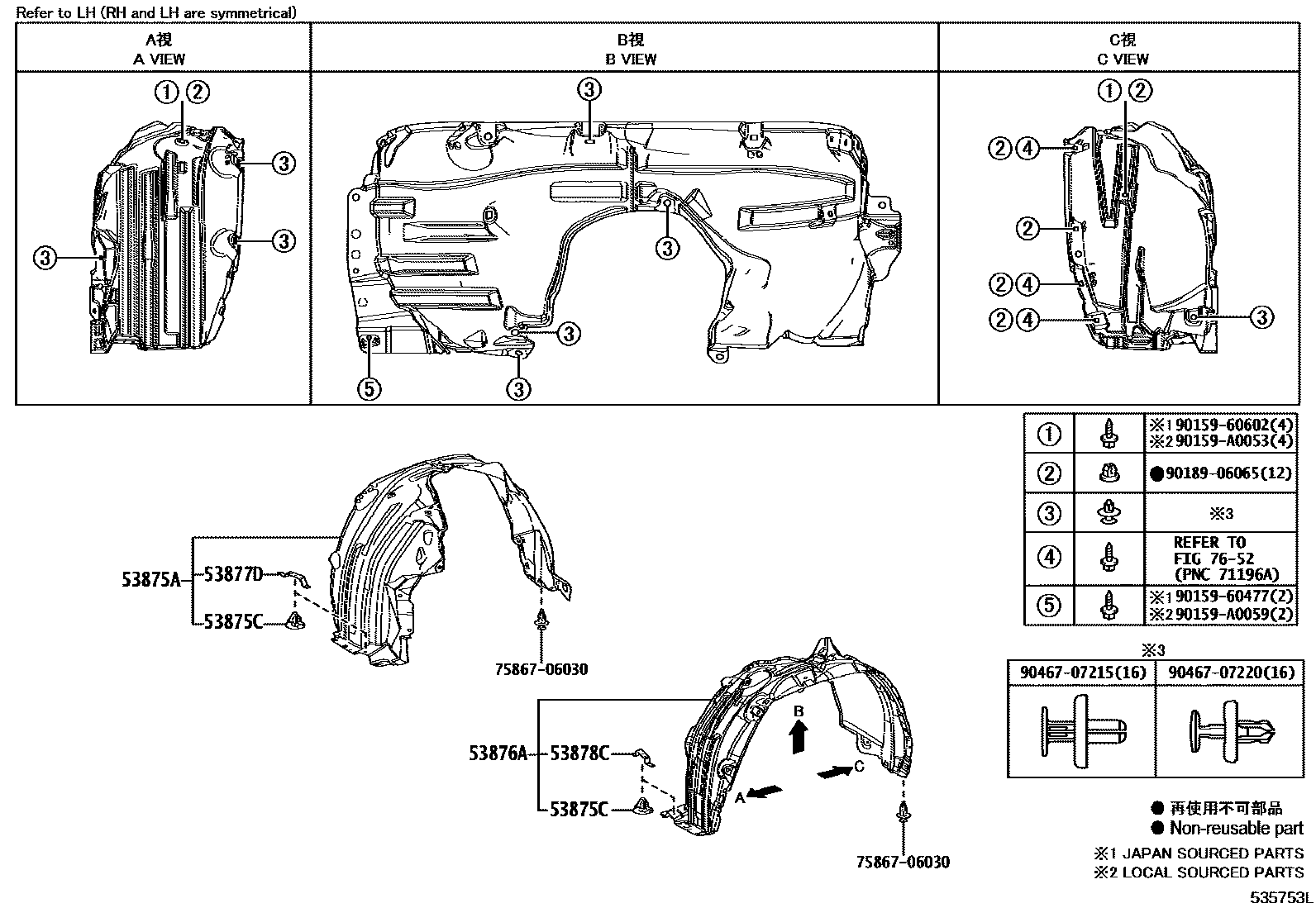

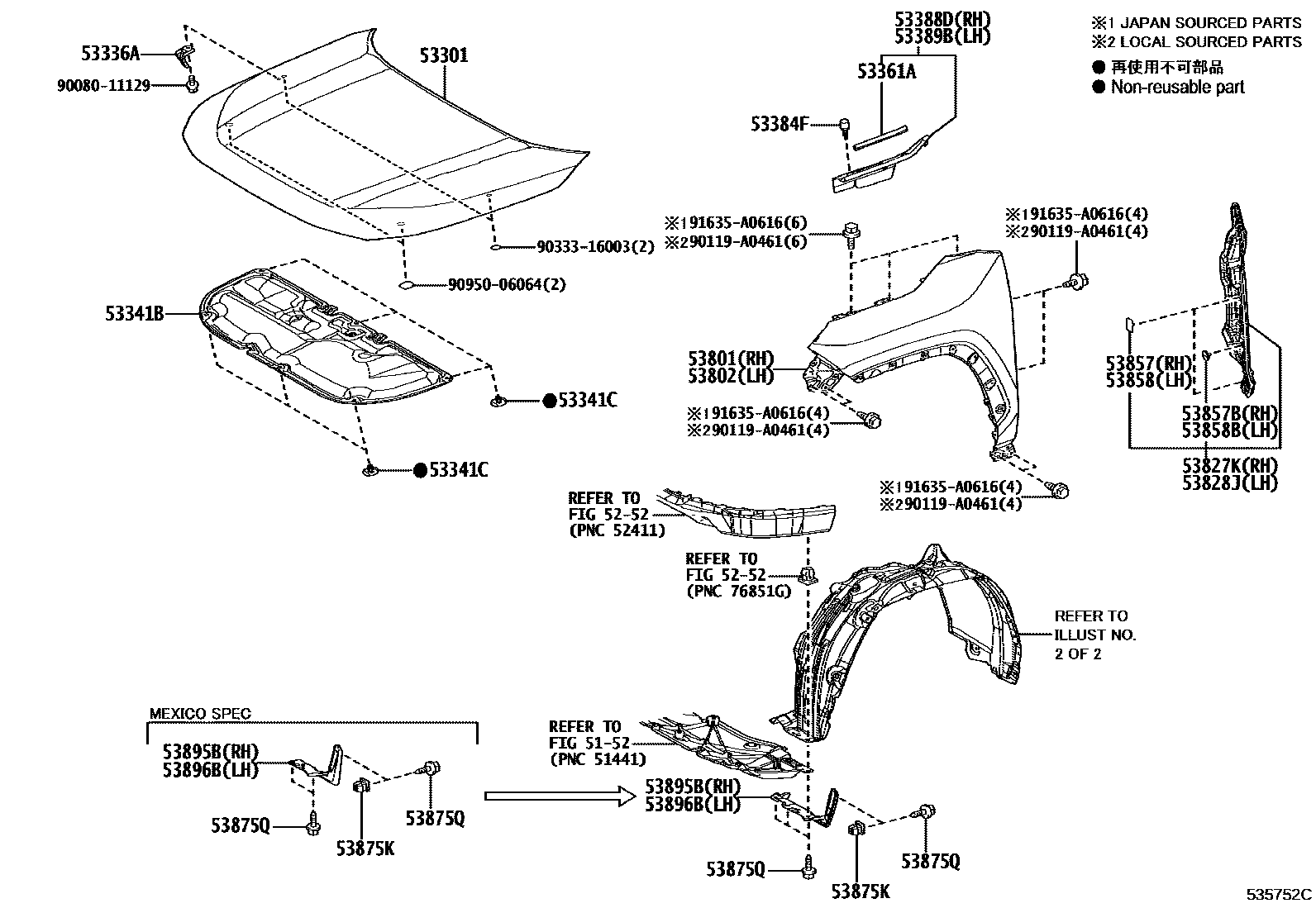

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0R080 |
| 53336A | Engine cover strut bracket | 53336-0R010 |
| 53341B | engine cover gasket | 53341-0R060 |
| 53341C | Clip (for engine cover gasket) | 53326-08010 |
| 53361A | engine cover seal | 53361-0R020 |
| 53384F | COUSSIN, CAPOT, CENTRAL | 53384-0R040 |
| 53388D | Engine cover to right front fender seal | 53388-0R050 |
| 53389B | Engine cover to left front fender seal | 53389-0R050 |
| 53801 | Right front fender sub-assembly | 53811-0R130 |
| 53802 | Left front fender sub-assembly | 53812-0R110 |
| 53827K | Right front fender side panel protector | 53827-0R050 |
| 53828J | Left front fender side panel protector | 53828-0R050 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-0R080 |
| 53875C | Front fender lining clip | 90467-06192 |
| 53875K | RONDELLE, VIS | 90189-06237 |
| 53875Q | VIS, NO.2 | 90159-A0059 |
| 53876A | Left front fender lining | 53876-0R080 |
| 53877D | Right front fender lining bracket | 53877-0R010 |
| 53878C | front fender spacer | 53878-0R010 |
| 53895B | Right front fender front splash guard | 53895-0R081 · 53895-42070 |
| 53896B | Left front fender front splash guard | 53896-0R081 · 53896-42060 |
