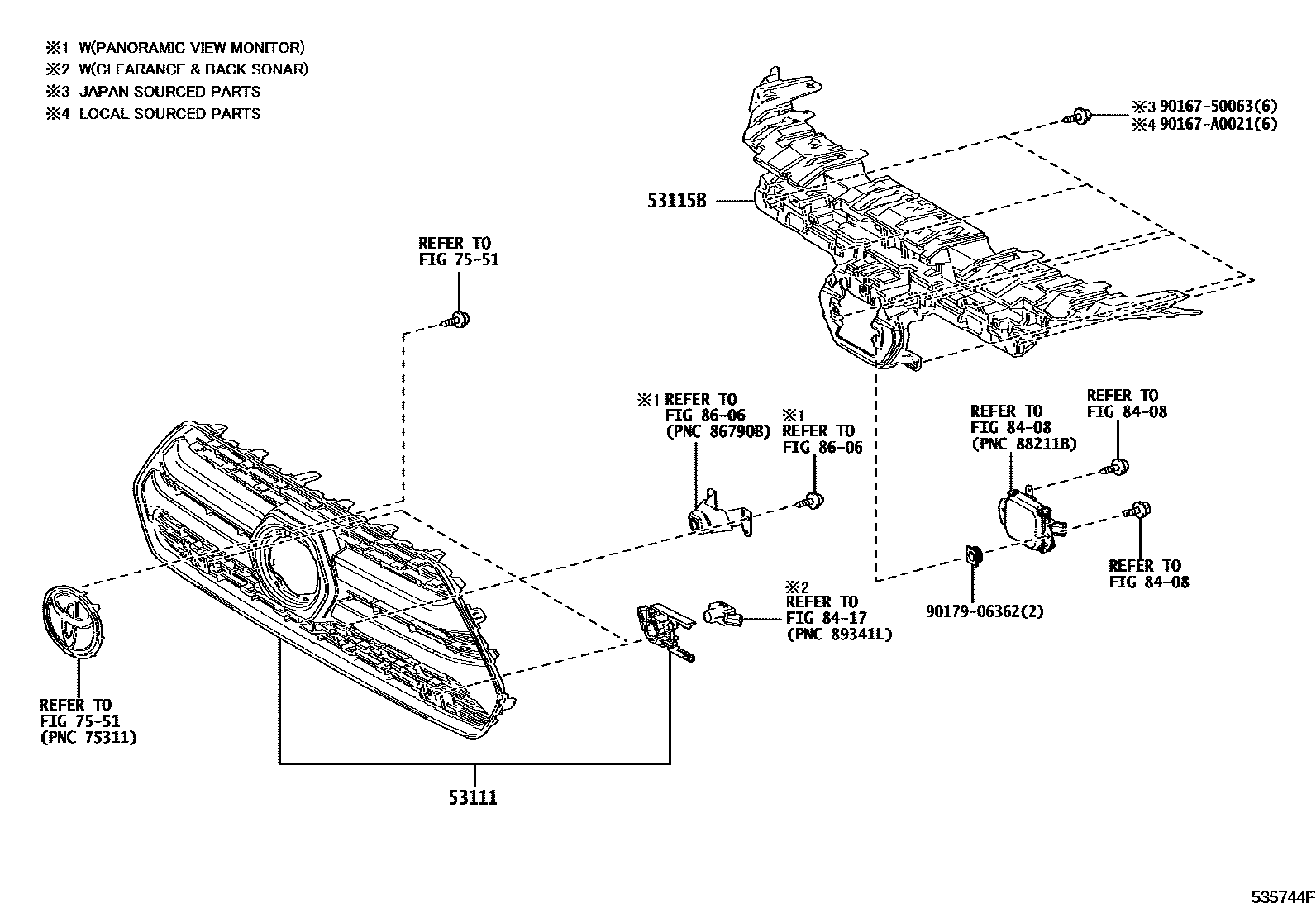

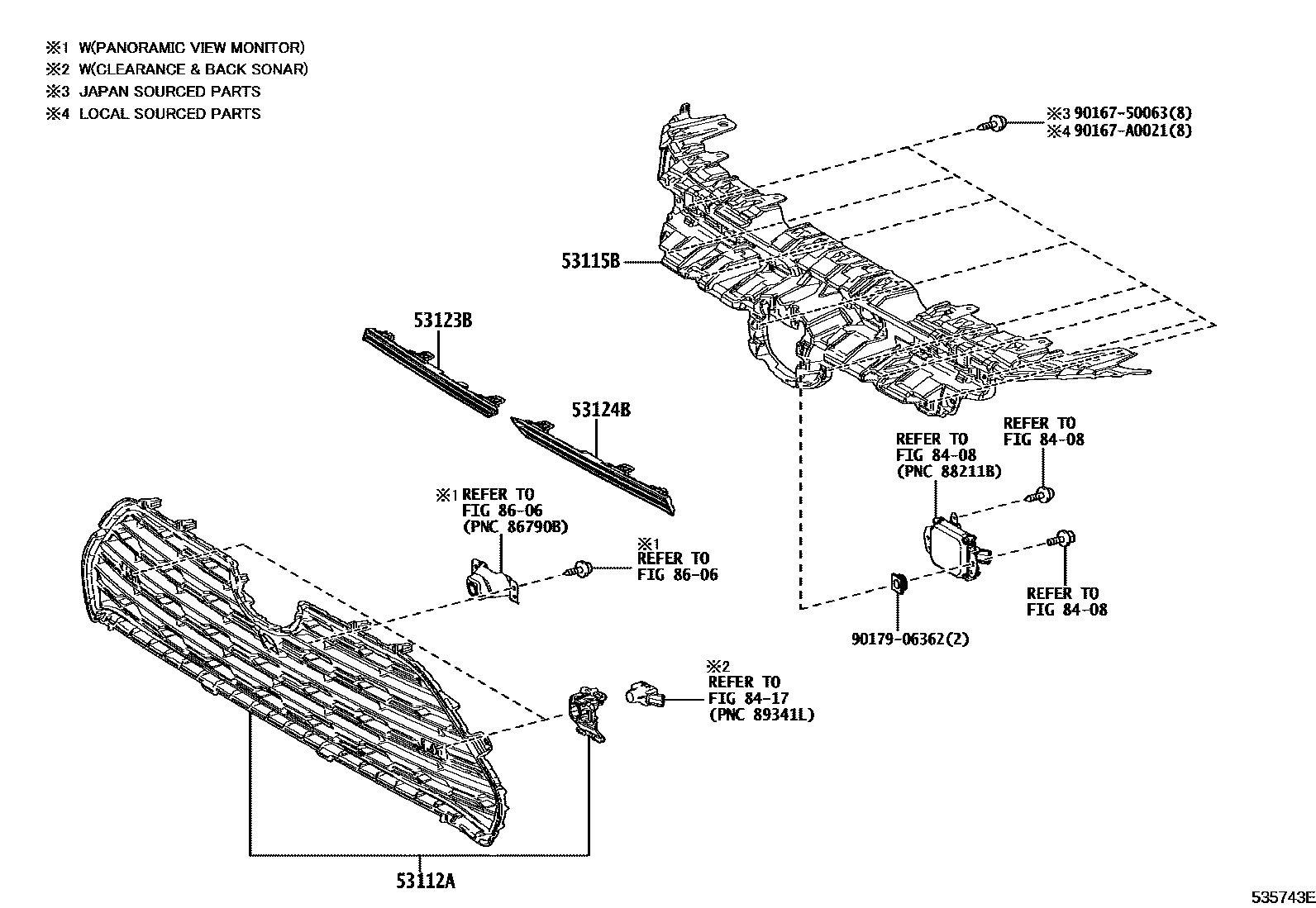

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53111-0R120 · 53111-0R130 · 53111-0R140 · 53111-42220 · 53111-42230 · 53111-42240 |
| 53112A | Lower radiator grille | 53112-0R120 · 53112-0R130 · 53112-0R140 · 53112-0R150 · 53112-0R160 · 53112-0R410 · 53112-0R420 · 53112-0R430 |
| 53115B | Radiator grille bracket | 53115-0R010 · 53115-0R020 · 53115-0R021 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-0R050 |
| 53124B | Radiator grille left protective strip | 53124-0R040 |
