Toyota RAV4 后保险杠及附件 — Figure 5253

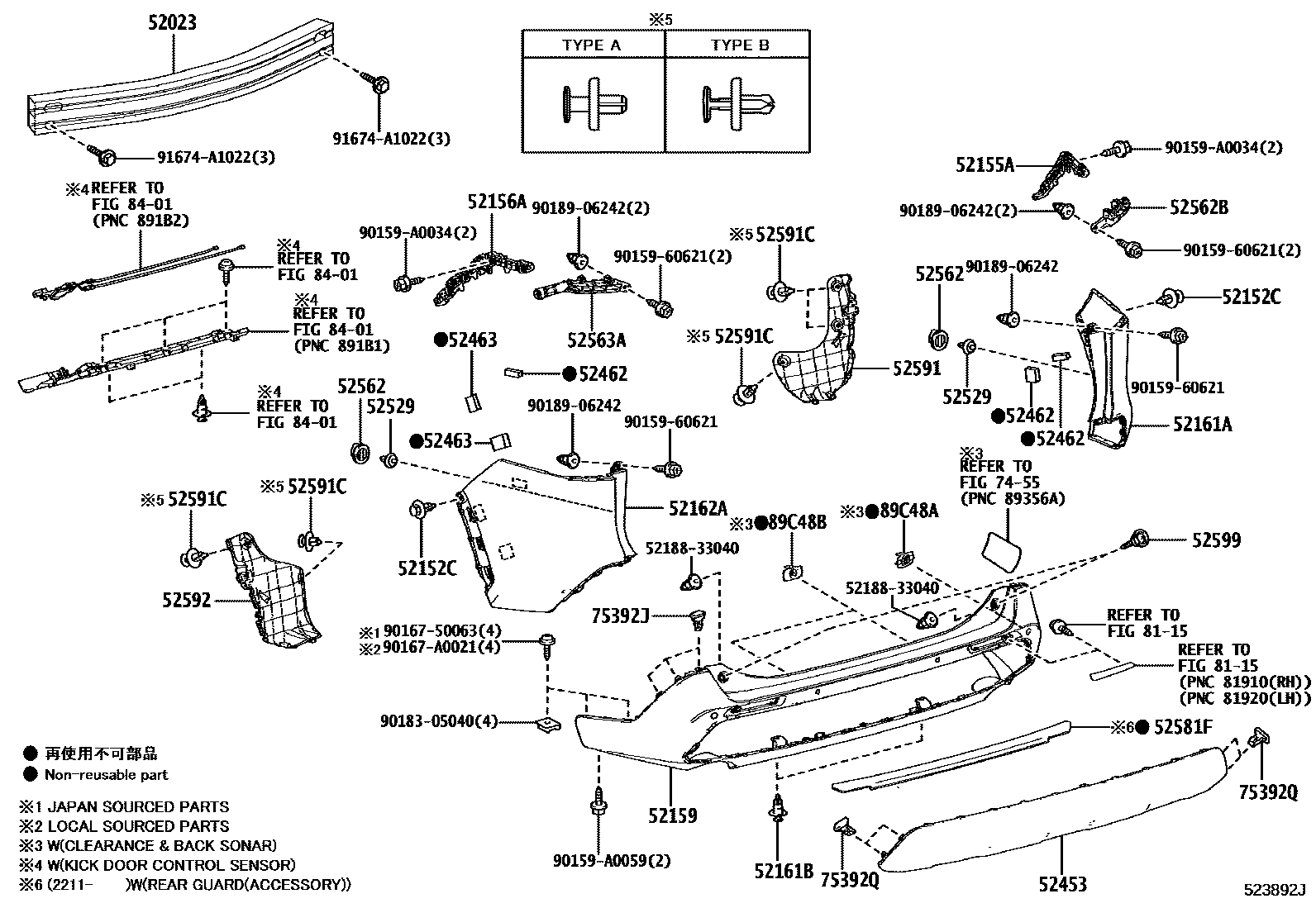

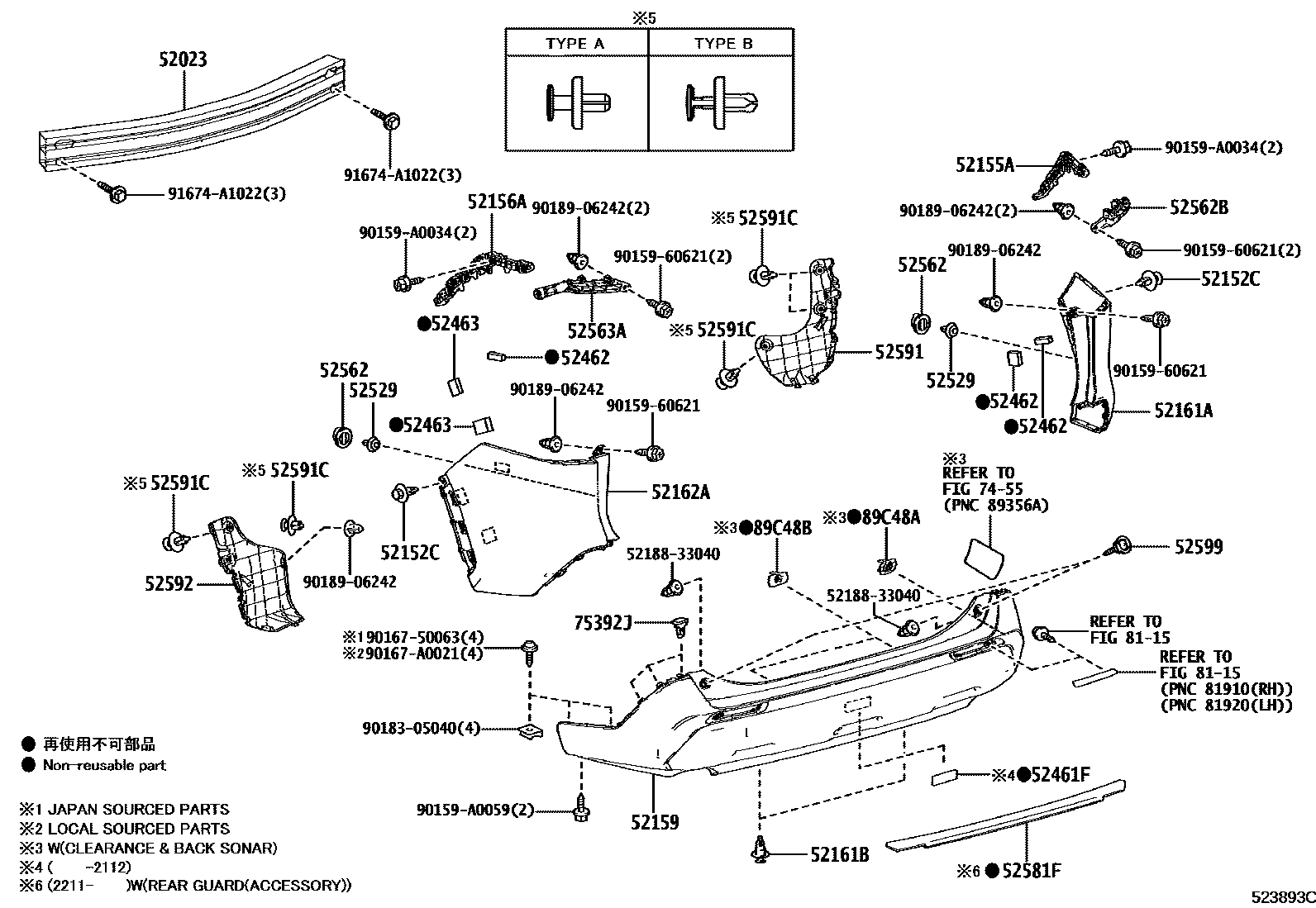

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52171-0R060 |
| 52152C | Rear bumper side clips | 90467-07215 |
| 52155A | Rear bumper right side bracket | 52155-0R070 |
| 52156A | Rear bumper left bracket | 52156-0R070 |
| 52159 | rear bumper cover | 52159-0R160 · 52159-0R170 · 52159-0R190 · 52159-0R200 · 52159-0R920 · 52159-0R921 |
| 52161A | Rear bumper right side gap filler | 52161-0R906 · 52161-0R907 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52162A | Rear bumper left insert | 52162-0R906 · 52162-0R907 |
| 52461F | rear bumper lining | 52461-0R010 |
| 52462 | Rear bumper right side lining | 52462-0R020 · 52462-0R050 · 52463-0R010 |
| 52463 | Rear bumper left lining | 52463-0R010 · 52463-0R040 |
| 52529 | Rear bumper upper corner fixing parts | 76829-60020 |
| 52562 | Rear bumper upper side fixing bracket | 76828-60030 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0R070 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0R070 |
| 52581F | rear bumper protector | 52581-YY140 |
| 52591 | Rear bumper right seal | 52591-0R070 |
| 52591C | ATTACHE, JOINT LAT PARE-CHOCS ARR | 90467-07215 · 90467-07220 |
| 52592 | Rear bumper left seal | 52592-0R070 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 75392J | External protective strip fixings | 75392-0R050 · 75392-35220 |
| 75392Q | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-0R050 · 75392-35220 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-0R100 |
