Toyota RAV4 前保险杠及附件 — Figure 5252

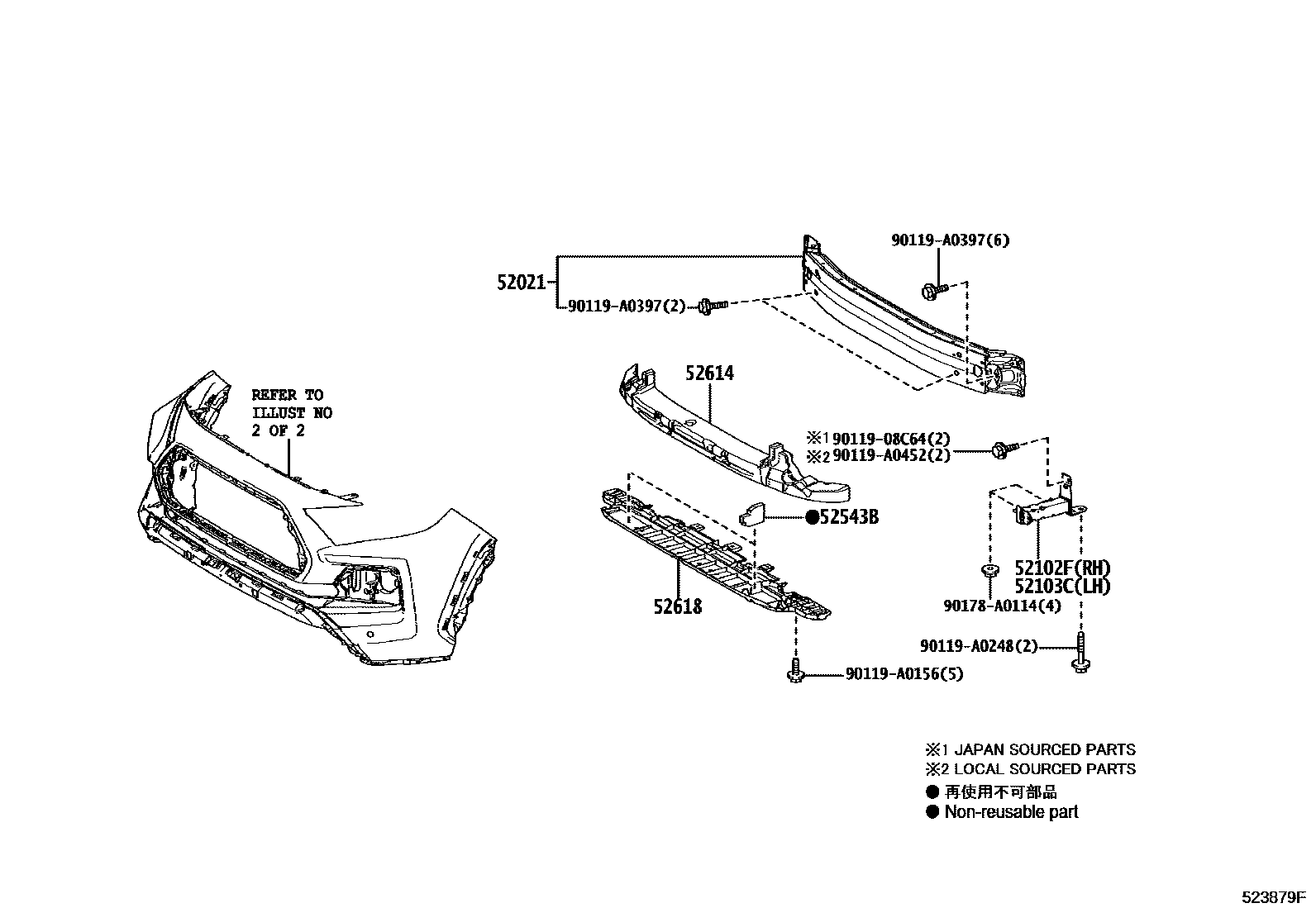

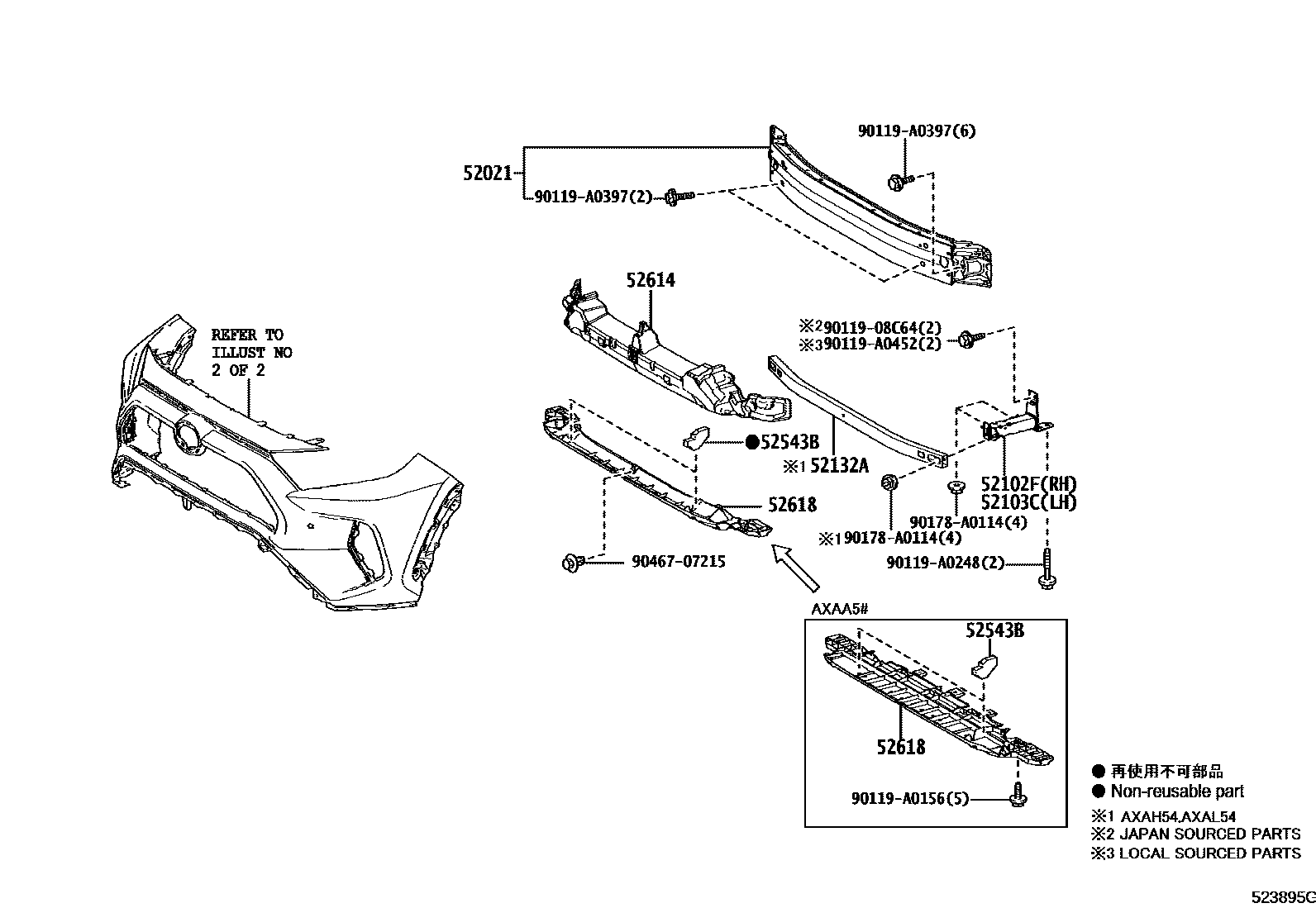

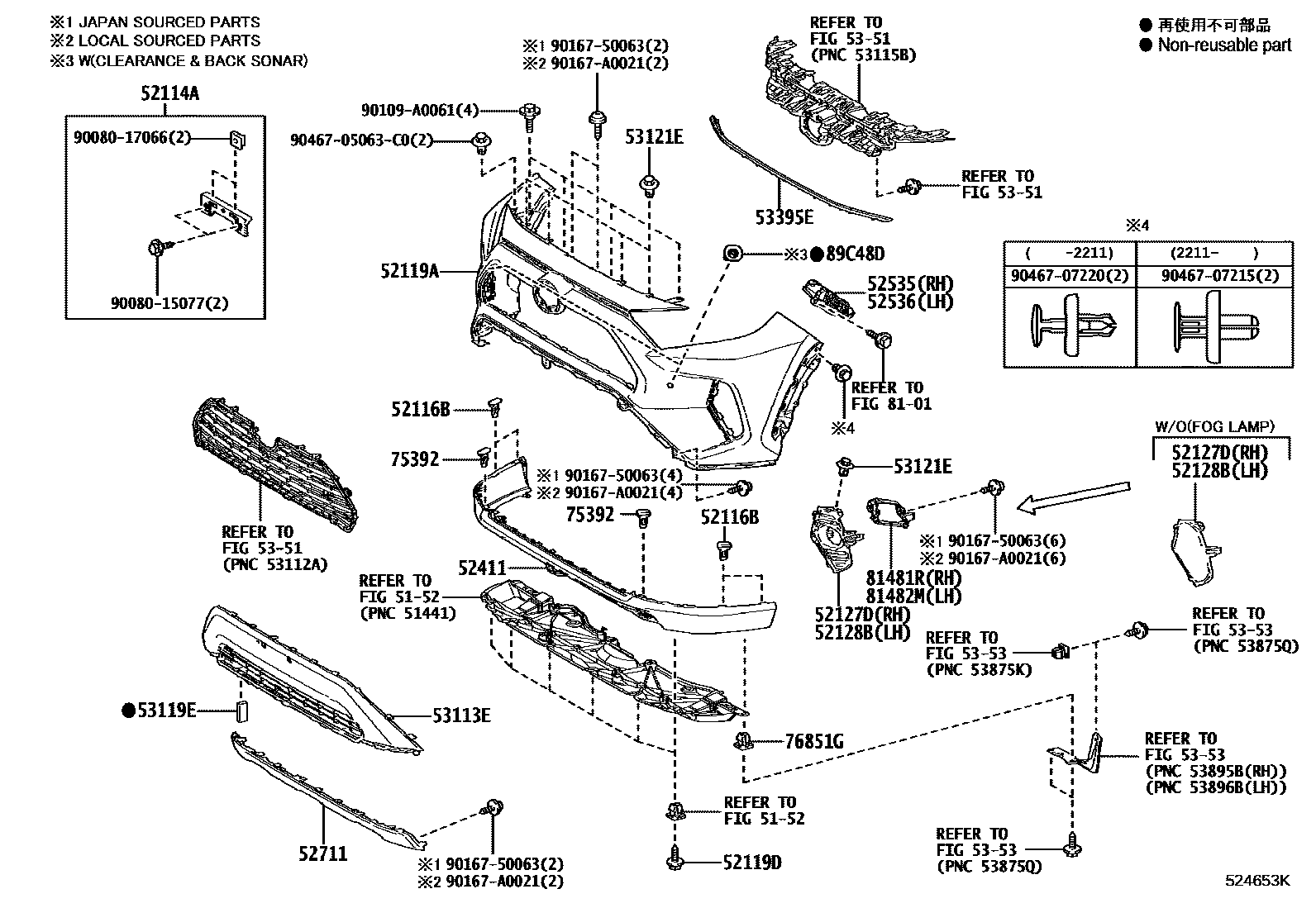

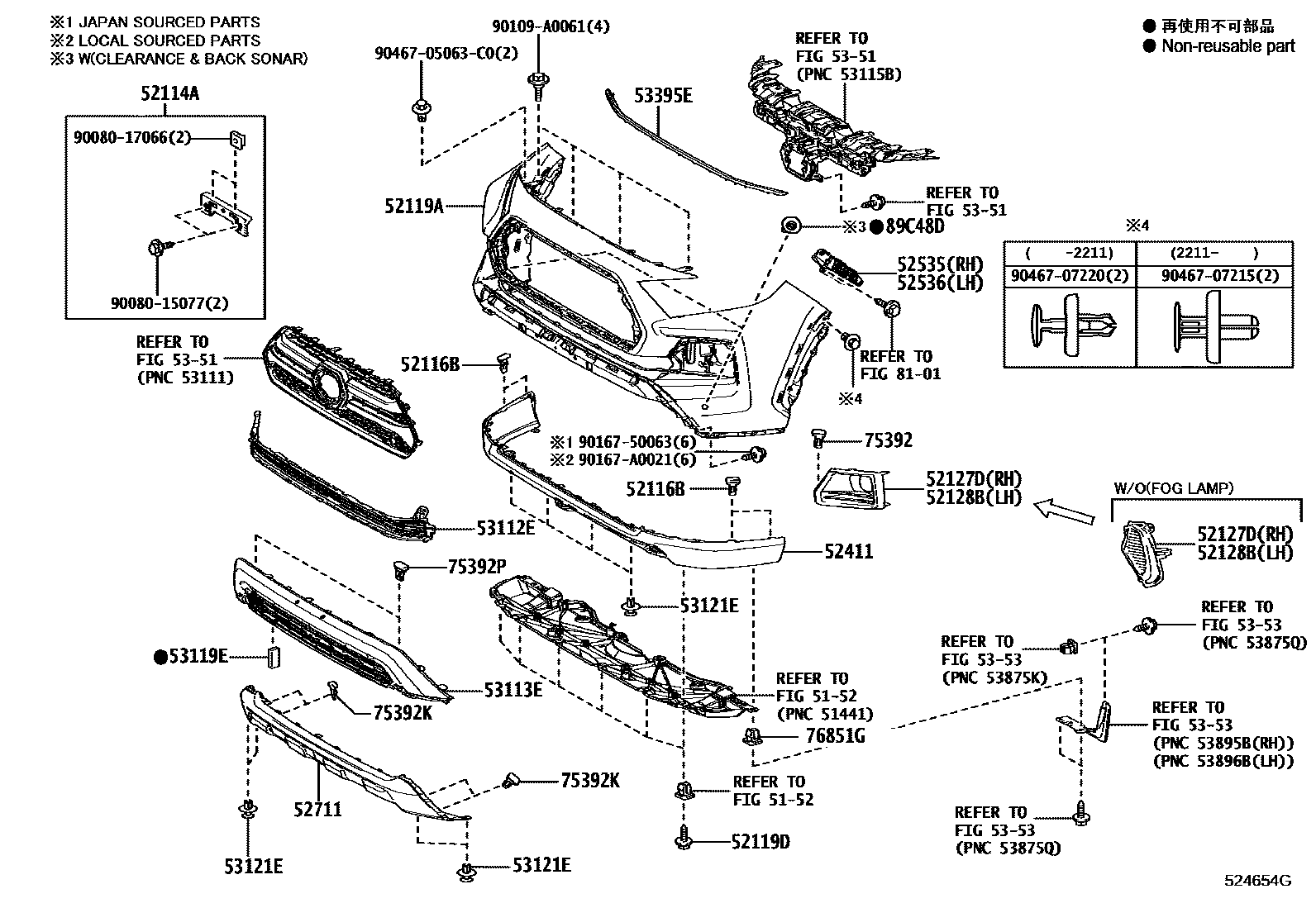

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0R100 |
| 52102F | SOUS-ENS. EXTENSION, PARE-CHOCS AV, MD | 52102-0R030 · 52102-0R040 |
| 52103C | SOUS-ENS. EXTENSION, PARE-CHOCS AV, MG | 52103-0R030 · 52103-0R040 |
| 52114A | Front bumper extension mounting bracket | 52114-0R120 · 52114-0R130 |
| 52116B | front bumper fixings | 75392-0R050 · 75392-35220 |
| 52119A | front bumper cover | 52119-0R919 · 52119-0R920 · 52119-0R921 · 52119-0R922 · 52119-0R942 · 52119-0R943 |
| 52119D | VIS, NO.1 | 90159-A0059 |
| 52127D | Front bumper right hole cover | 52127-0R150 · 52127-0R160 · 52127-0R170 · 52127-0R270 · 52127-0R280 · 52127-0R290 · 52127-42220 |
| 52128B | Front bumper left hole cover | 52128-0R150 · 52128-0R160 · 52128-0R170 · 52128-0R270 · 52128-0R280 · 52128-0R290 · 52128-42220 |
| 52132A | No. 2 front bumper reinforcement | 52132-0R070 |
| 52411 | Front bumper anti-collision bar | 52411-0R130 · 52411-0R140 · 52411-0R150 · 52411-0R903 |
| 52535 | Front bumper right side fixing bracket | 52535-0R090 |
| 52536 | Front bumper left fixed bracket | 52536-0R070 |
| 52543B | front bumper seal | 52543-0R010 · 52543-0R020 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0R090 · 52614-0R100 |
| 52618 | Front bumper lower shock absorber | 52618-0R050 · 52618-0R060 |
| 53112E | No. 1 radiator lower grille | 53112-0R170 |
| 53113E | No. 2 radiator lower grille | 53113-0R090 · 53113-0R091 · 53113-0R100 · 53113-0R101 |
| 53119E | Radiator grille protector | 53119-0R030 · 53119-0R040 |
| 53121E | Clamp No. 1 (for front bumper) | 90467-07215 |
| 53395E | Engine cover to front end plate seal | 53395-0R080 |
| 75392 | External protective strip fixings | 75392-0R050 · 75392-35220 |
| 75392K | RETENUE MOULURE EXTERIEURE NO. 2 | 75392-0R050 · 75392-35220 |
| 75392P | RETENUE MOULURE EXTERIEURE NO. 3 | 75392-0R050 · 75392-35220 |
| 76851G | RONDELLE, VIS, NO.1 | 90189-06237 |
| 81481R | SUPPORT, FEU ANTIBROUILLARD, MD | 81481-0R020 |
| 81482M | SUPPORT, FEU ANTIBROUILLARD, MG | 81482-0R020 |
