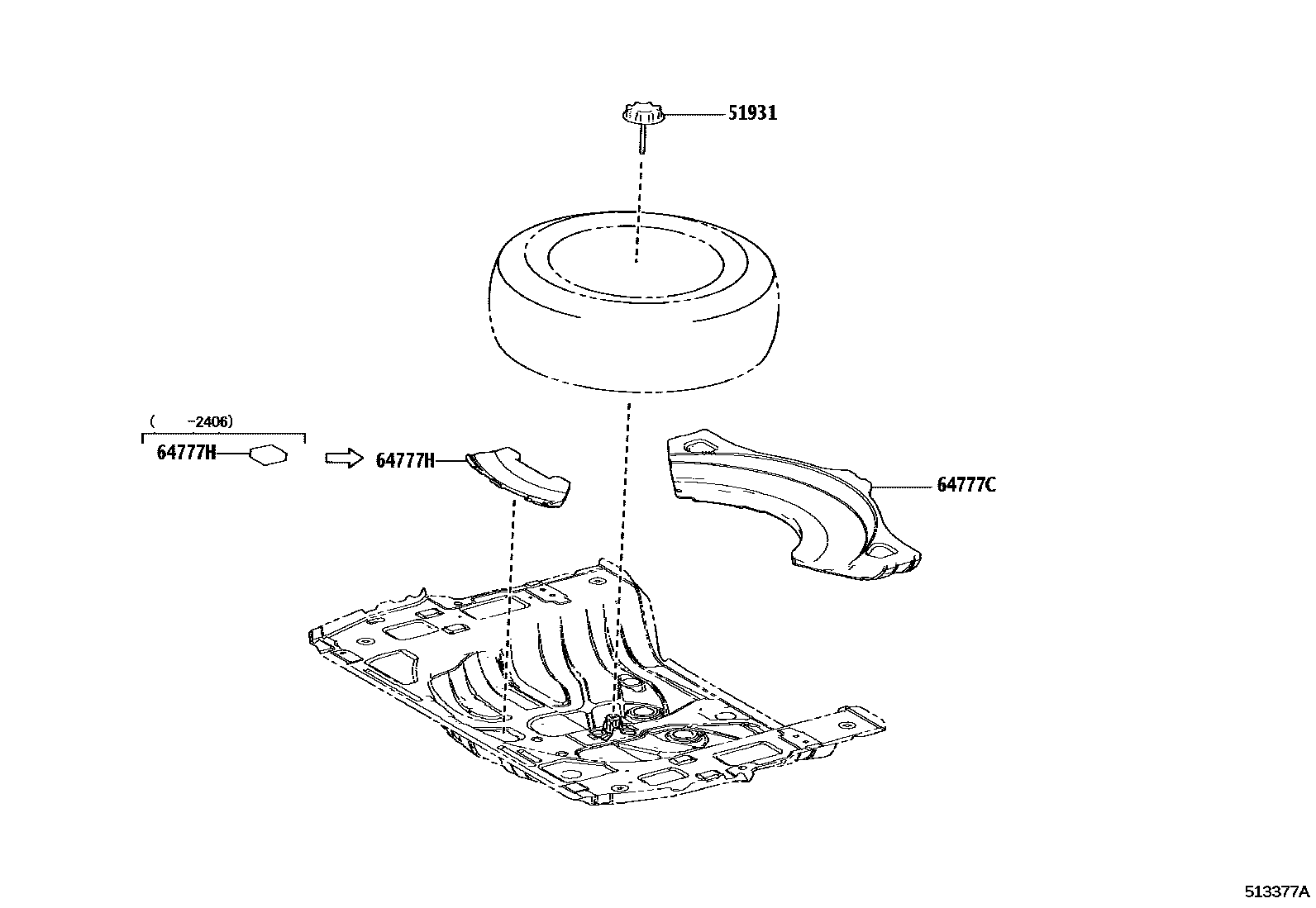

Toyota RAV4 Spare tire rack — Figure 5153
Toyota RAV4 EPC diagram 5153, Spare tire rack, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51931 | No. 1 spare tire rack | 51931-22040 · 51931-33060 |
| 64777C | Spare tire cushion | 64777-0R120 |
| 64777H | Spare tire cushion | 64768-0R010 · 64778-0R060 |
