Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

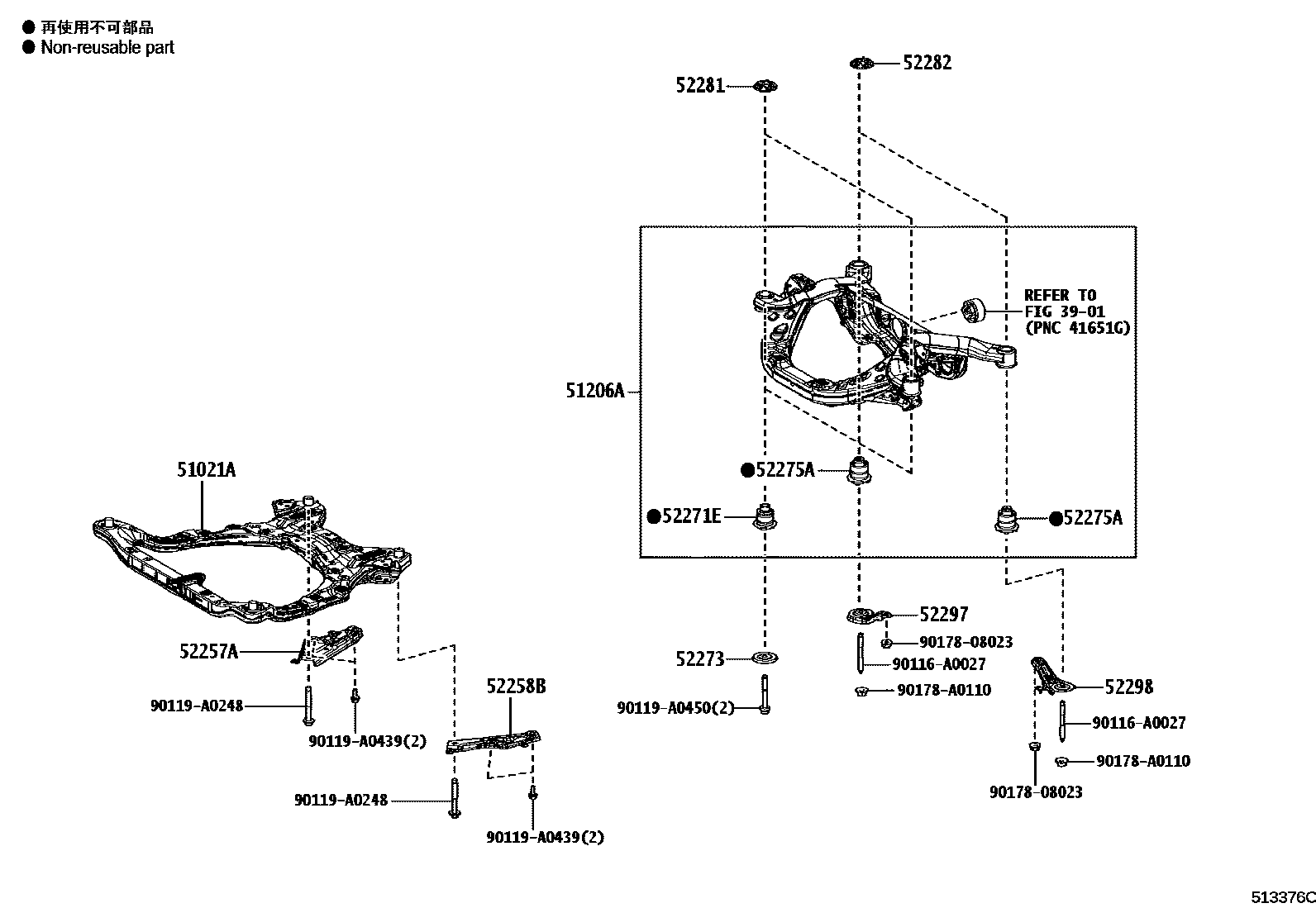

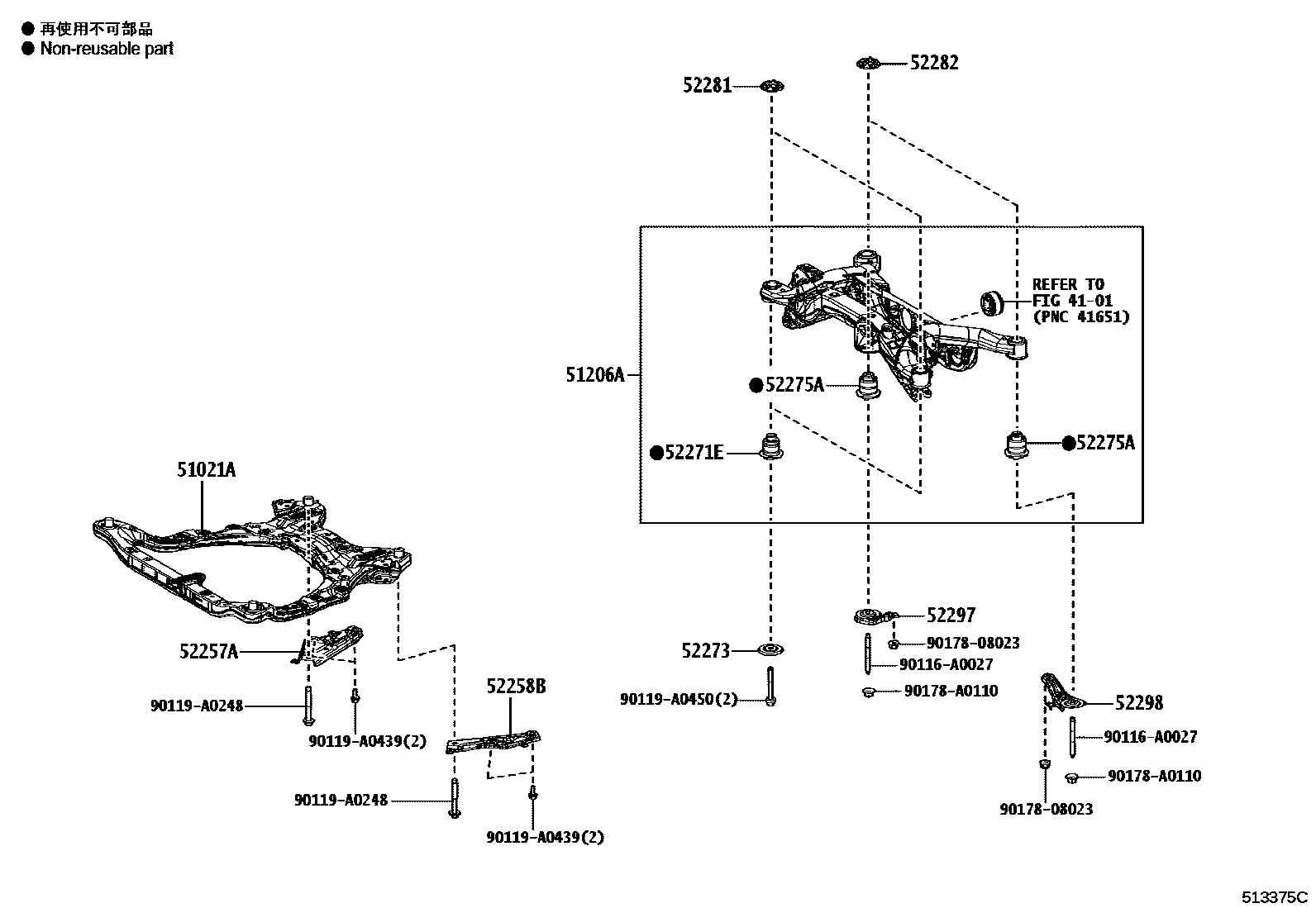

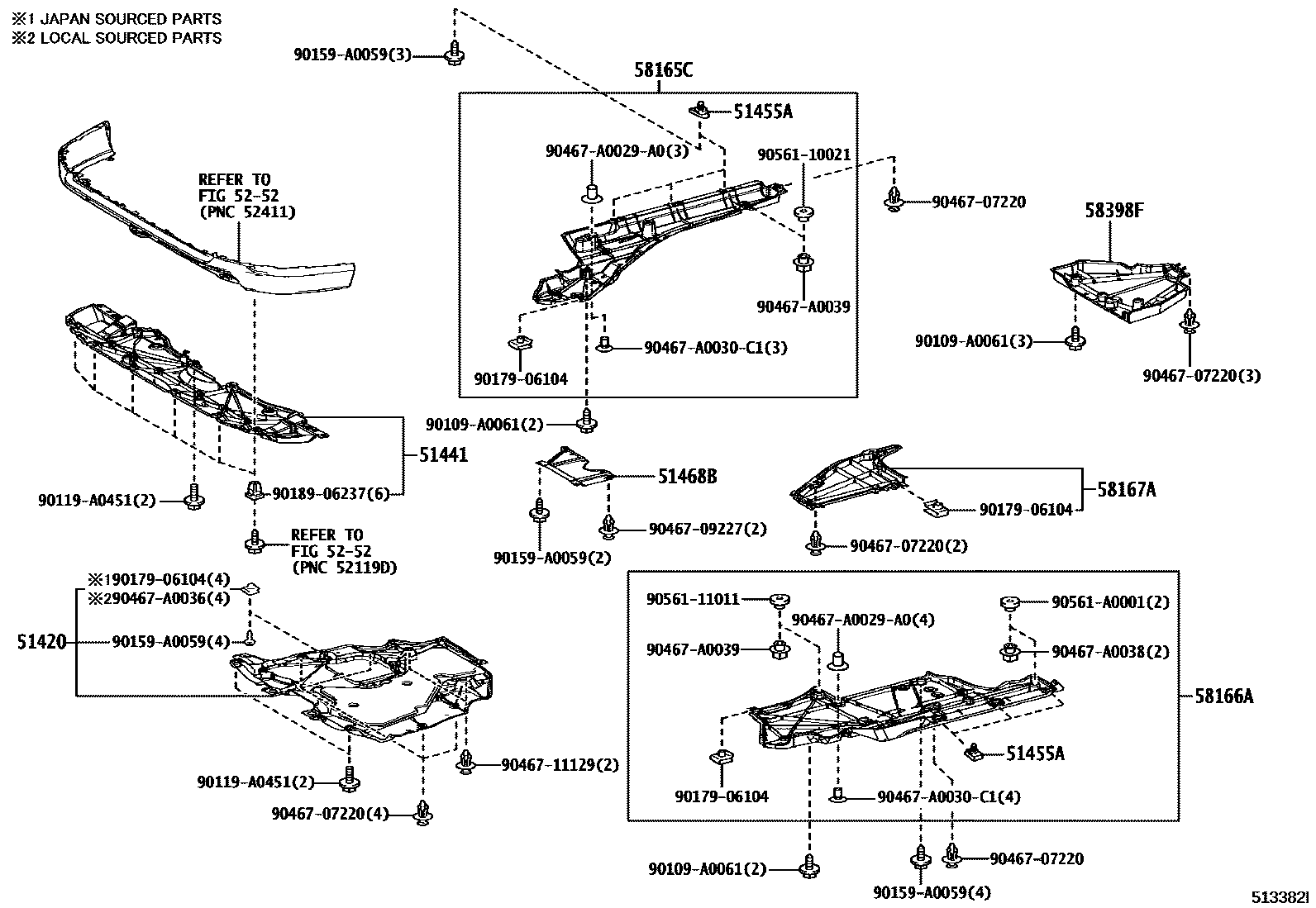

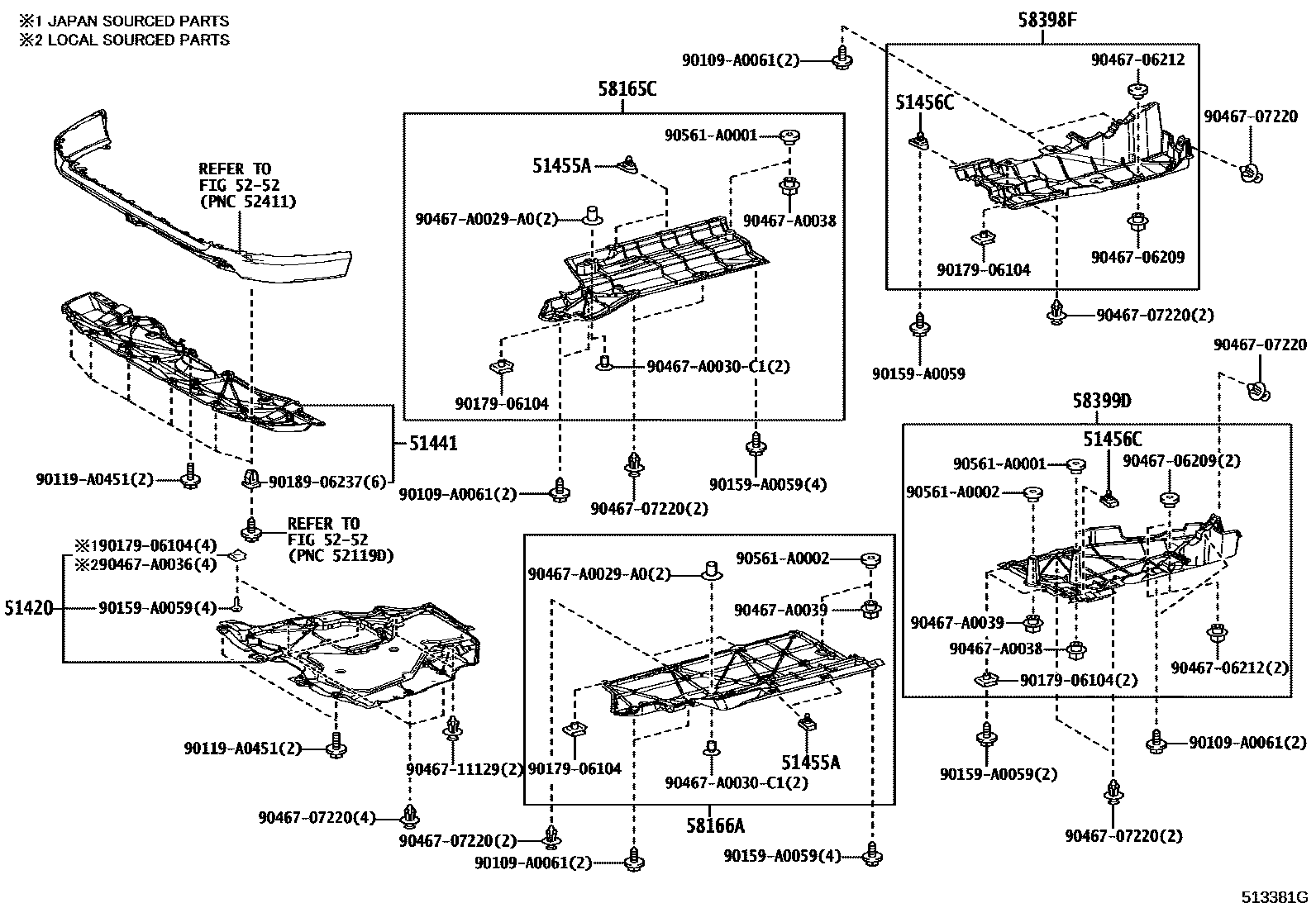

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51021A | Engine front support beam sub-assembly | 51100-0R010 · 51100-0R011 · 51100-0R012 |
| 51206A | Rear suspension cross member sub-assembly | 51200-0R010 · 51200-0R020 · 51200-0R030 |
| 51420 | COUV ASS, SOUS MOT, NO.2 | 51420-0R010 · 51420-0R060 · 51420-0R061 |
| 51441 | No. 1 engine bottom cover | 51441-0R100 |
| 51455A | Engine undercover seal No. 1 | 51455-0E020 |
| 51456C | Engine undercover seal No. 2 | 51455-0E050 |
| 51468B | ISOLANT, THERMIQUE PROTECTION SOUS MOTEUR | 51468-0R010 |
| 52257A | Right front suspension cross member rear bracket | 52257-0R040 |
| 52258B | Left front suspension cross member rear bracket | 52258-0R040 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-0R010 |
| 52273 | Rear suspension cross member lower block | 52273-06050 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-0R010 · 52276-0R010 |
| 52281 | Differential support beam cushion | 52281-0R010 |
| 52282 | Differential support beam upper stop | 52282-06110 |
| 52297 | Right rear suspension cross member rear lower bracket | 52297-0R040 |
| 52298 | Left rear suspension cross member rear lower bracket | 52298-0R010 · 52298-0R060 |
| 58165C | Front floor right cover | 58165-0R040 · 58165-0R050 |
| 58166A | Front floor left cover | 58166-0R010 · 58166-0R020 |
| 58167A | front floor center cover | 58167-0R010 |
| 58398F | No. 1 floor under cover | 58398-0R060 · 58398-0R070 |
| 58399D | Floor No. 2 lower cover | 58399-0R020 |
