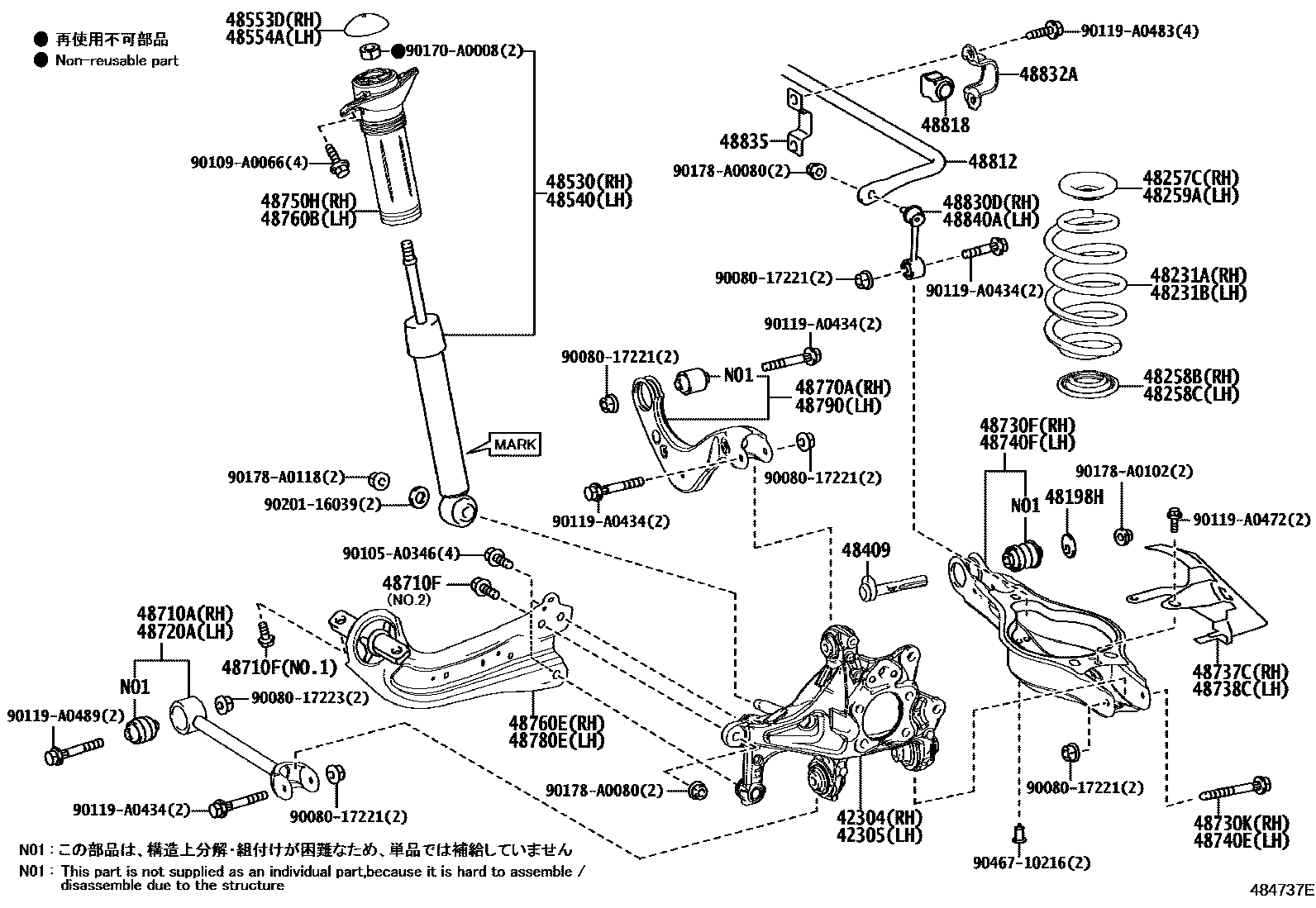

Toyota RAV4 Rear Spring & Shock Absorber — Figure 4804
Toyota RAV4 EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-0R090 · 42304-0R100 |
| 42305 | Rear axle left bracket sub-assembly | 42305-0R090 · 42305-0R100 |
| 48198H | No. 2 camber angle adjustment cam | 48198-07010 · 48198-47010 |
| 48231A | Right rear coil spring | 48231-0R240 · 48231-0R241 · 48231-0R242 · 48231-0R250 · 48231-0R251 · 48231-0R252 · 48231-0R260 · 48231-0R261 · 48231-0R270 · 48231-0R271 · 48231-0R280 · 48231-0R281 · 48231-0R282 · 48231-0R290 · 48231-0R291 · 48231-0R292 · 48231-0R540 · 48231-0R541 · 48231-0R550 · 48231-0R551 · 48231-0R660 · 48231-0R661 · 48231-0R670 · 48231-0R671 · 48231-42540 · 48231-42590 · 48231-42630 |
| 48231B | Left rear coil spring | 48231-0R240 · 48231-0R241 · 48231-0R242 · 48231-0R250 · 48231-0R251 · 48231-0R252 · 48231-0R260 · 48231-0R261 · 48231-0R270 · 48231-0R271 · 48231-0R280 · 48231-0R281 · 48231-0R282 · 48231-0R290 · 48231-0R291 · 48231-0R292 · 48231-0R540 · 48231-0R541 · 48231-0R550 · 48231-0R551 · 48231-0R660 · 48231-0R661 · 48231-0R670 · 48231-0R671 · 48231-42540 · 48231-42590 · 48231-42630 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06030 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06230 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06230 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-06030 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-06010 · 48409-47011 |
| 48530 | Right rear shock absorber assembly | 48530-80895 · 48530-80896 · 48530-80898 · 48530-8Z092 · 48530-8Z093 · 48530-8Z094 · 48530-8Z095 |
| 48540 | Left rear shock absorber assembly | 48530-80895 · 48530-80896 · 48530-80898 · 48530-8Z092 · 48530-8Z093 · 48530-8Z094 · 48530-8Z095 |
| 48553D | Right rear shock absorber cover | 48553-06010 |
| 48554A | Left rear shock absorber cover | 48553-06010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-0R050 |
| 48710F | Bolt (for rear trailing arm) | 90119-A0346 · 90119-A0491 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-0R050 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-0R050 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-A0433 |
| 48737C | CACHE, BRAS DE CONTROLE INFERIEUR, DR NO.2 | 48737-0R010 |
| 48738C | CACHE, BRAS DE CONTROLE INFERIEUR, GA NO.2 | 48738-0R010 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-A0433 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-0R050 |
| 48750H | Right rear suspension support assembly | 48750-0R010 |
| 48760B | Left rear suspension support assembly | 48750-0R010 |
| 48760E | Right rear trailing arm assembly | 48760-0R040 |
| 48770A | Right rear upper control arm assembly | 48770-0R020 |
| 48780E | Left rear trailing arm assembly | 48780-0R040 |
| 48790 | Left rear upper control arm assembly | 48790-0R020 |
| 48812 | rear stabilizer bar | 48812-0R050 · 48812-0R060 |
| 48818 | Rear stabilizer bar bushing | 48818-0R050 · 48818-0R060 |
| 48830D | Right rear stabilizer bar link assembly | 48830-0R030 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-0R031 |
| 48835 | Rear stabilizer bar lower bracket | 48835-0R010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-0R030 |
