Toyota RAV4 Front Spring & Shock Absorber — Figure 4803

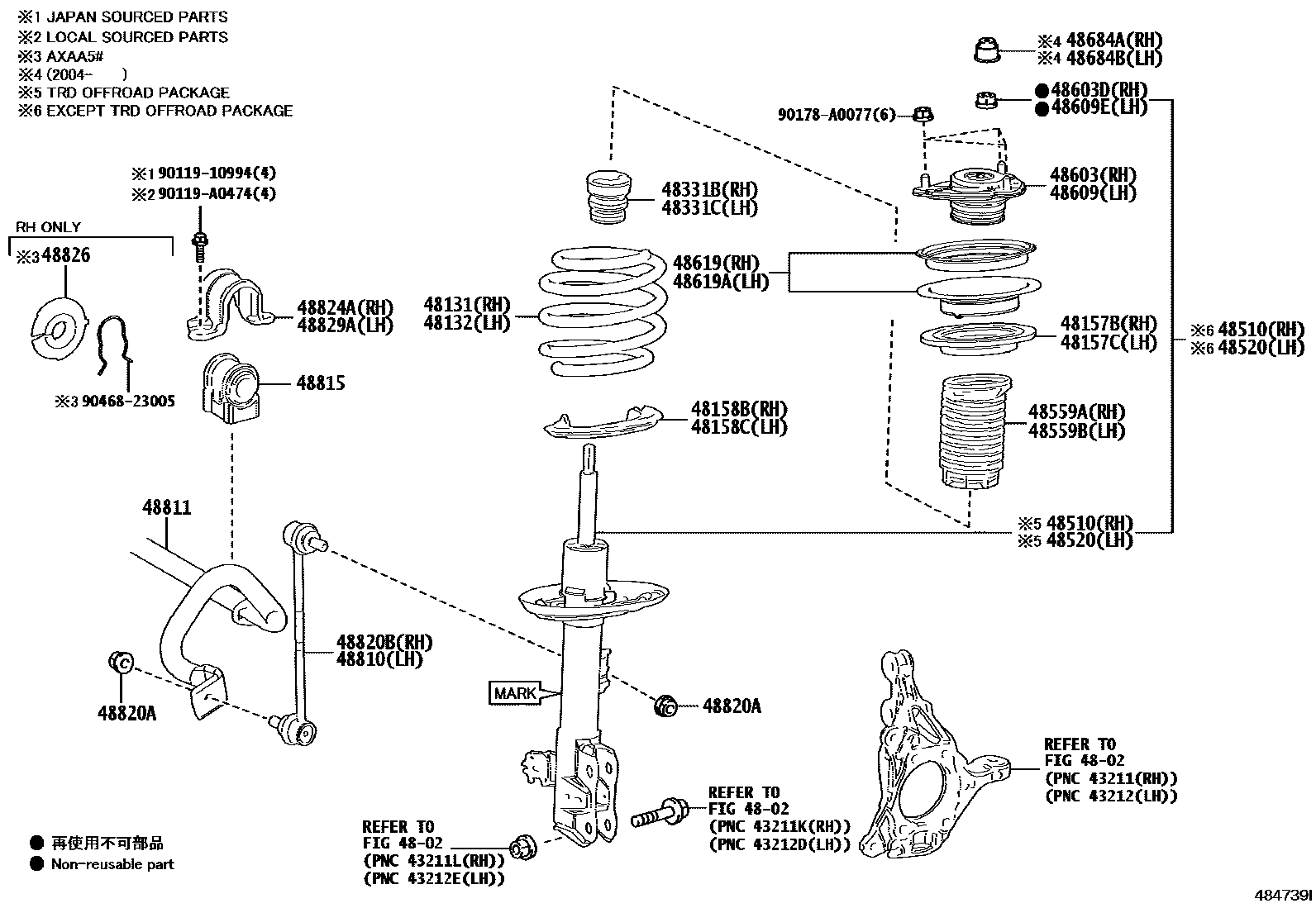

Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0R200 · 48131-0R250 · 48131-0R260 · 48131-0R310 · 48131-0R330 · 48131-0R470 |
| 48132 | Left front coil spring | 48131-0R200 · 48131-0R250 · 48131-0R260 · 48131-0R310 · 48131-0R330 · 48131-0R470 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-06220 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-06220 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-06260 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-06260 |
| 48331B | Right front spring buffer block | 48331-0R050 |
| 48331C | Left front spring buffer block | 48331-0R050 |
| 48510 | Right front shock absorber assembly | 48510-80A74 · 48510-80A75 · 48510-8Z375 · 48510-8Z376 · 48510-8Z377 · 48510-YY040 |
| 48520 | Left front shock absorber assembly | 48520-80634 · 48520-80635 · 48520-8Z227 · 48520-8Z228 · 48520-8Z229 · 48520-YY030 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-0R030 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-0R030 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0R050 |
| 48603D | Nut (for front mount to right front shock absorber) | 90177-14007 · 90177-A0019 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0R050 |
| 48609E | Nut (for front mount to left front shock absorber) | 90177-14007 · 90177-A0019 |
| 48619 | Bearing installed on the right sliding column | 48619-0R050 |
| 48619A | Bearing installed on the left sliding column | 48619-0R050 |
| 48684A | Right front suspension support dust cover | 48684-33030 |
| 48684B | Left front suspension support dust cover | 48684-33030 |
| 48810 | Left front stabilizer bar link assembly | 48820-0R050 |
| 48811 | front stabilizer bar | 48811-0R060 · 48811-42080 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-06260 · 48815-33150 |
| 48820A | Nut (for front stabilizer bar link) | 90178-A0080 · 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-0R050 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-06040 |
| 48826 | Front stabilizer bar protector | 48826-0R010 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-06040 |
