Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 6 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

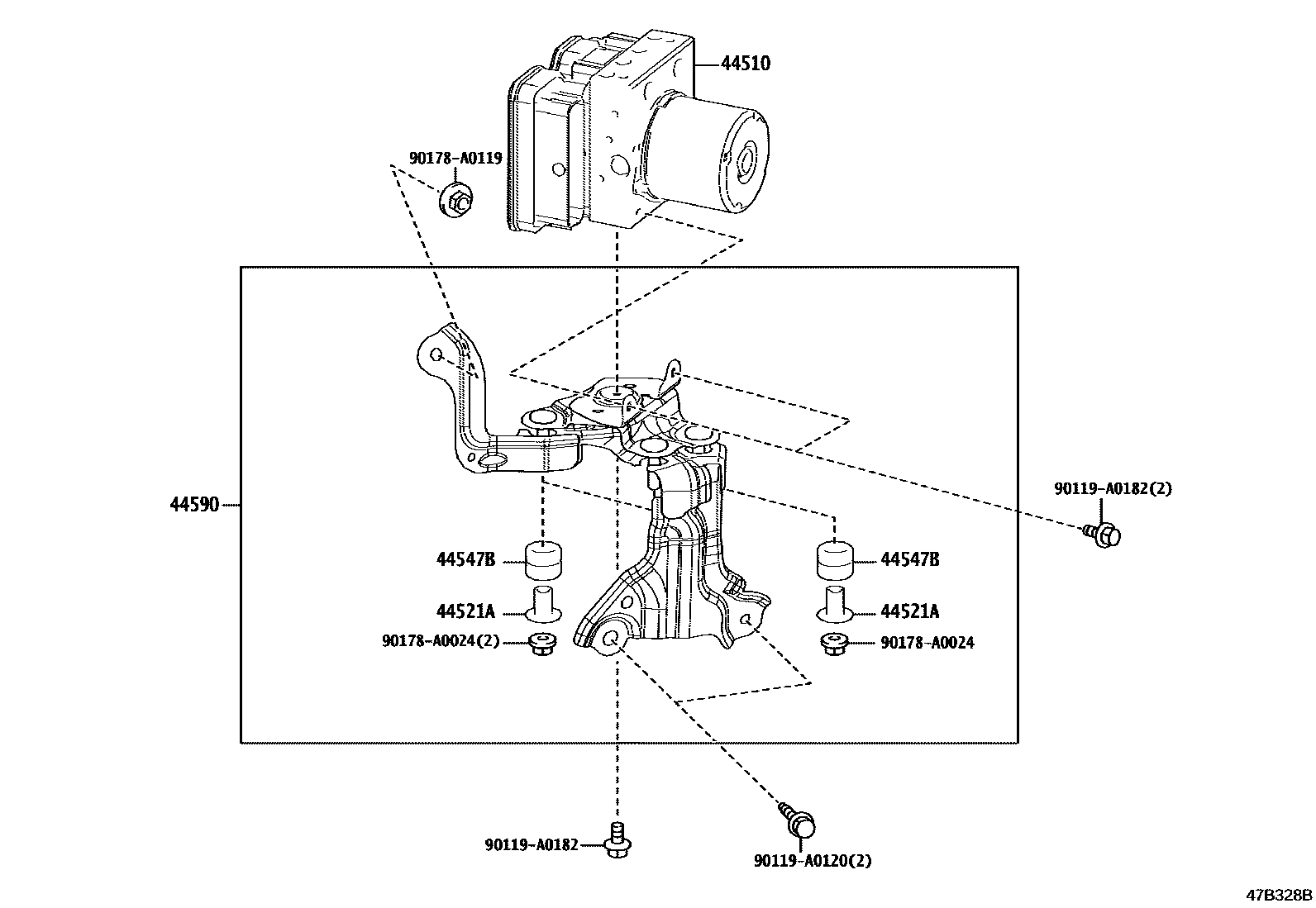

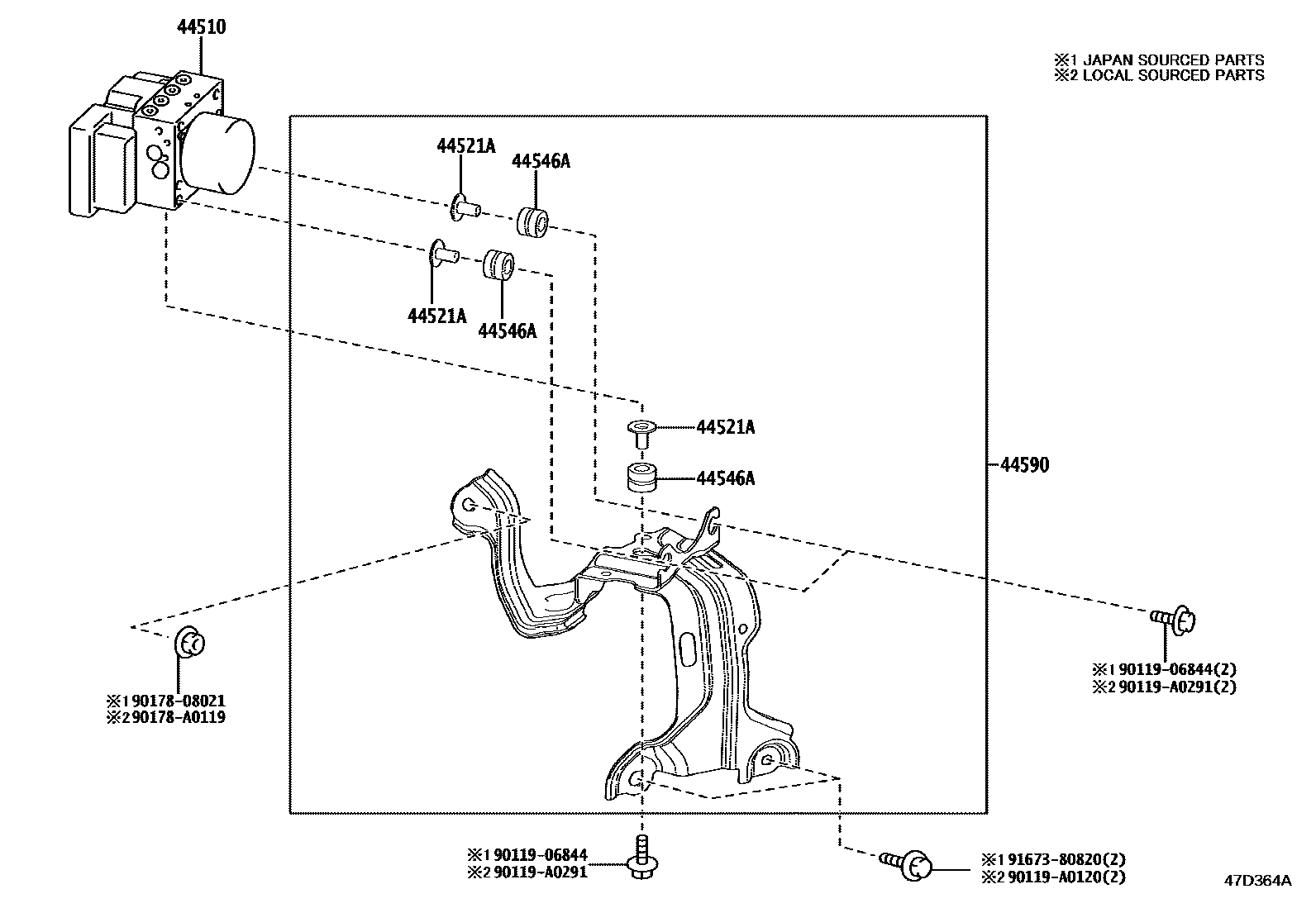

| 44510 | brake actuator assembly | 44050-0R230 · 44050-0R240 · 44050-0R590 · 44050-0R600 · 44050-0R680 · 44050-0R690 · 44050-0R700 · 44050-0R710 · 44050-42L90 · 44050-42L91 · 44050-42S41 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-12050 · 44521-33020 · 44521-47010 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-0R050 · 44590-42150 · 44590-42190 |

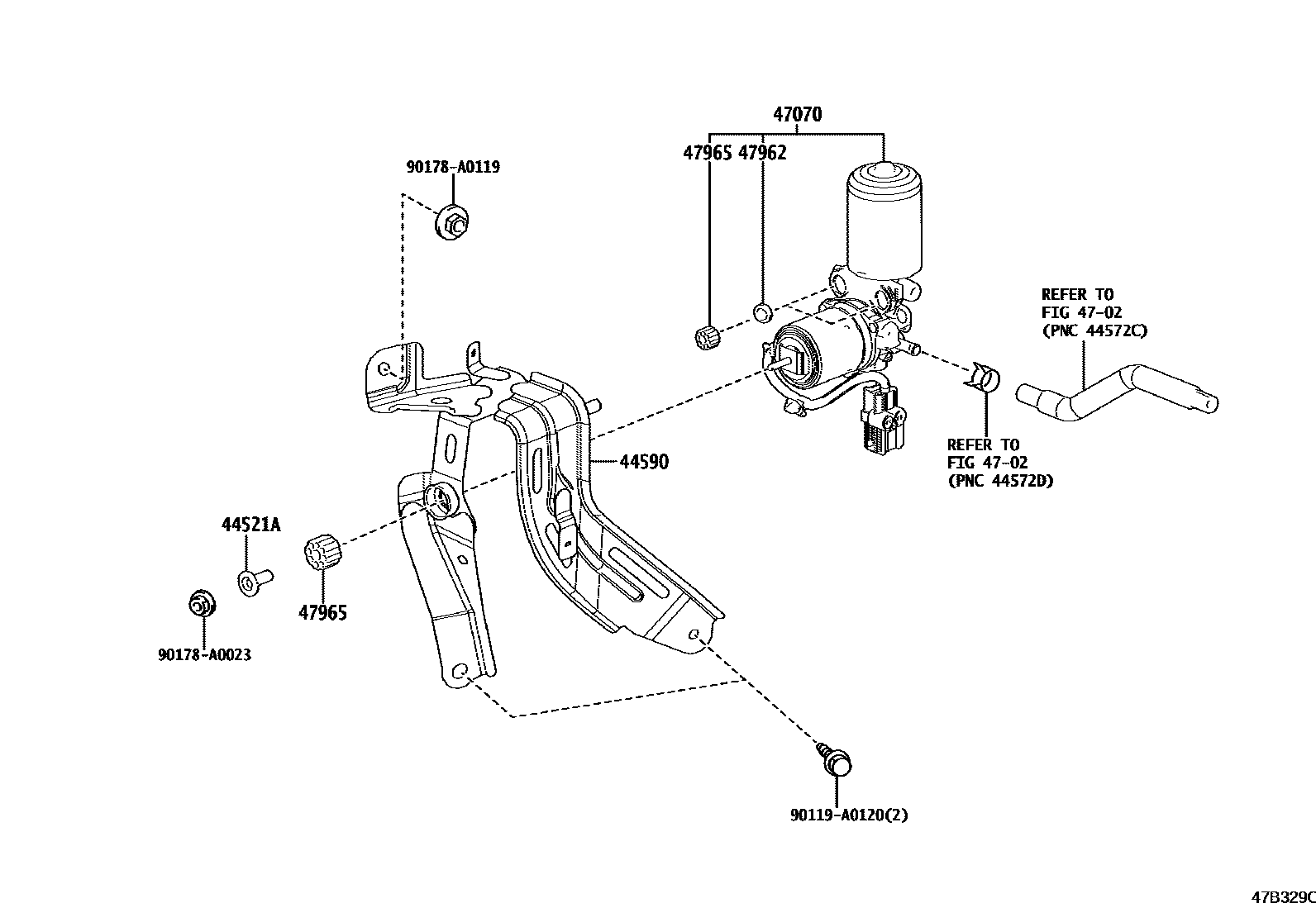

| 47070 | Brake booster pump assembly | 47070-42050 |

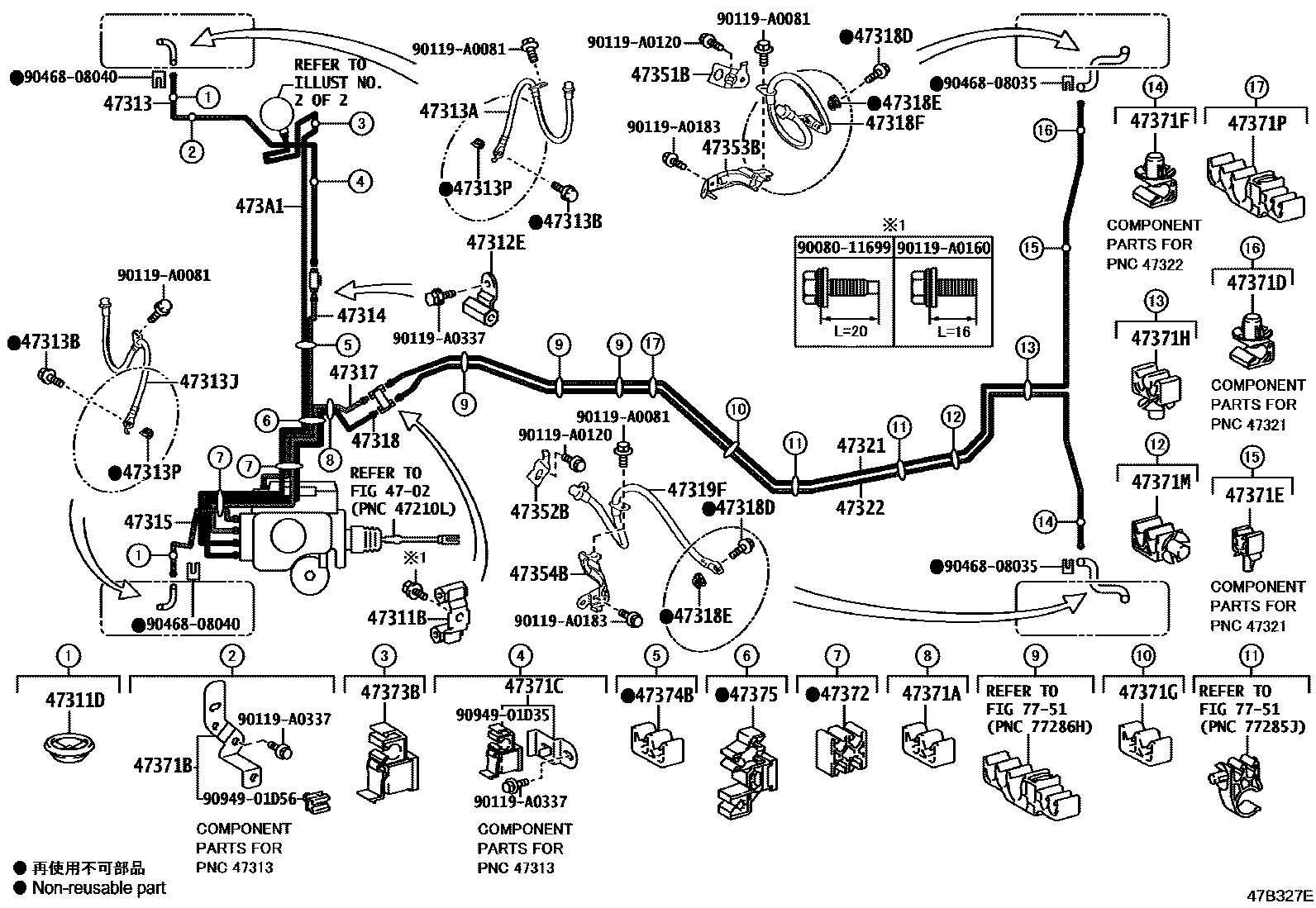

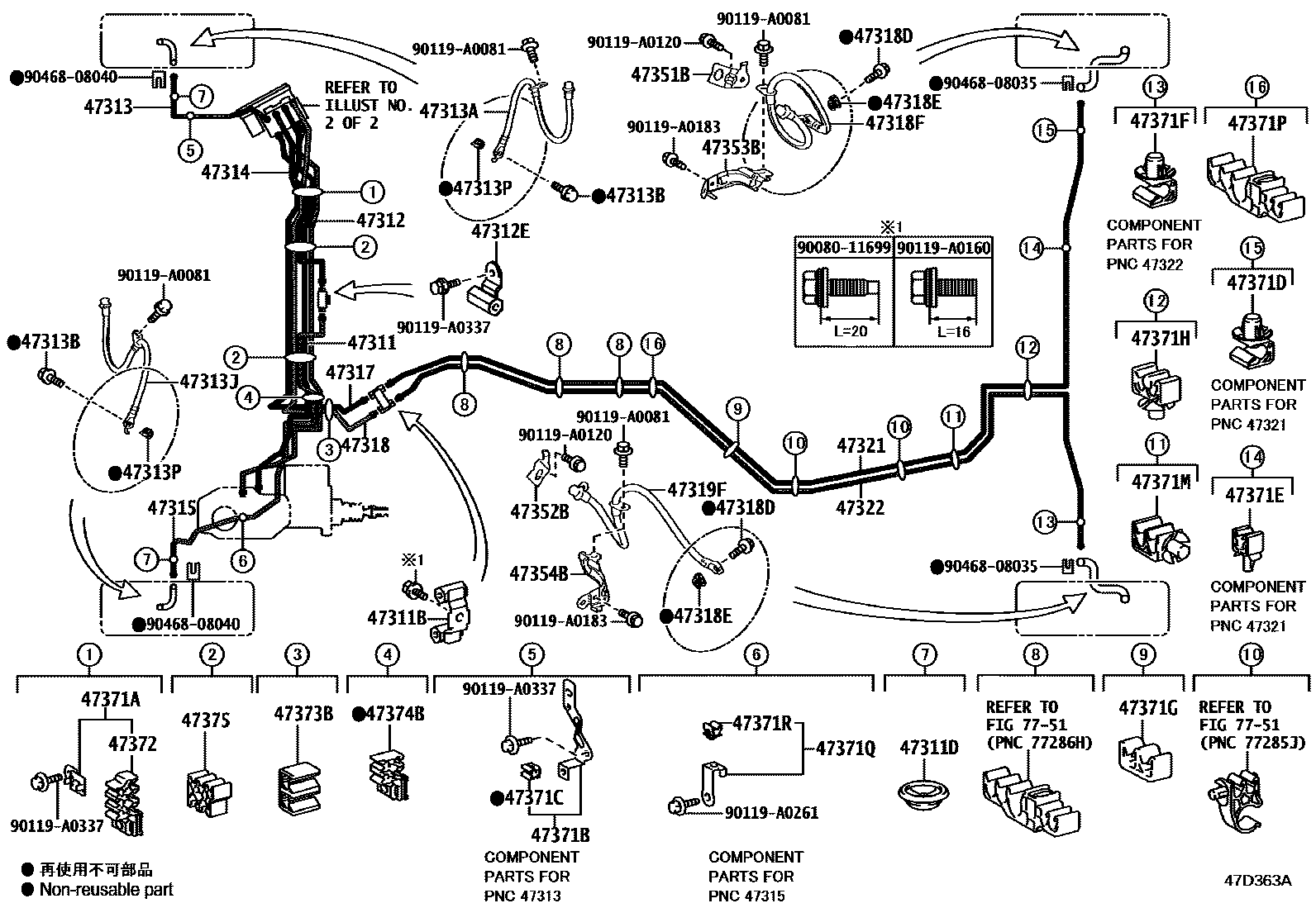

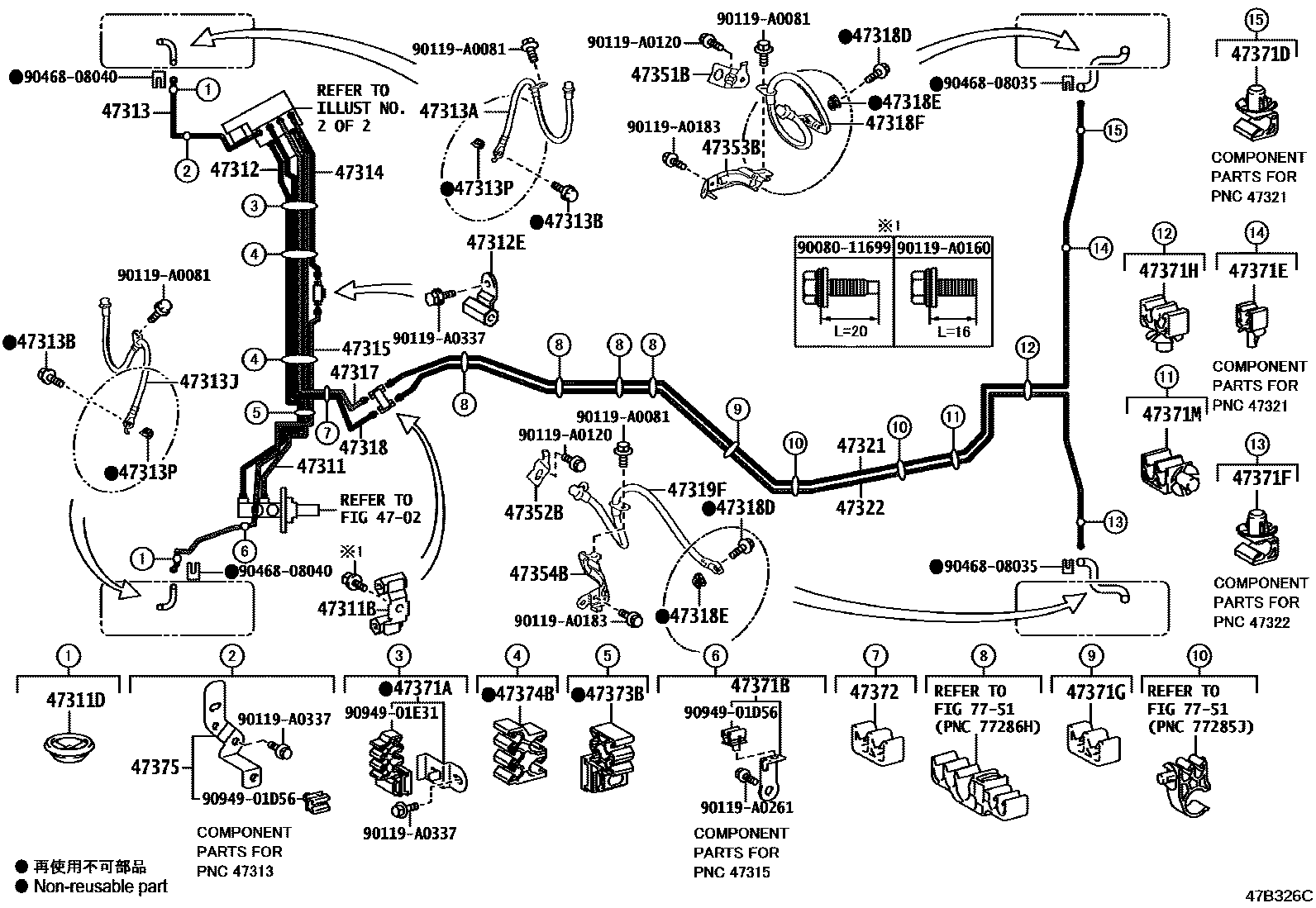

| 47311 | No. 1 front brake pipe | 47311-0R100 · 47311-0R180 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-A0011 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-0R090 · 47312-0R170 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 · 90412-A0015 |
| 47313 | No. 3 front brake pipe | 47313-0R100 · 47313-0R110 · 47313-0R210 |
| 47313A | No. 1 front flexible hose | 90947-02J12 · 90947-A2115 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-A0001 |
| 47313J | No. 2 front flexible hose | 90947-02J15 · 90947-A2116 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-0R090 · 47314-0R130 · 47314-0R210 |
| 47315 | No. 5 front brake pipe | 47315-0R010 · 47315-0R020 · 47315-0R120 |
| 47317 | No. 7 front brake pipe | 47317-0R100 · 47317-0R110 · 47317-0R210 |
| 47318 | No. 8 front brake pipe | 47318-0R100 · 47318-0R110 · 47318-0R210 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-A0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-A2113 |
| 47319F | Left rear flexible hose | 90947-A2114 |
| 47321 | No. 1 rear brake pipe | 47321-0R080 |
| 47322 | No. 2 rear brake pipe | 47322-0R080 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06050 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06050 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-06040 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-06040 |
| 47371A | No. 1 brake pipe clamp | 47371-0R030 · 90464-00903 |
| 47371B | No. 6 brake pipe clamp | 47371-0R010 · 47371-0R020 |
| 47371C | No. 7 brake pipe clamp | 47371-0R040 · 90949-01D56 |
| 47371D | No. 8 brake pipe clamp | 90949-01D17 |
| 47371E | No. 9 brake pipe clamp | 90949-01E01 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90464-00903 |
| 47371H | No. 12 brake pipe clamp | 90949-01D12 |
| 47371M | No. 13 brake pipe clamp | 90949-01D13 |
| 47371P | COLLIER DE FIXATION CONDUIT FREIN NO.14 | 77285-0R040 |
| 47371Q | COLLIER DE FIXATION CONDUIT FREIN NO.15 | 47371-0R020 |
| 47371R | COLLIER DE FIXATION CONDUIT FREIN NO.16 | 90949-01D56 |
| 47372 | No. 2 brake pipe clamp | 90464-00903 · 90464-00957 · 90949-01E31 |
| 47373B | No. 3 brake pipe clamp | 90464-00903 · 90949-01D35 · 90949-01E30 |
| 47374B | No. 4 brake pipe clamp | 90949-01D91 · 90949-01E30 · 90949-01E40 |
| 47375 | No. 5 brake pipe clamp | 47371-0R010 · 90949-01E38 · 90949-01E40 |
| 473A1 | TUYAU, ACCUMULATEUR AU MAITRE-CYLINDRE DE FREIN | 473A1-0R010 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
