Toyota RAV4 制动助力器和真空管 — Figure 4703

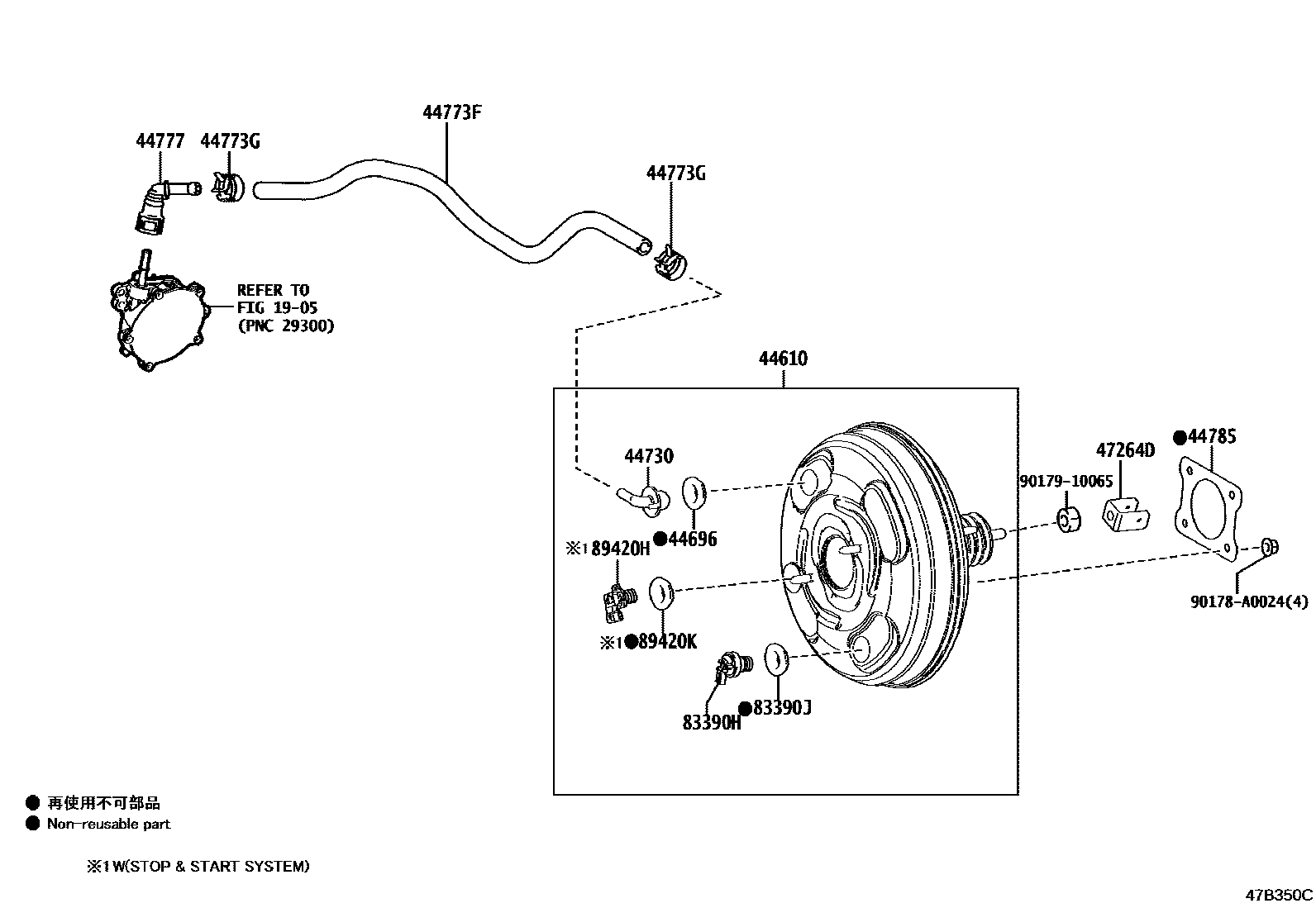

Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-0R120 · 44610-0R130 · 44610-0R131 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 |
| 44773F | Hoses (connector to check valve) | 44773-0R020 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-06010 |
| 44785 | brake booster pad | 44785-02060 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0R020 · 47264-42020 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | OEILLET, COMMANDE D'AVERTISSEMENT DE DEPRESSION | 90080-48071 |
| 89420H | Vacuum sensor assembly | 89421-52020 · 89421-71040 |
| 89420K | OEILLET, CAPTEUR DE DEPRESSION | 90080-48071 |
