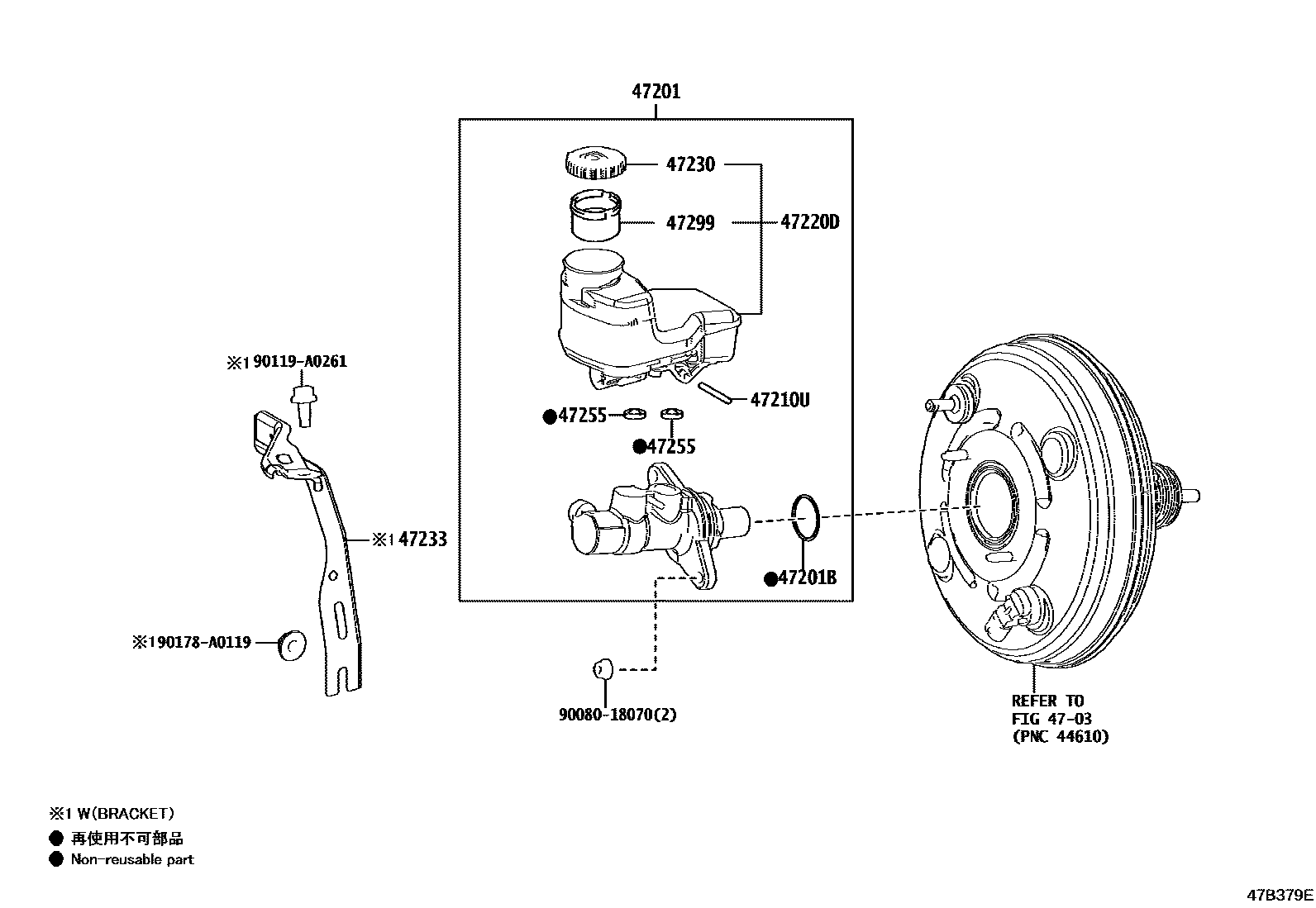

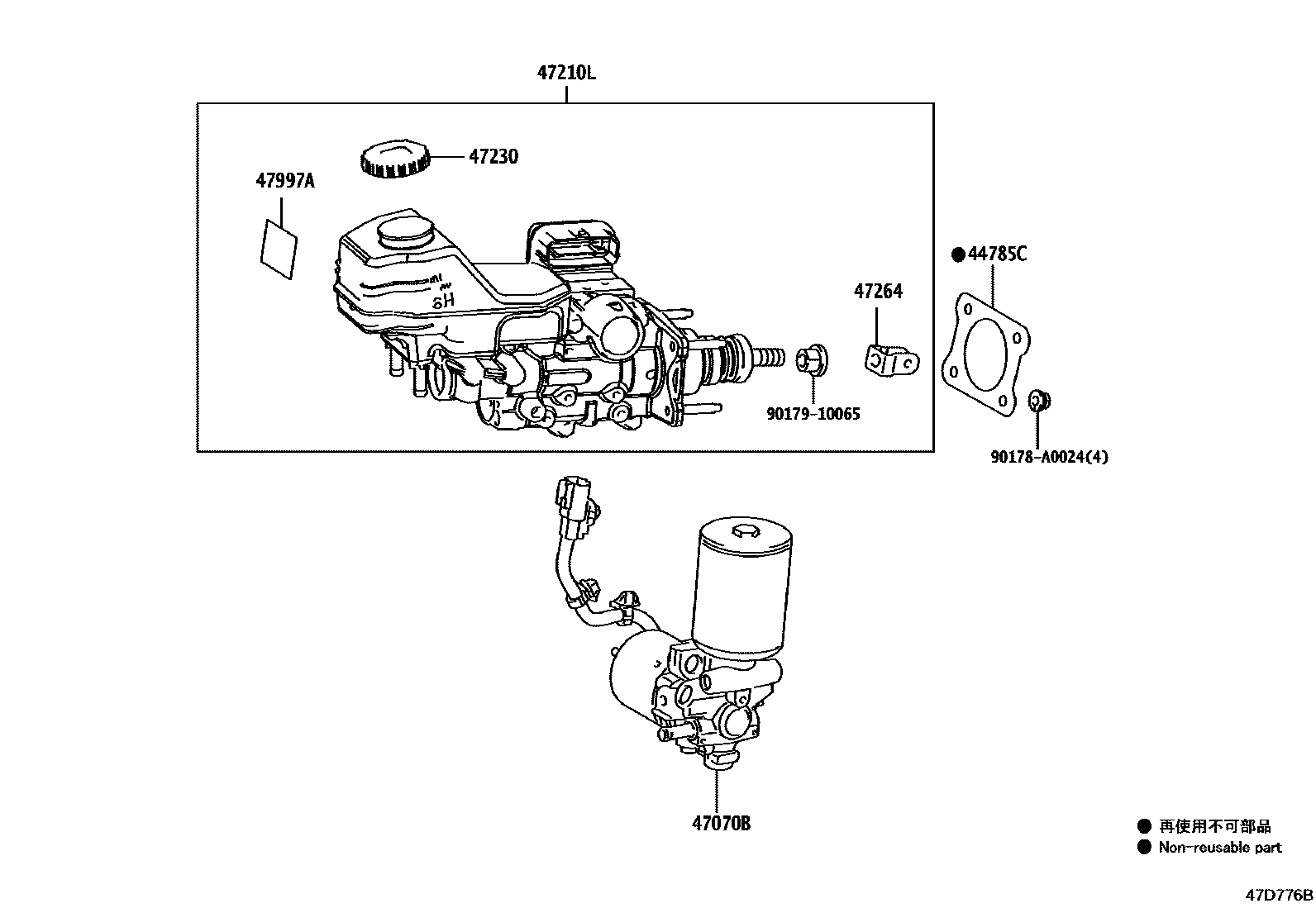

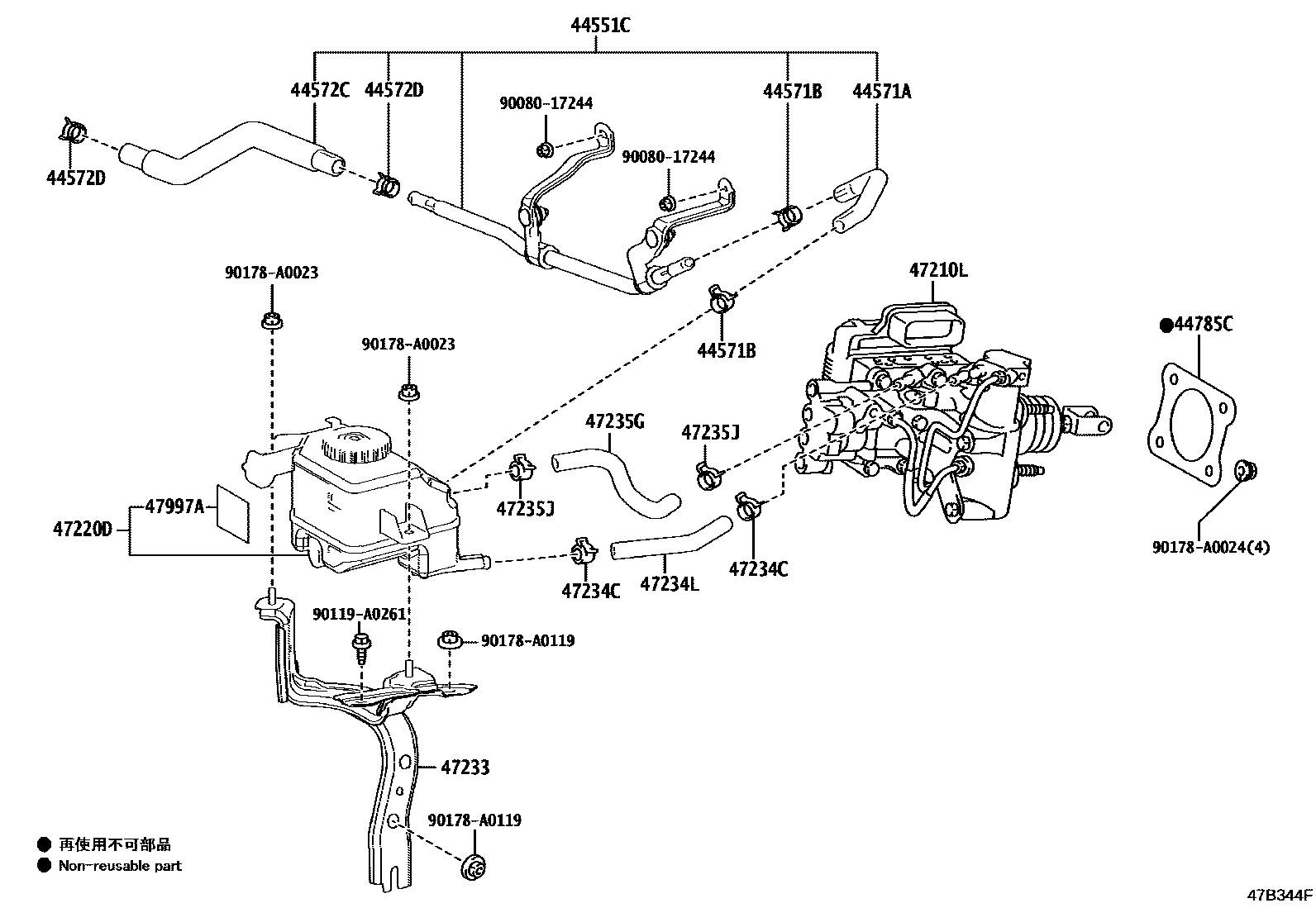

Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44550-0R010 |
| 44571A | No. 1 brake actuator hose | 44571-0R010 |
| 44571B | ATTACHE, DURITE(POUR DURITE DE RECEPTEUR DE FREINAGE NO.1) | 90466-A0017 |
| 44572C | No. 2 brake actuator hose | 44572-0R010 |
| 44572D | ATTACHE, DURITE(POUR DURITE DE RECEPTEUR DE FREINAGE NO.2) | 90466-A0017 |
| 44785C | brake booster pad | 44785-02060 |
| 47070B | Brake booster pump assembly with pressure accumulator | 47070-48100 |
| 47201 | Brake master cylinder sub-assembly | 47201-0R130 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47210L | Brake booster assembly with master cylinder | 47050-42190 · 47050-42191 · 47055-0R010 · 47055-0R020 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0R090 · 47220-42140 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02310 · 47230-47090 |
| 47233 | Reservoir tank bracket | 47233-0R010 · 47233-0R040 |
| 47234C | Clamp (for No. 1 tube of liquid storage tank) | 90466-A0017 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-0R010 |
| 47235G | Reservoir tank No. 2 hose | 47235-0R010 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 90466-A0017 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
