Toyota RAV4 Brake Pedal & Bracket — Figure 4701

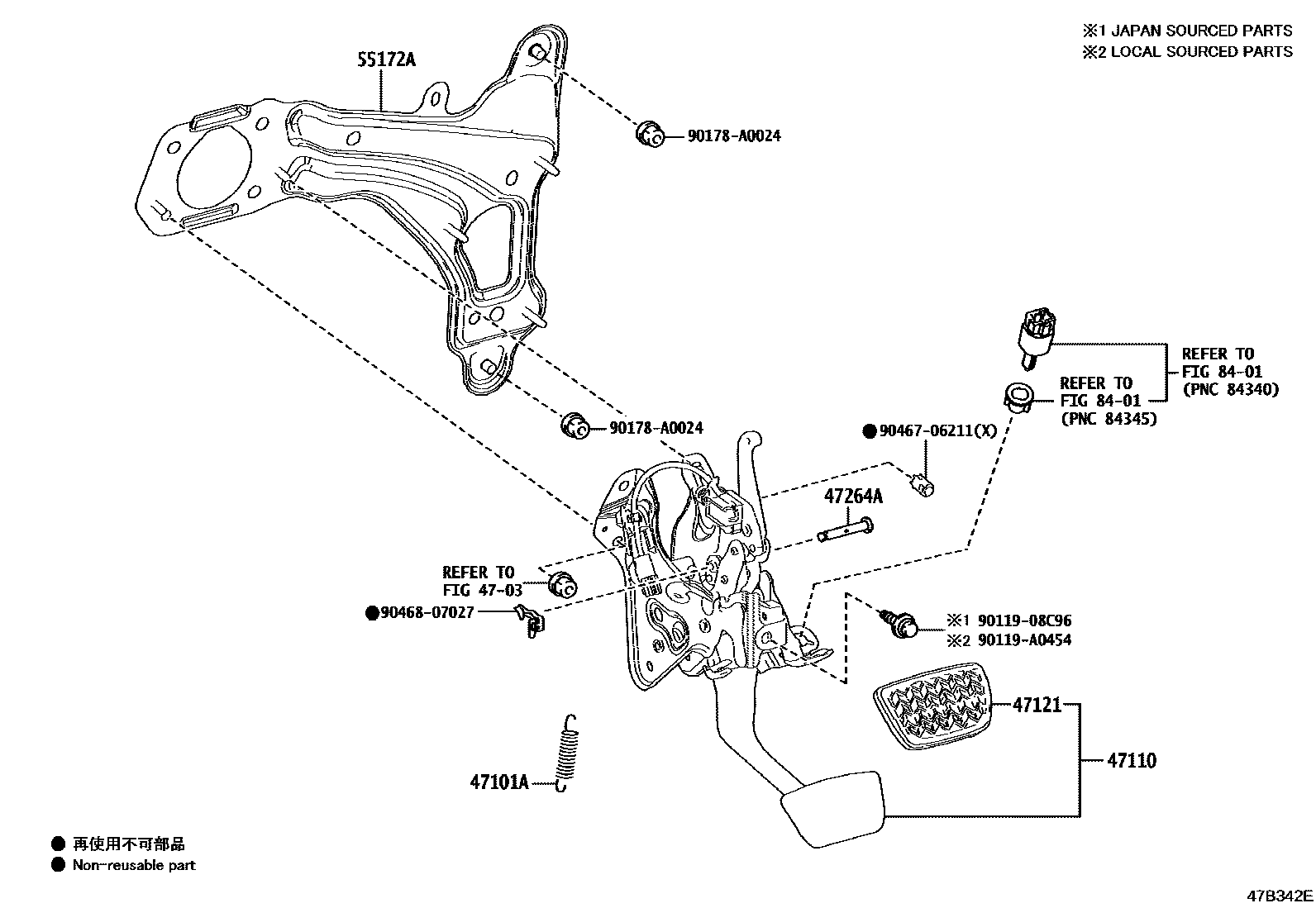

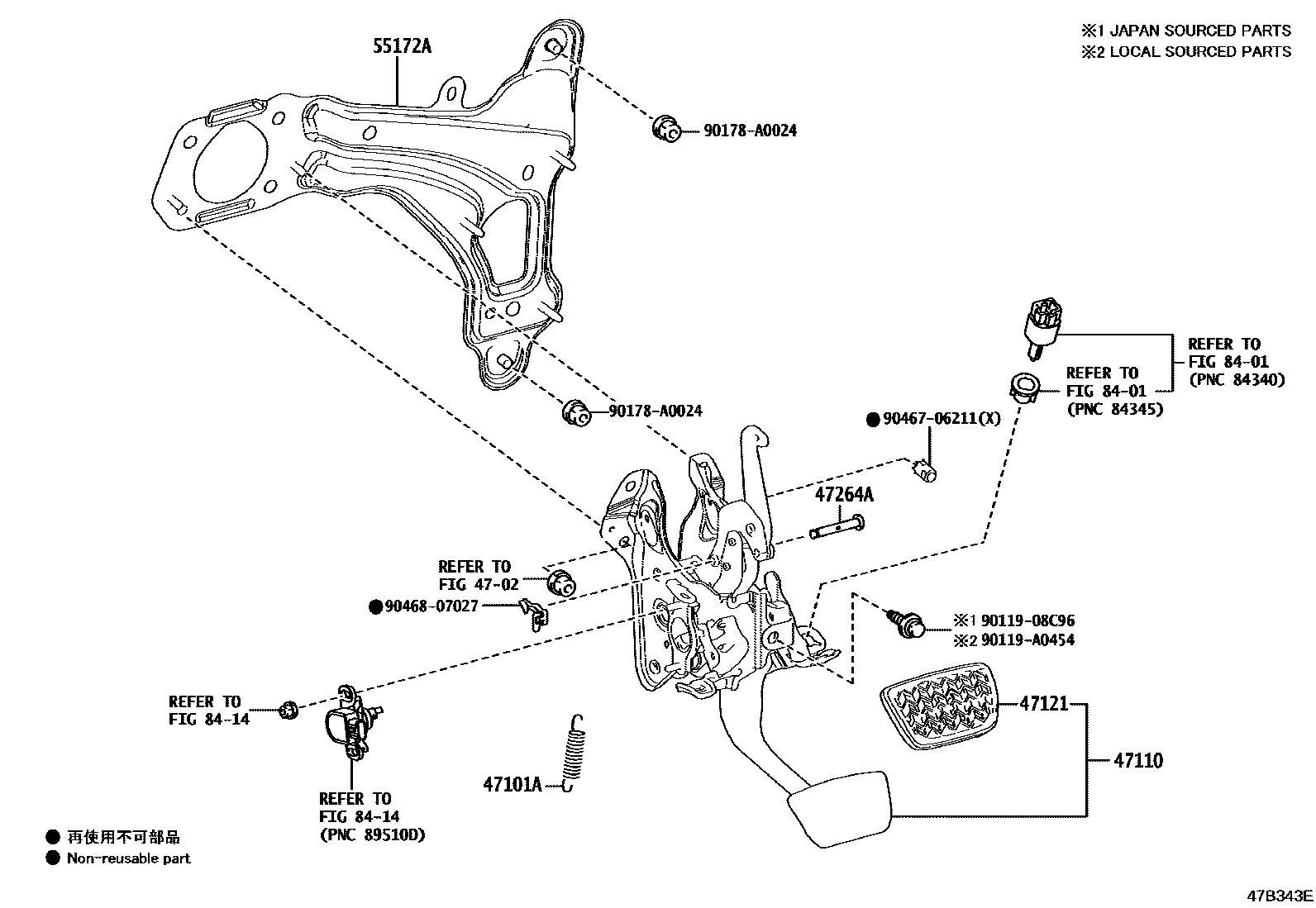

Toyota RAV4 EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-12046 |
| 47110 | Brake pedal bracket assembly | 47110-0R110 · 47110-0R120 · 47110-0R200 · 47110-0R220 |
| 47121 | brake pedal pad | 47121-48010 · 47121-62010 |
| 47264A | Pin (for push rod) | 90240-06028 · 90240-08082 |
| 55172A | BASE, SUPPORT PEDALE FREIN | 55172-0R010 |
