Toyota RAV4 前转向齿轮和连杆 — Figure 4505

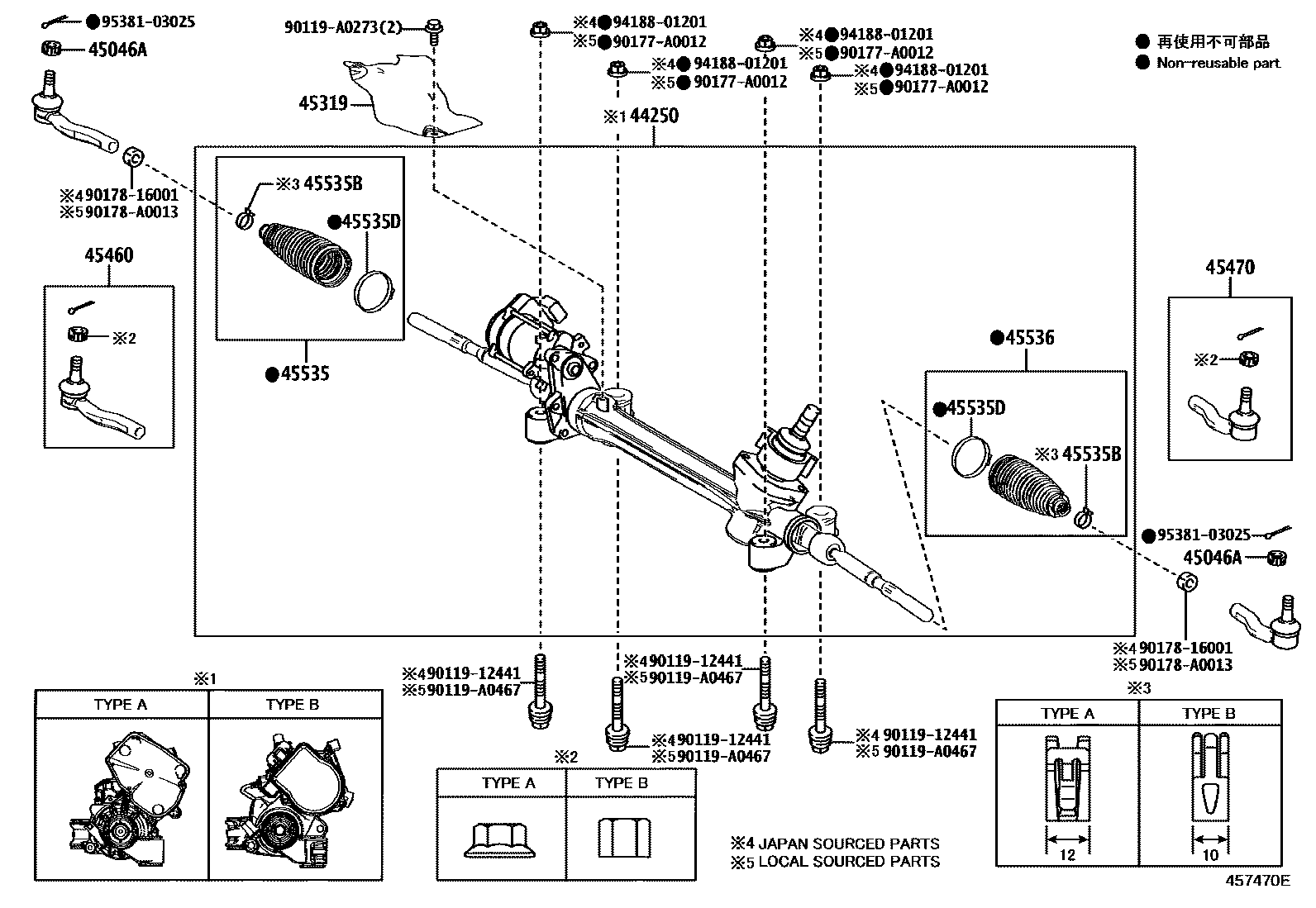

Toyota RAV4 EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-0R010 · 44250-0R011 · 44250-0R012 · 44250-0R013 · 44250-0R020 · 44250-0R021 · 44250-0R022 · 44250-0R023 · 44250-0R140 · 44250-0R150 · 44250-42170 · 44250-42190 · 44250-42200 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12015 · 90171-12016 |
| 45319 | Steering gear heat insulation pad | 45319-0R010 |
| 45460 | Right tie rod assembly | 45460-09300 · 45460-09310 |
| 45470 | Left tie rod assembly | 45460-09300 · 45460-09310 |
| 45535 | No. 1 steering rack dust cover | 45535-09500 · 45535-09550 |
| 45535B | Clamp (for steering rack dust boot) | 45537-02020 · 45537-0R030 · 45537-0T010 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0R010 · 45538-0T010 |
| 45536 | No. 2 steering rack dust cover | 45535-09500 · 45535-09550 |
