Toyota RAV4 Front Drive Shaft — Figure 4302

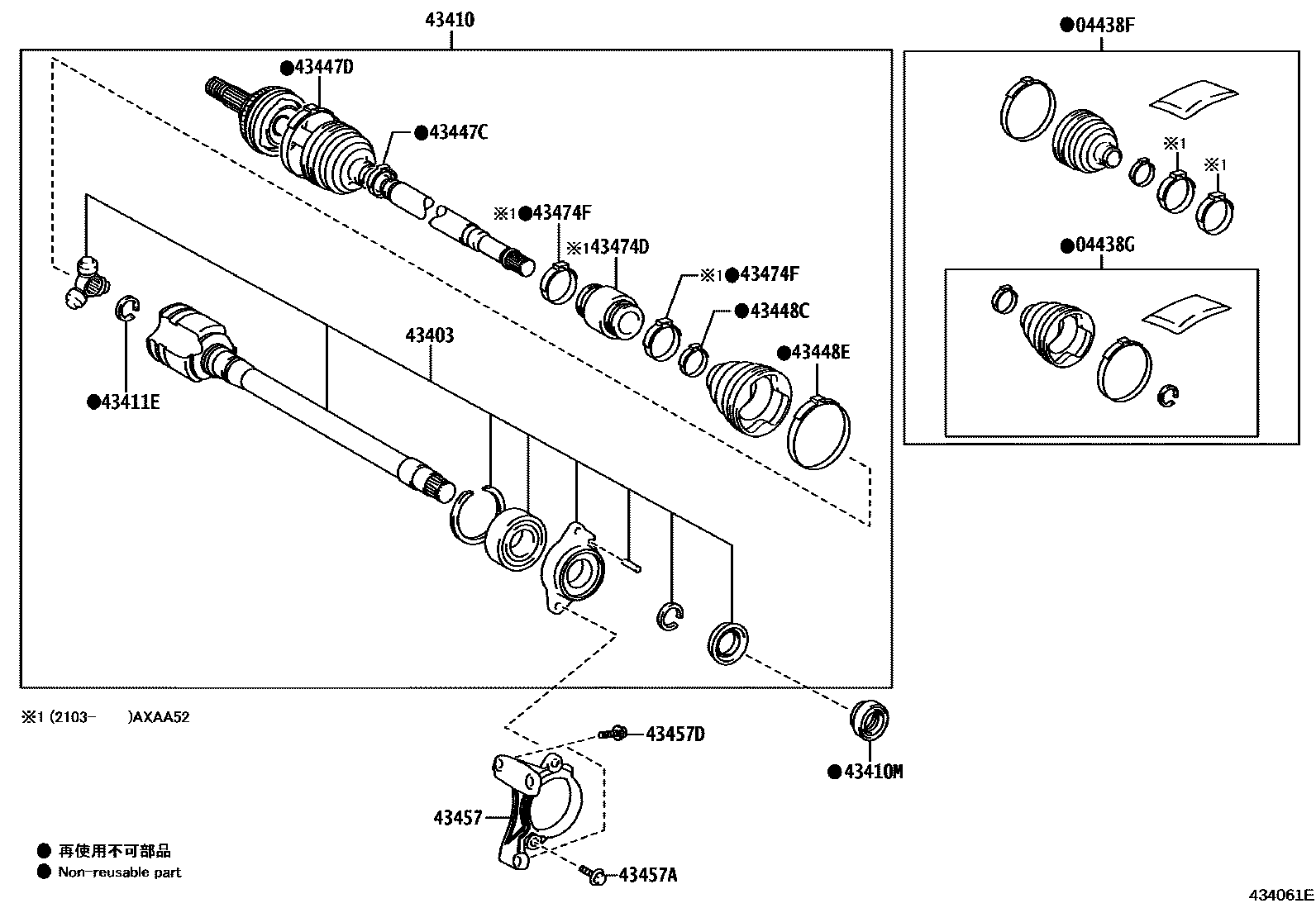

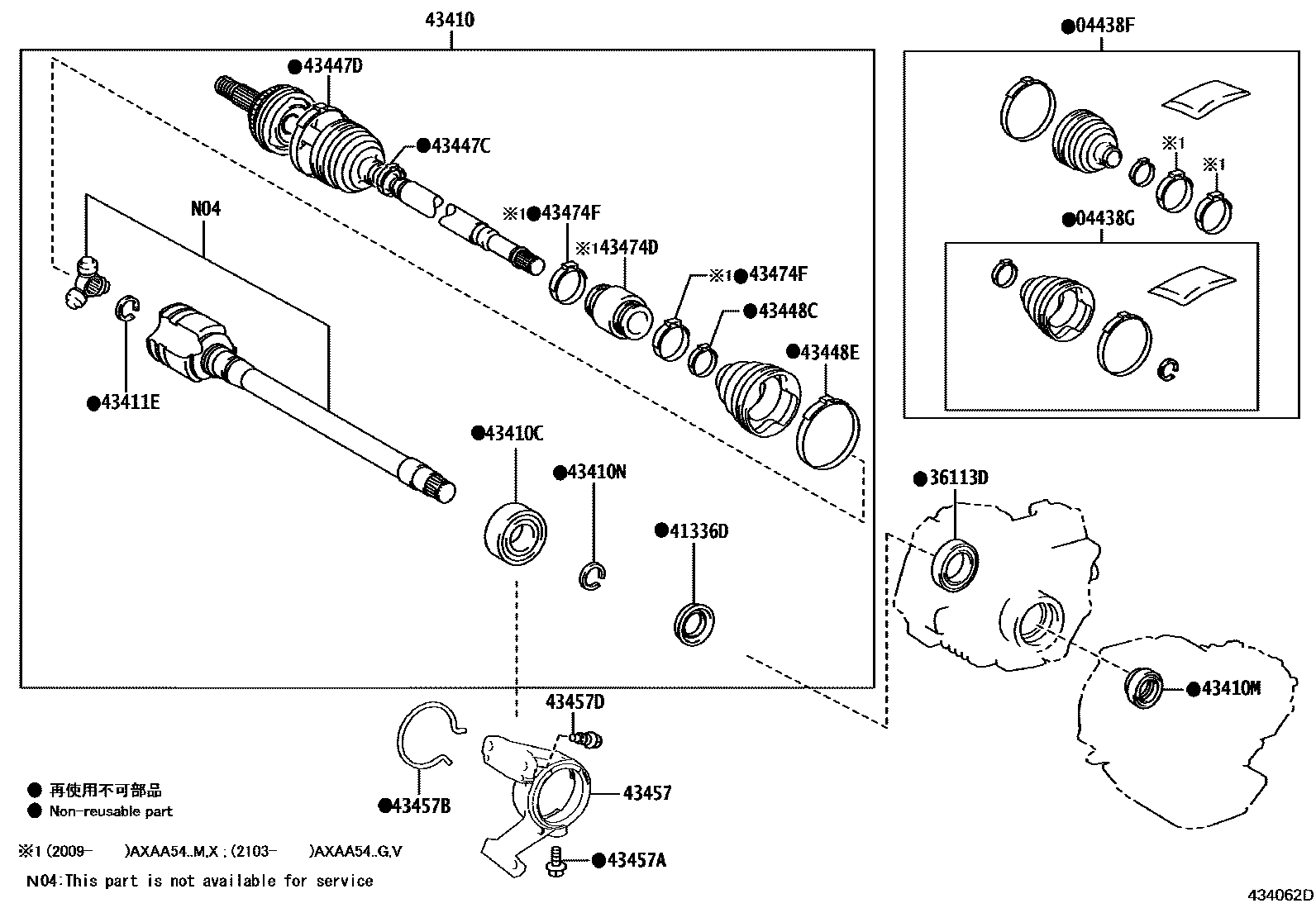

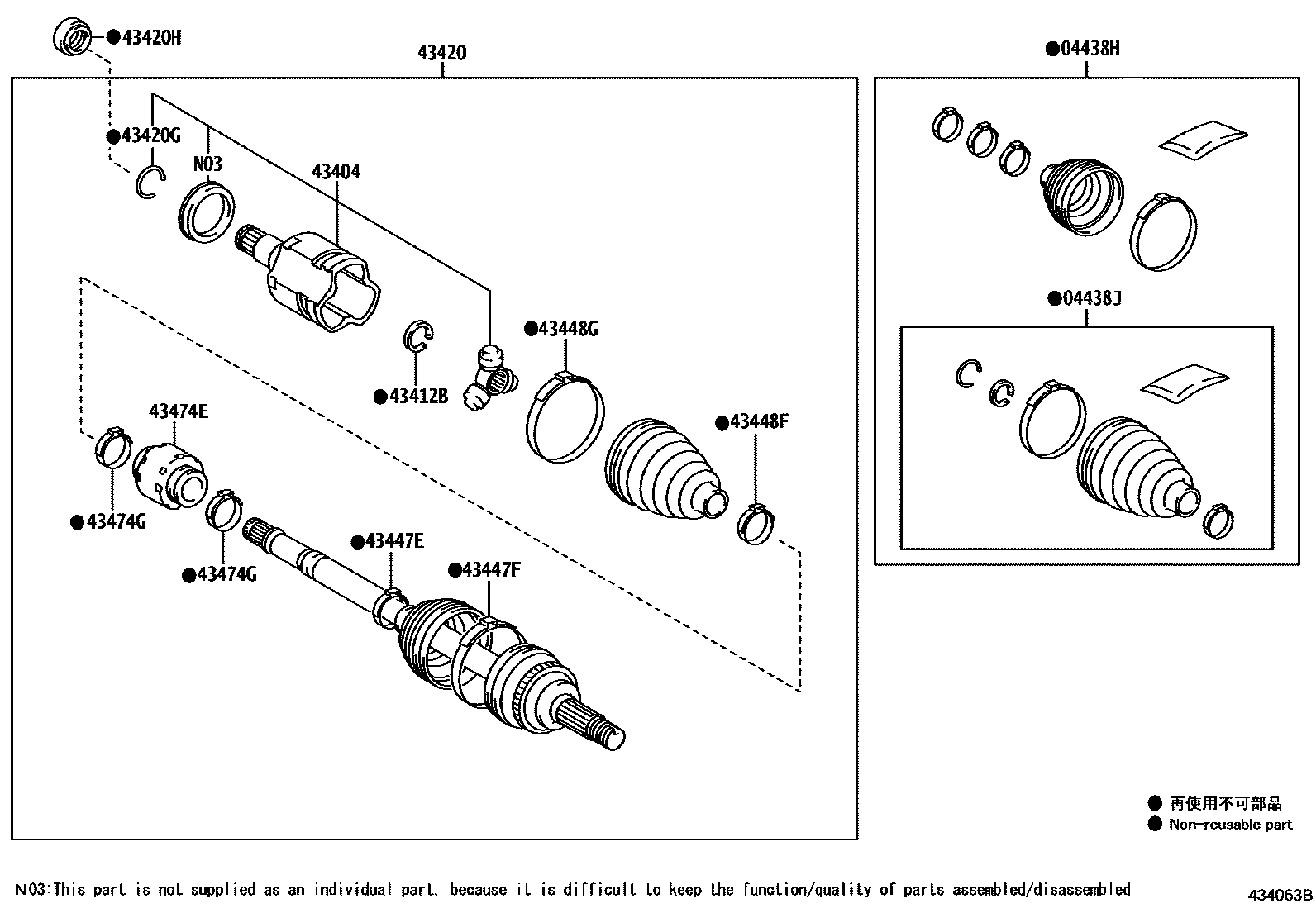

Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0R150 · 04427-0R170 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0R066 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-08230 · 04427-08400 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-08100 |
| 36113D | JOINT, D'HUILE (POUR BOITE DE TRANSFERT MD) | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-0R010 |
| 43403 | Right front axle inner universal joint assembly | 43403-0R010 · 43403-0R020 |
| 43404 | Left front axle inner universal joint assembly | 43404-06050 |
| 43410 | Right front driveshaft assembly | 43410-06A80 · 43410-0R181 · 43410-0R191 · 43410-0R201 · 43410-0R211 · 43410-0R280 · 43410-0R290 |
| 43410C | Bearings (for front driveshaft) | 90363-A0017 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-40046 · 90311-40049 · 90316-34001 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-0R050 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0R030 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0R030 |
| 43420 | Left front drive shaft assembly | 43420-06B30 · 43420-0R150 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-07040 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-50058 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0R040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0R030 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0R040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0R030 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0R080 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06A10 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0R080 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06A10 |
| 43457 | drive shaft bearing bracket | 43457-06090 · 43457-06150 · 43457-42190 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-A0259 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90080-10087 |
| 43474D | Right front driveshaft shock absorber | 43474-06270 · 43474-06490 |
| 43474E | Left front driveshaft shock absorber | 43474-06400 · 43474-0R052 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-07090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-07090 |
