Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0C170 · 04423-0E010 |

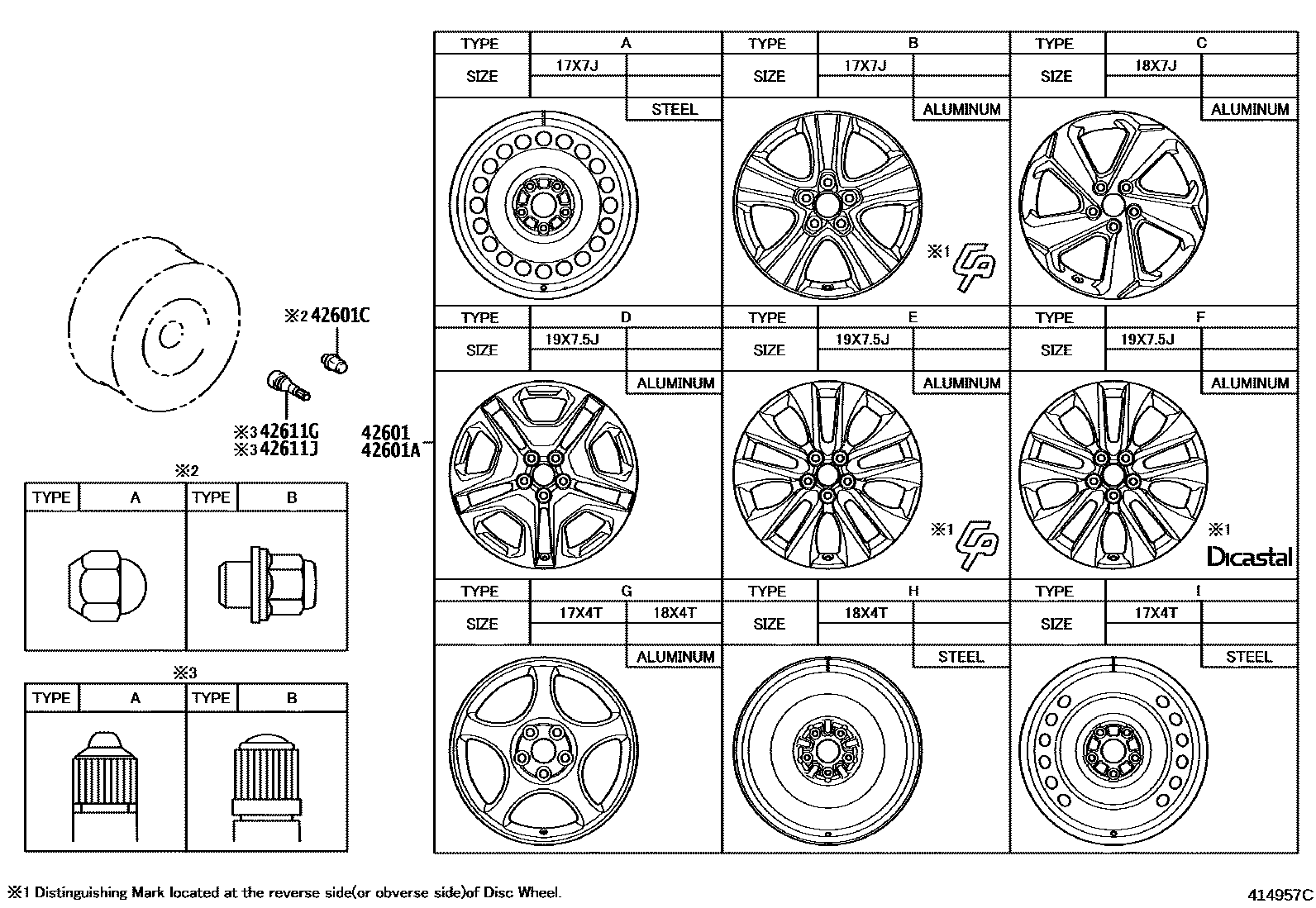

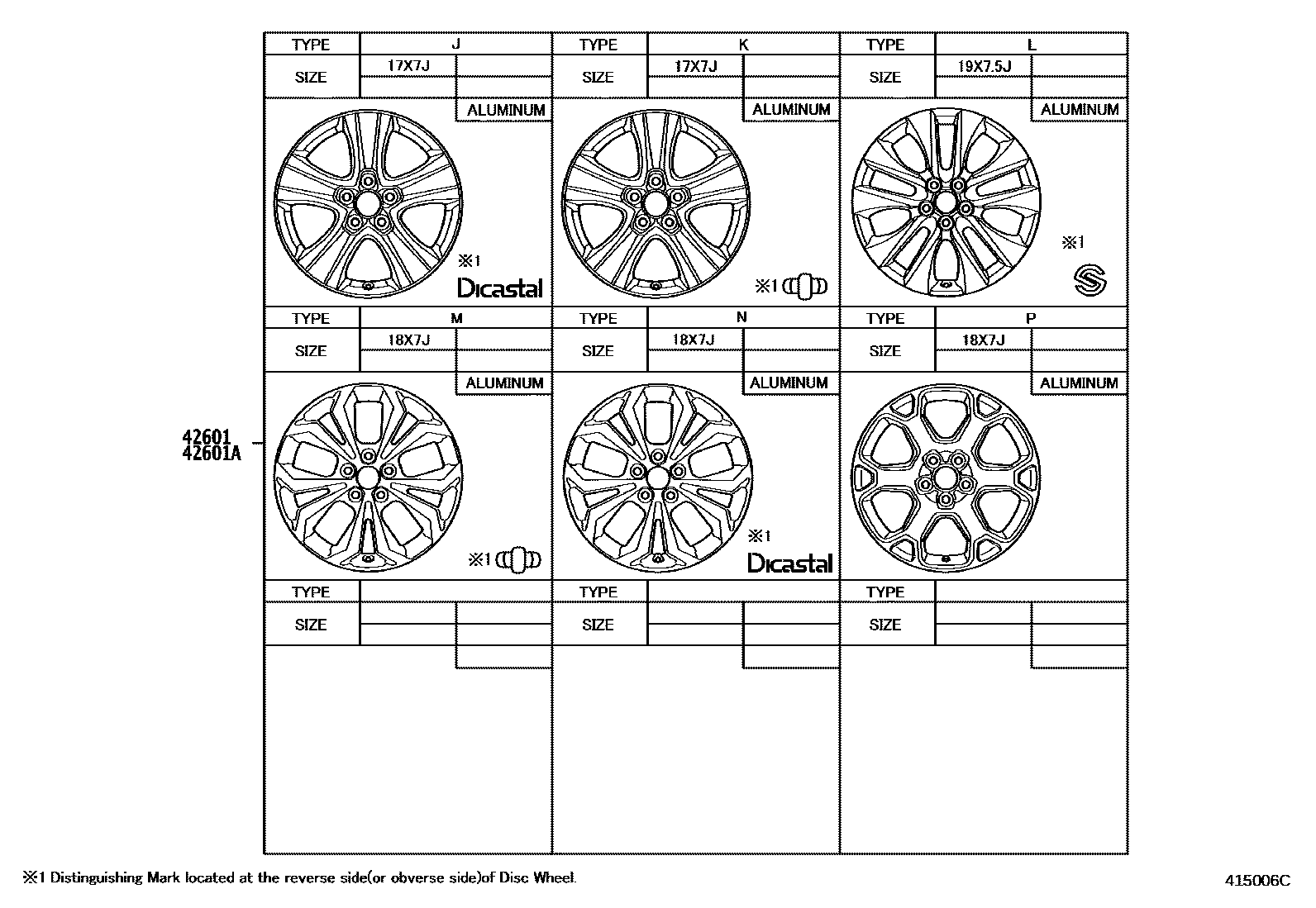

| 42601 | spoke wheel | 42611-0R230 · 42611-0R240 · 42611-0R260 · 42611-0R290 · 42611-0R300 · 42611-0R390 · 42611-0R550 · 42611-0R560 · 42611-0R580 · 42611-0R590 · 42611-0R610 · 42611-YYA50 · 42611-YYE50 · 4261A-0R040 · 4261A-0R050 · 4261A-0R060 · 4261A-0R140 · 4261A-0R150 · 4261A-0R160 |
| 42601A | Spoke wheel (for spare tire) | 42611-0R270 · 42611-0R271 · 42611-0R280 · 42611-0R281 · 42611-0T030 · 42611-0T031 · 4261B-0R010 |
| 42601C | Hub nut (for axle) | 90084-94001 · 90942-01021 · 90942-01115 · 90942-A1009 |

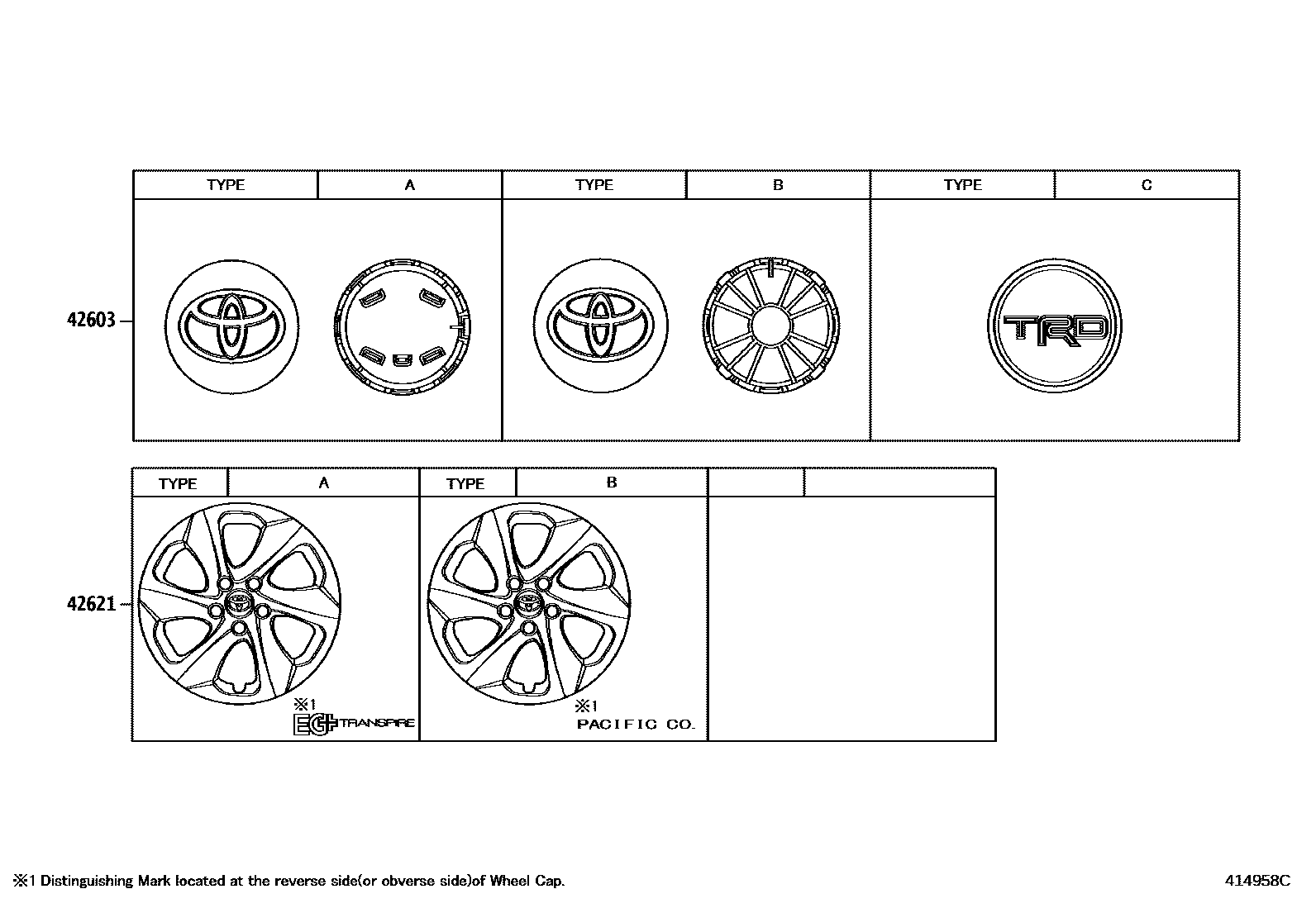

| 42603 | Wheel hub decorative parts sub-assembly | 42603-06150 · 42603-08010 · 42603-YY380 |

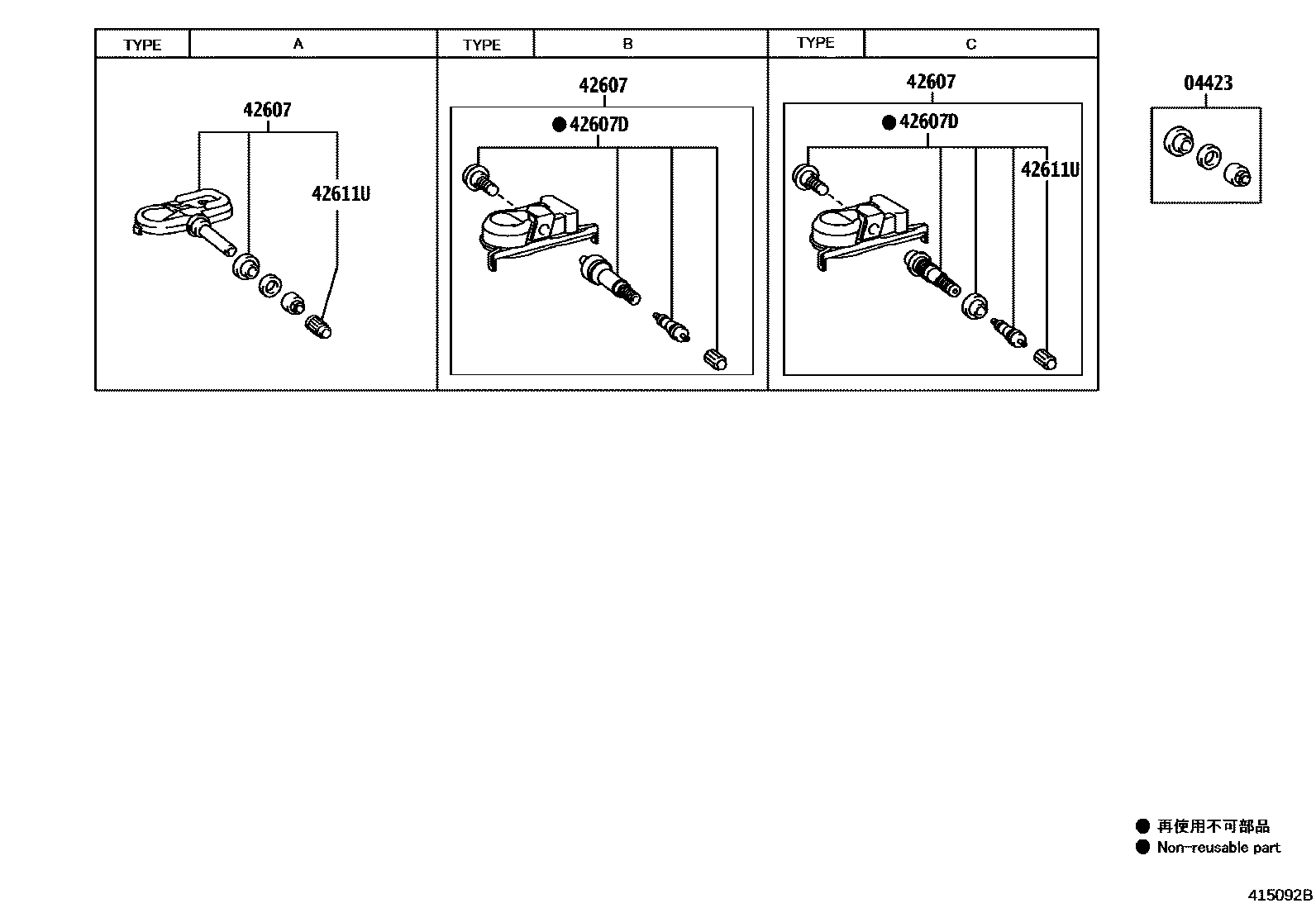

| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02050 · 42607-02100 · 42607-06030 · 42607-0C091 · 42607-0E030 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-A5005 · 90942-A5007 |
| 42611G | Valve (for tubeless tires) | 90080-45001 · 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 · 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 · 90942-A5004 |
| 42621 | wheel cover | 42602-0R040 · 42602-42040 |
