Toyota RAV4 油冷却器和配管(HV或FCV) — Figure 3914

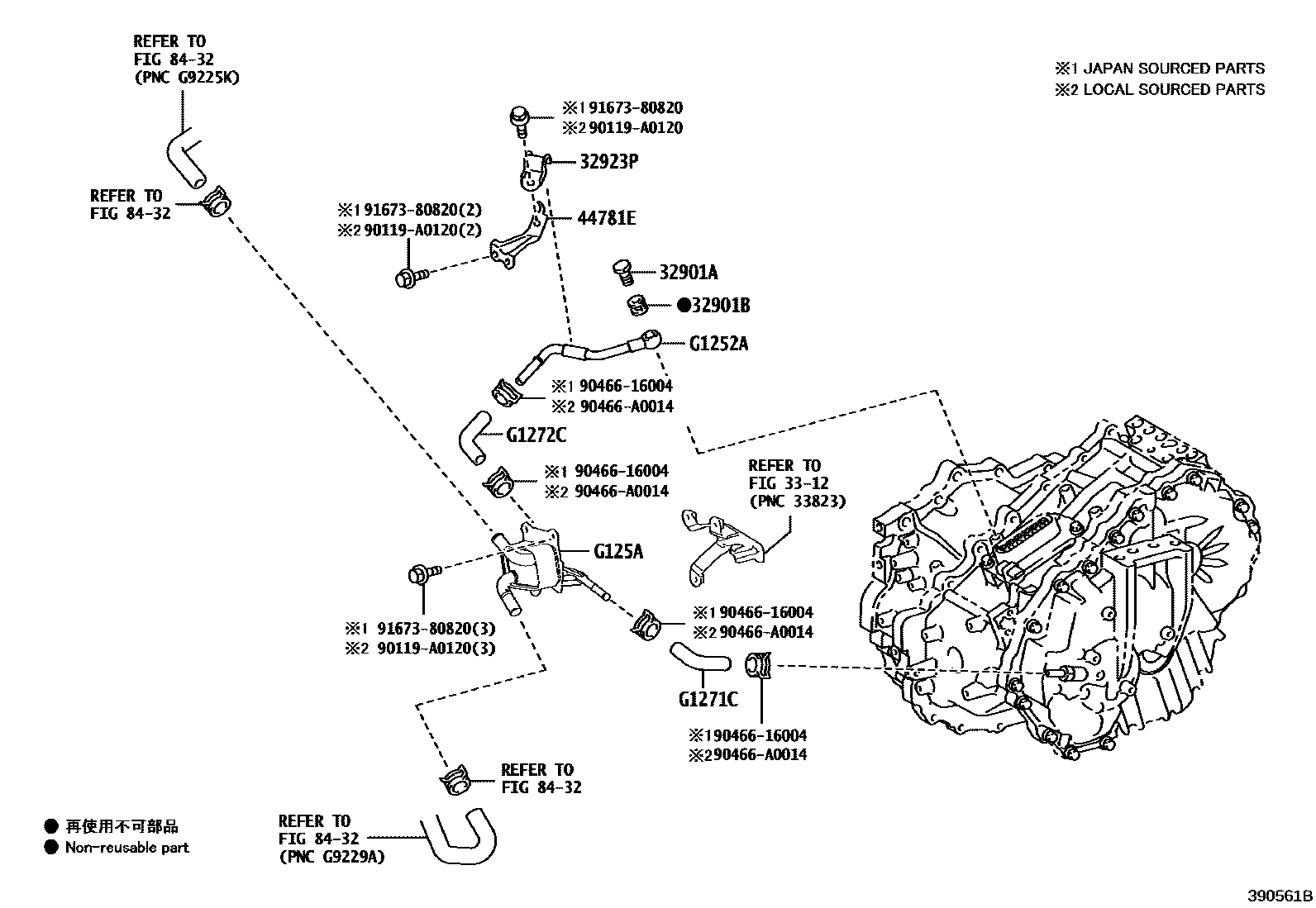

Toyota RAV4 EPC diagram 3914, 油冷却器和配管(HV或FCV), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32901A | Connector bolt (for oil cooler) | 90401-12039 |
| 32901B | Gasket (for transmission oil cooler connector) | 90430-12037 |
| 32923P | No. 1 transmission oil cooler pipe clamp | 32923-52040 |
| 44781E | SUPPORT DE TUYAU FLEXIBLE | 44781-33020 |
| G1252A | CONDUIT, REFROID. MOTEUR, NO.2 | G1252-06010 · G1252-33010 |
| G125A | RADIATEUR, REFROIDISSEMENT MOTEUR | G125A-42010 |
| G1271C | No. 1 motor cooling hose | G1271-06010 · G1271-33010 |
| G1272C | No. 2 motor cooling hose | G1272-06010 · G1272-33010 |
