Toyota RAV4 HV或FCV传动桥总成 — Figure 3901

Toyota RAV4 EPC diagram 3901, HV或FCV传动桥总成, with 2 images and 30 PNC and OE references.

Toyota RAV4 HV或FCV传动桥总成 EPC diagram — 390559I

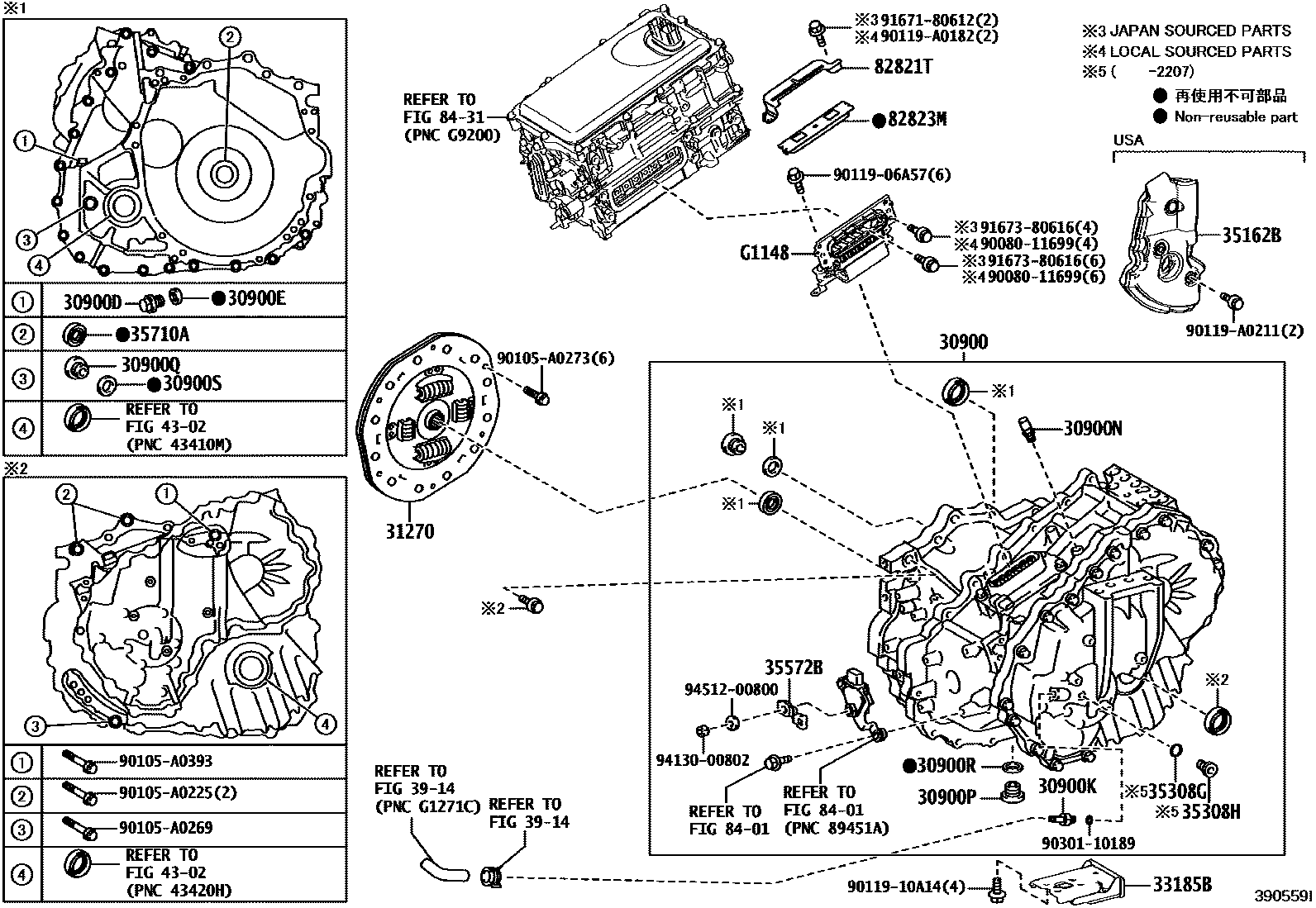

HV或FCV传动桥总成 — 390559I (201903 – 999999)
Toyota RAV4 HV或FCV传动桥总成 EPC diagram — 390560G

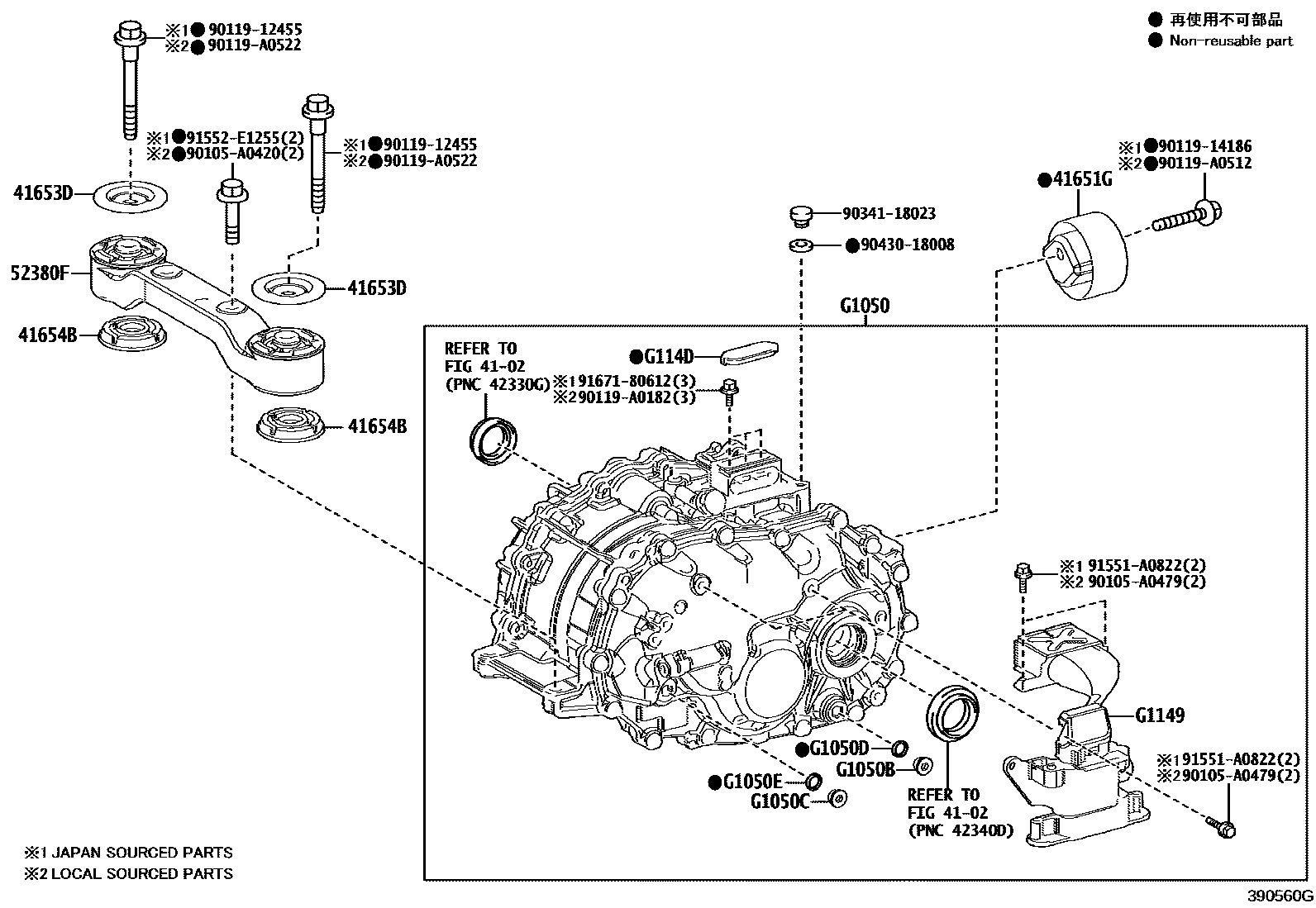

HV或FCV传动桥总成 — 390560G (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
30900Hybrid vehicle transmission axle assembly30900-42020
30900DHeaded straight thread plug (for transaxle housing and transaxle housing)90341-18060
30900EGasket (for transaxle housing and transaxle housing)90430-18008
30900KPipe connector (for transaxle housing)90404-13010
30900NBreather plug (for transaxle)90930-03201
30900PBOUCHON, VIDANGE(HEV)90341-18016
30900QBOUCHON, REMPLISSAGE(HEV)90341-18016
30900RJOINT ETANCHEITE, BOUCHON VIDANGE(HEV)90430-18008
30900SJOINT ETANCHEITE, BOUCHON REMPLISSAGE(HEV)90430-18008
31270Transmission input damper assembly31270-33030
33185BSUPPORT, BUTEE INF BOITE-PONT33185-42020
35162BPROTECTEUR, BOITIER DE BOITE-PONT35162-33020
35308GNo. 2 O-ring (for transmission oil pump cover)90301-06196
35308HScrew plug (for transmission oil pump cover)90341-08001
35572BTransmission outer lever35572-33070
35710AT-type oil seal (for input shaft)90311-27011
41651GDifferential fixed cushion41651-0R080
41653DDifferential fixed part upper stop41653-0R020
41654BDifferential fixed part lower block41654-0R020
52380FFront differential bracket assembly52380-0R080 · 52380-42160
82821TConnector cover82821-47240
82823MTerminal cover82823-47040
G1050Rear traction motor assembly with transmission axle30970-42010 · G1050-42010 · G1050-42011 · G1050-F6010
G1050BBOUCHON, VIDANGE(POUR MOTEUR TRACTION ARRIERE)90341-18051
G1050CBOUCHON, REMPLISSAGE(POUR MOTEUR TRACTION ARRIERE)90341-18023 · 90341-A0009
G1050DJOINT ETANCH, BOUCHON VIDANGE(POUR MOTEUR TRAC ARR)90430-18008
G1050EJOINT ETANCH, BOUCHON REMPLISSAGE(POUR MOTEUR TRAC ARR)90430-18008
G1148Motor cableG1148-33050
G1149CABLE(POUR MOTEUR TRACTION ARRIERE)G1149-42010
G114DMotor cable terminal coverG114D-47021
