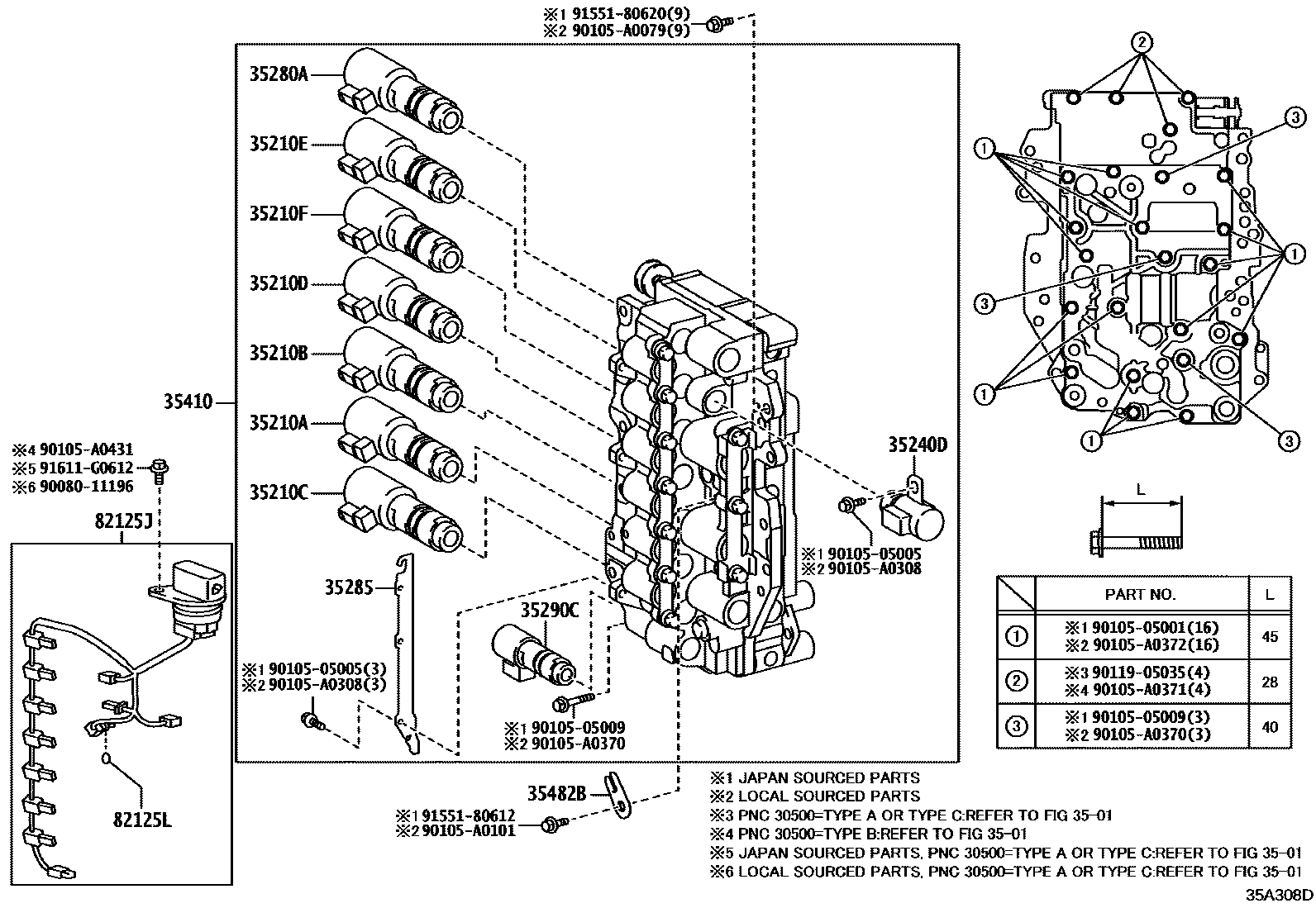

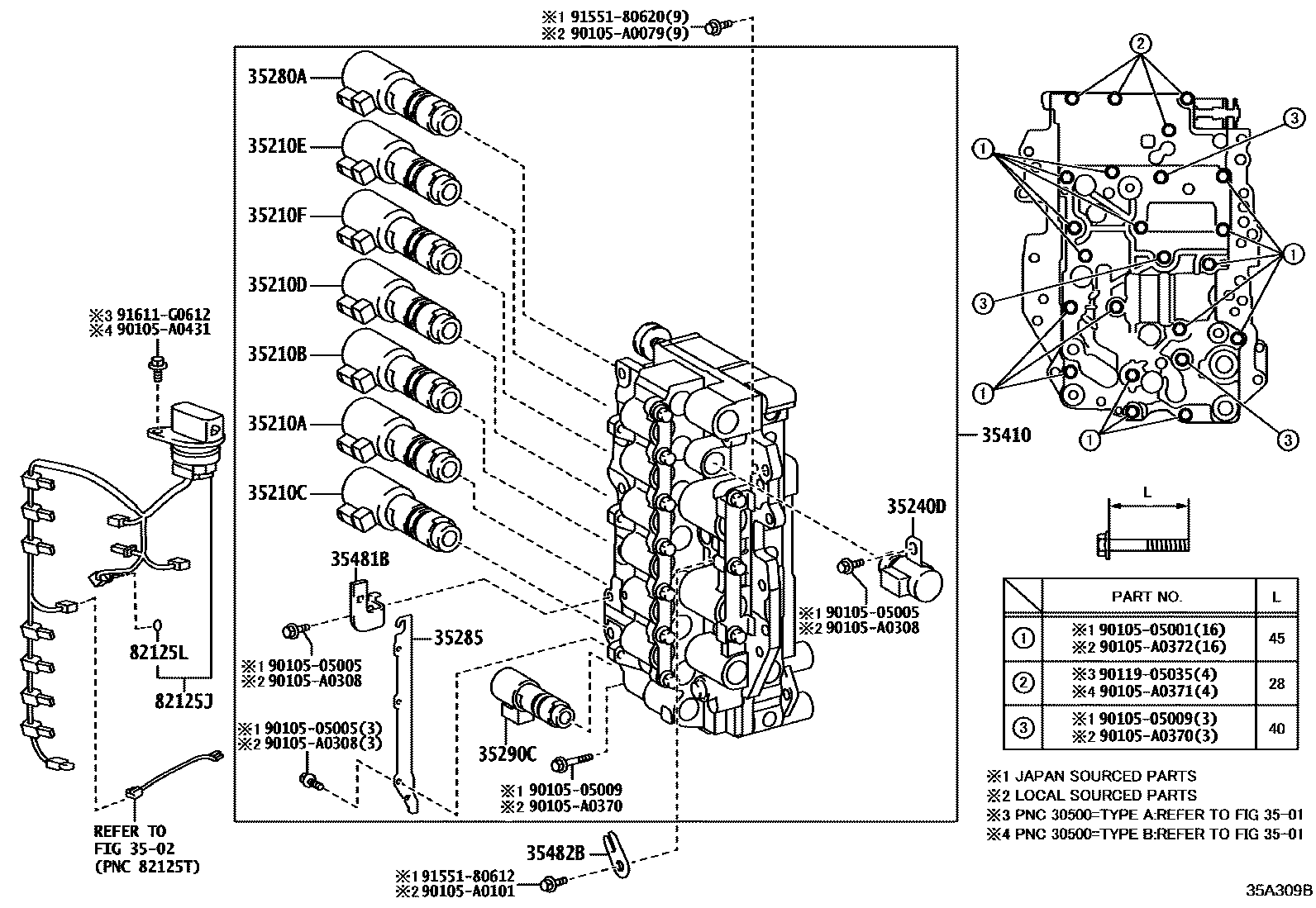

Toyota RAV4 阀体和滤油网(ATM) — Figure 3512
Toyota RAV4 EPC diagram 3512, 阀体和滤油网(ATM), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35210A | SOUPAPE, SOLENOIDE(SL1) | 35210-06020 · 35210-48020 |
| 35210B | SOUPAPE, SOLENOIDE(SL3) | 35210-06020 · 35210-48020 |
| 35210C | SOUPAPE, SOLENOIDE(SL2) | 35210-06020 · 35210-48020 |
| 35210D | SOUPAPE, SOLENOIDE(SL4) | 35210-06020 · 35210-48020 |
| 35210E | SOUPAPE, SOLENOIDE(SL5) | 35210-06020 · 35210-48020 |
| 35210F | SOUPAPE, SOLENOIDE(SL6) | 35210-06020 · 35210-48020 |
| 35240D | SOUPAPE, SOLENOIDE(SL) | 35240-48020 |
| 35280A | SOUPAPE, SOLENOIDE(SLU) | 35280-06020 · 35280-48030 |
| 35285 | Solenoid valve lock plate | 35285-06020 · 35285-48030 |
| 35290C | SOUPAPE, SOLENOIDE(SLT) | 35290-06010 · 35290-48030 |
| 35410 | Transmission valve body assembly | 35410-06040 · 35410-0R020 · 35410-0R030 · 35410-48090 · 35410-48100 |
| 35481B | Valve body wiring harness clip | 35481-48040 |
| 35482B | temperature sensor clip | 35482-73010 |
| 82125J | Transmission wiring harness | 82125-06281 · 82125-33171 · 82125-33211 |
| 82125L | O-ring (for transmission wiring harness) | 90301-06025 |
