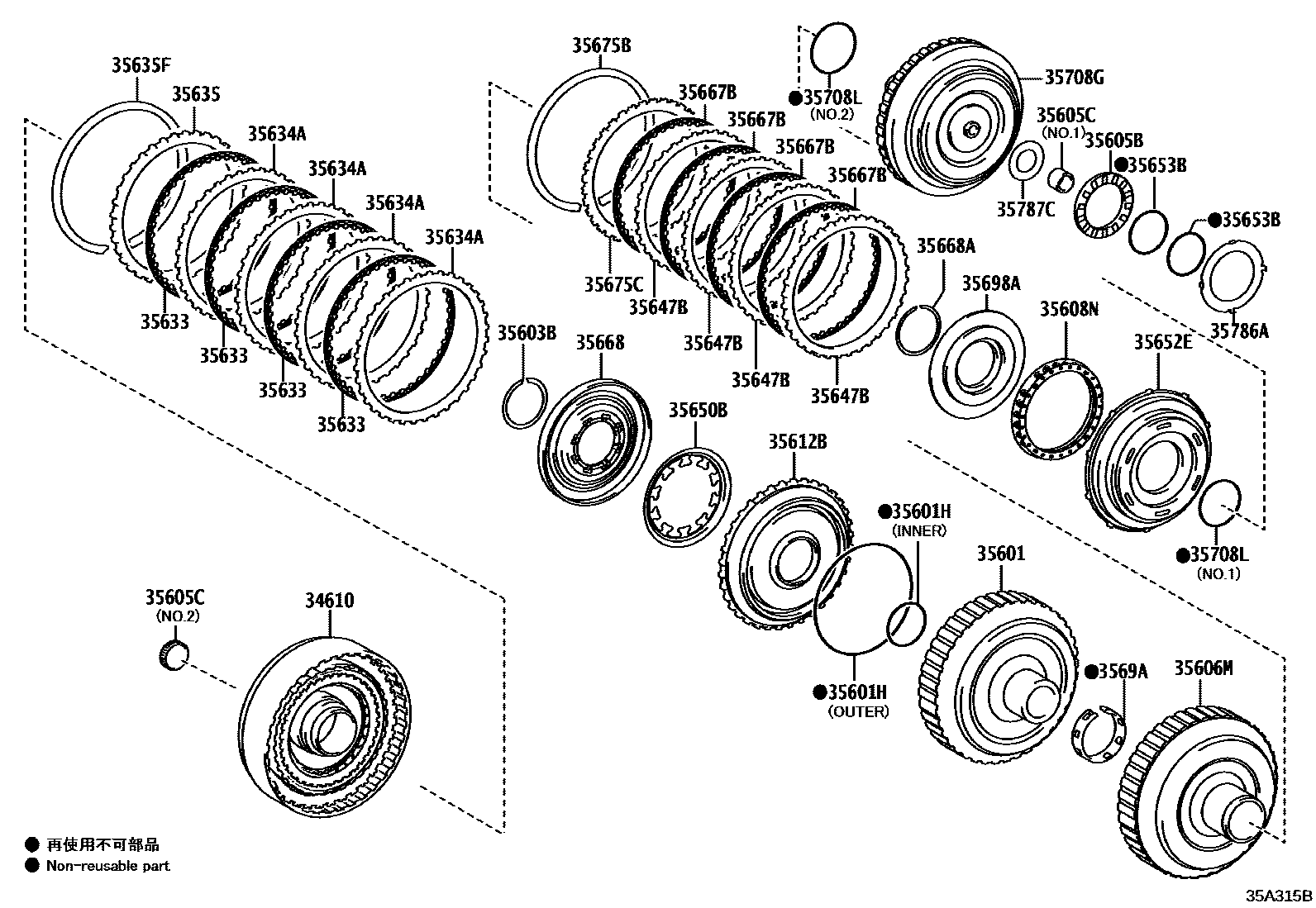

Toyota RAV4 制动带和多片式离合器(ATM) — Figure 3507
Toyota RAV4 EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34610 | ENS. EMBRAYAGE, C-3 ET C-4 | 34610-06010 · 34610-33060 |
| 35601 | Clutch drum sub-assembly | 35601-0R010 · 35601-33010 |
| 35601H | JOINT, TORIQUE(POUR TAMBOUR C-1) | 90301-99219 · 90302-40001 |
| 35603B | Shaft snap ring (for forward clutch piston) | 90520-44043 · 90520-A0065 |
| 35605B | Thrust needle roller bearing | 90374-47005 · 90374-A0048 |
| 35605C | Needle roller bearings | 90364-13010 · 90364-23006 · 90364-23007 |
| 35606M | SOUS-ENS MOYEU, ENTREE PLANETAIRE | 35606-06031 · 35606-06032 · 35606-0R010 · 35606-33040 |
| 35608N | SOUS-ENS. RESSORT, RAPPEL EMBRAYAGE AV/ARRETOIR | 3560A-06010 · 3560A-06030 · 3560A-33010 |
| 35612B | forward clutch piston | 35612-33070 |
| 35633 | Clutch disc (for front clutch) | 35633-06020 · 35633-33140 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-06030 · 35634-33090 |
| 35635 | forward clutch flange | 35635-06060 · 35635-06070 · 35635-06080 · 35635-06090 · 35635-06100 · 35635-06110 · 35635-06120 · 35635-33200 · 35635-33210 · 35635-33220 · 35635-33230 · 35635-33240 · 35635-33250 · 35635-33260 |
| 35635F | Snap ring (for forward clutch flange) | 90520-A0069 · 90521-99194 |
| 35647B | Clutch plate No. 2 | 35647-06030 · 35647-33050 |
| 35650B | Compression spring (for rear clutch piston return) | 35628-0R010 · 35628-33050 |
| 35652E | PISTON, EMBRAYAGE C-2 | 35652-33020 |
| 35653B | Direct clutch drum oil guard ring | 35653-33020 |
| 35667B | No. 2 clutch disc | 35667-06020 · 35667-33040 |
| 35668 | No. 1 clutch balancer | 35668-33030 |
| 35668A | Snap ring (for clutch balancer) | 90520-45038 · 90520-A0066 |
| 35675B | Hole snap ring (for forward clutch flange) | 90520-A0070 · 90521-99195 |
| 35675C | Direct clutch flange | 35675-06070 · 35675-06080 · 35675-06090 · 35675-06100 · 35675-06110 · 35675-06120 · 35675-06130 · 35675-33140 · 35675-33150 · 35675-33160 · 35675-33170 · 35675-33180 · 35675-33190 · 35675-33200 |
| 35698A | BALANCIER, EMBRAYAGE C-2 | 35698-33010 |
| 3569A | COURONNE, TOLERANCE TAMBOUR EMBRAYAGE | 3569A-33010 |
| 35708G | Intermediate shaft sub-assembly | 35708-06022 · 35708-0R010 · 35708-33070 |
| 35708L | O-ring (for intermediate shaft) | 90301-45007 · 90301-45008 · 90301-A0066 · 90301-A0067 |
| 35786A | No. 1 thrust bearing race | 35786-06020 · 35786-33020 |
| 35787C | No. 2 thrust bearing race | 35787-06020 · 35787-33030 |
