Toyota RAV4 Shift Lever & Retainer — Figure 3312

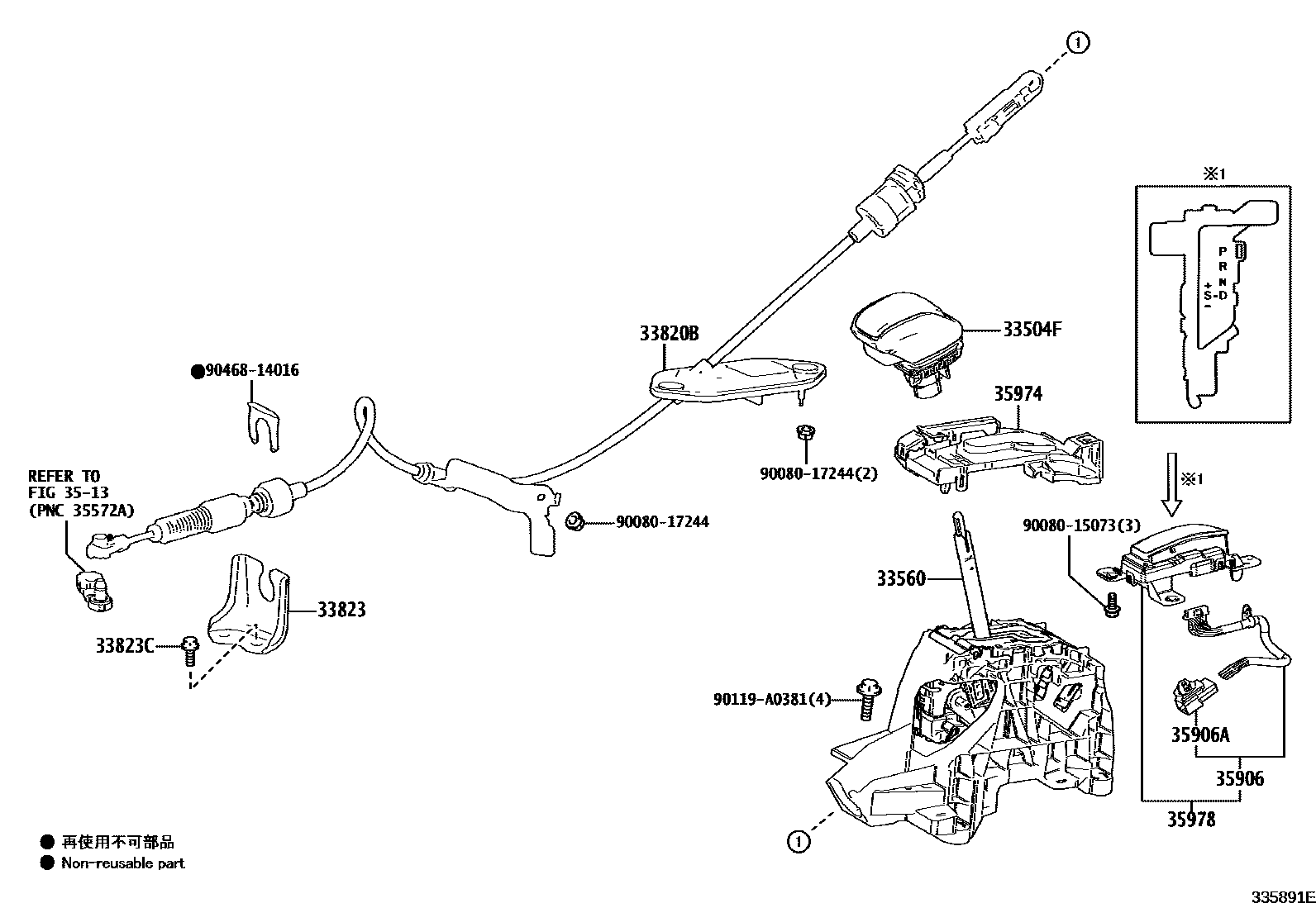

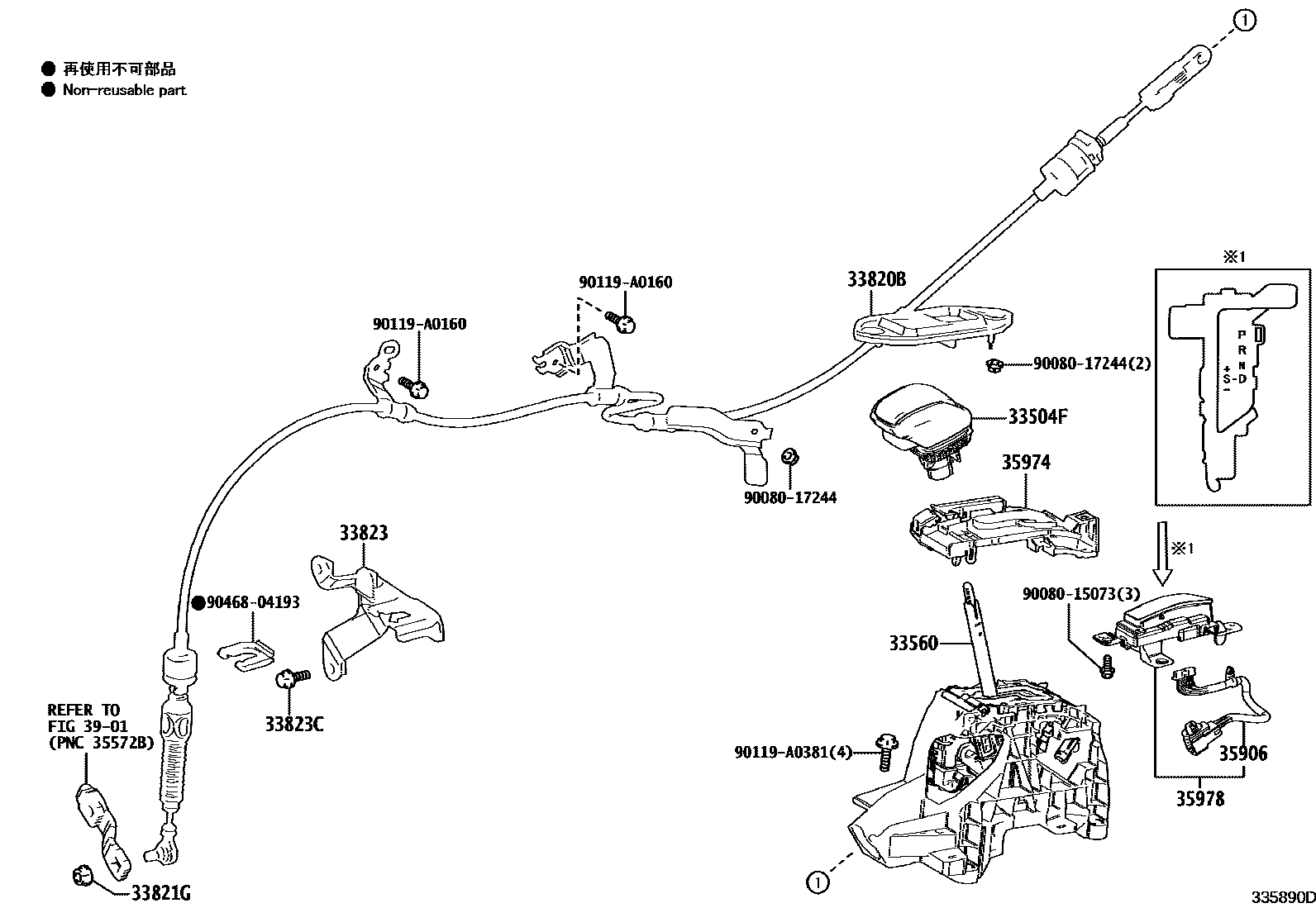

Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33560 | Shift lock control unit assembly | 33560-0R060 · 33560-0R070 |
| 33820B | Transmission control cable assembly | 33820-0R160 · 33820-0R170 |
| 33821G | Nut (for transmission control cable) | 90178-A0024 |
| 33823 | No. 1 transmission control cable bracket | 33823-06040 · 33823-0R100 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-A0127 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0R040 · 35906-0R050 |
| 35906A | Male connector housing (for indicator light harness) | 90980-12367 |
| 35974 | Position indicator light lower shell | 35974-0R010 |
| 35978 | Shift lever position indicator light | 35978-0R010 · 35978-0R020 |
