Toyota RAV4 废气再循环系统 — Figure 2501

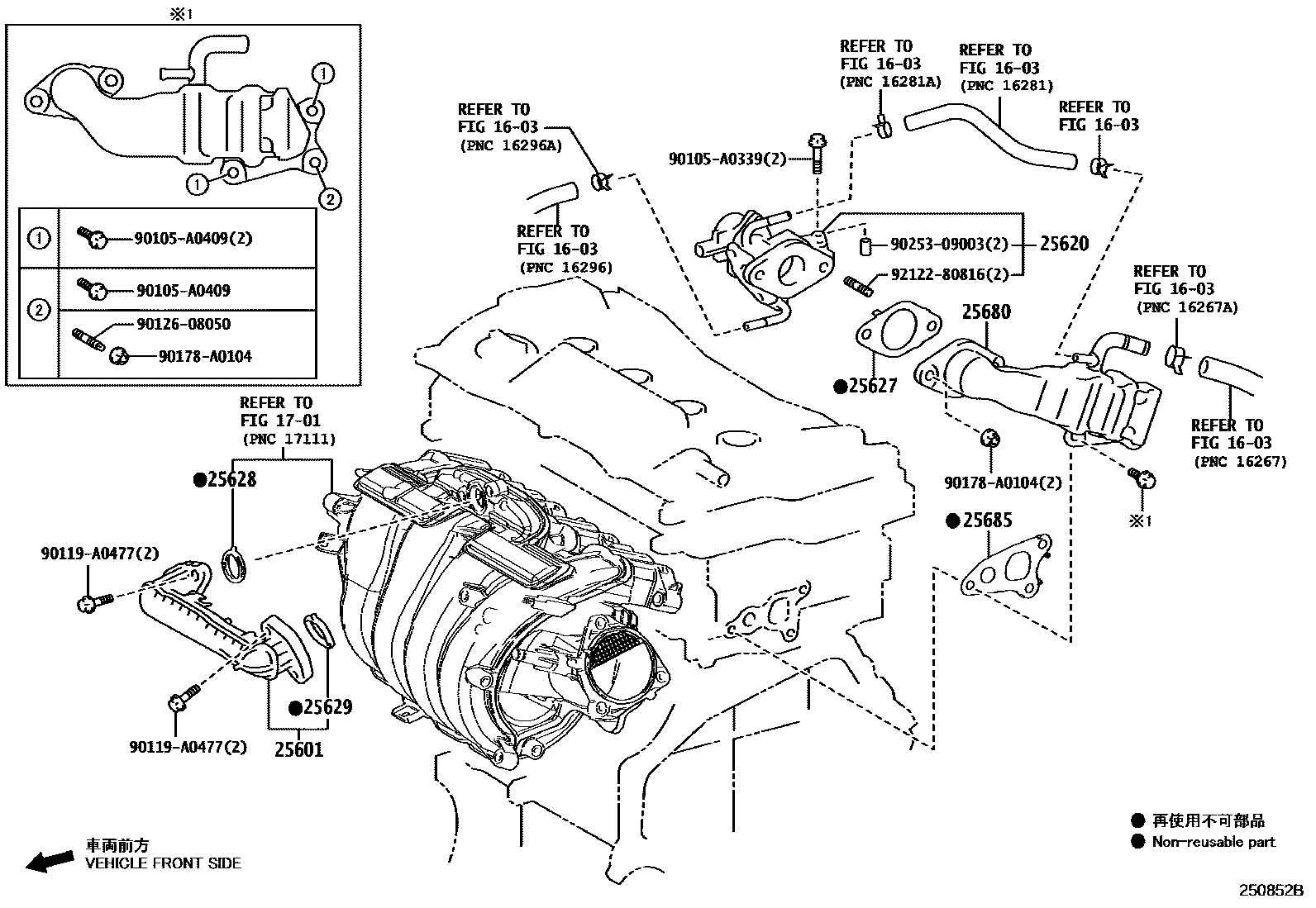

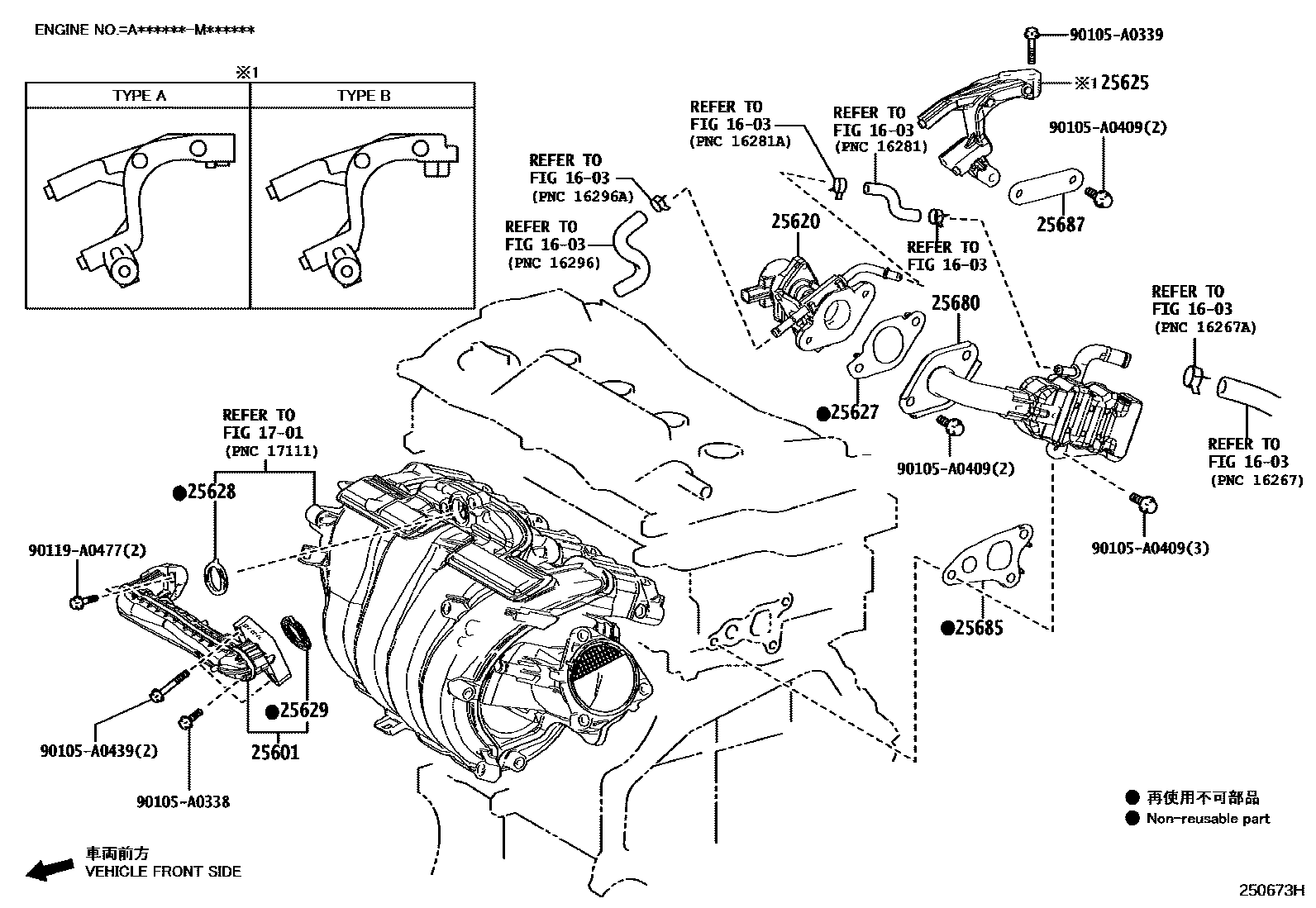

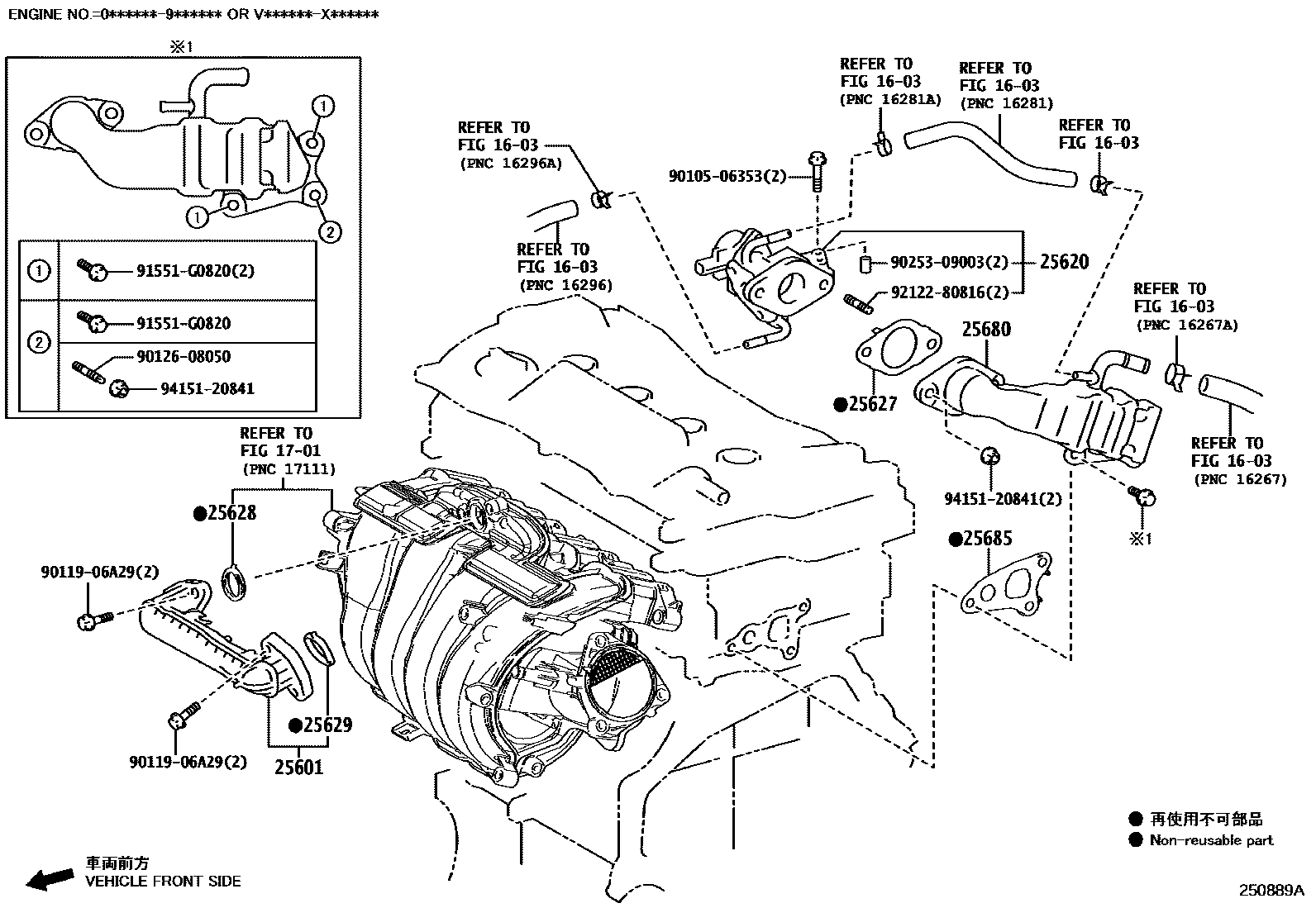

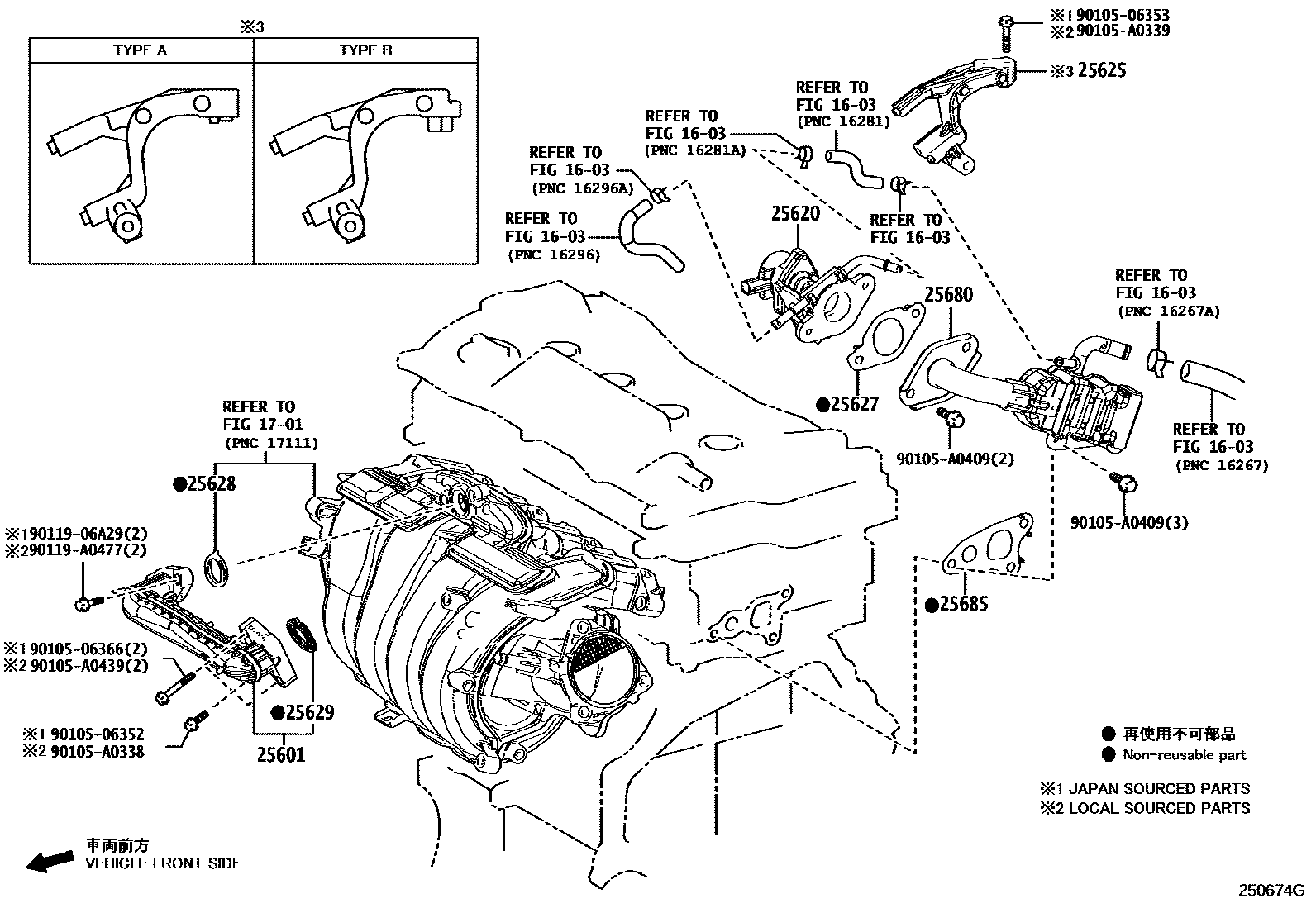

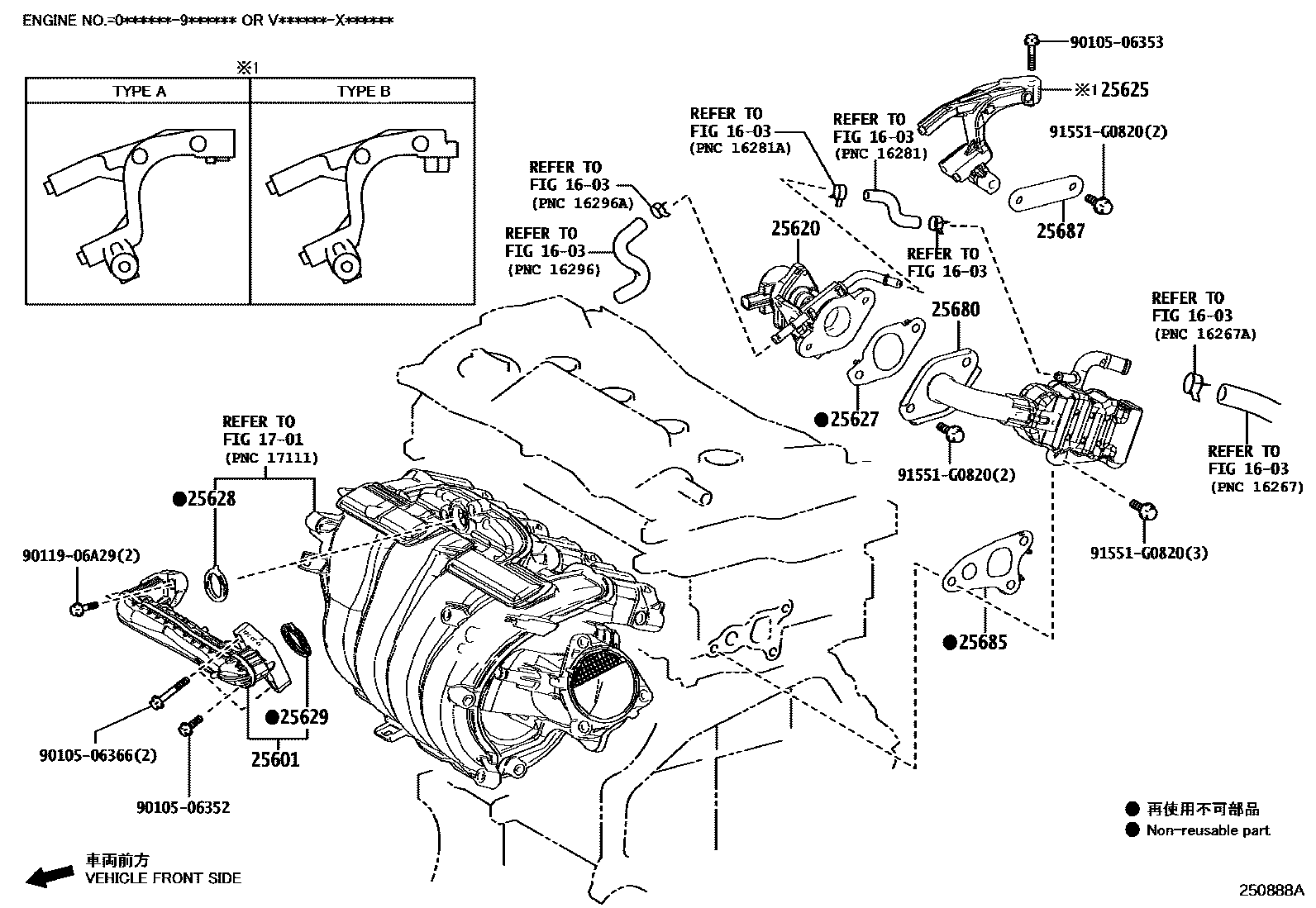

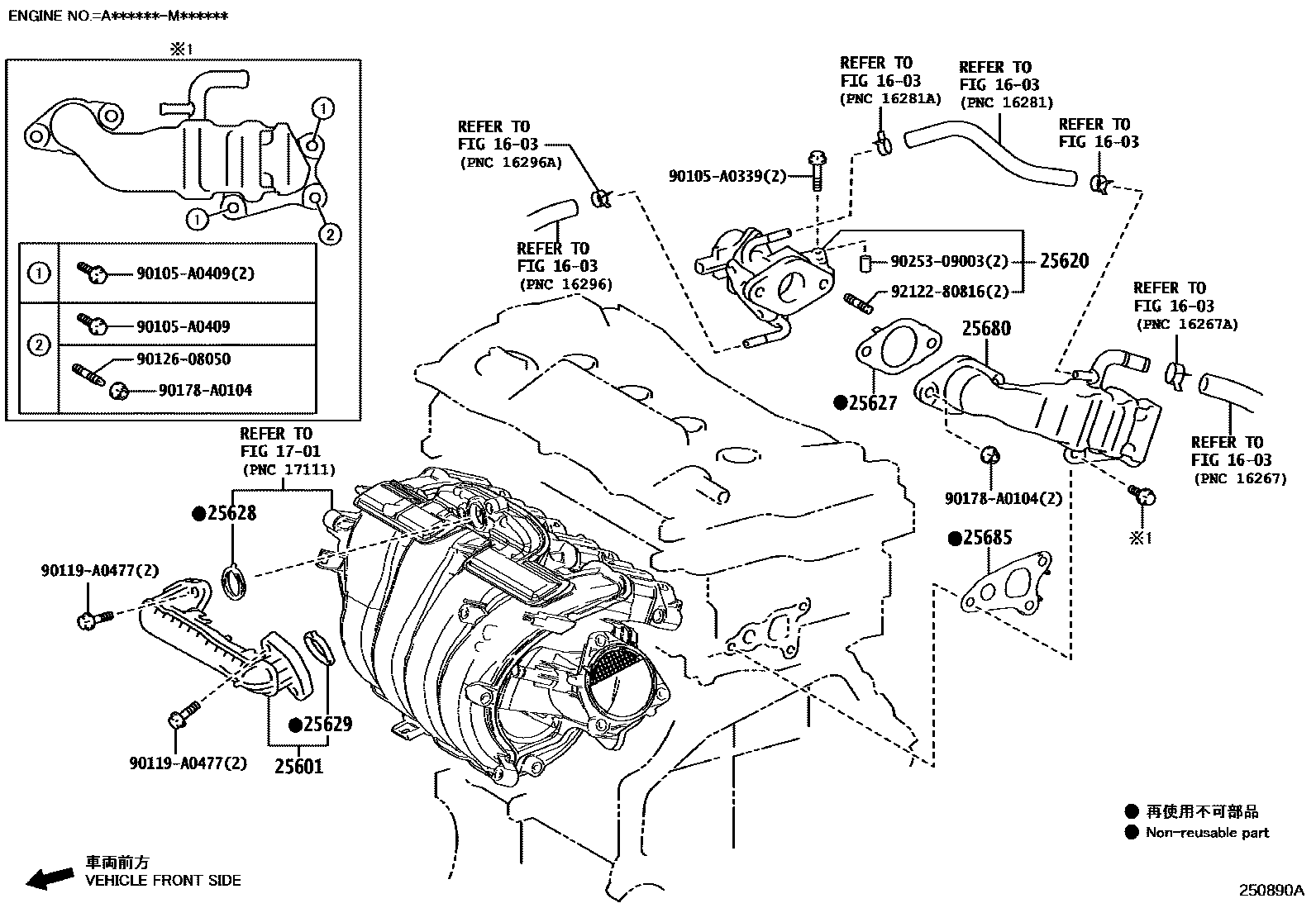

Toyota RAV4 EPC diagram 2501, 废气再循环系统, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-25011 · 25601-25030 · 25601-F0010 · 25601-F0020 |
| 25620 | EGR valve assembly | 25620-24050 · 25620-25040 · 25620-F0020 · 25620-F2010 |
| 25625 | EGR valve bracket | 25625-25010 · 25625-25030 · 25625-F0010 · 25625-F0020 |
| 25627 | EGR valve gasket | 25627-24010 · 25627-25010 · 25627-F0010 · 25627-F2010 |
| 25628 | EGR air intake gasket | 25628-25010 |
| 25629 | EGR valve adapter gasket | 25629-25010 |
| 25680 | EGR cooler assembly | 25680-25010 · 25680-25060 · 25680-F0010 · 25680-F0020 · 25680-F0030 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-25011 |
| 25687 | No. 1 EGR cooler bracket | 25687-25010 |
