Toyota RAV4 燃油喷射系统 — Figure 2211

Toyota RAV4 EPC diagram 2211, 燃油喷射系统, with 2 images and 25 PNC and OE references.

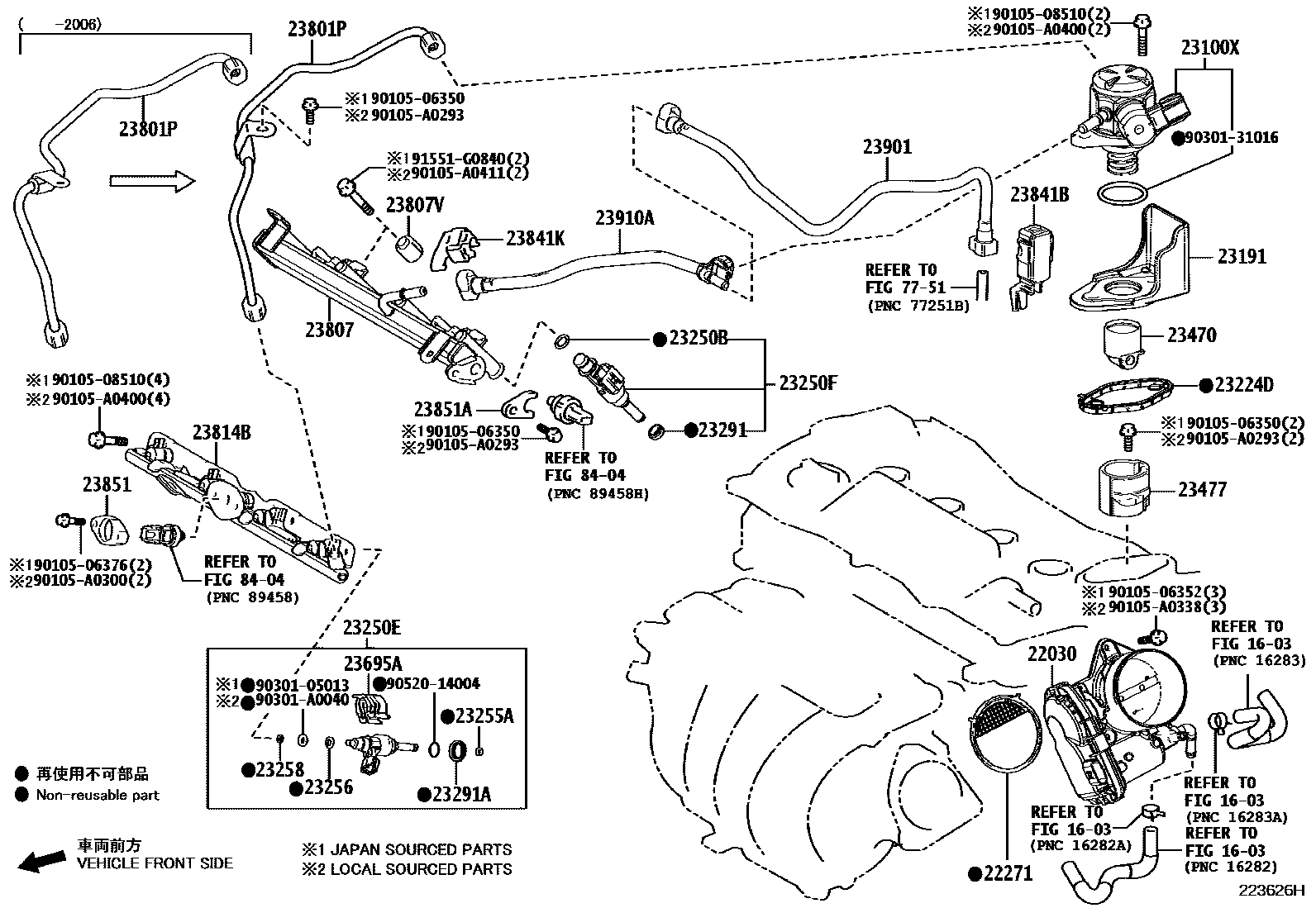

Toyota RAV4 燃油喷射系统 EPC diagram — 223626H — 燃油喷射系统 — 223626H (201812 – 999999)

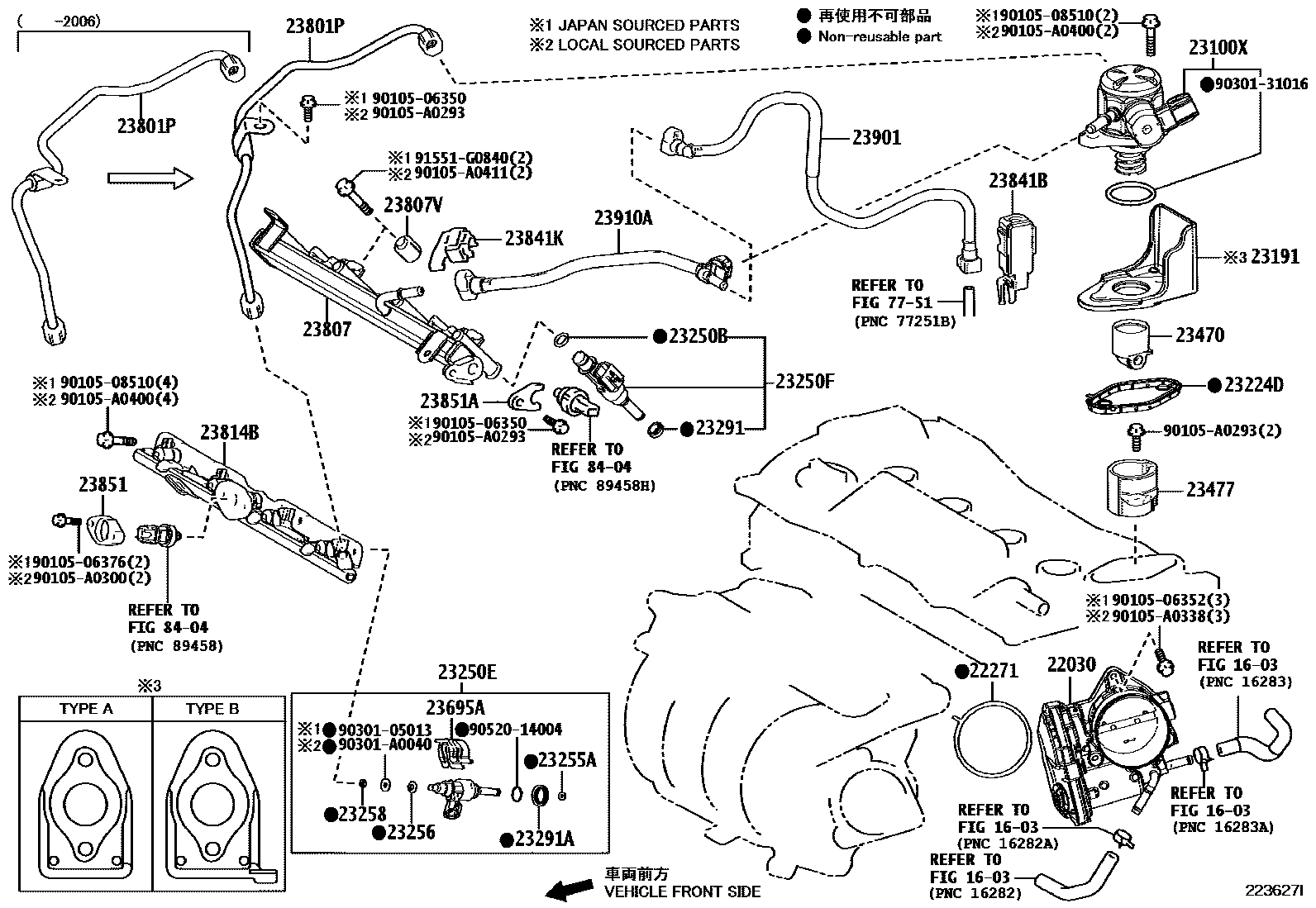

Toyota RAV4 燃油喷射系统 EPC diagram — 223627I — 燃油喷射系统 — 223627I (201903 – 999999)

PNC and OE references

PNC	Part name	OE numbers
22030	Electronic throttle body assembly	22030-25010 · 22030-25020 · 22030-F0010 · 22030-F0020
22271	Throttle body gasket	22271-25010 · 22271-25020 · 22271-F0010 · 22271-F0020
23100X	fuel pump assembly	23101-25040 · 23101-F0010
23191	BRIDE, POMPE CARBURANT	23191-25050 · 23191-25070 · 23214-F2080
23224D	JOINT D'ETANCHEITE, ENTRETOISE DE POMPE A CARBURANT	23224-25010 · 23224-25011 · 23224-F0010 · 23224-F0011
23250B	O-ring (for fuel injector)	90301-07037 · 90301-A0036 · 90301-C0072
23250F	ENS INJECTEUR, CARBURANT(POUR PORT)	23209-29105 · 23209-29175 · 23209-F9000 · 23209-F9080
23255A	Injector seal	23255-25010 · 23255-F0010
23256	No. 1 injector retaining ring	23256-25010 · 23256-F0010
23258	No. 3 injector retaining ring	23258-31010 · 23258-36010
23291	Injector vibration isolation pad	23291-0V020 · 23291-28020
23291A	Injector vibration isolation pad	23291-31020
23470	Fuel pump tappet assembly	23470-25010 · 23470-F0010
23477	fuel pump tappet guide	23477-25010 · 23477-F2010
23695A	Injector body clamp	23695-25010
23801P	No. 1 fuel pipe sub-assembly	23801-25030 · 23801-25031 · 23801-F0010 · 23801-F0011
23807	Oil pipe sub-assembly	23814-25021 · 23814-25022 · 23814-25023 · 23814-F0021 · 23814-F0022 · 23814-F0023
23807V	No. 1 spacer (for oil pipe)	23891-25010
23814B	oil pipeline	23814-25010 · 23814-25011
23841B	No. 1 fuel pipe clamp (for EFI)	23841-31070
23841K	ATTACH, TUY ESS	23841-F0010
23851	SUPPORT, CAPTEUR PRESSION CARBURANT, NO.1	23851-25020 · 23851-F2010
23851A	SUPPORT, CAPTEUR PRESSION CARBURANT, NO.2	23851-25030 · 23851-F2080
23901	Fuel pipe sub-assembly	23901-F0120 · 23901-F0121 · 23901-F0130 · 23901-F0131
23910A	Fuel pipe sub-assembly	23901-F0110 · 23901-F0111
