Toyota RAV4 起动机 — Figure 1904

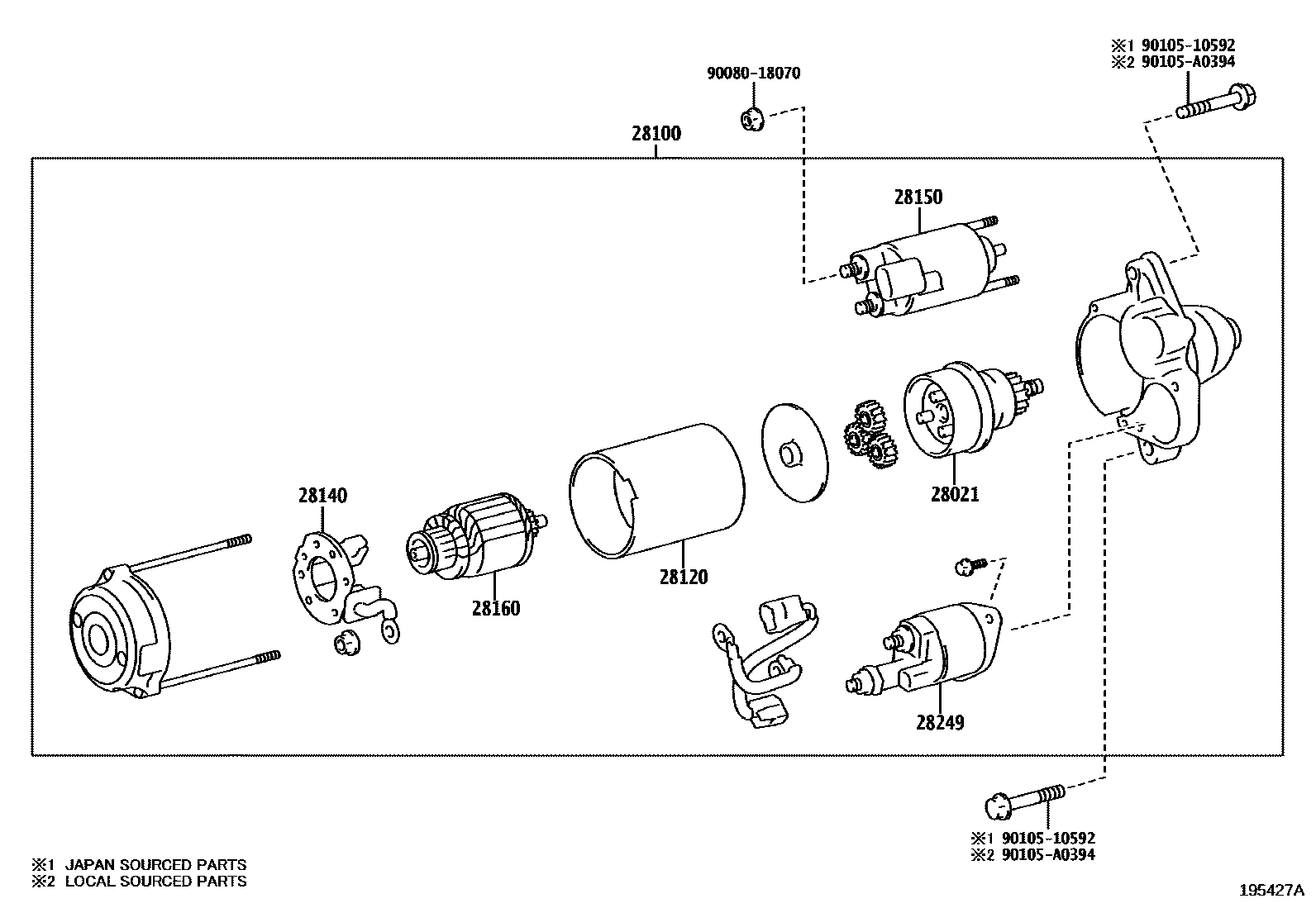

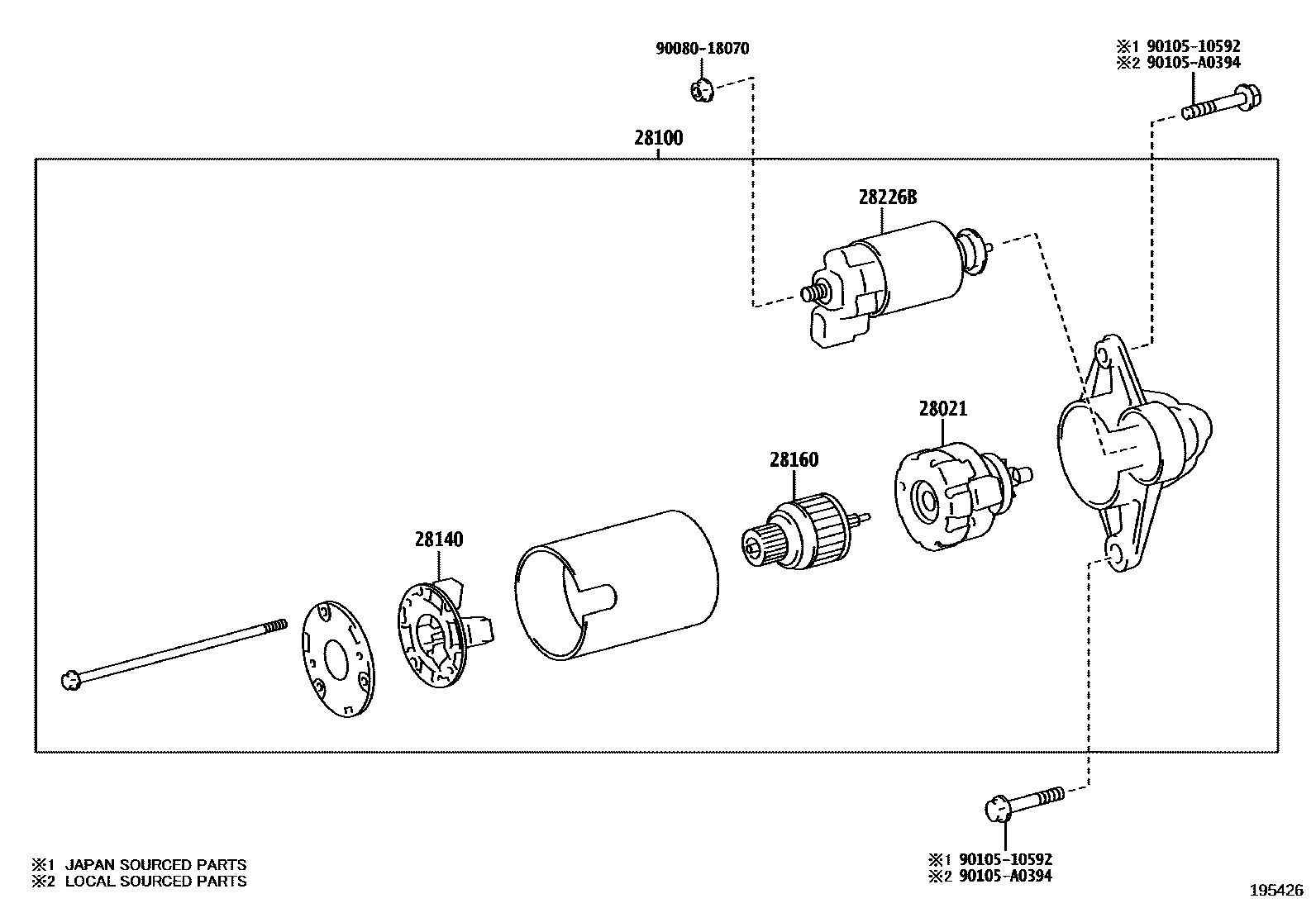

Toyota RAV4 EPC diagram 1904, 起动机, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-25050 · 28021-25070 · 28021-K0040 |
| 28100 | Starter assembly | 28100-F0010 · 28100-F0060 · 28100-F0080 · 28100-F0130 · 28100-F2020 · 28100-F2110 |
| 28120 | Starter yoke assembly | 28120-25070 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-21100 · 28140-25050 |
| 28150 | Starter electromagnetic switch assembly | 28150-47250 · 28226-25100 |
| 28160 | Starter armature assembly | 28160-0S060 · 28160-21080 · 28160-36110 |
| 28226B | starter magnetic switch | 28226-25050 · 28226-25070 · 28226-K0040 |
| 28249 | RELAIS, REDUCTION DU COURANT D'APPEL DU DEMARREUR | 28249-37100 |
