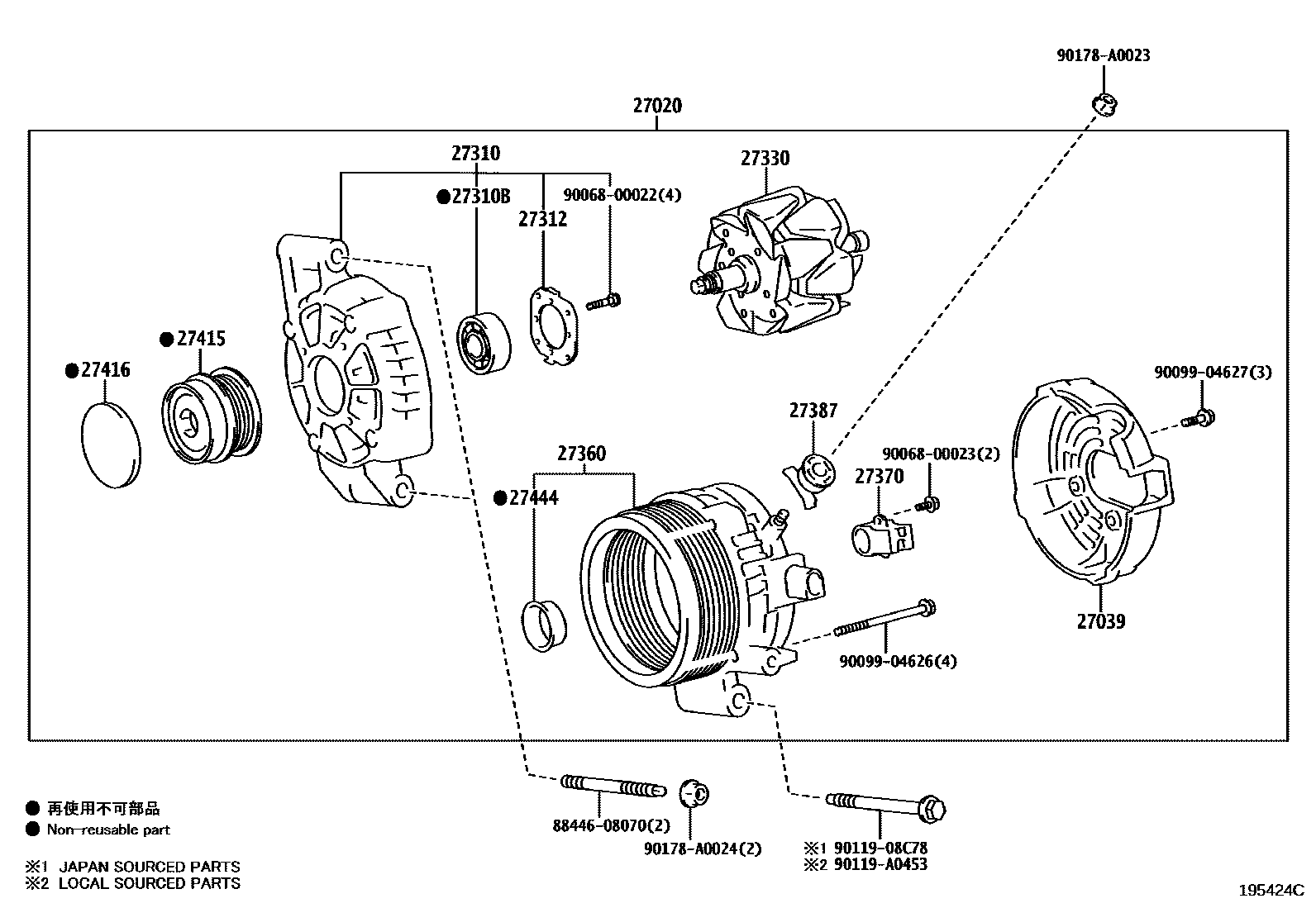

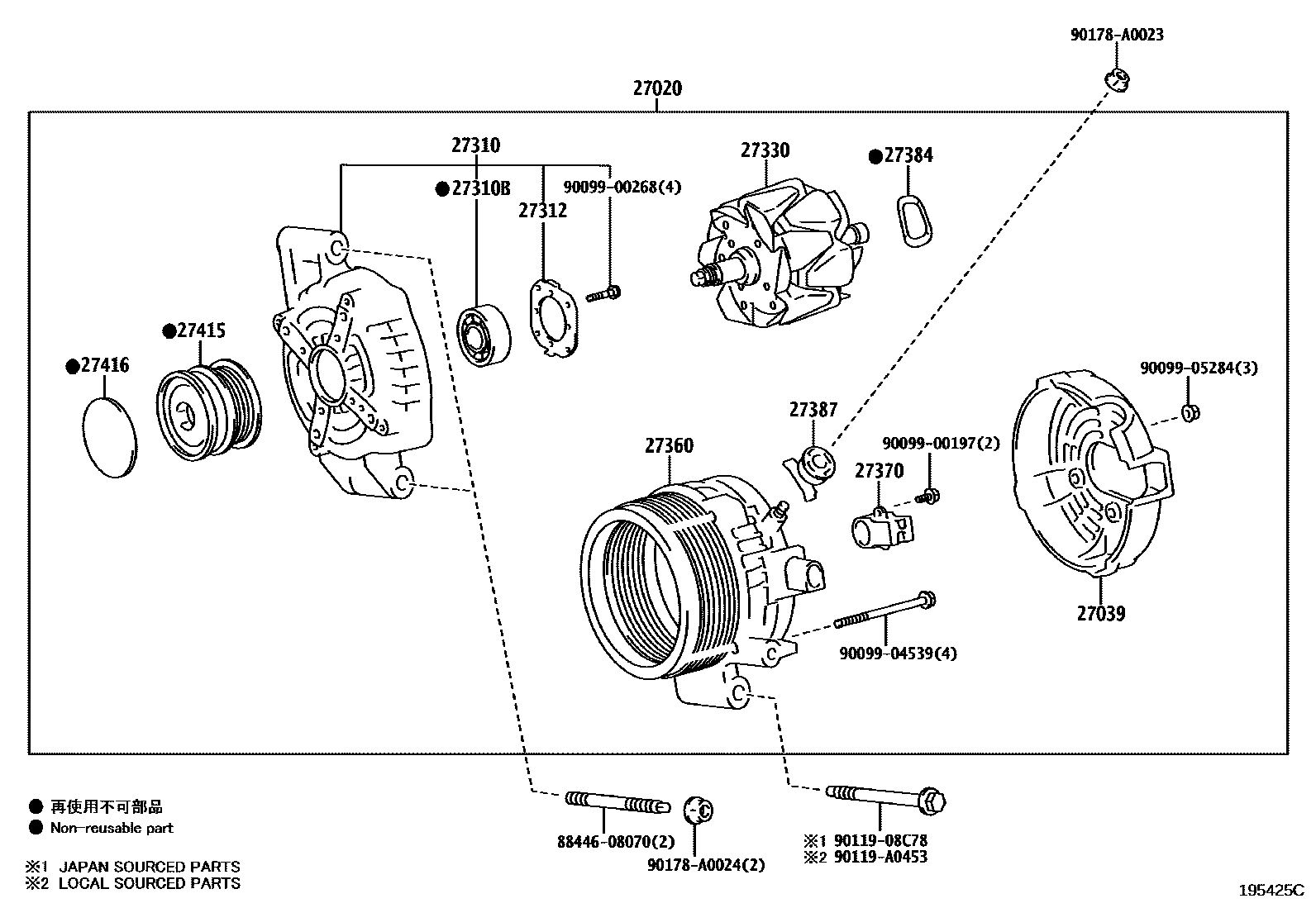

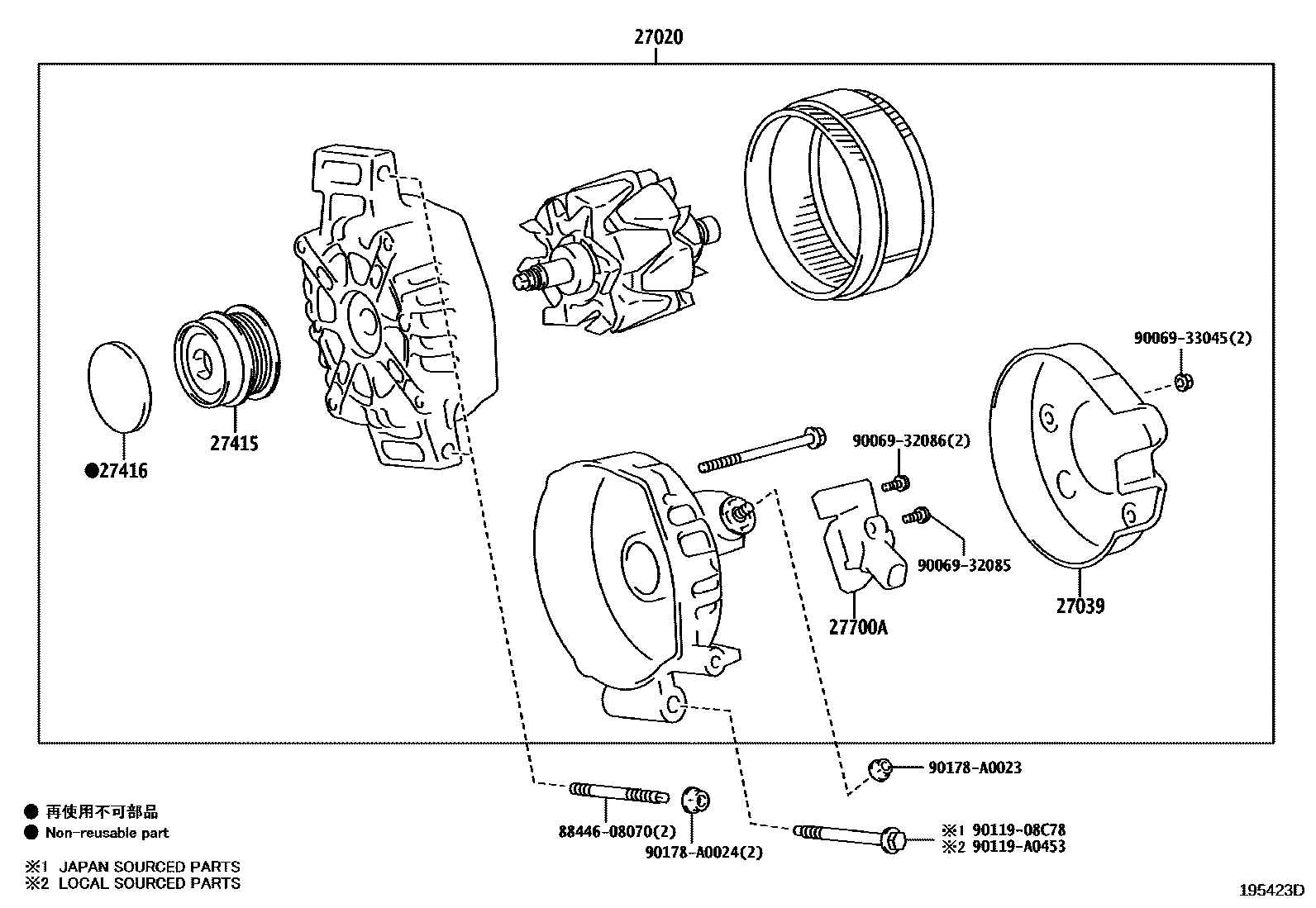

Toyota RAV4 Alternator — Figure 1903
Toyota RAV4 EPC diagram 1903, Alternator, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-F0040 · 27060-F0060 · 27060-F2010 |
| 27039 | Alternator Rear End Cover | 27039-0C170 · 27039-31390 · 27039-F2010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-F0040 · 27310-F2020 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0A110 · 27330-0P400 |
| 27360 | Alternator Stator Coil Assembly | 27360-F0040 · 27360-F2020 |
| 27370 | Alternator Brush Holder Assembly | 27370-0P020 · 27370-0V160 |
| 27384 | Washer | 27384-0A020 |
| 27387 | Terminal Insulator | 27387-0V060 · 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W190 · 27415-F0010 · 27415-F0040 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0C170 |
| 27700A | Generator voltage regulator assembly | 27700-F2010 |
