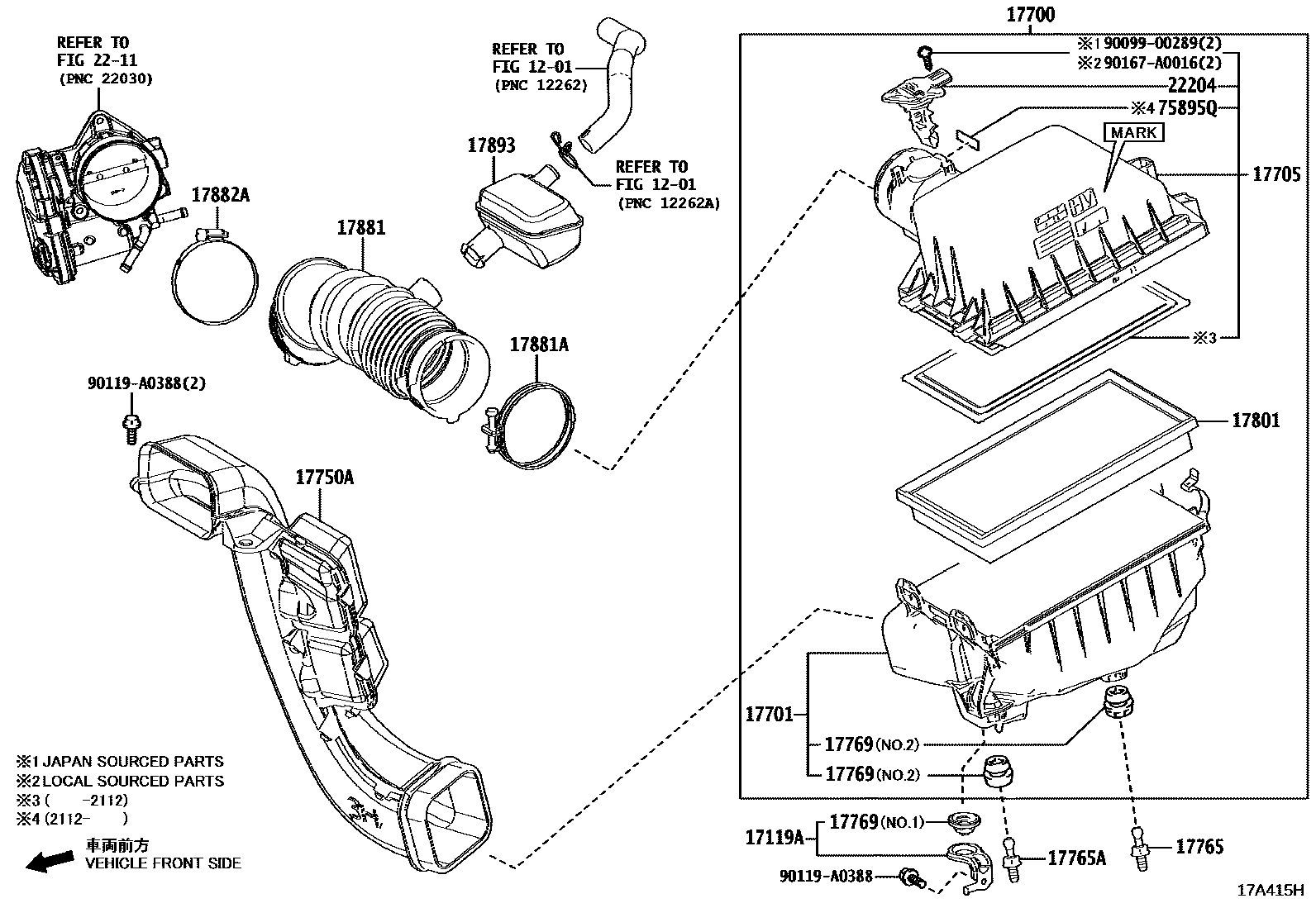

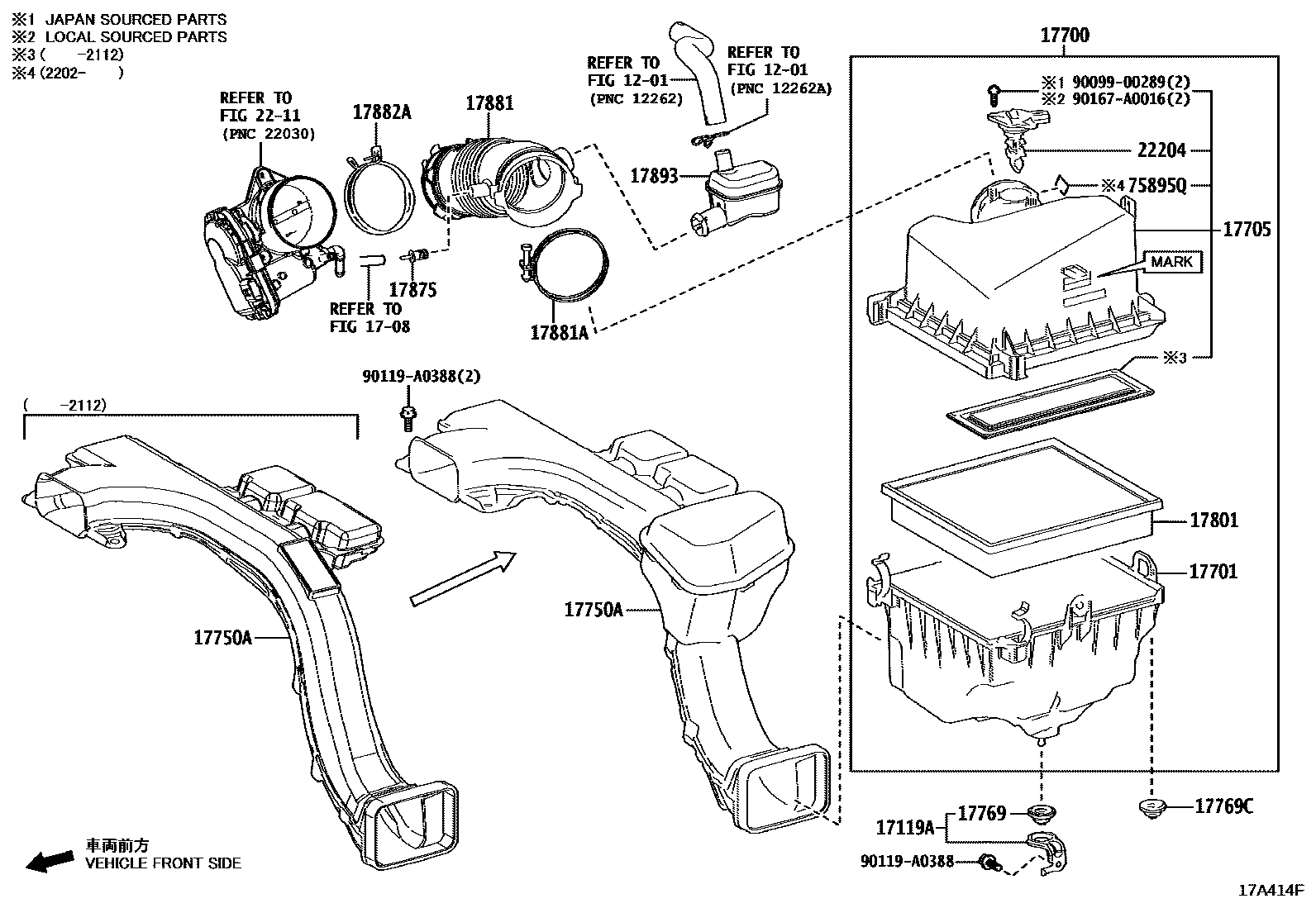

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-F0010 |
| 17700 | air filter assembly | 17700-F0010 · 17700-F0011 · 17700-F0020 · 17700-F0021 · 17700-F0131 · 17700-F0220 |
| 17701 | Air filter housing sub-assembly | 17701-F0010 · 17701-F0020 · 17701-F0021 · 17701-F0160 |
| 17705 | Air filter cover sub-assembly | 17705-F0010 · 17705-F0020 · 17705-F0130 · 17705-F0240 |
| 17750A | Air filter air inlet assembly | 17750-F0070 · 17750-F0080 · 17750-F0210 · 17750-F0280 · 17750-F0350 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17765A | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25020 · 17769-25030 |
| 17769C | SUPPORT, FILTRE A AIR, NO.1 | 17769-25020 |
| 17801 | Air filter element sub-assembly | 17801-25020 · 17801-77050 · 17801-F0020 · 17801-F0050 |
| 17875 | Intake connecting pipe | 17875-F0020 |
| 17881 | No. 1 air cleaner hose | 17881-F0070 · 17881-F0080 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10850 · 96111-10880 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17891-31010 · 90466-71001 |
| 17893 | Intake resonator | 17893-F0130 · 17893-F0140 |
| 22204 | Intake air flow meter assembly | 22204-75040 |
| 75895Q | RUBAN, MOULURE, NO.1 | 75895-52050 |
