Toyota RAV4 Exhaust Pipe — Figure 1702

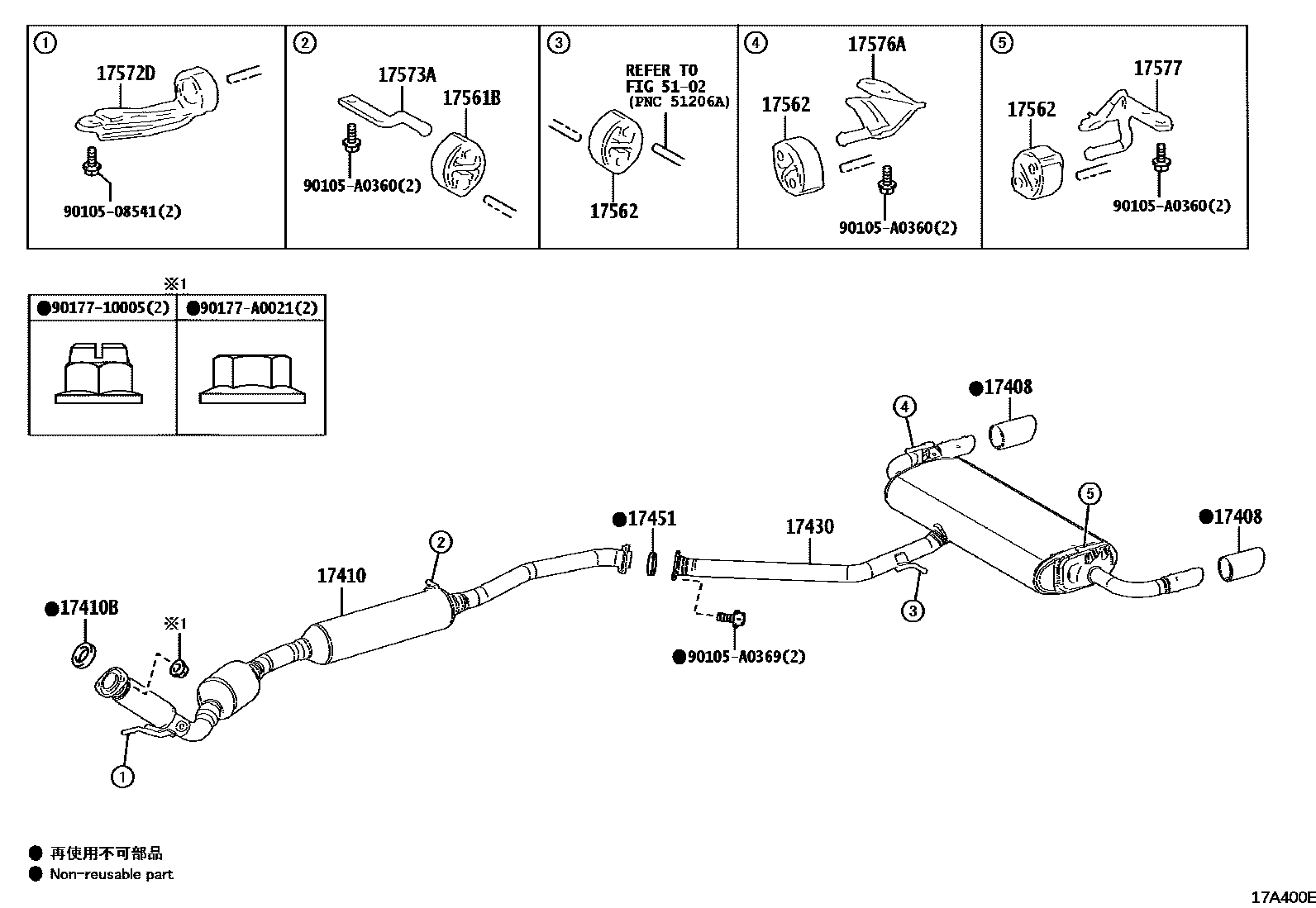

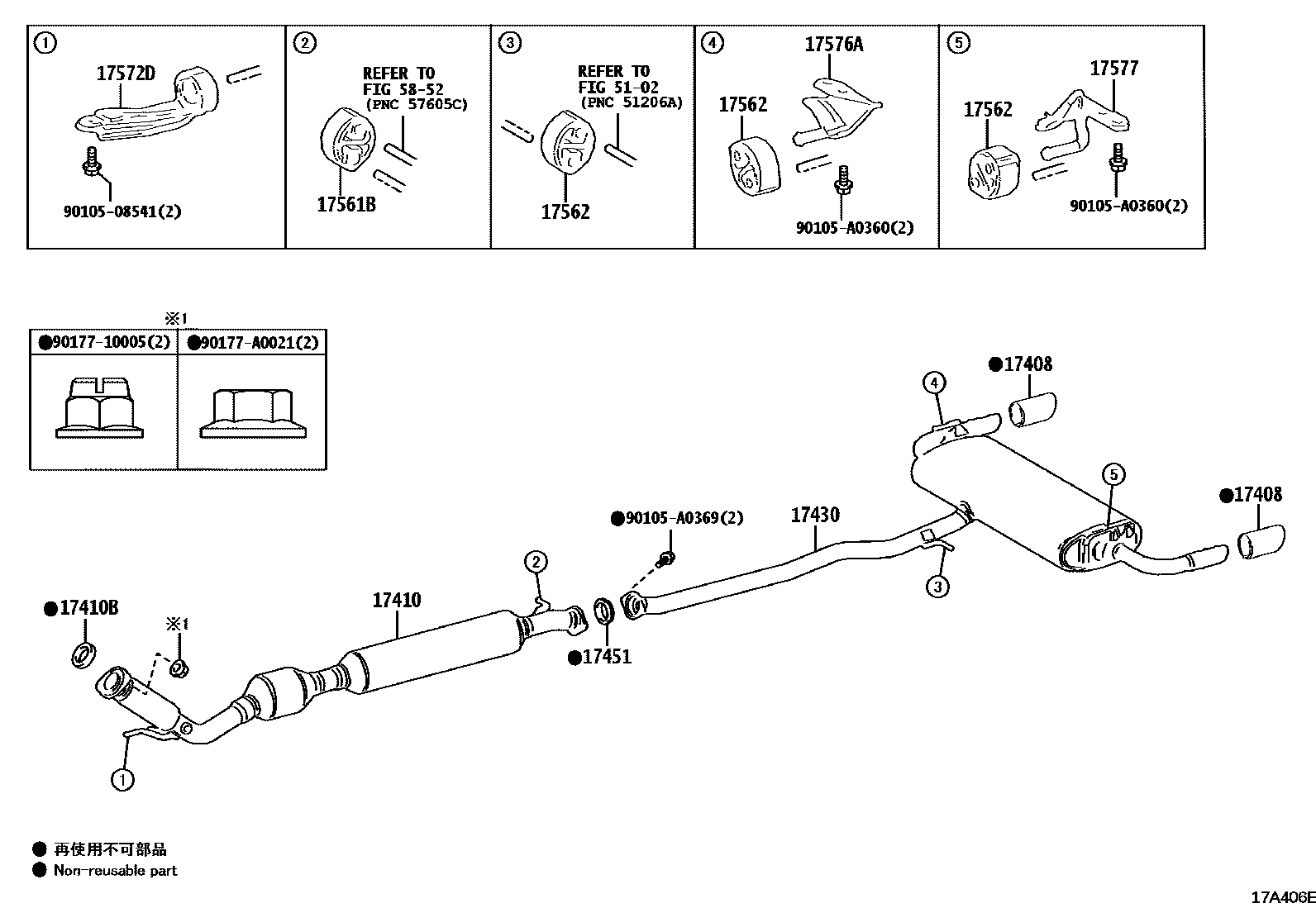

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-25030 · 17408-25040 · 17408-F0030 · 17408-F0040 · 17408-YY040 |
| 17410 | Front exhaust pipe assembly | 17410-F0150 · 17410-F0151 · 17410-F0170 · 17410-F0530 · 17410-F0660 · 17410-F0880 · 17410-F0A50 |
| 17410B | Exhaust pipe gasket | 90917-A6002 |
| 17430 | Exhaust tailpipe assembly | 17430-F0150 · 17430-F0151 · 17430-F0170 · 17430-F0490 |
| 17451 | Exhaust pipe gasket | 17451-25040 · 17451-F0100 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0P041 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0S011 |
| 17572D | No. 1 exhaust pipe bracket | 17572-F0040 |
| 17573A | No. 3 exhaust pipe bracket | 17573-F0050 |
| 17576A | No. 6 exhaust pipe bracket | 17576-25020 |
| 17577 | No. 7 exhaust pipe bracket | 17577-25010 |
