Toyota RAV4 Cylinder Block — Figure 1105

Toyota RAV4 EPC diagram 1105, Cylinder Block, with 3 images and 33 PNC and OE references.

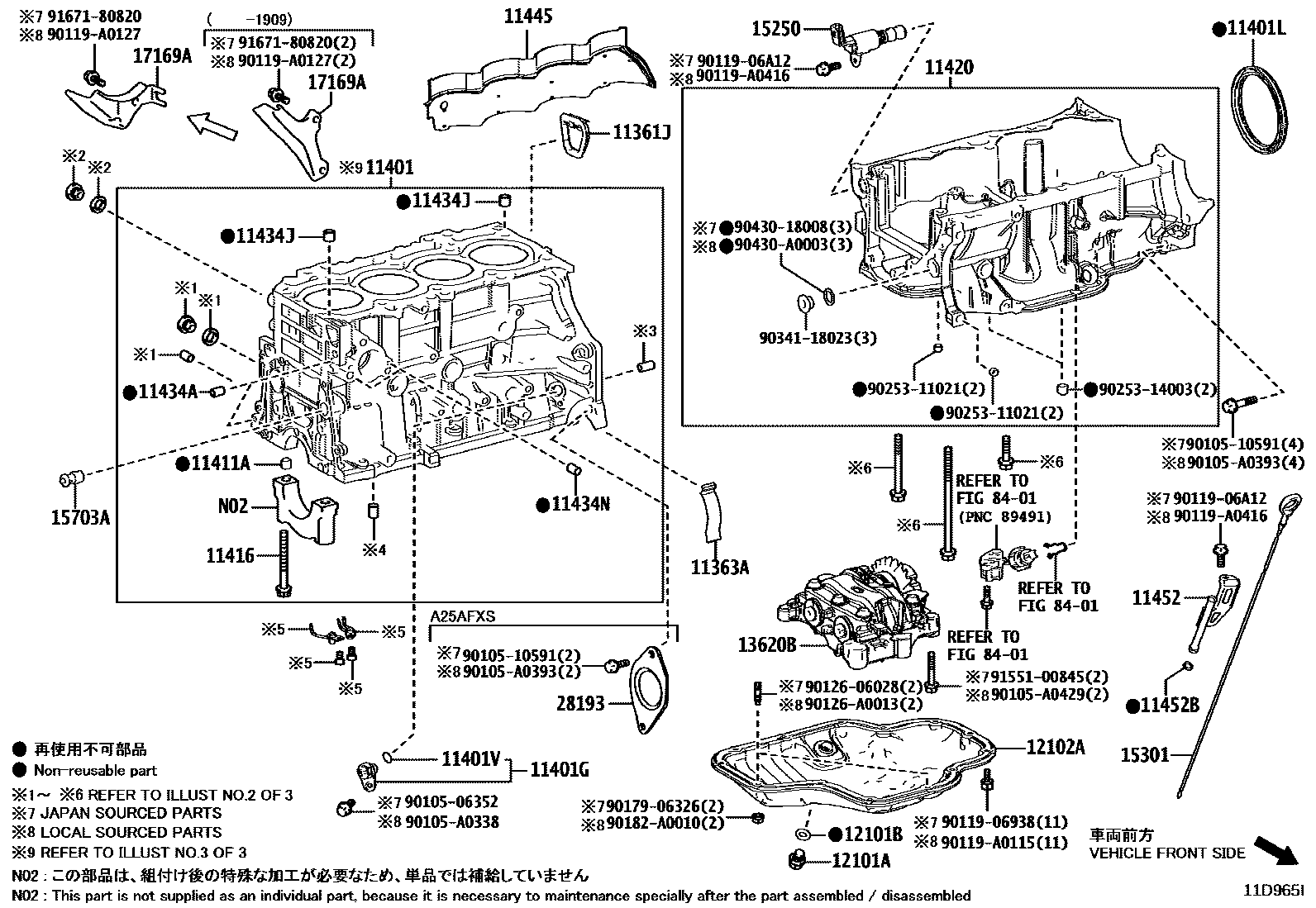

Toyota RAV4 Cylinder Block EPC diagram — 11D965I
Cylinder Block — 11D965I (201812 – 999999)

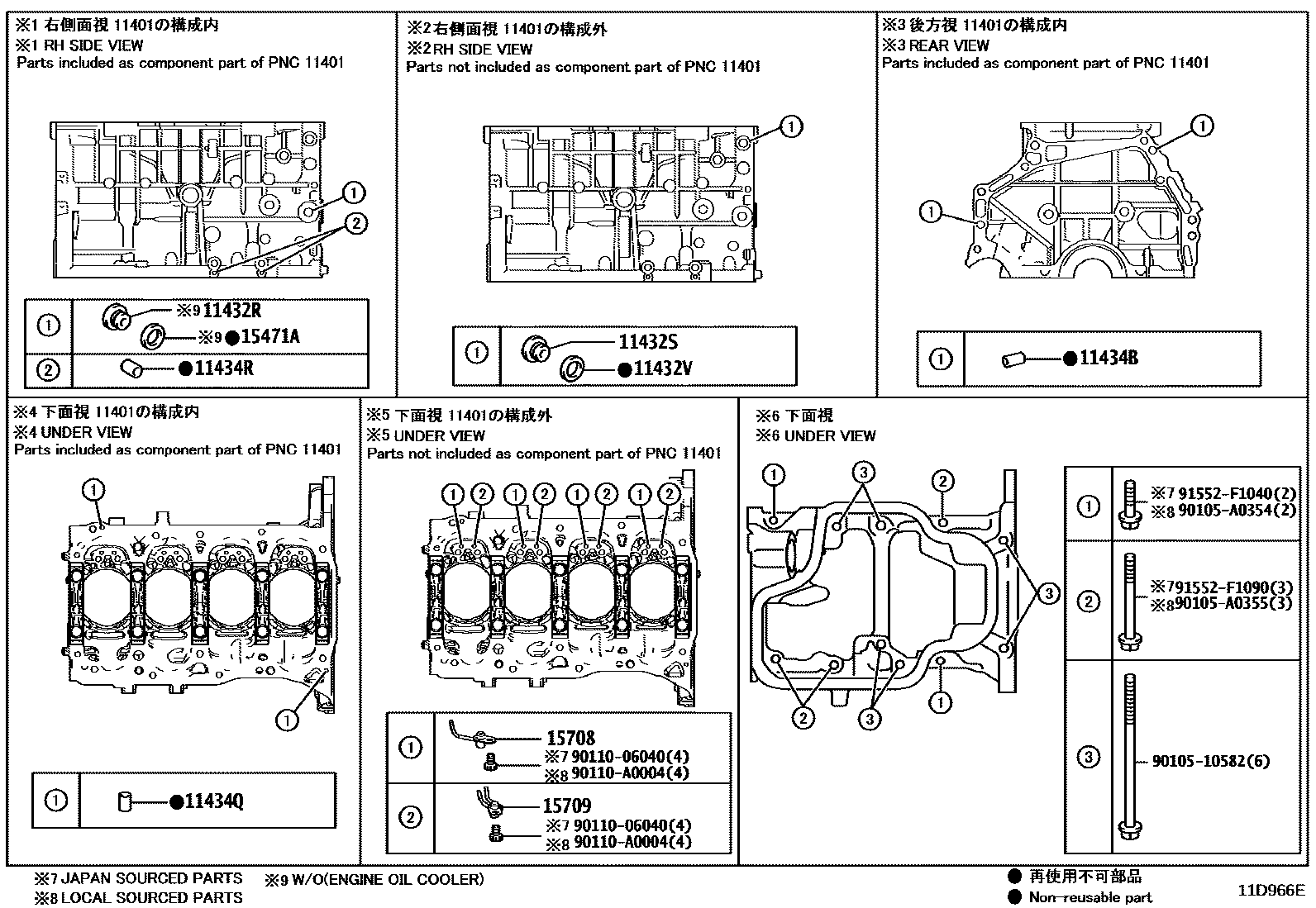

Toyota RAV4 Cylinder Block EPC diagram — 11D966E
Cylinder Block — 11D966E (201812 – 999999)

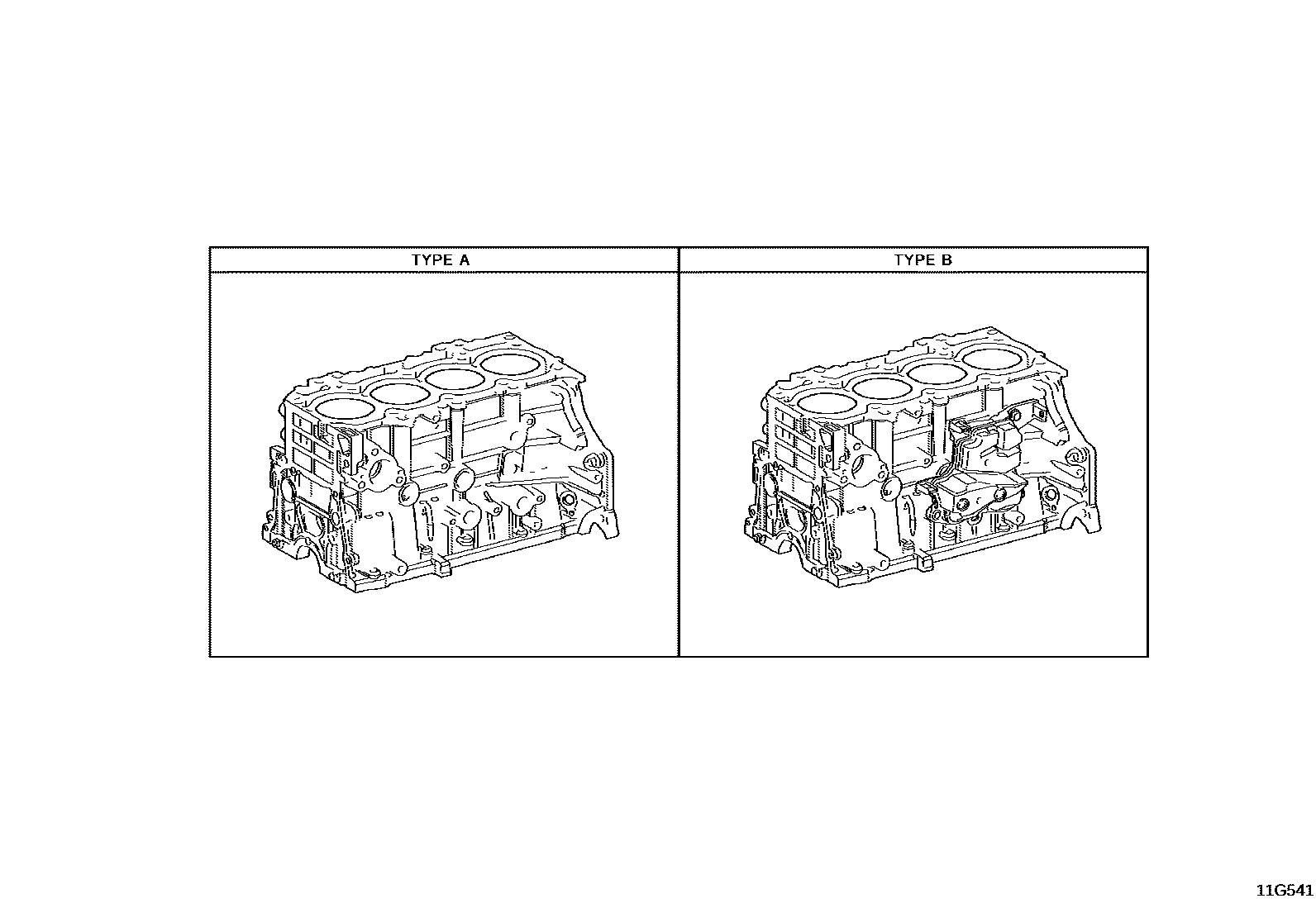

Toyota RAV4 Cylinder Block EPC diagram — 11G541
Cylinder Block — 11G541 (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
11361JFlywheel housing bottom cover11361-25010
11363AFlywheel housing side cover11363-33010
11401Cylinder block sub-assembly11410-29505 · 11410-29515 · 11410-29685 · 11410-29695 · 11410-F9010 · 11410-F9060 · 11410-F9320 · 11410-F9340
11401Gcrankshaft position sensor90919-05094 · 90919-05095 · 90919-A5005 · 90919-A5006
11401LSEAL, ENGINE REAR OIL90311-90010 · 90311-A0035
11401VJOINT TORIQUE, CAPTEUR POSITION VILEBREQUIN90301-11039
11411ARing pin (for cylinder block No. 1)90253-14003
11416Bolts (for crankshaft bearing cap assembly)90910-02197 · 90910-A2015
11420Reinforce crankcase assembly11420-25010 · 11420-F0010
11432RNo. 1 headed straight thread plug (for cylinder block)90341-18023
11432SNo. 2 headed straight thread plug (for cylinder block)90341-12012
11432VNo. 2 straight thread plug gasket (for cylinder block)90430-12031 · 90430-A0006
11434ADirect sales (for timing gear cover assembly)90250-06003 · 90250-A0028
11434BDirect sales (for clutch housing assembly)90250-10113
11434JRing pin (for cylinder head assembly)90253-14003
11434NDirect sales (for water inlet housing)90250-06003 · 90250-A0028
11434QDirect sales (for crankcase)90250-06003 · 90250-A0028
11434RDirect selling (for drive shaft bearing bracket)90250-06003 · 90250-A0028
11445Cylinder block water jacket spacer11445-25010 · 11445-F0010
11452Engine oil level gauge guide11452-25010 · 11452-F0010
11452BO-ring (for oil level gauge guide)96741-19010
12101AScrew plug (for draining oil from the oil pan)90341-12012 · 90341-A0007
12101BGasket (for oil pan drain plug)90430-12031 · 90430-A0006
12102ANo. 2 oil pan sub-assembly12102-25010 · 12102-F0010
13620BEngine balancer assembly13620-25010 · 13620-F0010
15250ENS. SOUPAPE, COMMANDE PRESSION HUILE15250-25010 · 15250-F0020
15301Engine oil level scoring assembly15301-25030 · 15301-F0010
15471AGasket (for cylinder block)90430-18008 · 90430-A0003
15703ASOUS-ENSEMBLE SOUPAPE, GICLEUR GRAISSAGE15703-25011
15708No. 1 oil nozzle sub-assembly15708-25010
15709No. 2 oil nozzle sub-assembly15709-25010
17169AExhaust manifold No. 3 heat shield17169-25021 · 17169-25030 · 17169-F0050
28193Starter hole vibration isolation pad28193-25010
