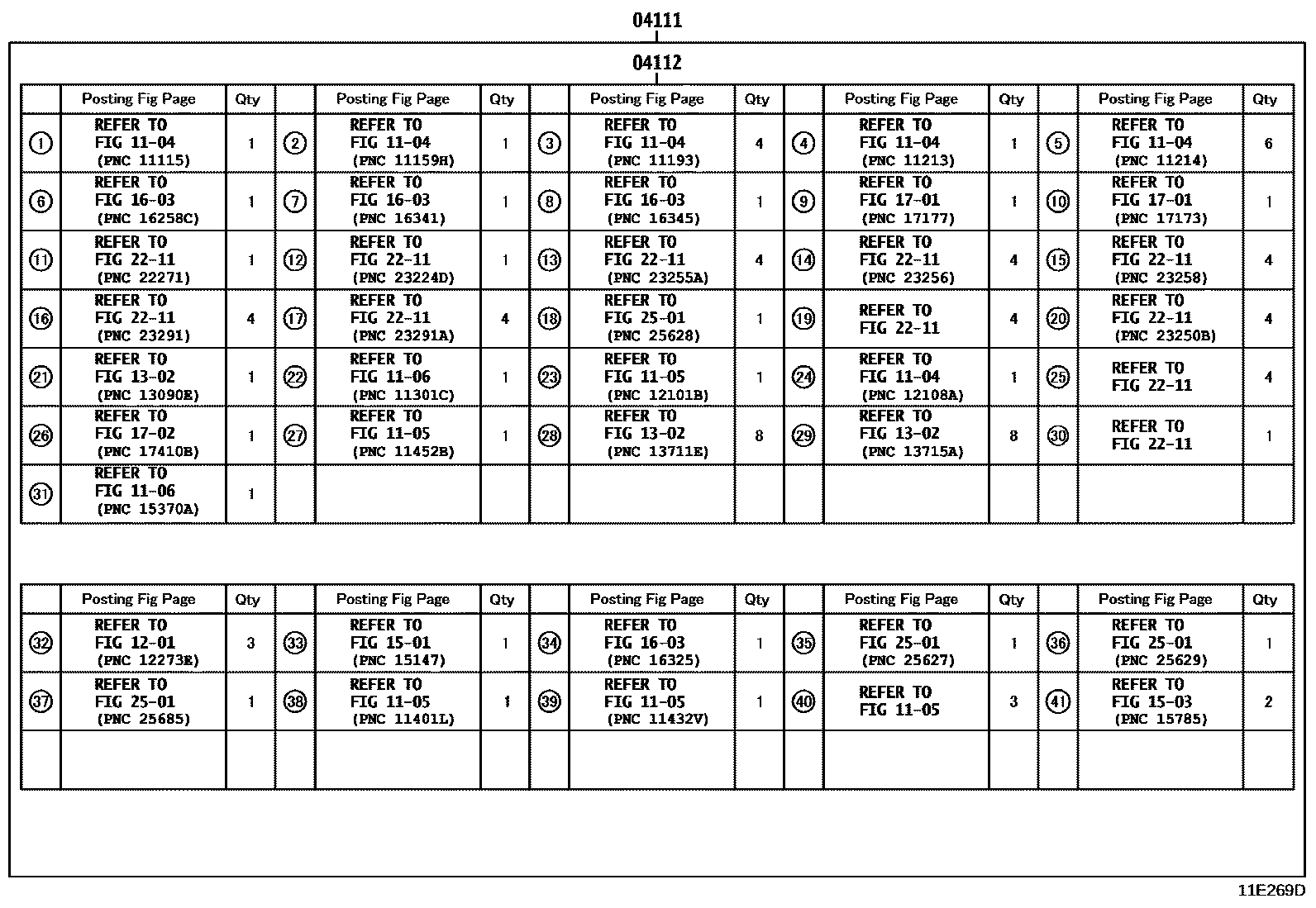

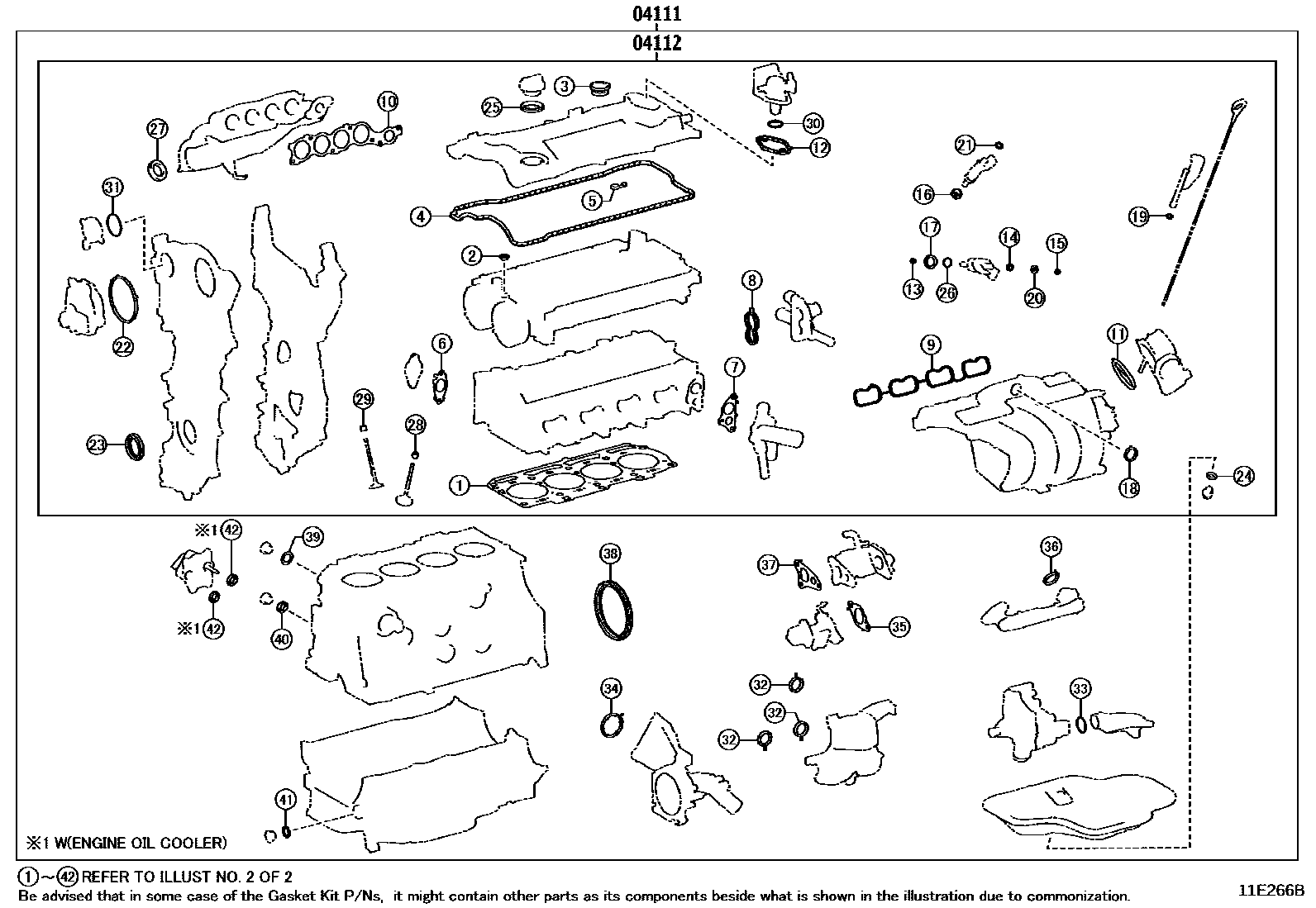

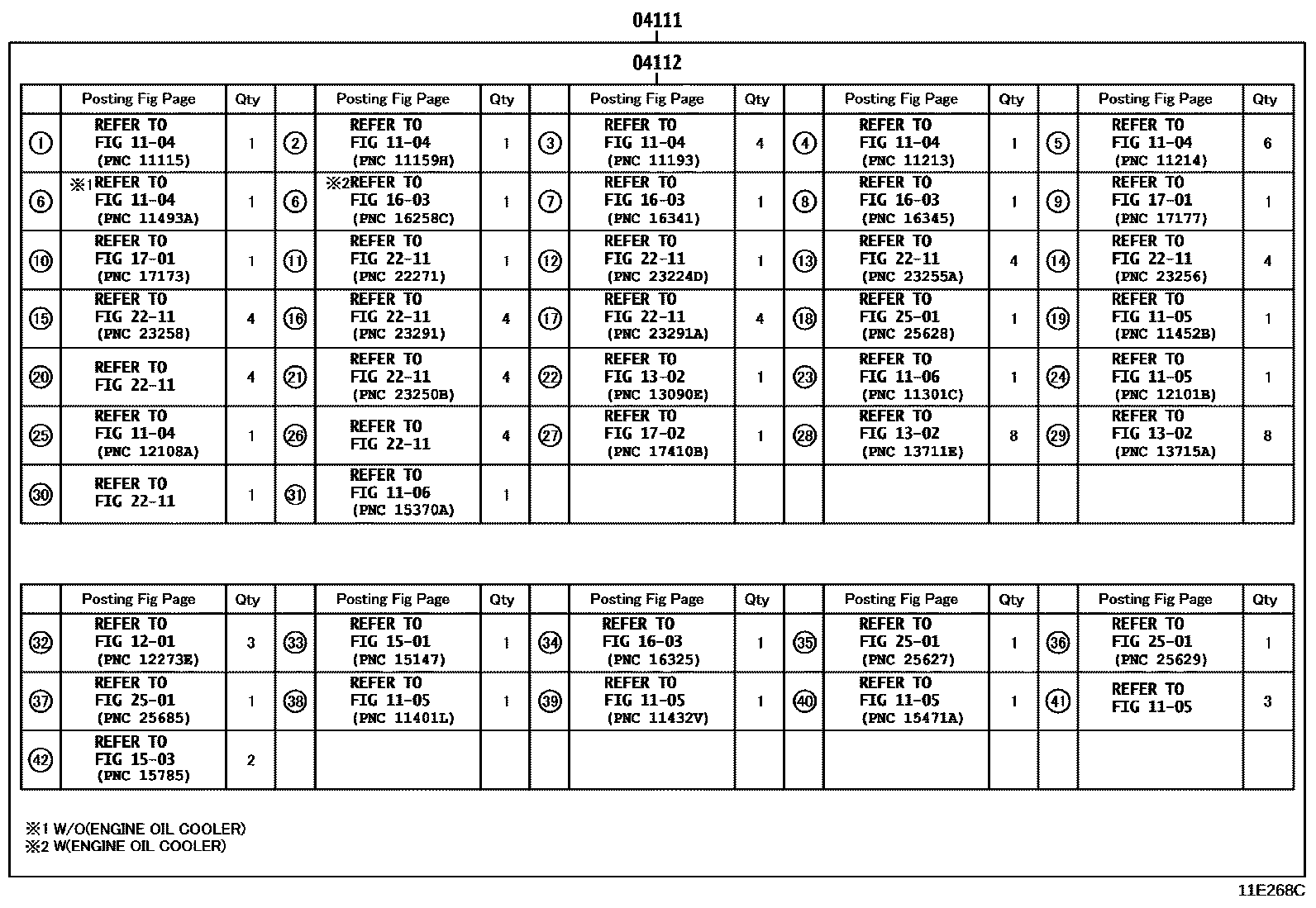

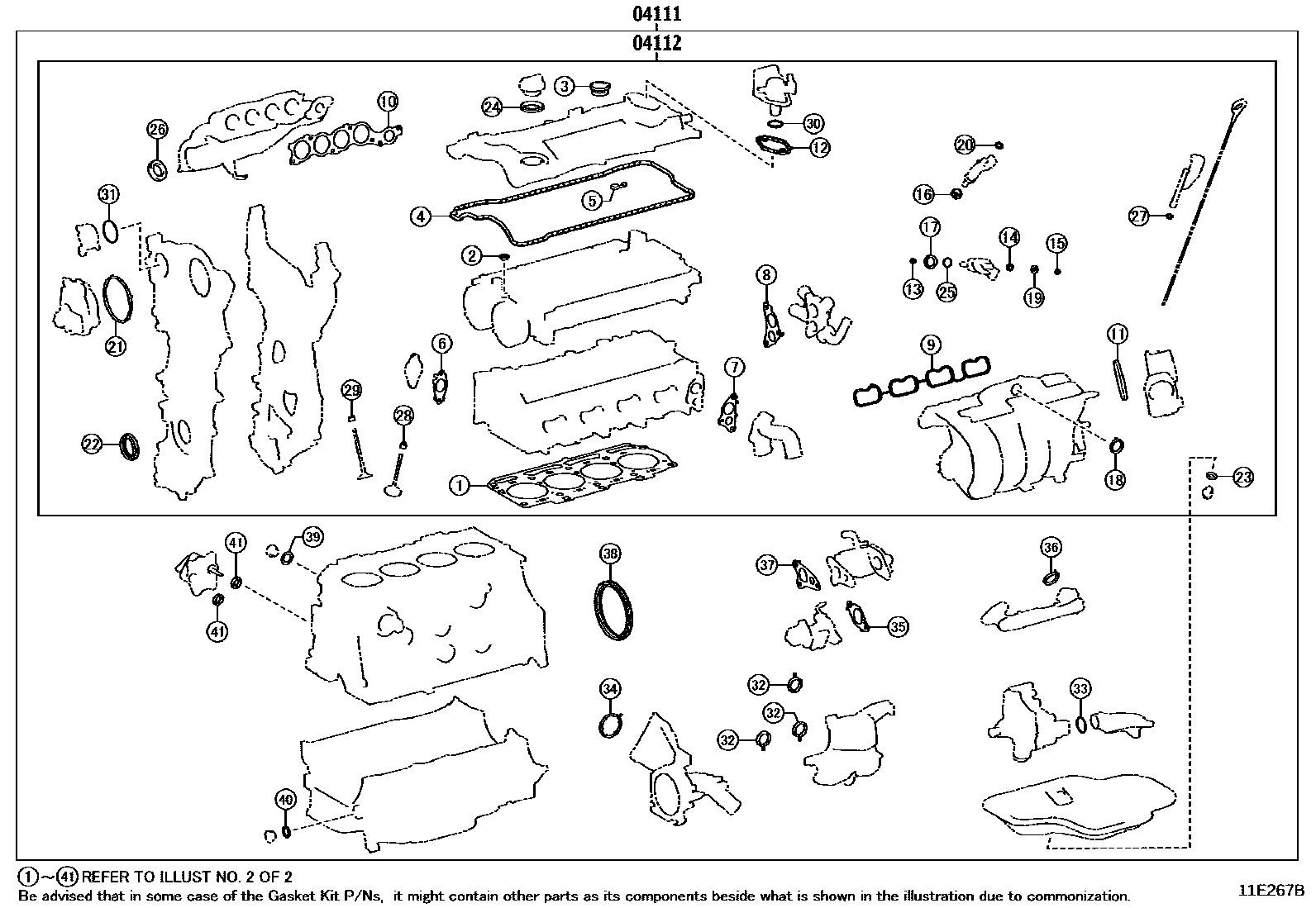

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-F0012 · 04111-F0030 · 04111-F0040 · 04111-F0122 · 04111-F0142 · 04111-F0150 |
| 04112 | Engine valve grinding pad assembly | 04112-F0010 · 04112-F0012 · 04112-F0020 · 04112-F0022 |
