Toyota RAV4 Short Block Assembly — Figure 1102

Toyota RAV4 EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

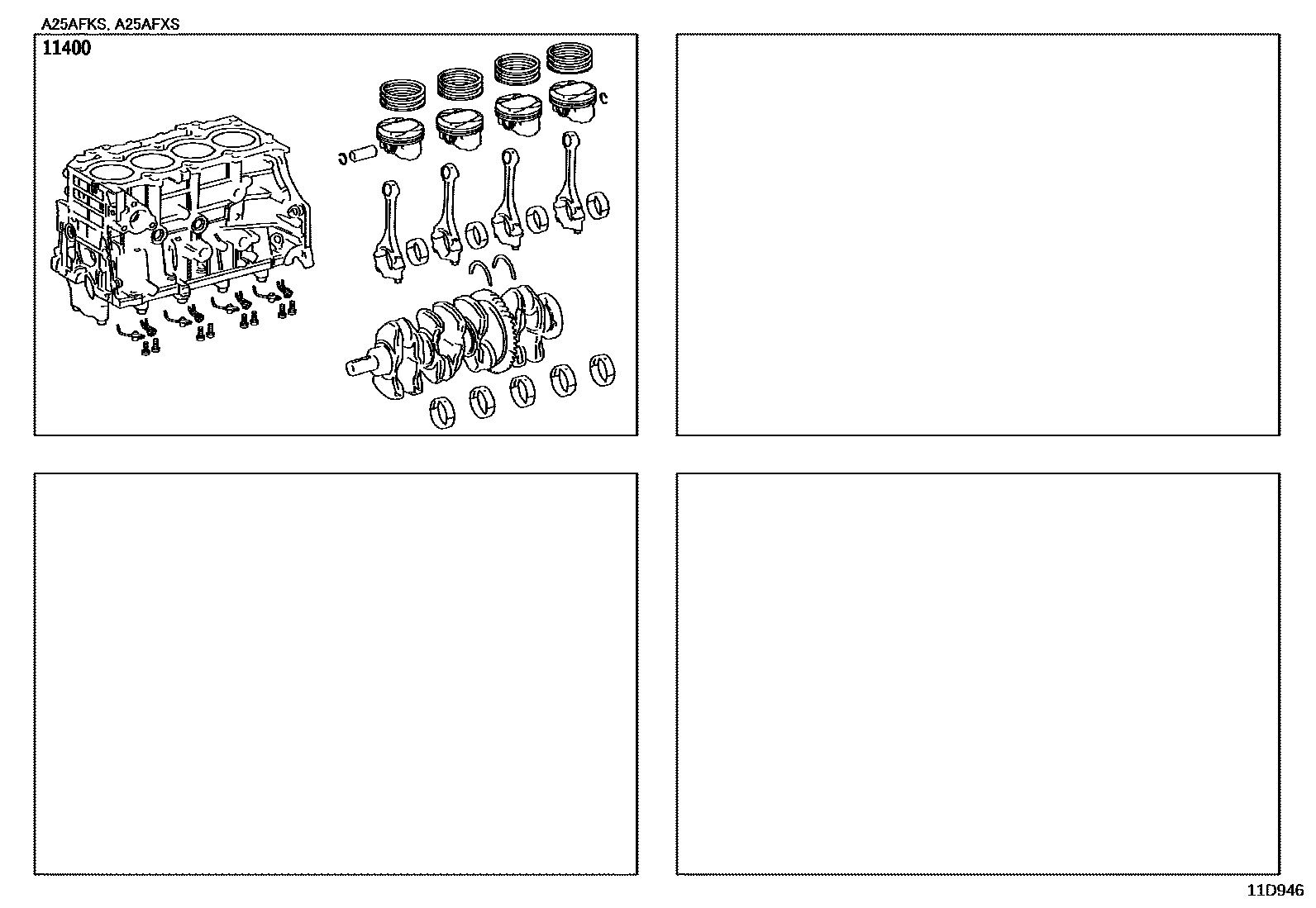

Toyota RAV4 Short Block Assembly EPC diagram — 11D946
Short Block Assembly — 11D946 (201812 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-25051 · 11400-25140 · 11400-F0011 · 11400-F0030 · 11400-F0040 · 11400-F0120 · 11400-F0140 · 11400-F0150
